Project Description
AKS 70|VDM 62
Overview
This compact, powerful ride-on sweeper with a powerful Yanmar diesel motor is ideal for cleaning medium-sized outdoor areas. This ride-on sweeper with a robust steel construction can easily master inclines of up to 20%. A consistently good sweeping performance is guaranteed thanks to the 6 m² filter surface, which can be efficiently cleaned during operation with the electrical filter shaker.
Technical key data
- Theoretical coverage max. 8850 m²/h
- Working width max.1150 mm
Suction yes
- Traction front wheel
- Brush motor yes
AKS 70|VDM 62
Product highlights
Overthrow principle
Effective sweeping: swept-up waste container is filled to the maximum for longer operating periods.

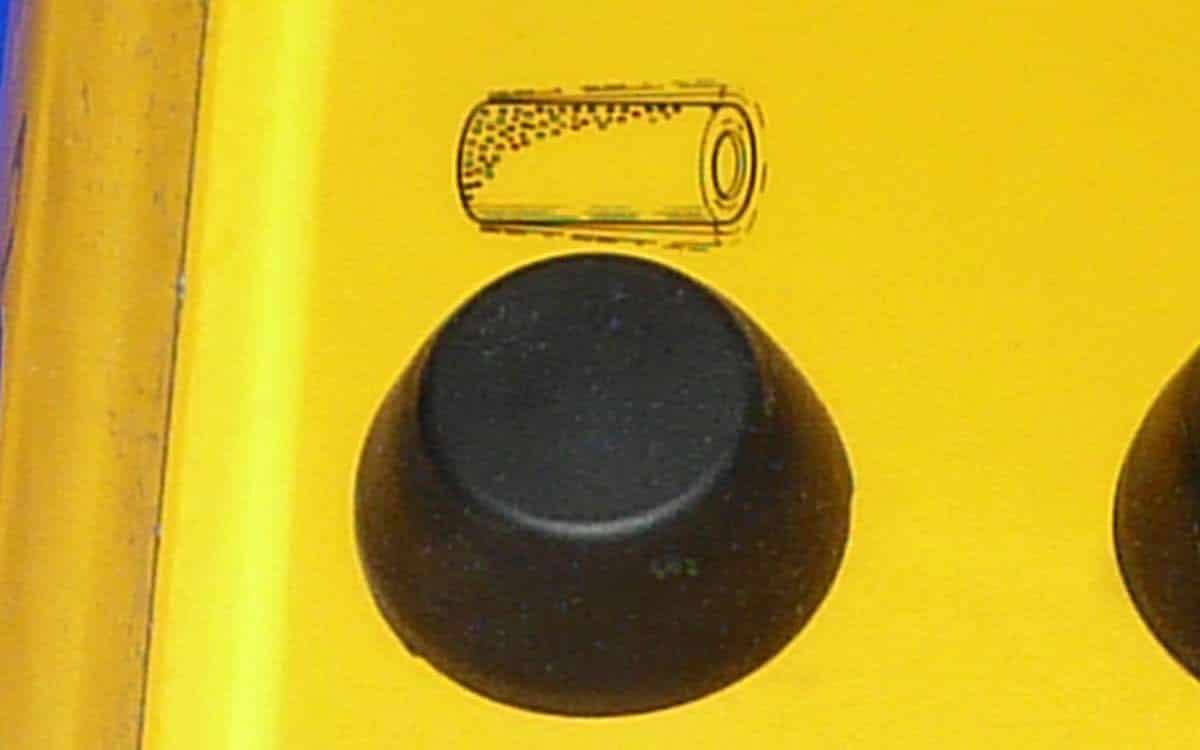

Electrical filter shaker
Simply shake the filter during normal operations to achieve constantly good sweeping and suction results.
Steel frame
Extremely robust steel construction. Shock absorbers on the side brushes protect the machine and other objects alike.

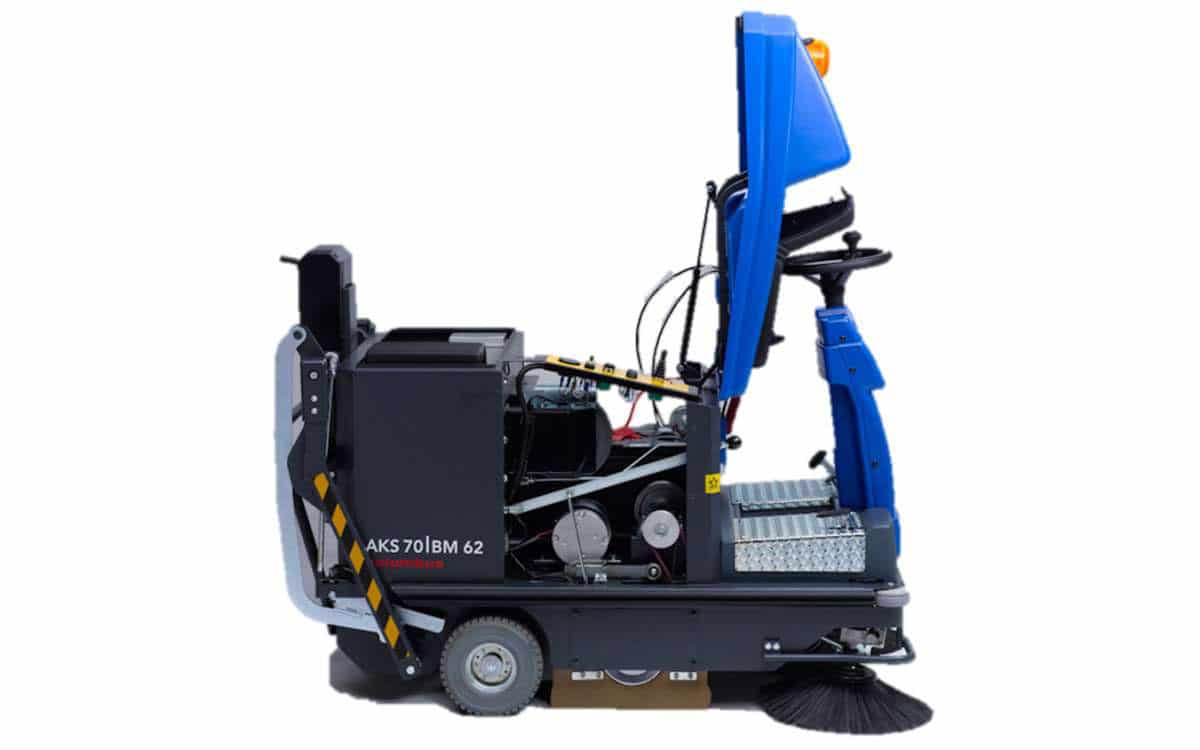

Traction drive protection
Filters, brush unit and motor all installed separately from each other to guarantee years of reliable operation.

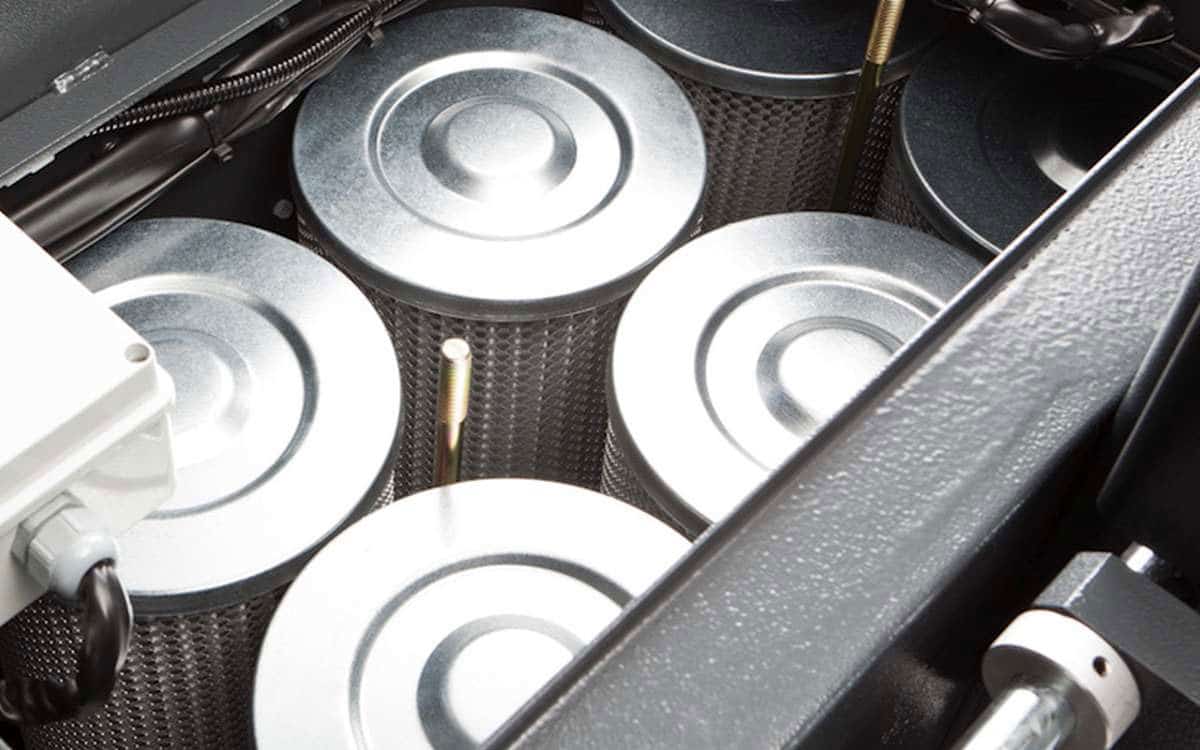

Large cylindrical filter
Large cylindrical polyester filter with 6m² filter area as standard.

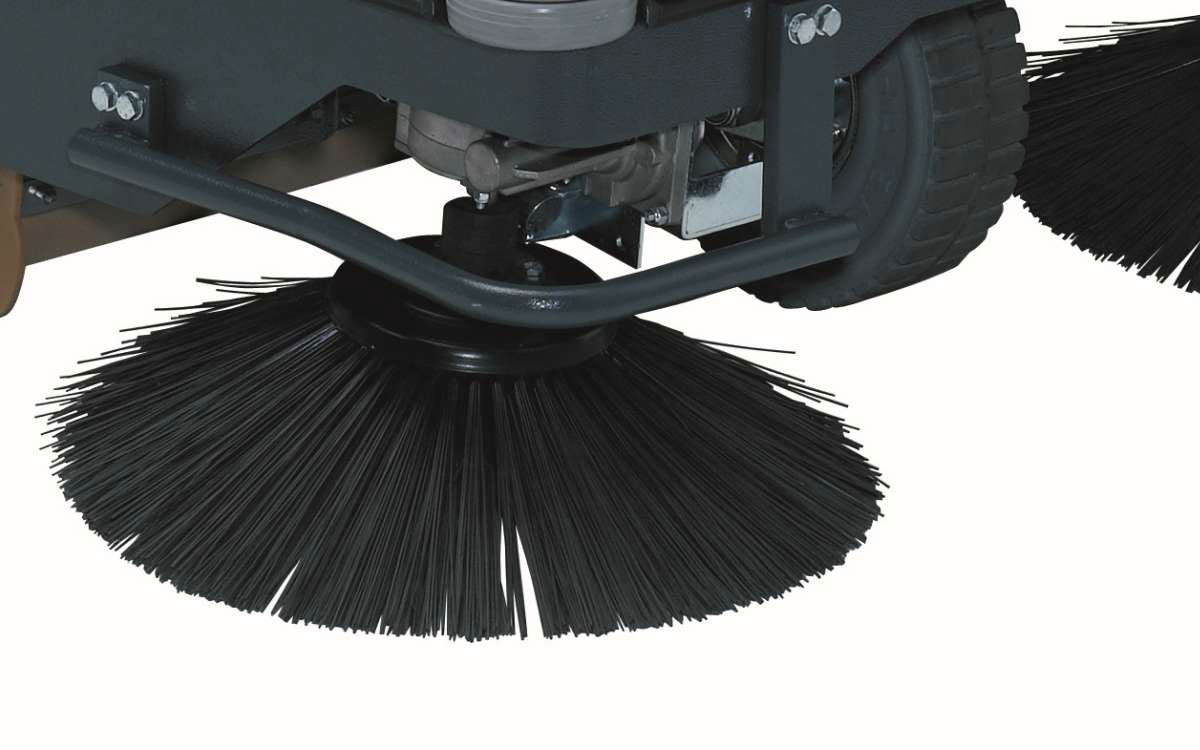

Sweep right up to the edge
Sweeps thoroughly in every corner, and right up to the wall.
- Easy-to-service components
Well thought-through design provides quick and easy access to all vital machine components.
- Bulk waste flap
Easily picks up coarse particles during normal operations.
- Break in suction flow
Protects the filter when moving over wet surfaces.
- Extendible swept-up waste container
The plastic swept-up waste container can be emptied quickly and easily.
- Standard: extremely robust sweeping tools
Polypropylene brushes and side brushes: designed to handle the most challenging tasks.
AKS 70|VDM 62
Optional equipment
Brush and side brushes made of PP + wire
Optimum dust absorption and low wear when used on coarse surfaces, especially outdoors.
Roller Brush and Side Brush Nature
Optimum dust absorption on sensitive surfaces is possible with soft natural bristles.

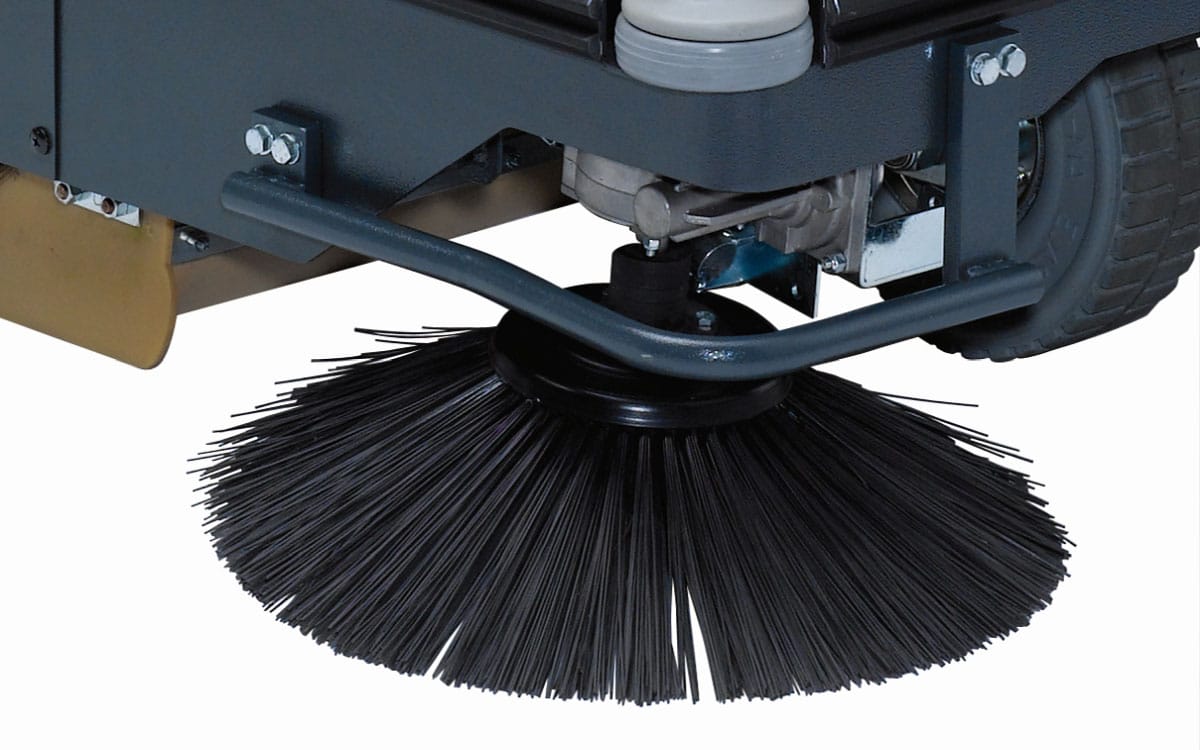

Side brush guard
Increased protection for machine, brushes and inventory.
Hepa-Filter
Maximum safety for the environment and users through filtration of fine dust, suspended particles and very small particles.

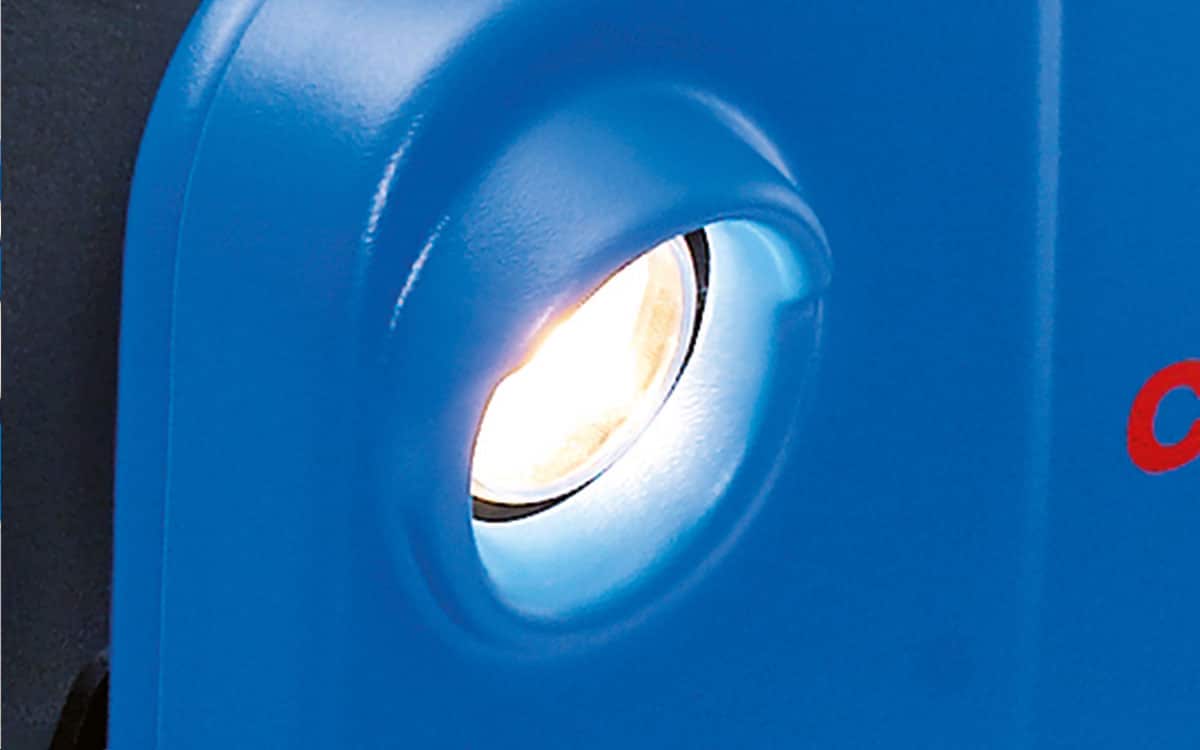

Front light
SAFETY after all: Best visibility during work and on traffic ways.

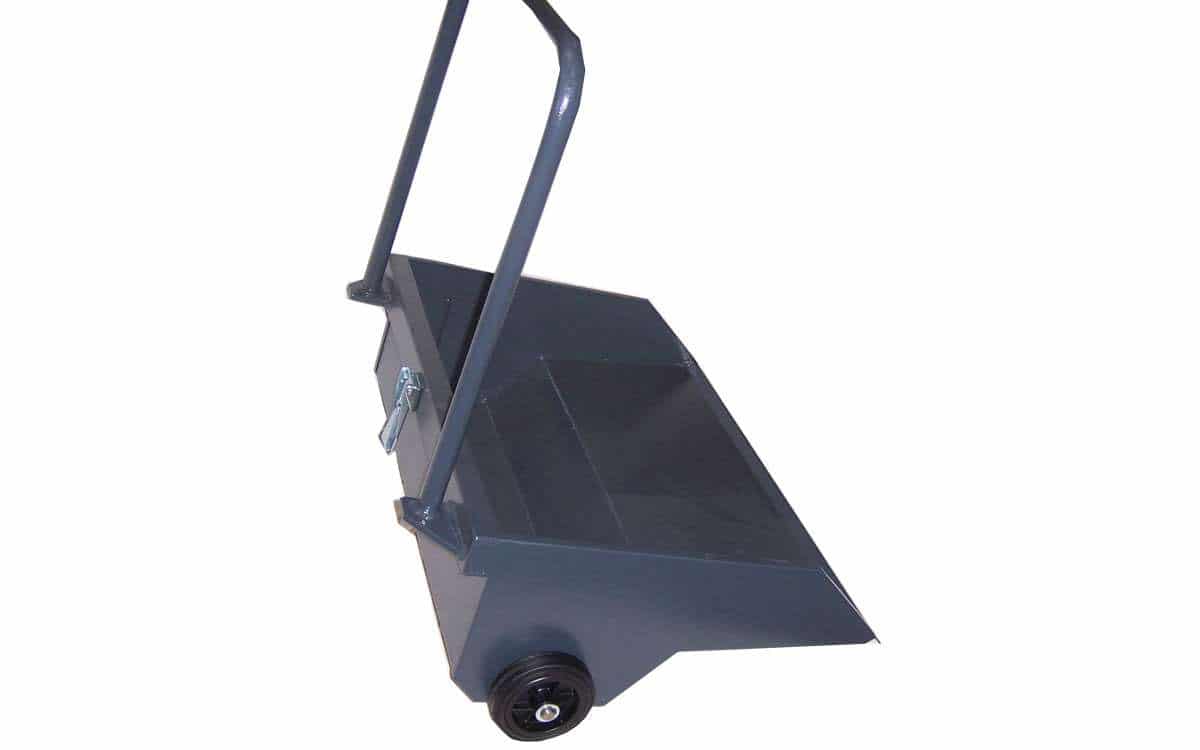

Sweep container in steel
Maximum stability even after many years of use in heavy-duty areas.
- Protective roof
Maximum safety for use in high-bay warehouses. Meets IEC 60335-2-72 requirements.
AKS 70|VDM 62
Technical data
| Technical data | |
|---|---|
| L x W x H | 1430 x 910 x 1140 mm |
| Sweeping principle | overthrow |
| Working width w/o side brushes | 700 mm |
| with 1 side brush | 920 mm |
| with 2 side brushes | 1150 mm |
| Empty weight w/o battery | 325 kg |
| Operating weight | 402 kg |
| Traction / drive | |
|---|---|
| Mode of drive | Diesel motor |
| Yanmar | |
| Performance | 3,5 kW |
| Traction drive | hydraulic, front wheel |
| Climbing ability | 20 % |
| Speed max | 7,7 km/h |
| Suction | |
|---|---|
| Dust suction | yes |
| Waste container | 62 l |
| Filter | |
|---|---|
| Filter size | 6 m² |
| Shaker | electric |
AKS 70|VDM 62
Accessories
As a specialist for contract cleaning, columbus offers you, in addition to first-class machines, a wide range of accessories for an individual adaption to your equipment and your requirements.
