Ride-on

AKS 80|BM 108

AKS 80|BM 108

Overview

This compact, emission-free, battery-powered ride-on sweeper with a working width of 1300mm and two side brushes as standard ensures a consistently clean sweeping performance on medium-sized indoor and outdoor areas. The electrical filter shaker enables consistently efficient cleaning of the 6.4 m² filter surface. With a robust steel construction, the AKS 80|BM 108 can handle all heavy-duty applications.

Technical key data
  • Theoretical coverage max. 9000 m²/h
  • Working width max. 1260 mm
  • Suction yes

  • Traction front wheel
  • Brush motor yes
AKS 80|BM 108
Product highlights
Vielseitig reinigen
Overthrow principle

Effective sweeping: swept-up waste container is filled to the maximum for longer operating periods.

Vielseitig reinigen

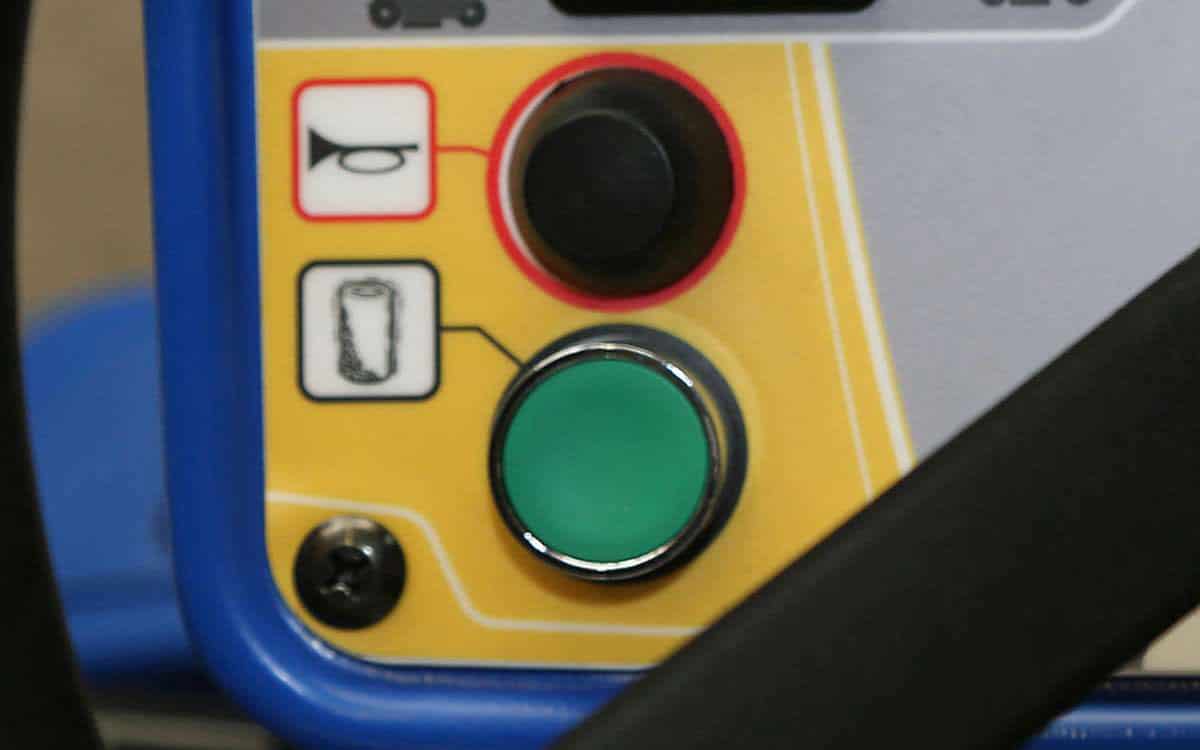

Electrical filter shaker

Simply shake the filter during normal operations to achieve constantly good sweeping and suction results.

Vielseitig reinigen

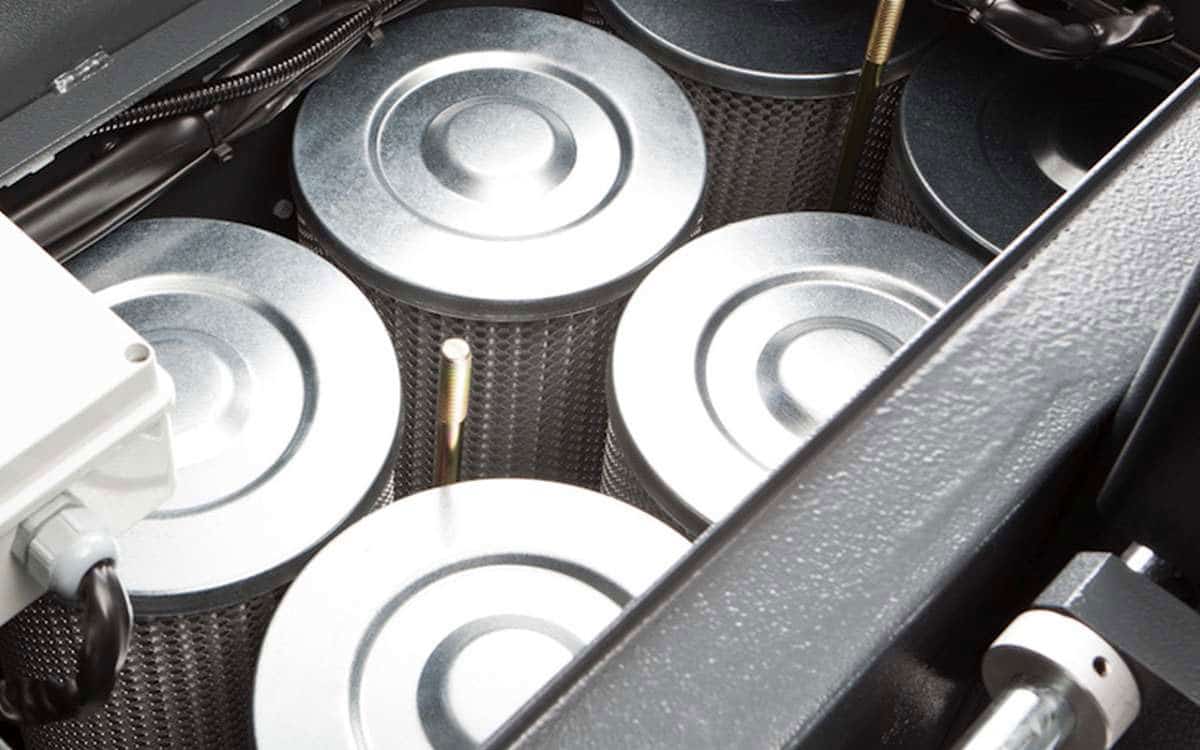

Large cylindrical filter

Large cylindrical polyester filter with 6m² filter area as standard.

Vielseitig reinigen

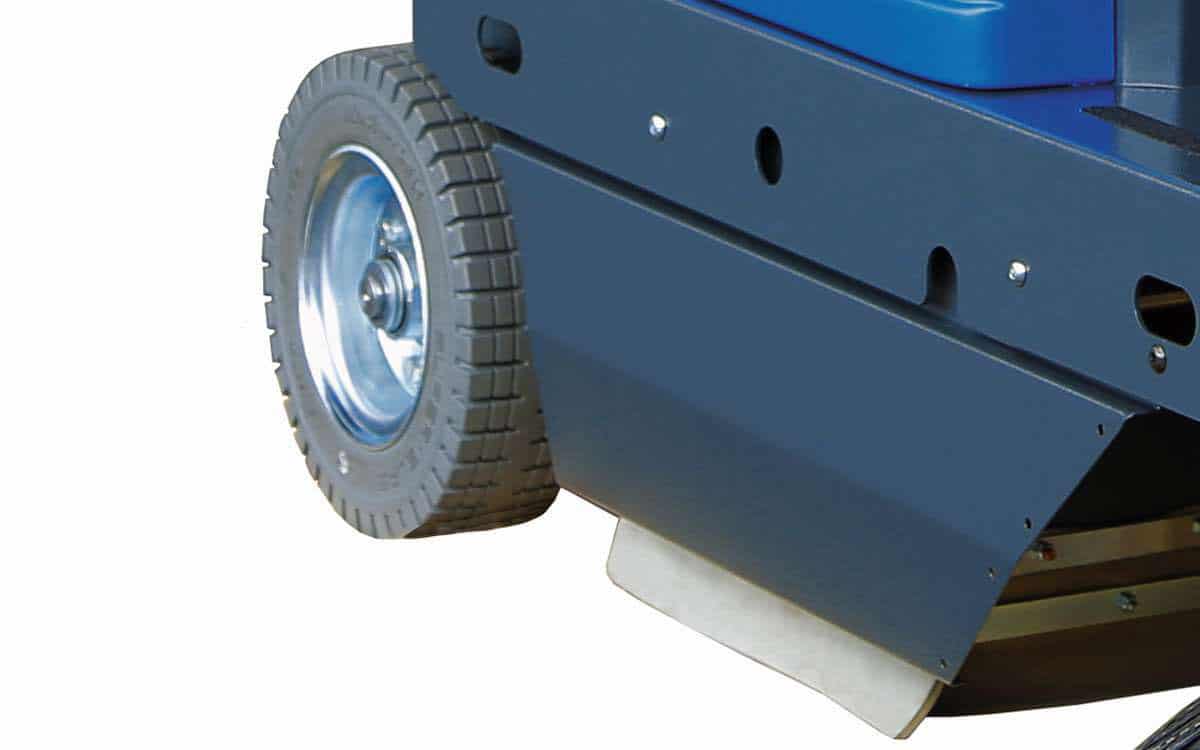

Non-marking equipment

Sweeps clean without leaving a trace: non-marking wheels and lateral sealing rubbers for indoor use.

Vielseitig reinigen

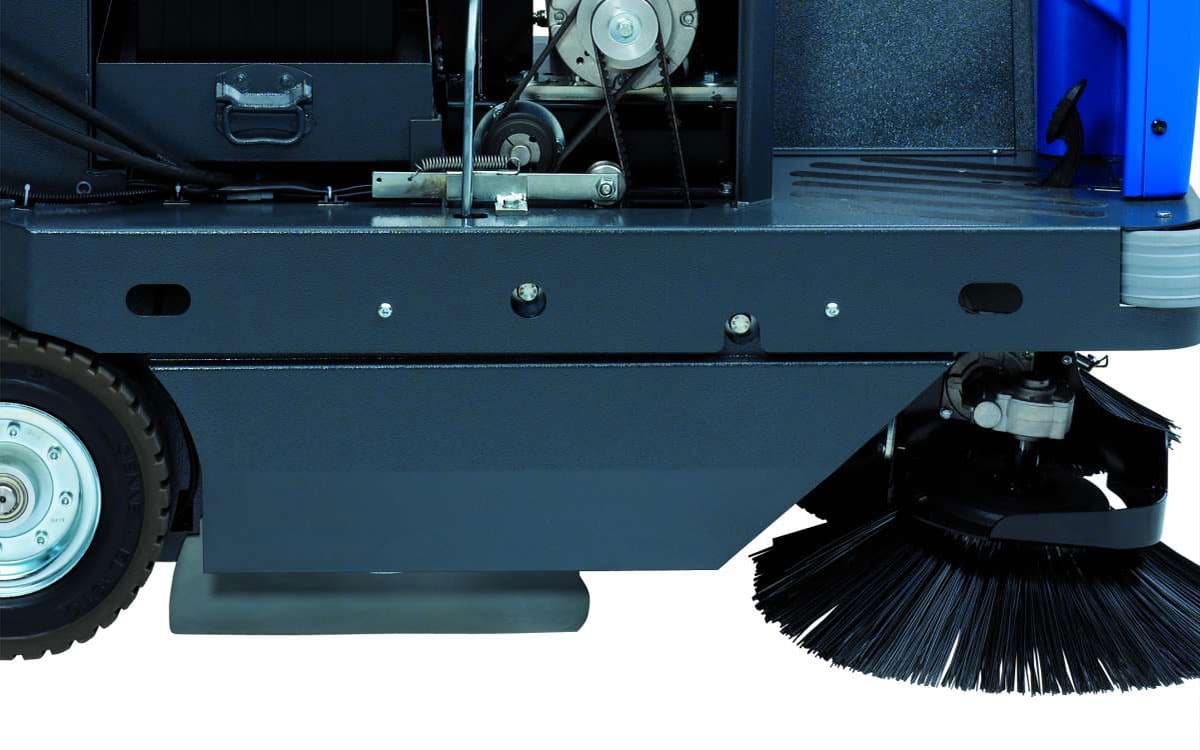

Steel frame

Extremely robust steel construction. Shock absorbers on the side brushes protect the machine and other objects alike.

Vielseitig reinigen
Subdivided swept-up waste container

Three individual removable internal plastic containers make it easier to empty even large quantities of sweepings.

  • Sweep right up to the edge

Sweeps thoroughly in every corner, and right up to the wall.

  • Easy-to-service components

Well thought-through design provides quick and easy access to all vital machine components.

  • Bulk waste flap

Easily picks up coarse particles during normal operations.

  • Break in suction flow

Protects the filter when moving over wet surfaces.

  • Traction drive protection

Filters, brush unit and motor all installed separately from each other to guarantee years of reliable operation.

  • Standard: extremely robust sweeping tools

Polypropylene brushes and side brushes: designed to handle the most challenging tasks.

AKS 80|BM 108
Optional equipment
Vielseitig reinigen
Brush and side brushes made of PP + wire

Optimum dust absorption and low wear when used on coarse surfaces, especially outdoors.

Vielseitig reinigen
Roller brush nature

Optimum dust absorption on sensitive surfaces is possible with soft natural bristles.

Vielseitig reinigen
High-level discharge

Convenient emptying directly into the container with hydraulic high emptying from 40 to 143 cm.

Vielseitig reinigen
Protective roof

Maximum safety for use in high-bay warehouses. Meets IEC 60335-2-72 requirements.

Vielseitig reinigen
Hepa-Filter

Maximum safety for the environment and users through filtration of fine dust, suspended particles and very small particles.

Vielseitig reinigen
Polyesterfilter M-BIA

Polyester pocket filter classified according to BIA, filtration level M

  • Fine dust polyester filter

Maximum filtration for all fine dust applications.

AKS 80|BM 108
Technical data
Technical key data
L x W x H 1560 x 1020 x 1300 mm
Sweeping principle overthrow
Working width w/o side brushes 780 mm
with 1 side brush 980 mm
with 2 side brushes 1260 mm
Empty weight w/o battery 359 kg
Operating weight 626 kg
Traction / drive
Mode of drive electro motor
Battery
Performance 285 Ah 5 (2,8 h)
Traction drive electric, front wheel
Climbing ability 20 %
Speed max. 7,5 km/h
Suction
Dust suction yes
Waste container 108 l
Filter
Filter size 6,4 / 5,5** m²
Shaker electric
AKS 80|BM 108
