AKS 88|BM 180

AKS 88|BM 180

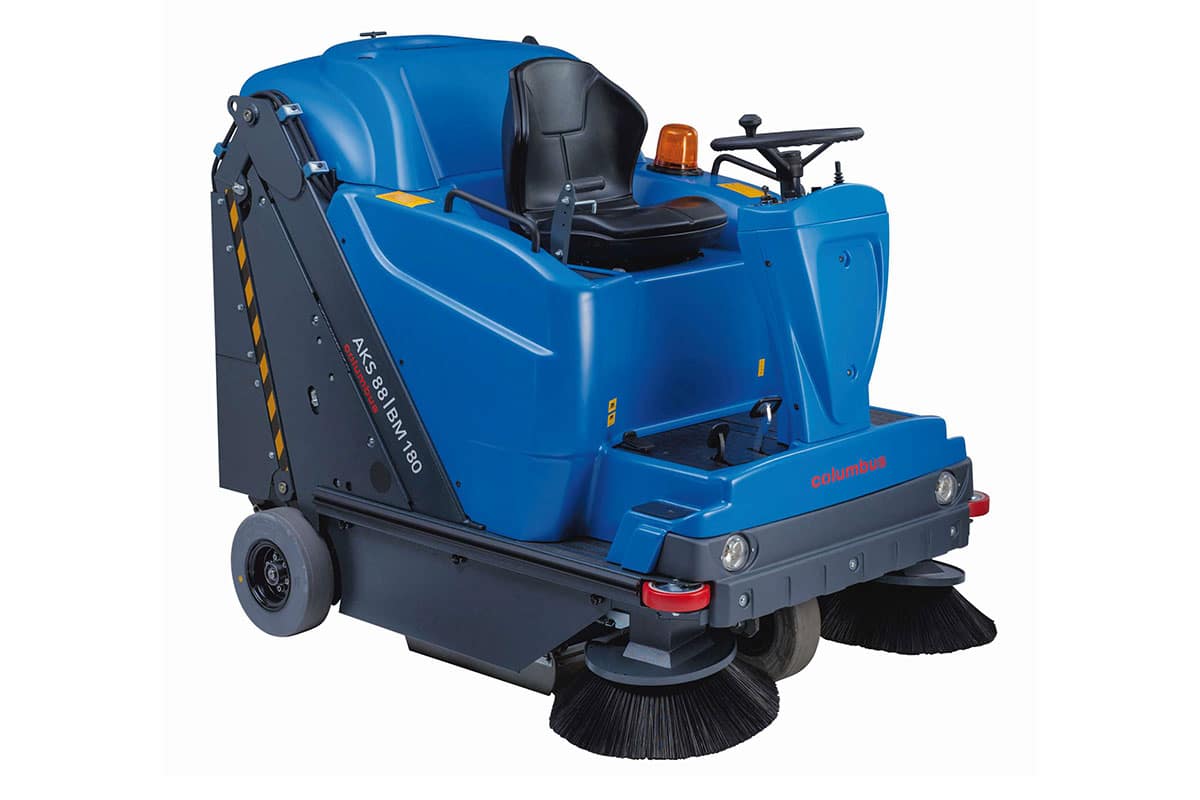

A large, robust ride-on sweeper with emission-free battery operation for professional sweeping results even under heavy-duty conditions. Two side brushes integrated as standard and a self-adjusting brush roller create a total working width of 1440 mm and achieve the best sweeping results, reaching up to 11,500 m²/h. Two powerful suction motors generate amazing suction results without dust turbulence. The large polyester pocket filter with an 11 m² filtrating surface can be cleaned with the electric filter shaker during operation. With the versatile accessories, this ride-on sweeper can be perfectly configured for all requirements.

Technical key data
  • Theoretical coverage max. 11500 m²/h
  • Working width max.1440 mm
  • Suction yes

  • Traction back wheel

  • Brush motor no
AKS 88|BM 180
Product highlights
Vielseitig reinigen
Overthrow principle

Effective sweeping: swept-up waste container is filled to the maximum for longer operating periods.

Vielseitig reinigen

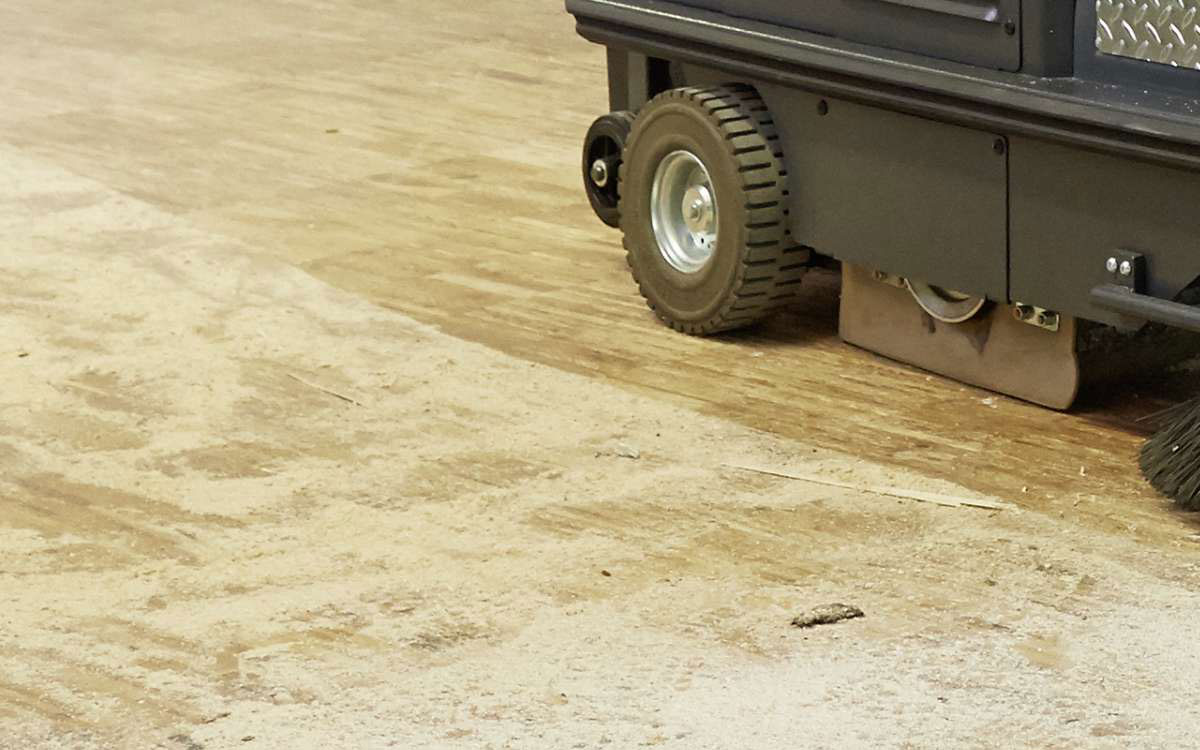

Powerful suction system

Outstanding suction: two powerful suction motors suck in dust particles for a dust-free environment.

Vielseitig reinigen

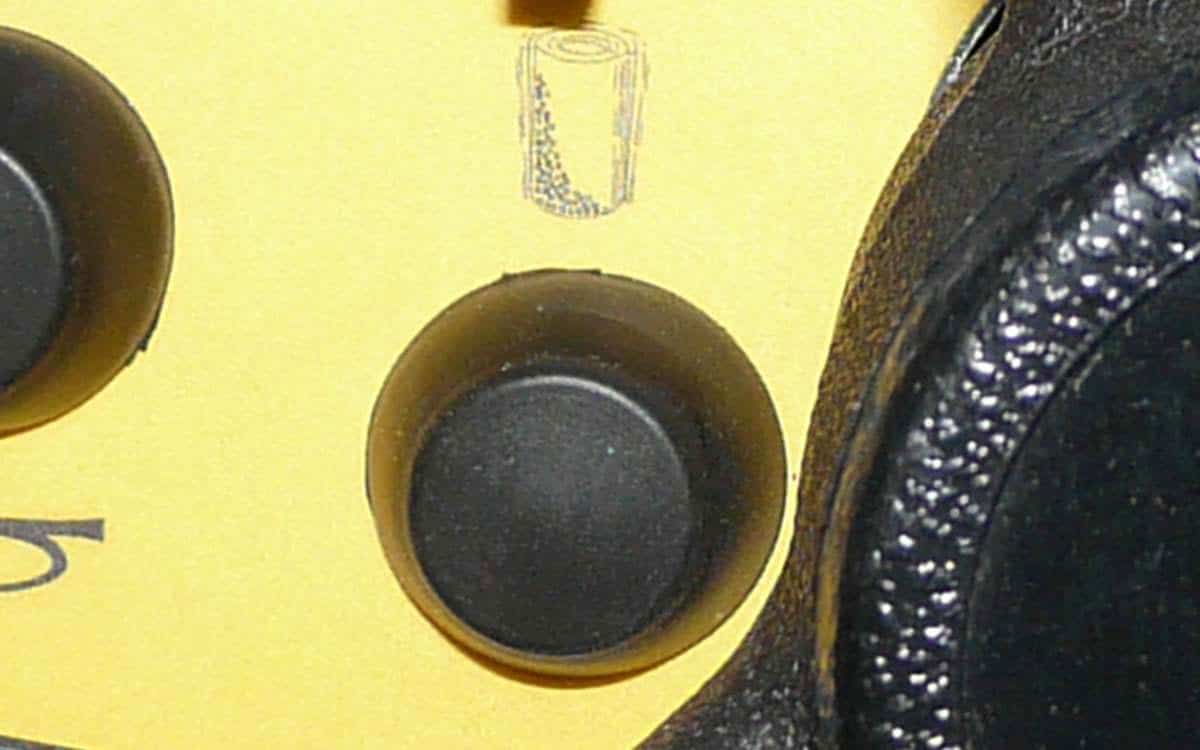

Electrical filter shaker

Simply shake the filter during normal operations to achieve constantly good sweeping and suction results.

Vielseitig reinigen

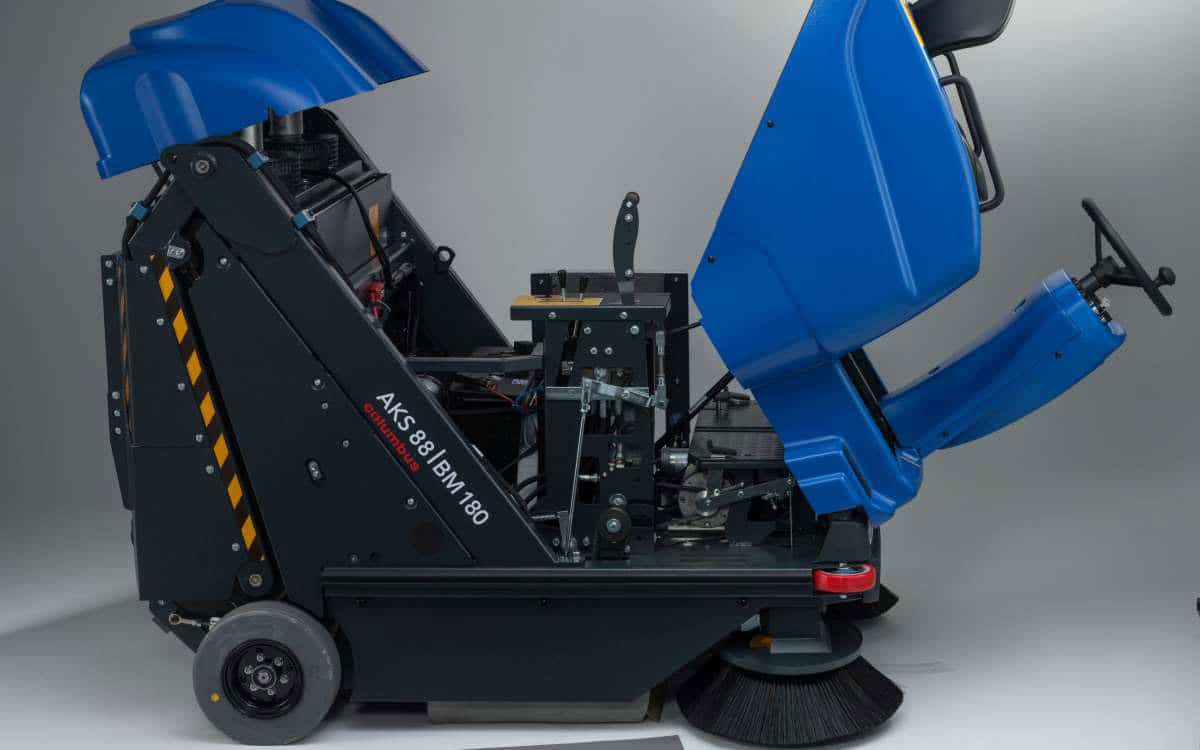

Traction drive protection

Filters, brush unit and motor all installed separately from each other to guarantee years of reliable operation.

Vielseitig reinigen

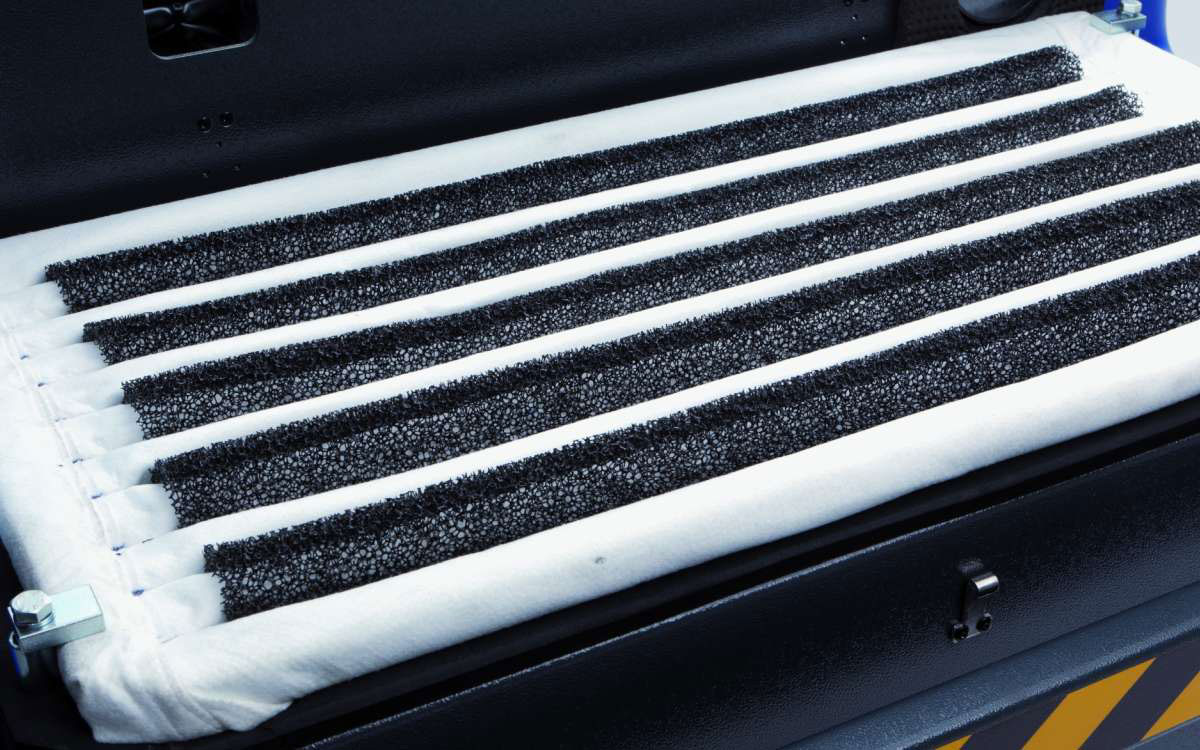

Extra-large filter area

The 11m² filter area of the polyester pocket filter can pick up even the finest dusts.

Vielseitig reinigen
High dumping system as standard

The hydraulically operated high dumping system lifts up to heights 40 to 143 cm for emptying directly into the container.

  • Sweep right up to the edge

Sweeps thoroughly in every corner, and right up to the wall.

  • Easy-to-service components

Well thought-through design provides quick and easy access to all vital machine components.

  • Bulk waste flap

Easily picks up coarse particles during normal operations.

  • Break in suction flow

Protects the filter when moving over wet surfaces.

  • Non-marking equipment

Sweeps clean without leaving a trace: non-marking wheels and lateral sealing rubbers for indoor use.

  • Steel frame

Extremely robust steel construction. Shock absorbers on the side brushes protect the machine and other objects alike.

  • Self-levelling brush system

Always guarantees the best sweeping result: the brush roller automatically adjusts to the correct height.

  • Chain drive

Powerful, low-maintenance: brush roller chain drive.

  • Standard: extremely robust sweeping tools

Polypropylene brushes and side brushes: designed to handle the most challenging tasks.

AKS 88|BM 180
Optional equipment
Vielseitig reinigen
Brush and side brushes made of PP + wire

Optimum dust absorption and low wear when used on coarse surfaces, especially outdoors.

Vielseitig reinigen
Roller Brush Nature

Optimum dust absorption on sensitive surfaces is possible with soft natural bristles.

Vielseitig reinigen

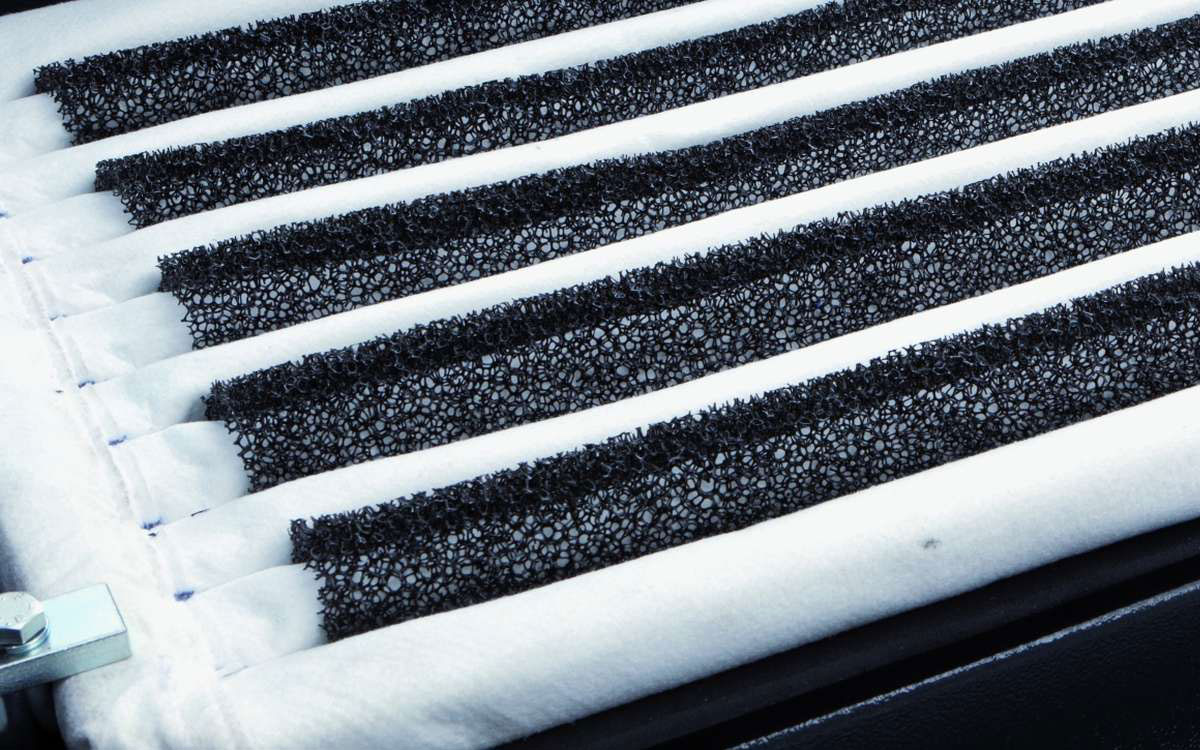

Fine dust polyester filter

Maximum filtration for all fine dust applications.

Vielseitig reinigen
Polyesterfilter M-BIA

Polyester pocket filter classified according to BIA, filtration level M.

Vielseitig reinigen
Protective roof

Maximum safety for use in high-bay warehouses. Meets IEC 60335-2-72 requirements.

AKS 88|BM 180
Technical data
Technical Data
L x W x H 1860 x 1245 x 1545 mm
Sweeping principle overthrow
Working width w/o side brushes 880 mm
with 1 side brush 1160 mm
with 2 side brushes 1440 mm
Empty weight w/o battery 684 kg
Operating weight 1119 kg
Traction / drive
Mode of drive electro motor
Performance 480 Ah 5 (6-7 h)
Traction drive back wheel
Climbing ability 16 %
Speed max 7,9 km/h
Dust suction yes
Waste container 180 l
Filter size 11 m²
Shaker electric
