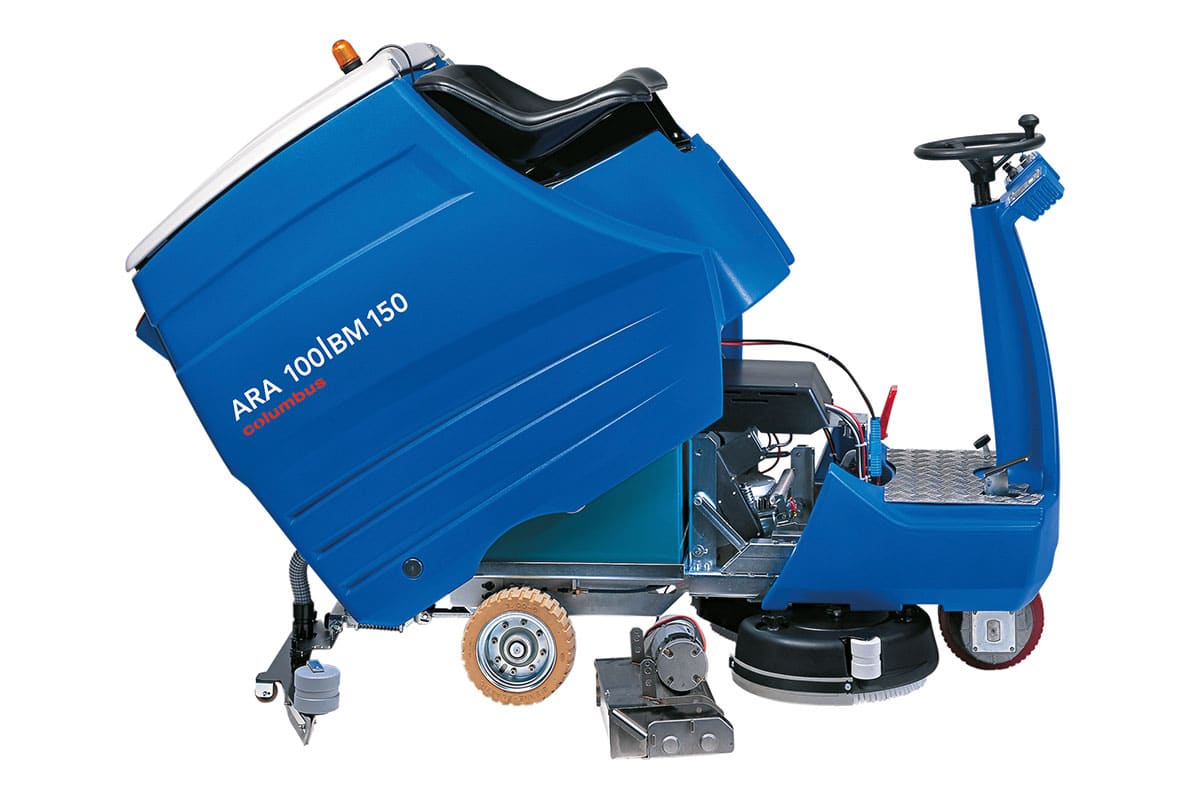

Ride-on

ARA 100|BM 150

ARA 100|BM 150

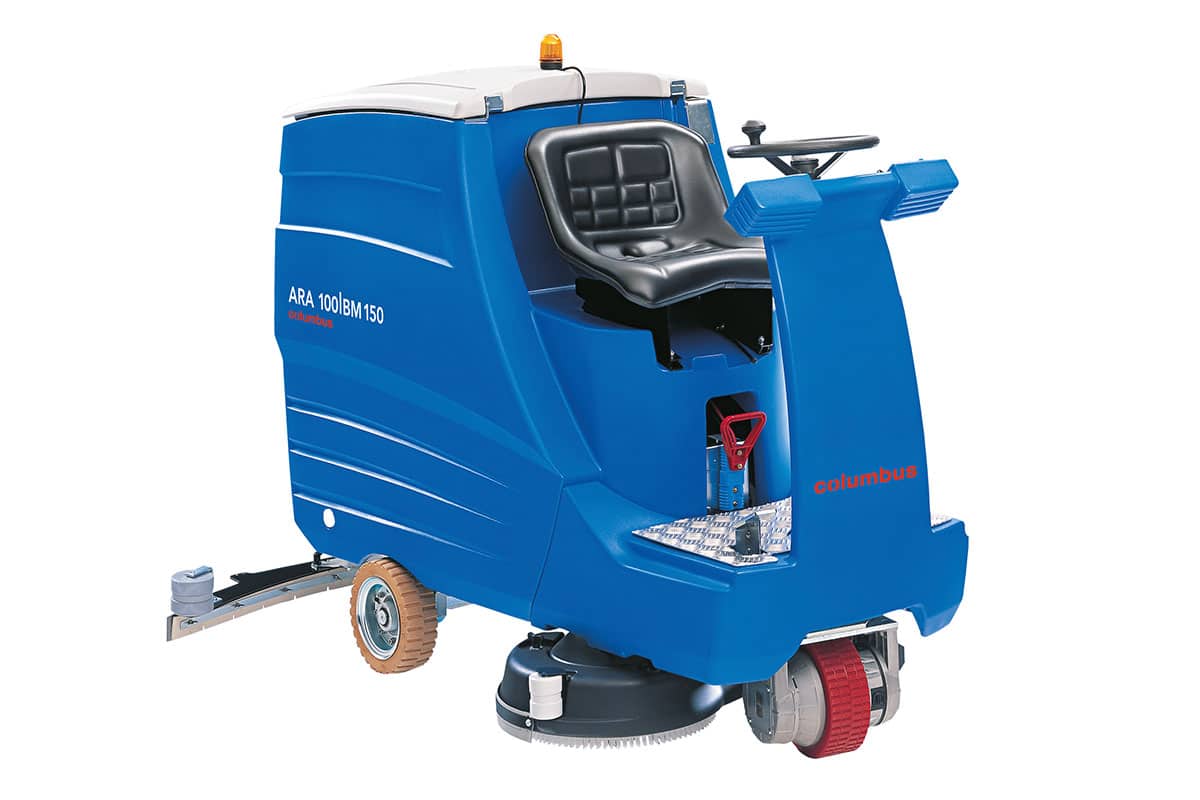

Overview

High-level comfort for large floor areas: this ride-on scrubber dryer with a large working width of 100 cm features high-quality cleaning as standard: the “One touch” function activates all preset functions such as water quantity, brush pressure and squeegee tool. Proven technology, good seat ergonomics with good all-round visibility ensure the best working conditions. Designed for long and hard cleaning operations, this powerful machine guarantees clean floors that can be walked on straight away.

Technical key data
  • Tank capacity 150 l
  • Working width 1000 mm
  • Theoretical coverage max. 7500 m²/h
  • Traction motor yes
ARA 100|BM 150
Product highlights
Vielseitig reinigen

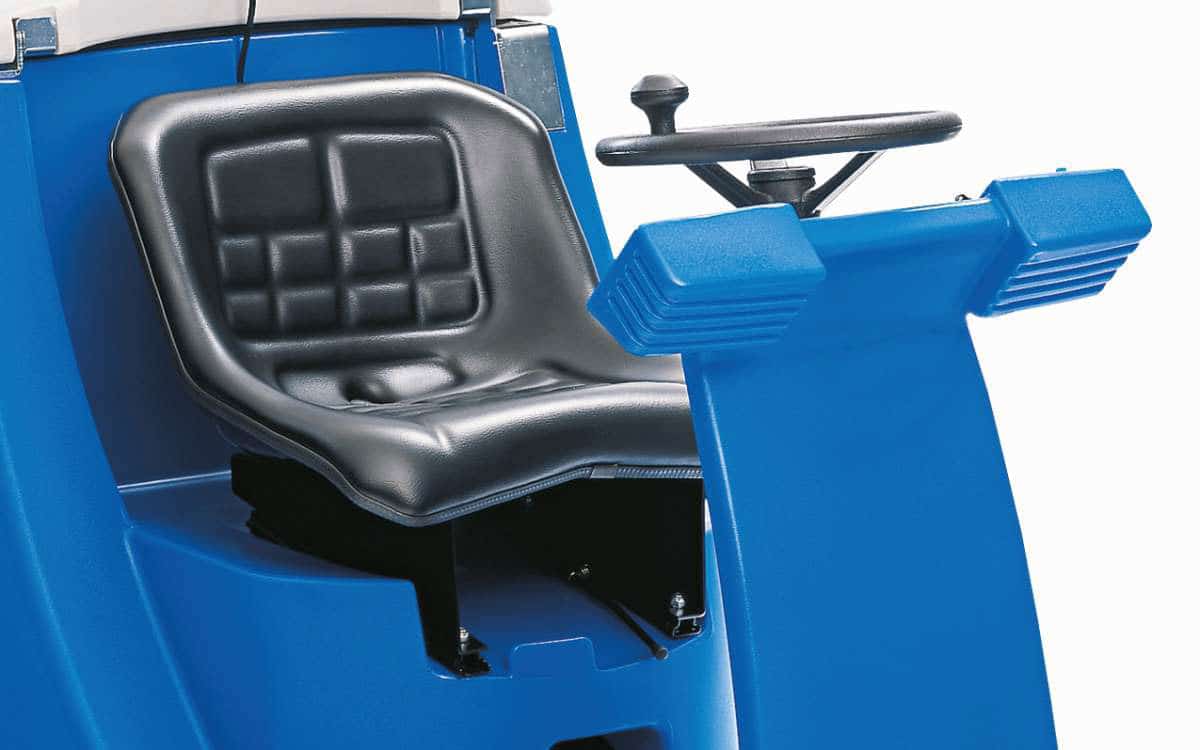

Ergonomic machine design

Fatigue-free riding position with good all-round visibility, ideal for longer operating periods and cleaning large areas.

Vielseitig reinigen

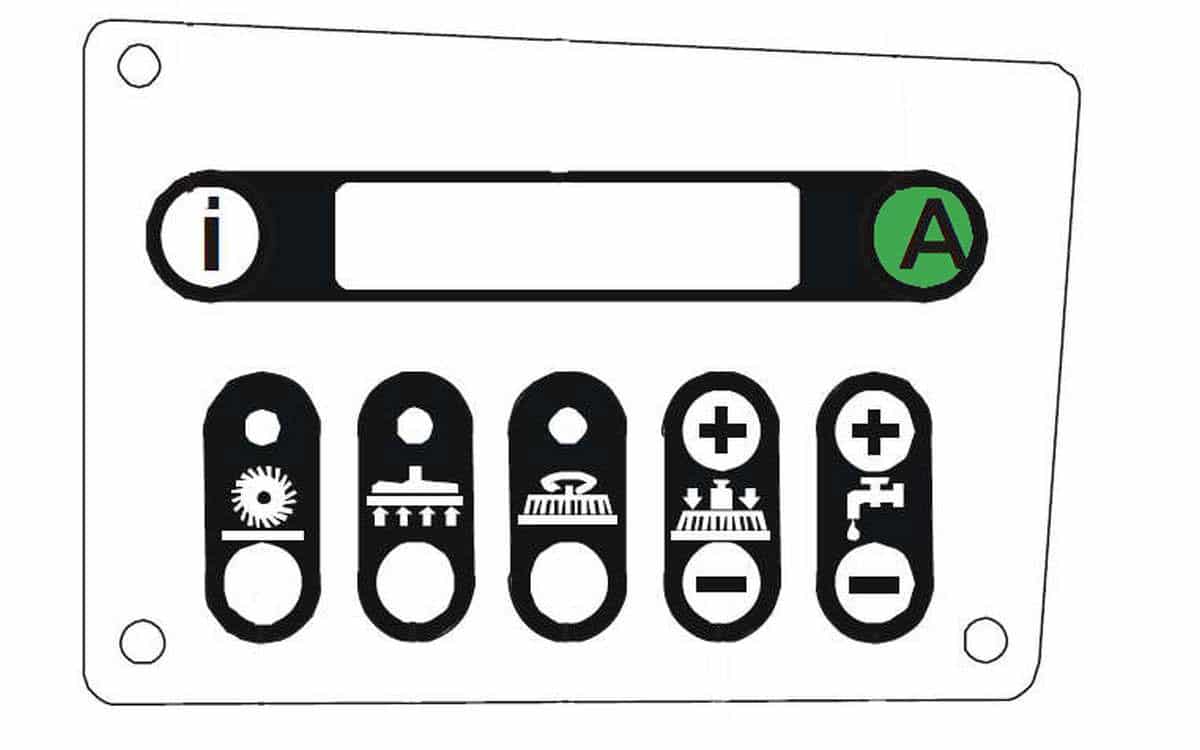

Adjustable brush pressure

Perfect cleaning results: the brush pressure can be adjusted to suit floor characteristics and the soiling level.

Vielseitig reinigen
Superb suction

Guarantees streak-free floors that can be walked on immediately after cleaning.

Vielseitig reinigen
Automatic function

Simply press a button and the machine operates in a preset mode. It doesn’t get any more convenient than this.

Vielseitig reinigen

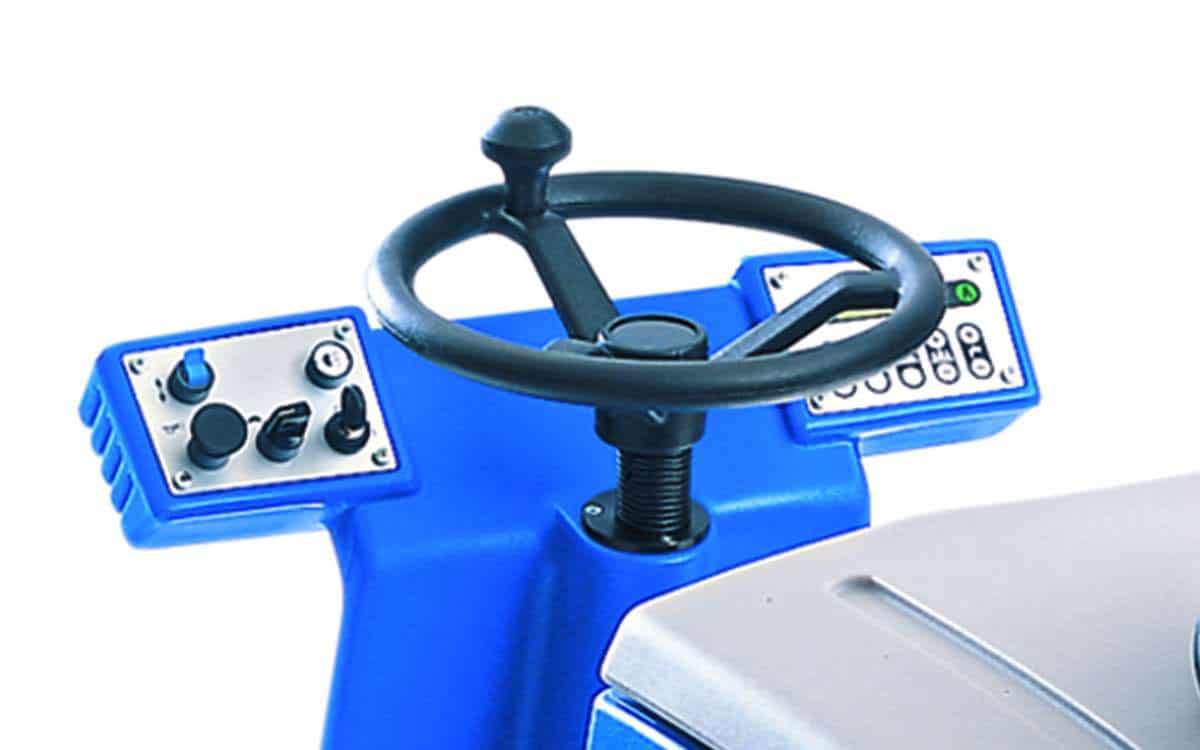

Functional display

Intuitive and easy to understand for every operator.

Vielseitig reinigen

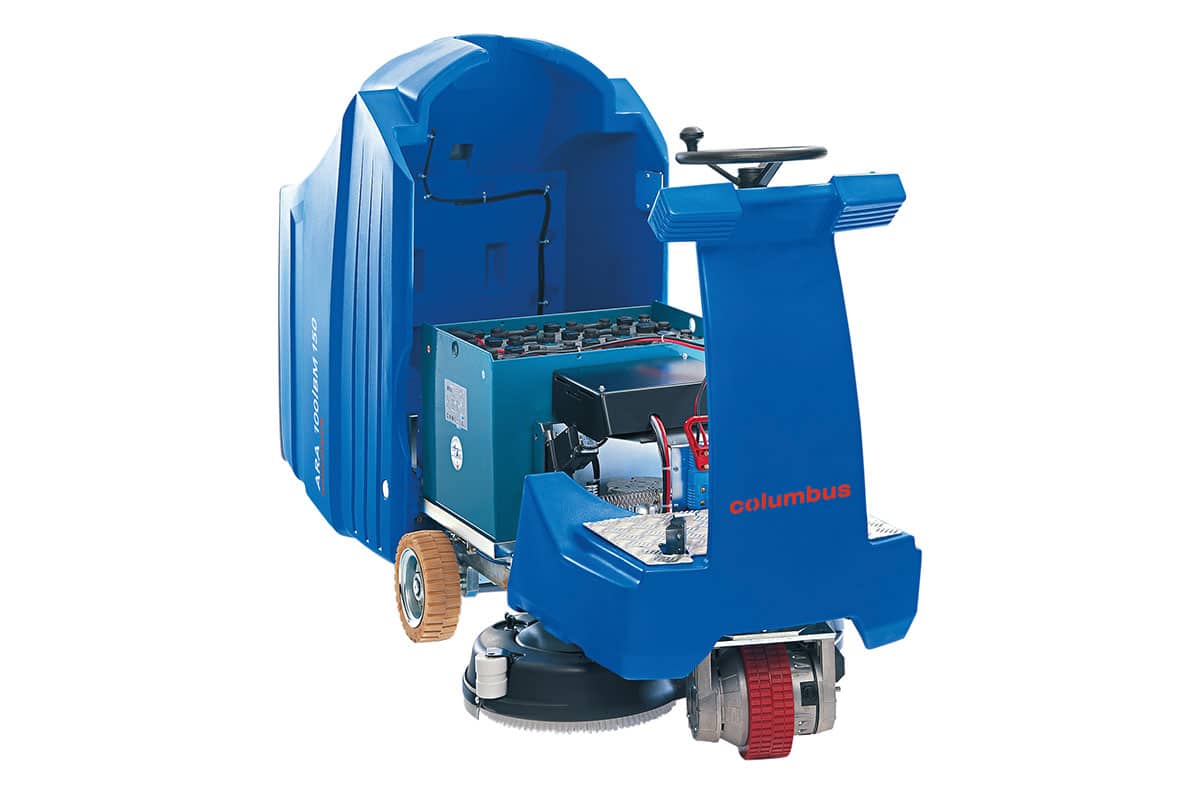

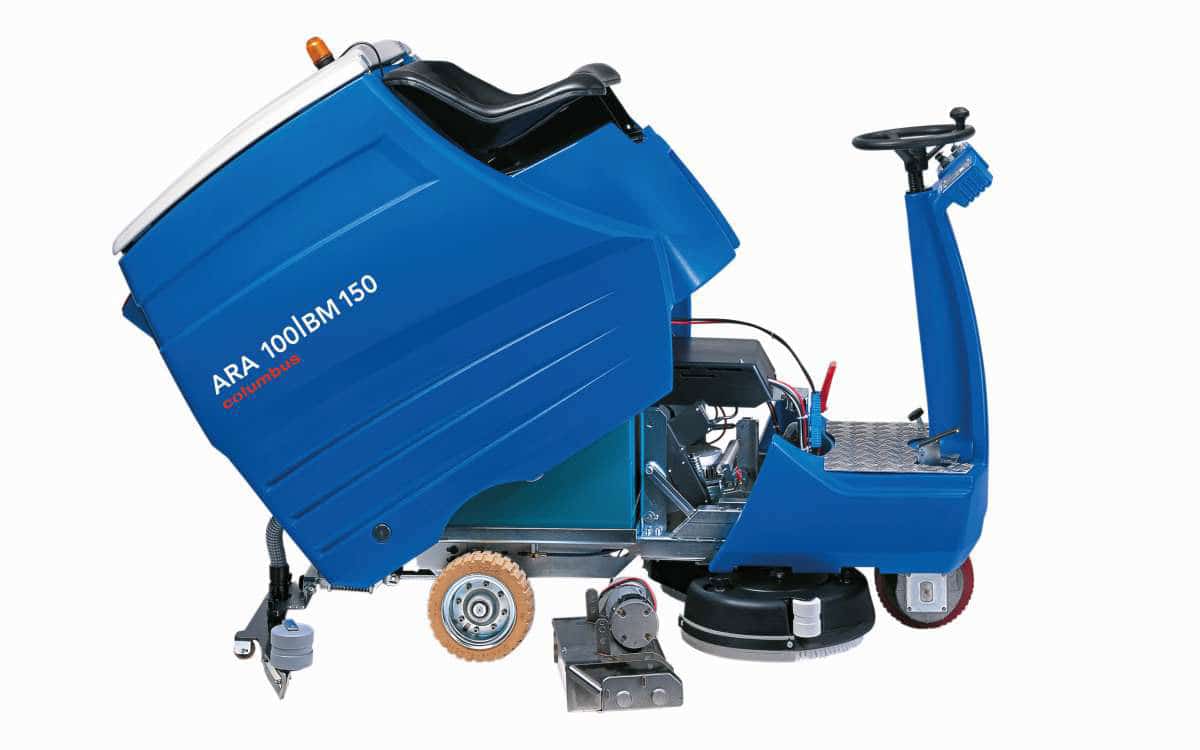

Easy-to-service components

Well thought-through design provides quick and easy access to all vital machine components.

more features
  • Smart machine design

Specially developed to handle changing requirements in medium-sized to large areas.

  • EWD – Electronic water-dispensing system

The electronic water-dispensing system supplies exactly the right volume of water.

  • Made in Germany

Quality from Germany.

less features
RA 66|BM 60
Optional equipment
Vielseitig reinigen

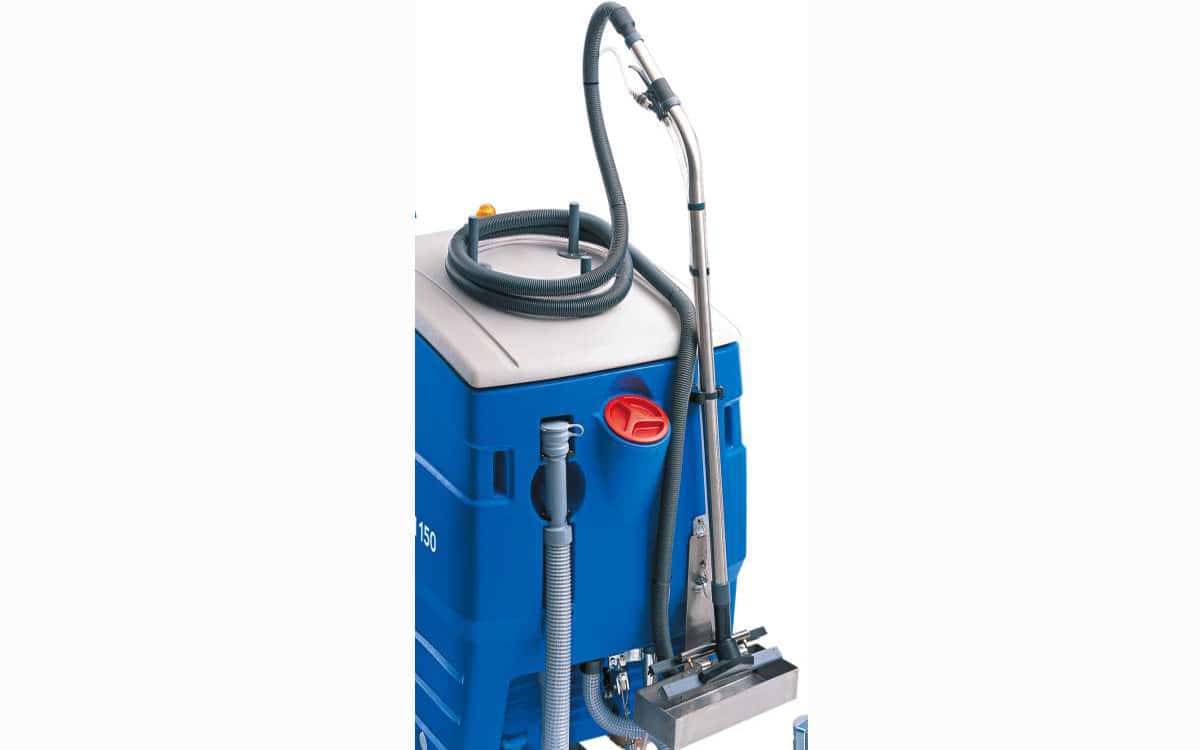

Spray lance

Thorough cleaning even in hard-to-reach areas.

Vielseitig reinigen
External Charger

More flexibility in battery selection and shorter charging times.

ARA 100|BM 150
Technical data
Technical key data
L x W x H 1900 x 1100 x 1440 mm
Working width 1000 mm
Suction width 1370 mm
Theoretical coverage max. 7500 m²/h
Noise level 64 dB(A)
Empty weight 370 kg
Operating weight 955 kg (480 Ah 5)
Batteries / Electrical data
Rated voltage 24 V
Power max. 2380 W
Capacity wet 480 Ah 5
Capacity gel 280 Ah 5
Tank
Solution tank capacity 150  l
Recovery tank capacity 150  l
Motors
Suction: low pressure 170 mbar
Suction: air flow 33 l/s
Traction: power 800 W
Traction: speed 7,5 km/h
Brushes and pad holders
Number 2
Speed 160 rpm
Brush pressure 100 kg
ARA 100|BM 150
Accessories

As a specialist for contract cleaning, columbus offers you, in addition to first-class machines, a wide range of accessories for an individual adaption to your equipment and your requirements.
