Project Description
Single disc machine
HS 403
HS 403
Overview
This single disc machine with a powerful centrally mounted 1200 W motor is ideal for spray cleaning and light polishing of different types of floor coverings in buildings, as well as for efficient deep cleaning and shampooing. The maintenance-free planetary drive ensures uniform power transfer across the entire working width and guarantees smooth running of the machine and easy steering.
Technical key data
Working width 400 mm
Ground clearance max. 160 mm
Weight 40 kg
Speed 300 rpm
HS 403
Product highlights
Infinitely adjustable steering handle
Work safely and ergonomically with an infinitely adjustable steering handle.
Ultra-quiet
The machine operates so quietly that it can even be used during working hours.

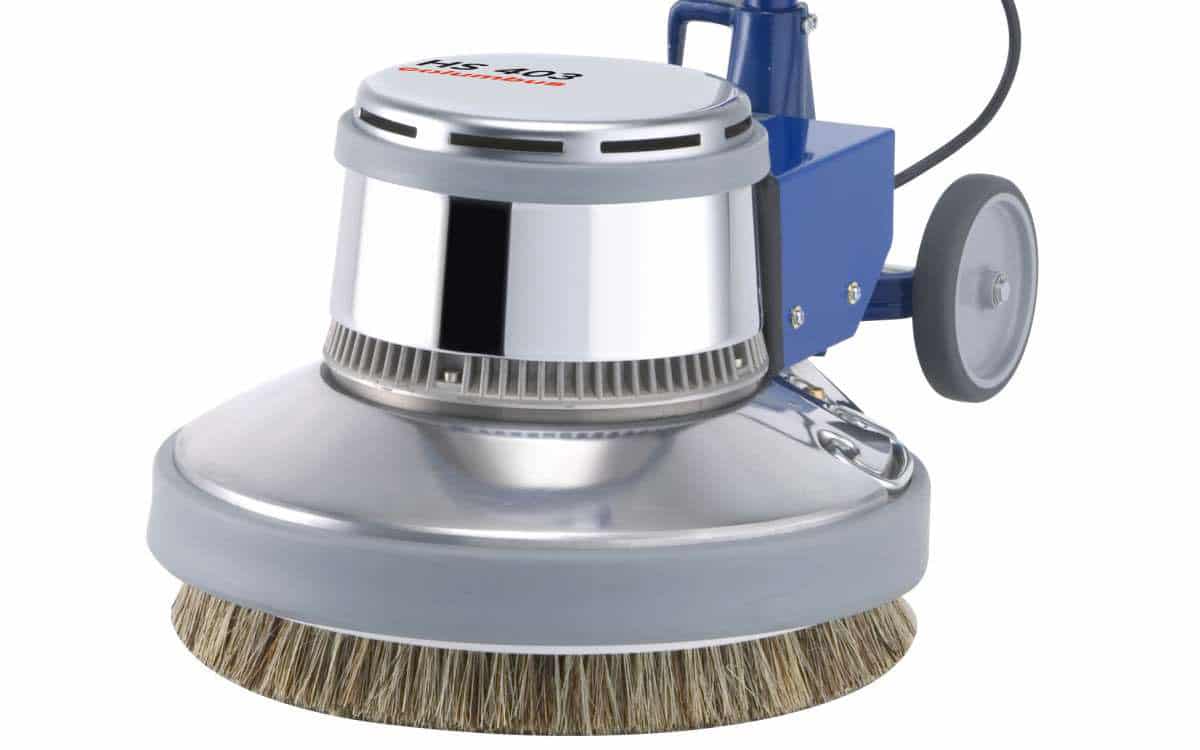

Solid metal construction
Robust cast aluminium housing.

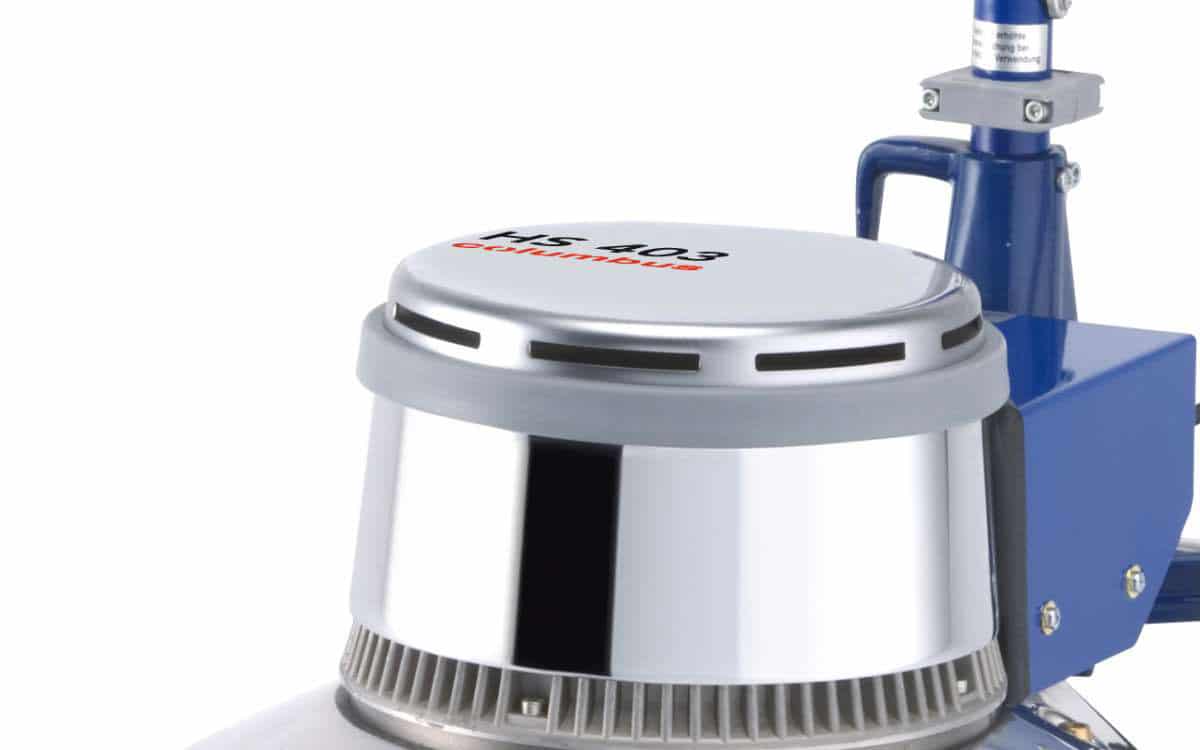

10 years warranty
Long service life guaranteed: 10 years warranty for motors and drives.
Made in Germany
Robust single-brush machines for daily, long-term use. Tried and tested for over 70 years.

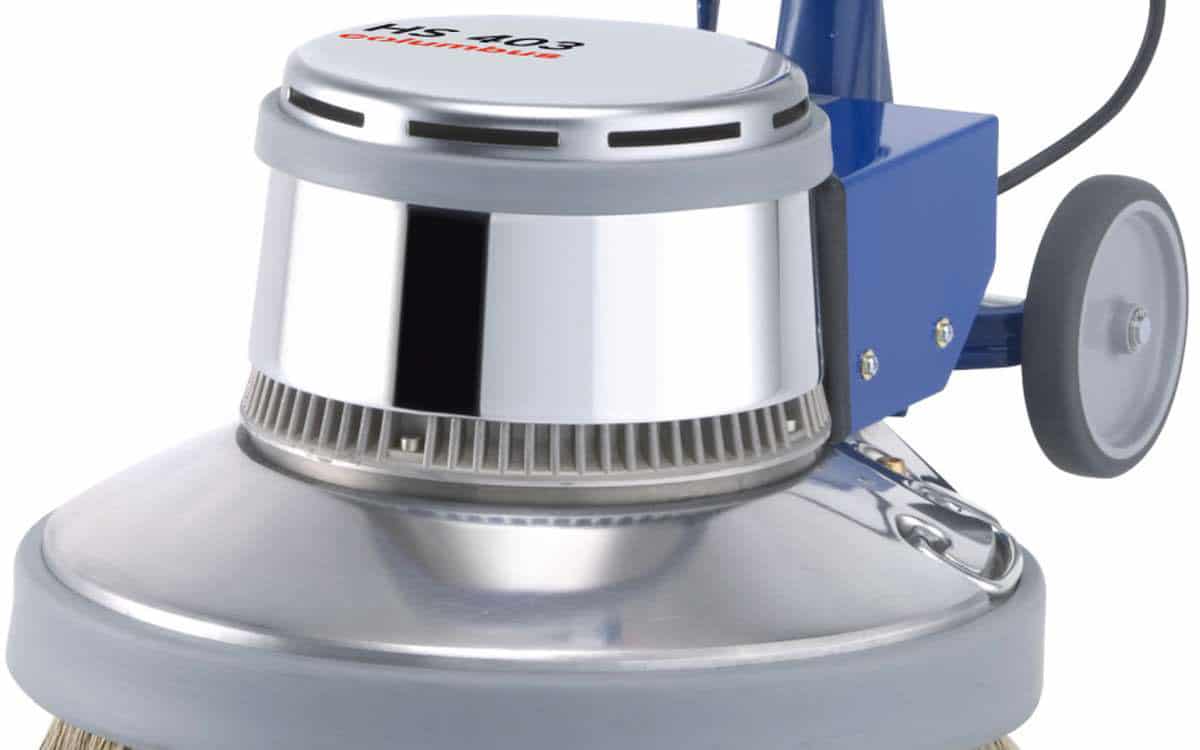

Planetary gearing
The maintenance-free planetary gearing ensures ultra-quiet, reliable operation.
HS 403
Technical data
| Technical key data | |
|---|---|
| L x W x H | 415 x 550 x 1200 mm |
| Working width | 400 mm |
| Ground clearance max. | 160 mm |
| Working height max. | 320 mm |
| Noise level | 67 db(A) |
| Weight | 40 kg |
| Electrical data | |
|---|---|
| Rated voltage | 230 V / 50 Hz |
| Power total | 1200 W |
| Power heater fan | – |
| Driving motor | – |
| Mains cable | 12 m |
| Brushes and pad holders | |
|---|---|
| Speed | 300 rpm |
