Walk-behind

KS 71|VM 60 M

KS 71|VM 60 M

Overview

This hand-operated, extremely robust sweeper with petrol motor provides perfect suction on heavily soiled medium-sized outdoor areas. The 3 m² filter can be cleaned with the manual filter shaker during operation, thus ensuring consistently good dirt collection. The separation of the filter unit, brush unit and motor guarantees a long service life and trouble-free operation.

Technical key data
  • Theoretical coverage max. 3520 m²/h

  • Working width max. 880 mm

  • Suction yes

  • Brush motor yes

KS 71|VM 60 M
Product highlights
Vielseitig reinigen
Overthrow principle

Effective sweeping: swept-up waste container is filled to the maximum for longer operating periods.

Vielseitig reinigen

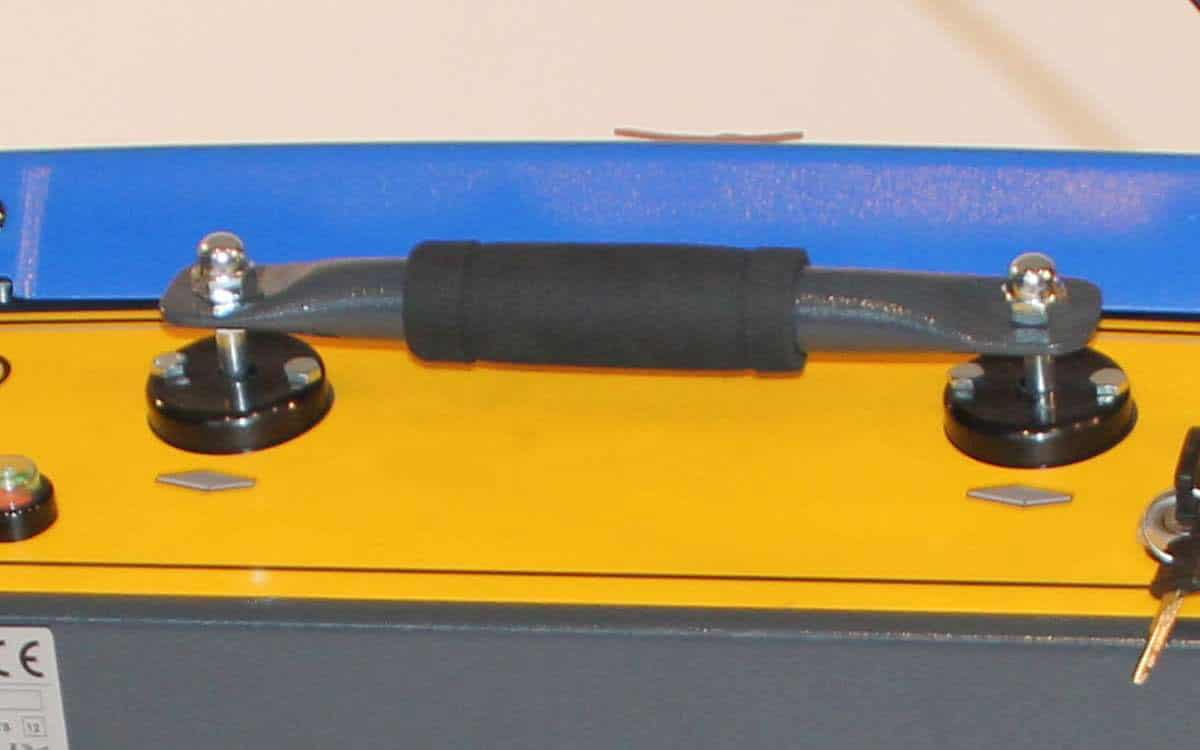

Mechanical filter shaker

Simply shake the filter during normal operations to achieve constantly good sweeping and suction results.

Vielseitig reinigen
Break in suction flow

Protects the filter when moving over wet surfaces.

Vielseitig reinigen

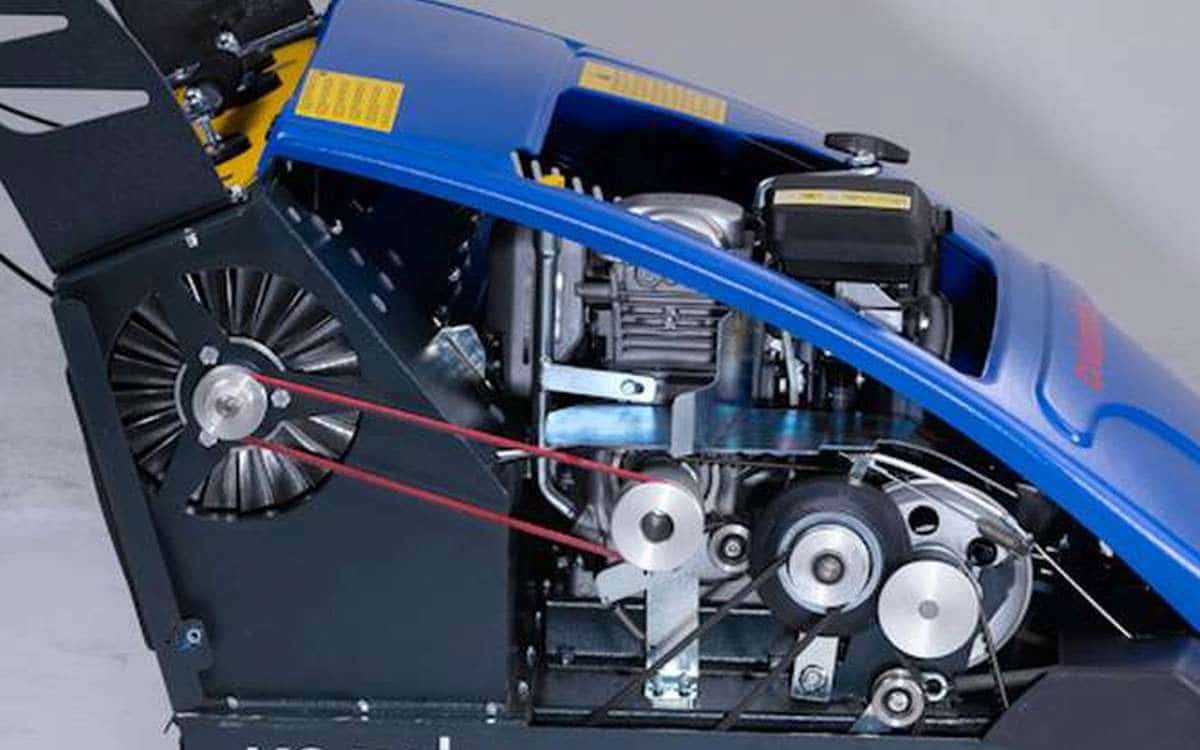

Traction drive protection

Filters, brush unit and motor all installed separately from each other to guarantee years of reliable operation.

Vielseitig reinigen

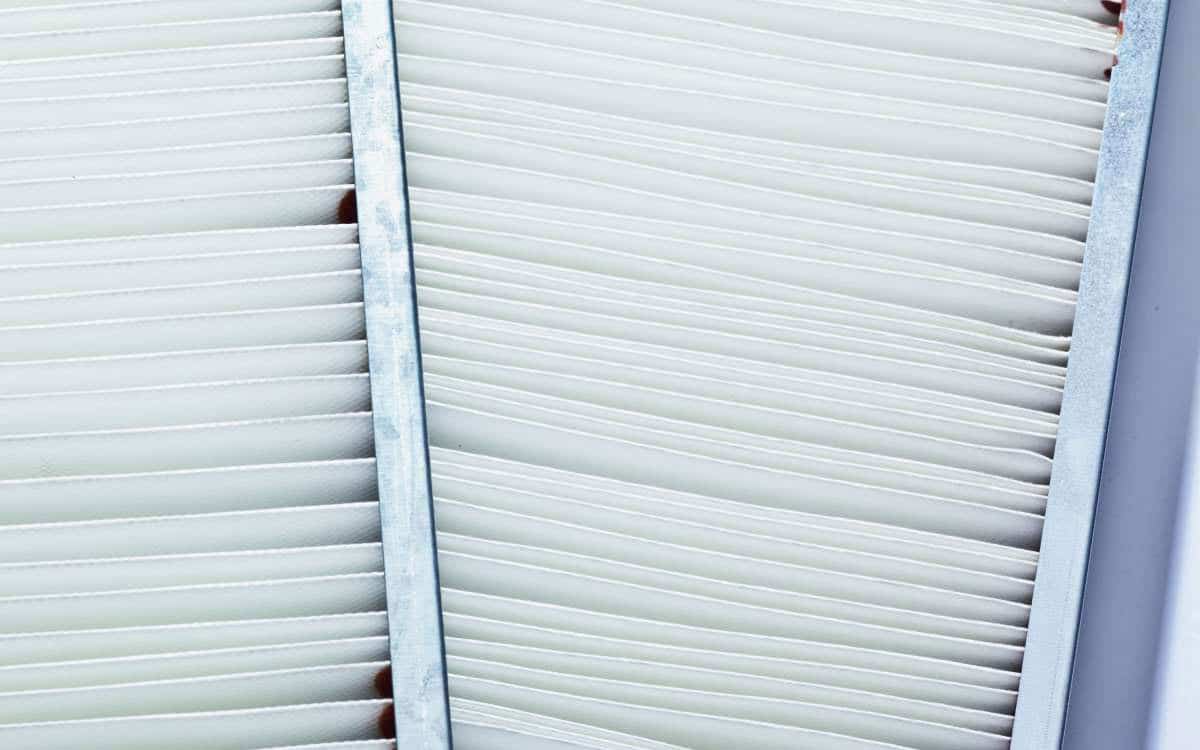

Large flat pleated filter

Large flat pleated polyester filter with 3m² filter area.

Vielseitig reinigen
Extendible swept-up waste container

The plastic swept-up waste container can be emptied quickly and easily.

  • Bulk waste flap

Easily picks up coarse particles during normal operations.

  • Friction wheel drive

Works tirelessly, even over longer periods of operation.

  • Easy-to-service components

Well thought-through design provides quick and easy access to all vital machine components.

  • Large swept-up waste container

Generously sized swept-up waste container means fewer stops to empty it.

  • Sweep right up to the edge

Sweeps thoroughly in every corner, and right up to the wall.

  • Standard: extremely robust sweeping tools

Polypropylene brushes and side brushes: designed to handle the most challenging tasks.

KS 71|VM 60 M
Optional equipment
Vielseitig reinigen
Brush and side brushes made of PP + wire

Optimum dust absorption and low wear when used on coarse surfaces, especially outdoors.

Vielseitig reinigen
Roller brush nature

Optimum dust absorption on sensitive surfaces is possible with soft natural bristles.

Vielseitig reinigen

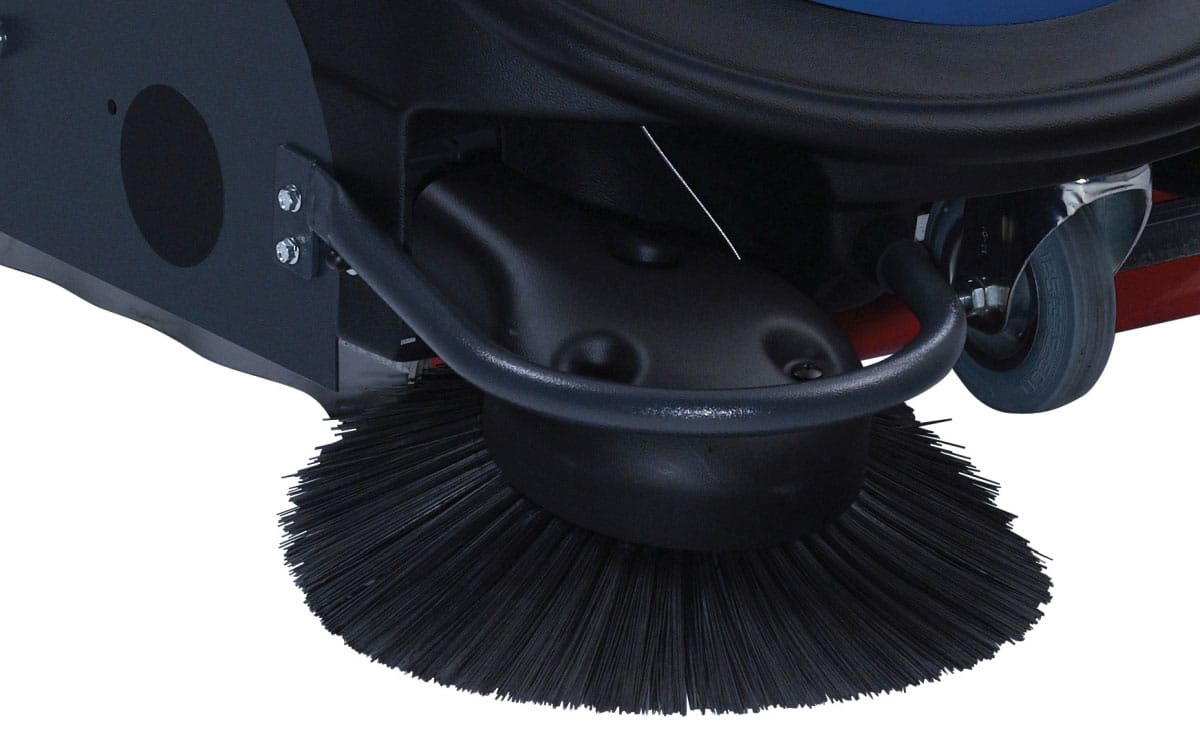

Side brush guard

Increased protection for machine, brushes and inventory.

Vielseitig reinigen
Hepa-Filter

Maximum safety for the environment and users through filtration of fine dust, suspended particles and very small particles.

Vielseitig reinigen
Kit Trolley

Convenient transport of the hopper.

KS 71|VM 60 M
Technical data
Technical key data
L x W x H 1260 x 820 x 850 mm
Sweeping principle overthrow
Working width w/o side brushes 710 mm
with 1 side brush 880 mm
with 2 side brushes
Empty weight w/o battery 98 kg
Operating weight 100 kg
Traction / drive
Mode of drive Engine
Traction drive yes
Honda
Performance 3 kW
Suction
Dust suction yes
Waste container 60 l
Filter
Filter size 3 m²
Shaker manual
KS 71|VM 60 M
