Scrubber dryers

Walk-behind and ride-on

Walk-behind

natascha.burger2024-12-06T11:42:13+01:00

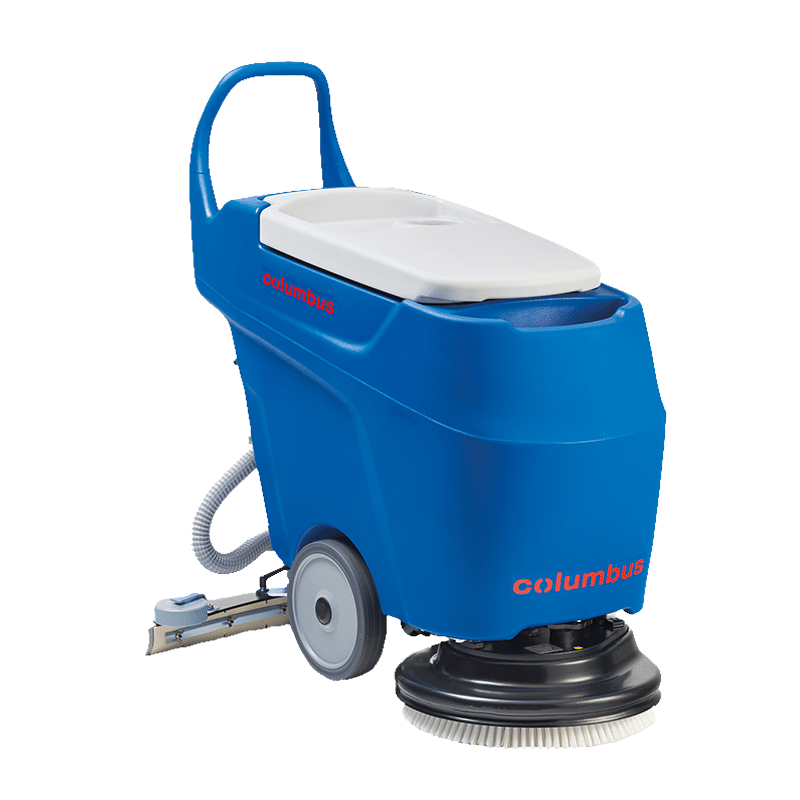

RA 43|K 40

Tank capacity40 l
Working width430 mm
Theoretical coverage max.1720 m²/h

Technical key data

L x W x H1090 x 475 x 1055 mm
Working width430 mm
Suction width735 mm
Theoretical coverage max.1720 m²/h
Noise level66 dB(A)
Empty weight65 kg
Operating weight105 kg

Batteries / Electrical data

Rated voltage230 V
Power max.1600 W
Power cable25 m
Capacity wet-
Capacity gel-

Tank

Solution tank capacity40 l
Recovery tank capacity45 l

Suction

Low pressure max.204 mbar
Air flow max.45 l/s
Power max.-
Speed max.-

Brushes and pad holders

Number1
Speed150 rpm
Brush pressure36 kg

columbus2024-12-06T11:42:42+01:00

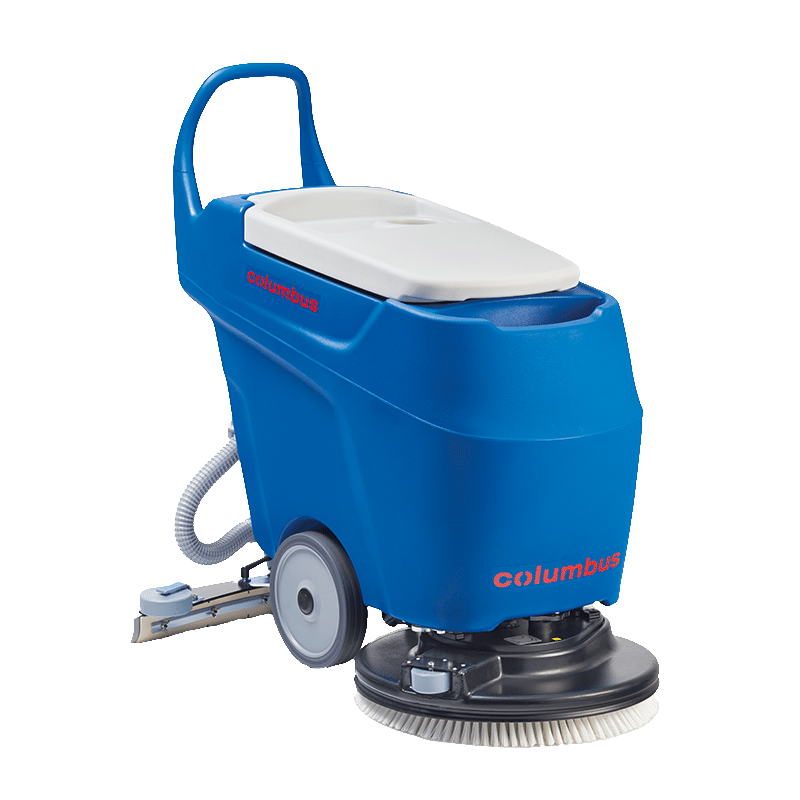

RA 55|K 40

Tank capacity40 l
Working width550 mm
Theoretical coverage max.2200 m²/h

Technical key data

L x W x H1130 x 525 x 1055 mm
Working width550 mm
Suction width735 mm
Theoretical coverage max.2200 m²/h
Noise level66 dB(A)
Empty weight66 kg
Operating weight106 kg

Batteries / Electrical data

Rated voltage230 V
Power max.1600 W
Power cable-
Capacity wet-
Capacity gel-

Tank

Solution tank capacity40 l
Recovery tank capacity45 l

Suction

Low pressure max.204 mbar
Air flow max.45 l/s
Power max.-
Speed max.-

Brushes and pad holders

Number1
Speed150 rpm
Brush pressure37 kg

columbus2025-06-11T10:37:15+02:00

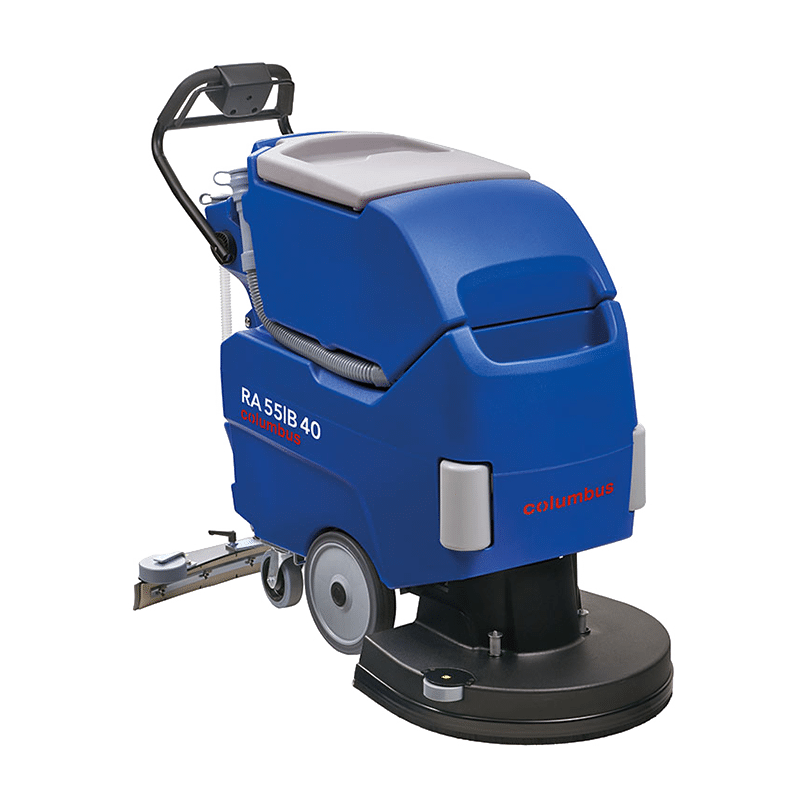

RA 55|B 40

Tank capacity40 l
Working width550 mm
Theoretical coverage max.2200 m²/h

Technical key data

L x W x H1250 x 570 x 980 mm
Working width550 mm
Suction width850 mm
Theoretical coverage max.2200 m²/h
Noise level60 dB(A)
Empty weight80,4 kg
Operating weight198 kg (105 Ah 5)

Batteries / electrical data

Rated voltage24 V
Power max.950 W
Power cable-
Capacity wet110 Ah 5
Kapazität, Gel max.105 Ah 5

Tank

Solution tank capacity40 l
Recovery tank capacity 45 l

Suction

Low pressure max.125 mbar
Air flow max.28 l/s
Power max.-
Speed max.-

Brushes and pad holders

Number1
Speed180 rpm
Brush pressure23 kg

natascha.burger2025-06-11T10:37:19+02:00

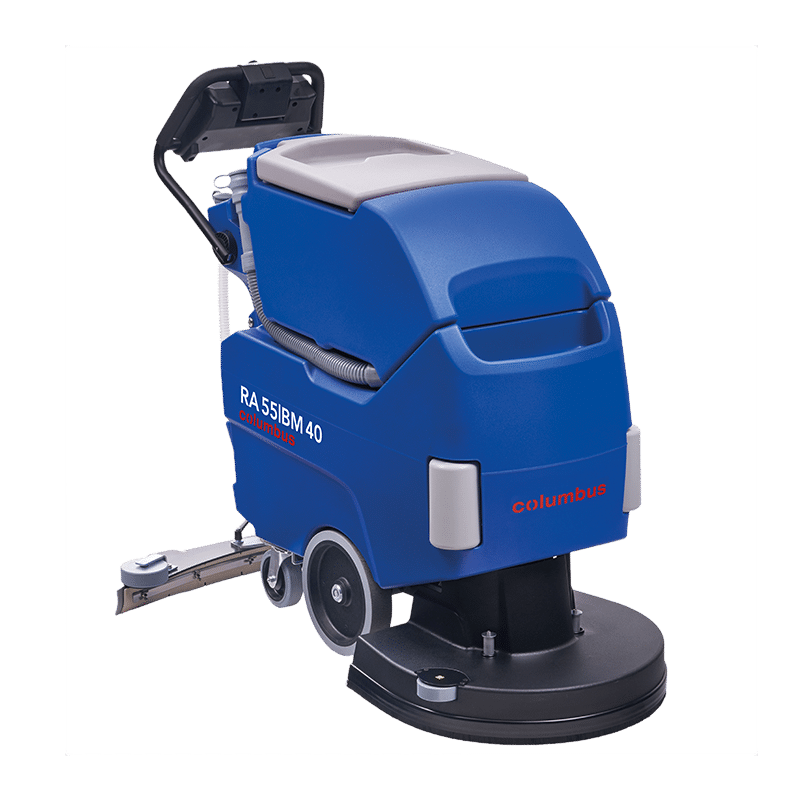

RA 55|BM 40

Tank capacity40 l
Working width550 mm
Theoretical coverage max.2200 m²/h

Technical key data

L x W x H1250 x 750 x 980 mm
Working width550 mm
Suction width850 mm
Theoretical coverage max.2200 m²/h
Noise level60 dB(A)
Empty weight84 kg
Operating weight205 kg (105 Ah 5)

Batteries/electrical data

Rated voltage24 V
Power max.1130 W
Power cable-
Capacity wet110 Ah 5
Capacity gel105 Ah 5

Tank

Solution tank capacity40 l
Recovery tank capacity45 l

Suction

Low pressure max.125 mbar
Air flow max.28 l/s
Power max.180 W
Speed max.4 km/h

Brushes and pad holders

Number1
Speed180 rpm
Brush pressure25 kg

natascha.burger2025-06-12T10:00:06+02:00

RA 55|BM 40 INOX

Tank capacity40 l
Working width550 mm
Theoretical coverage max.2200 m²/h

Technical key data

L x W x H1250 x 750 x 980 mm
Working width550 mm
Suction width850 mm
Theoretical coverage max.2200 m²/h
Noise level60 dB(A)
Empty weight84 kg
Operating weight205 kg (105 Ah 5)

Batteries/electrical data

Rated voltage24 V
Power max.1180 W
Power cable-
Capacity wet110 Ah 5
Capacity gel105 Ah 5

Tank

Solution tank capacity40 l
Recovery tank capacity45 l

Suction

Low pressure max.125 mbar
Air flow max.28 l/s
Power max.180 W
Speed max.4 km/h

Brushes and pad holders

Number1
Speed180 rpm
Brush pressure25 kg

natascha.burger2025-06-11T10:37:21+02:00

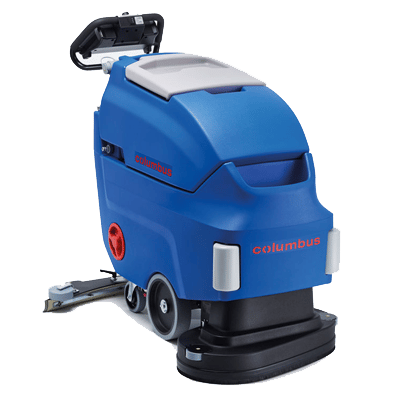

RA 66|BM 60

Tank capacity60 l
Working width660 mm
Theoretical coverage max.2640 m²/h

Technical key data

L x W x H1265 x 680 x 1005 mm
Working width660 mm
Suction width850 mm
Theoretical coverage max.2640 m²/h
Noise level60 dB(A)
Empty weight108 kg
Operating weight243 kg (105 Ah 5)

Batteries / electrical data

Rated voltage24 V
Power max.1180 W
Power cable-
Capacity wet110 Ah 5
Capacity gel105 Ah 5

Tank

Solution tank capacity60 l
Recovery tank capacity 64 l

Suction

Low pressure max.110 mbar
Air flow max.32 l/s
Power max.300 W
Speed max.6 km/h

Brushes and pad holders

Number1
Speed180 rpm
Brush pressure37 kg

natascha.burger2025-06-12T10:00:37+02:00

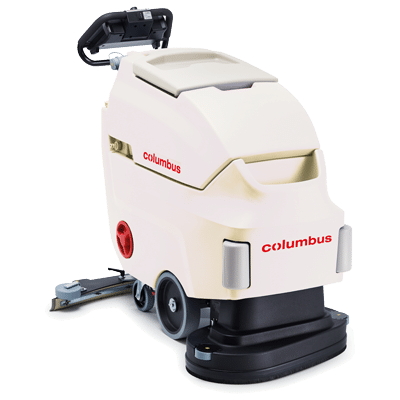

RA 66|BM 60 INOX

Tank capacity60 l
Working width660 mm
Theoretical coverage max.2640 m²/h

Technical key data

L x W x H1265 x 680 x 1005 mm
Working width660 mm
Suction width850 mm
Theoretical coverage max.2640 m²/h
Noise level60 dB(A)
Empty weight108 kg
Operating weight243 kg (105 Ah 5)

Batteries / electrical data

Rated voltage24 V
Power max.1180 W
Power cable-
Capacity wet110 Ah 5
Capacity gel105 Ah 5

Tank

Solution tank capacity60 l
Recovery tank capacity 64 l

Suction

Low pressure max.110 mbar
Air flow max.32 l/s
Power max.300 W
Speed max.6 km/h

Brushes and pad holders

Number1
Speed180 rpm
Brush pressure37 kg

Ride-on

columbus2025-06-11T10:37:14+02:00

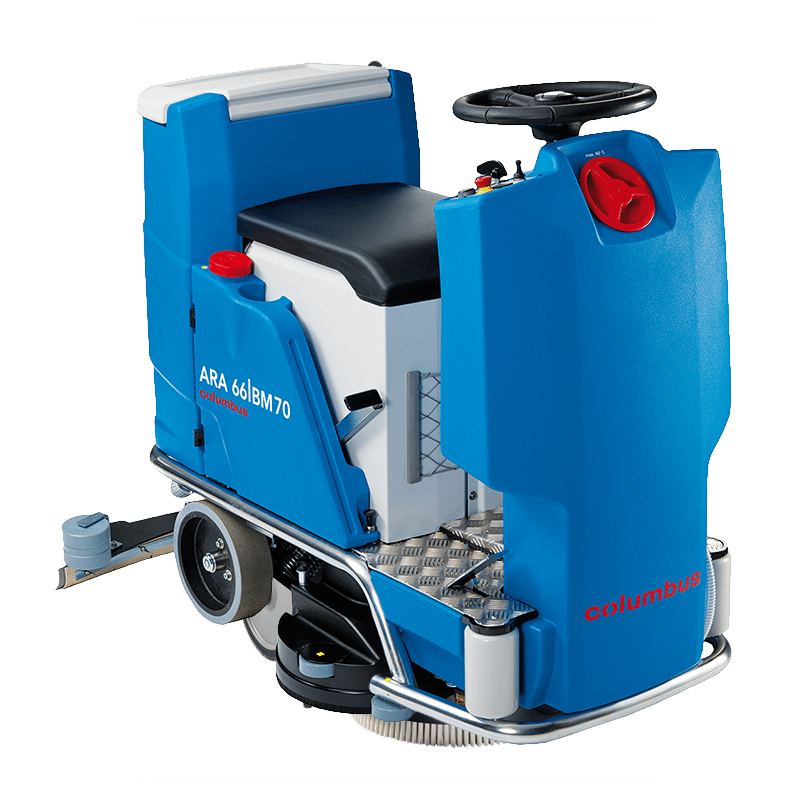

ARA 66|BM 70

Tank capacity70 l
Working width660 mm
Theoretical coverage max.4620 m²/h

Technical key data

L x W x H1380 x 680 x 1170 mm
Working width660 mm
Suction width850 mm
Theoretical coverage max.4620 m²/h
Noise level63 / 59* dB(A)
Empty weight187 kg
Operating weight456 kg (180 Ah 5)

Batteries / Electrical data

Rated voltage24 V
Power max.1690 W
Capacity wet200 Ah 5
Capacity gel180 Ah 5

Tank

Solution tank capacity70 l
Recovery tank capacity80 l

Suction

Low pressure max.110 mbar
Air flow max..32 l/s
Power max.750 W
Speed max.7 km/h

Brushes and pad holders

Number2
Speed180 rpm
Brush pressure30 kg

natascha.burger2025-06-12T09:59:11+02:00

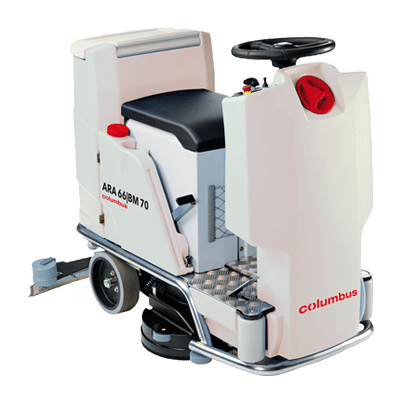

ARA 66|BM 70 INOX

Tank capacity70 l
Working width660 mm
Theoretical coverage max.4620 m²/h

Technical key data

L x W x H1380 x 680 x 1170 mm
Working width660 mm
Suction width850 mm
Theoretical coverage max.4620 m²/h
Noise level63 / 59* dB(A)
Empty weight187 kg
Operating weight456 kg (180 Ah 5)

Batteries / Electrical data

Rated voltage24 V
Power max.1690 W
Capacity wet200 Ah 5
Capacity gel180 Ah 5

Tank

Solution tank capacity70 l
Recovery tank capacity80 l

Suction

Low pressure max.110 mbar
Air flow max..32 l/s
Power max.750 W
Speed max.7 km/h

Brushes and pad holders

Number2
Speed180 rpm
Brush pressure30 kg

columbus2024-12-06T11:41:19+01:00

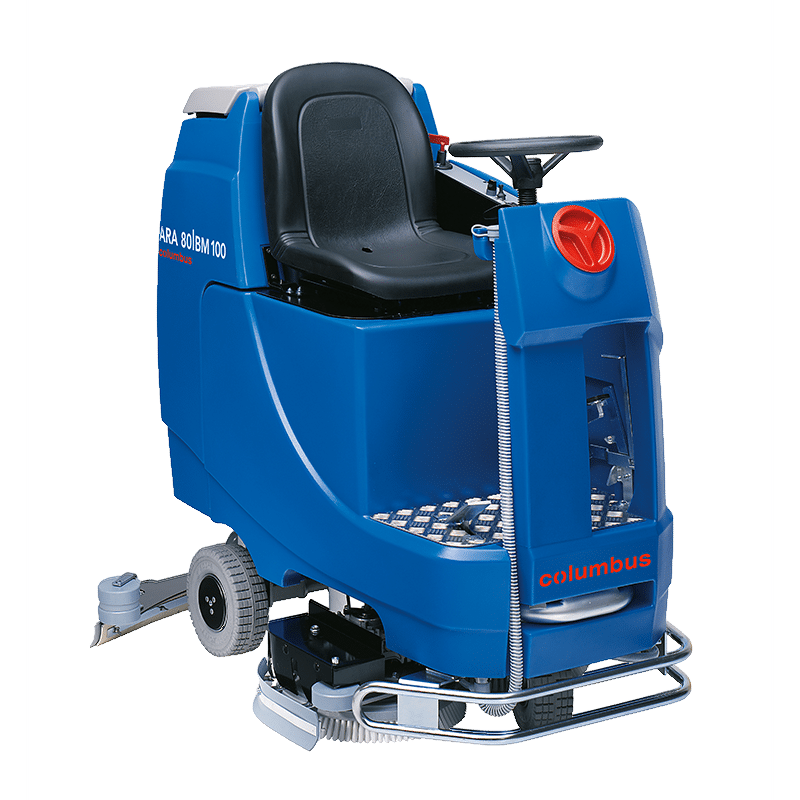

ARA 80|BM 100

Tank capacity100 l
Working width800 mm
Theoretical coverage max.5600 m²/h

Technical key data

L x W x H1380 x 730 x 1325 mm
Working width800 mm
Suction width980 mm
Theoretical coverage max.5600 m²/h
Noise level64 / 60* dB(A)
Empty weight263 kg
Operating weight695 kg (320 Ah 5) (

Batteries / Electrical data

Rated voltage24 V
Power max.2290 W
Number of batteries-
Capacity wet250 Ah 5** / 320 Ah 5
Capacity gel240 Ah 5** / 305 Ah 5

Tank

Solution tank capacity100 l
Recovery tank capacity115 l

Suction

Low pressure max.170 mbar
Air flow max..33 l/s
Power max.750 W
Speed max.7 km/h

Brushes and pad holders

Number2
Speed160 rpm
Brush pressure50 kg

natascha.burger2025-06-12T09:57:15+02:00

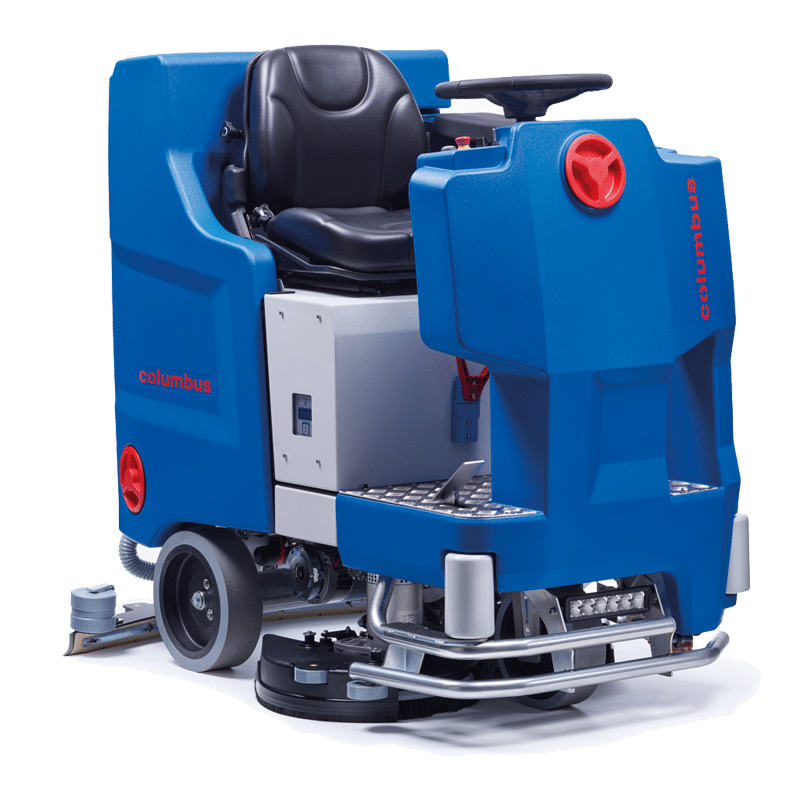

ARA 85|BM 140

Tank capacity140 l
Working width850 mm
Theoretical coverage max.5950 m²/h

Technical key data

L x W x H1490 x 880 x 1330 mm
Working width 850 mm
Suction width980 mm
Theoretical coverage max.5950 m²/h
Noise level64 dB(A)
Empty weight295 kg
Operating weight690 kg

Batteries / electrical data

Rated voltage24 V
Power max.3050 W
Capacity wet320 Ah 5 (Trough)
Capacity gel305 Ah 5

Tank

Solution tank capacity140 l
Recovery tank capacity150 l

Suction

Low pressure max.168 mbar
Air flow max.30 l/s
Power max.900 W
Speed max.7 km/h

Brushes and pad holders

Number2
Speed180 rpm
Brush pressure45 / 75 kg

natascha.burger2025-06-12T09:56:51+02:00

ARA 100|BM 200

Tank capacity200 l
Working width1020 mm
Theoretical coverage max.9000 m²/h

Data

L x W x H1990 x 1120 x 1455 mm
Working width 1020 mm
Suction wodth1200 mm
Theoretical coverage max.9000 m²/h
Noise level62 dB(A)
Empty weigth465 kg
Operating weight1140 kg (330 Ah 5)

Batteries / Elektr. Data

Rated voltage36 V
Power, max.3750 W
Capacity wet, max.320 Ah 5
Capacity gel, max.305 Ah 5

Tank

Solution tank capacity200 l
Recovery tank capacity220 l

Motors

Suction motor: low pressure, max.230 mbar
Suction motor: air flow, max.32 l/s
Traktion: power max.1400 W
Traktion: speed max.9 km/h

Brushes and pad holders

Numbers2
Speed180 rpm
Brush pressure max. 100 kg

natascha.burger2025-06-12T10:01:45+02:00

ARA 100|BM 200 W

Tank capacity200 l
Working width1020 mm
Theoretical coverage max.9000 m²/h

Data

L x W x H1990 x 1120 x 1455 mm
Working width 1020 mm
Suction width1200 mm
Theoretical coverage max.9000 m²/h
Noise level62 dB(A)
Empty weight485 kg
Operating weight1160 kg (330 Ah 5)

Batteries / Elektr. Data

Rated voltage36 V
Power, max.3450 W
Capacity wet, max.320 Ah 5
Capacity gel, max.305 Ah 5

Tank

Solution tank capacity200 l
Recovery tank capacity220 l

Motors

Suction motor: low pressure, max.180 mbar
Suction motor: air flow, max.32 l/s
Traction: power, max.1400 W
Traction: speed, max.9 km/h

Brushes and pad holders

Number2
Speed500 rpm
Brush pressure80 kg
