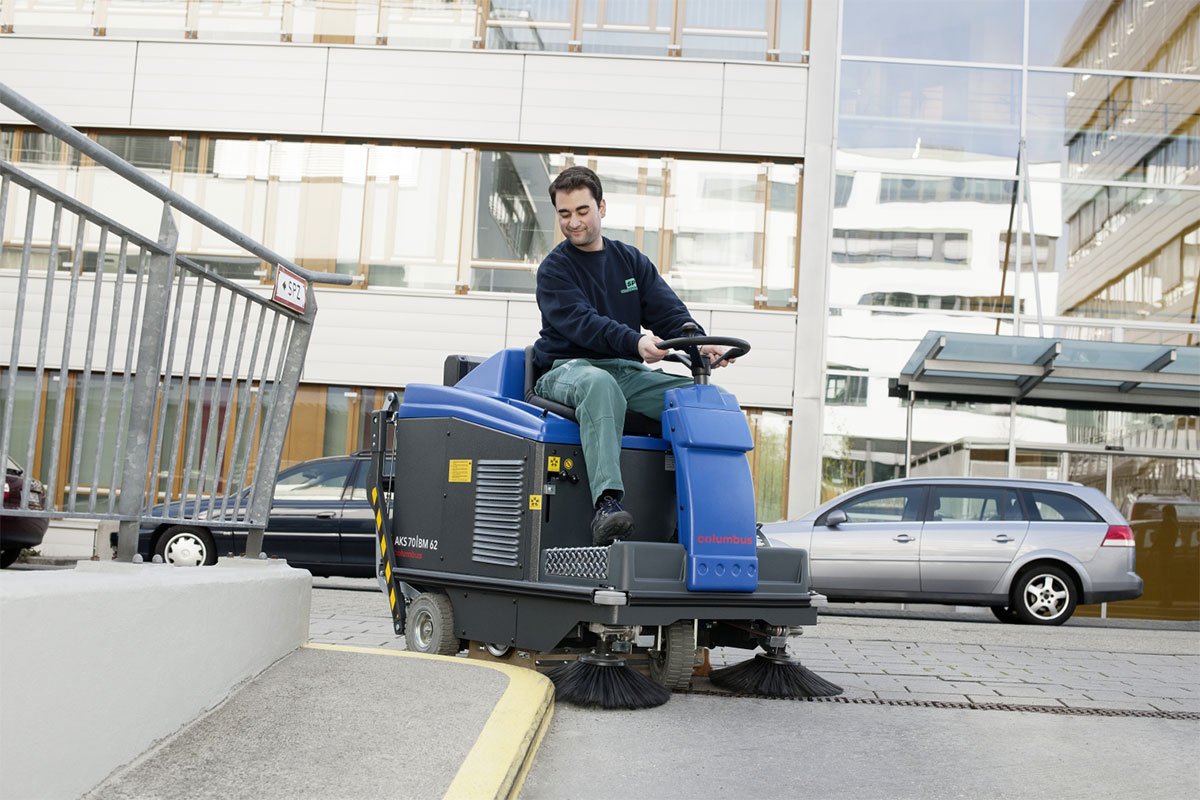

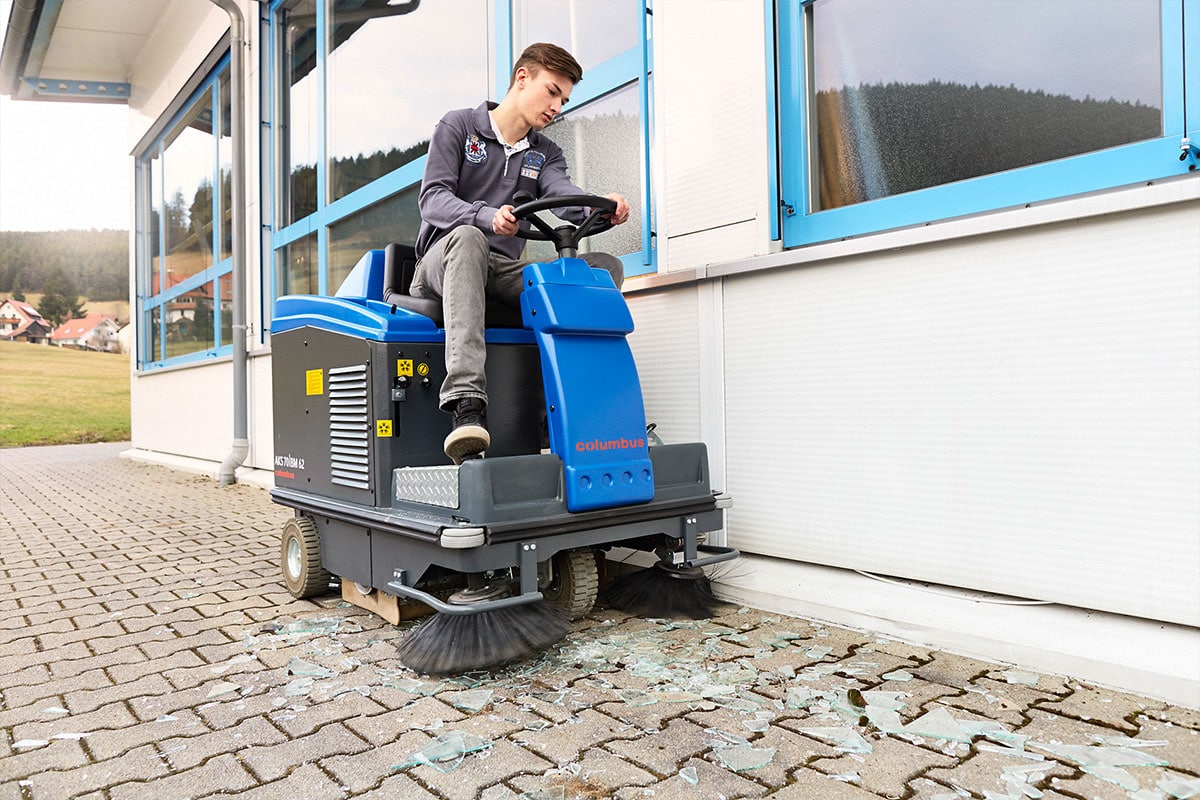

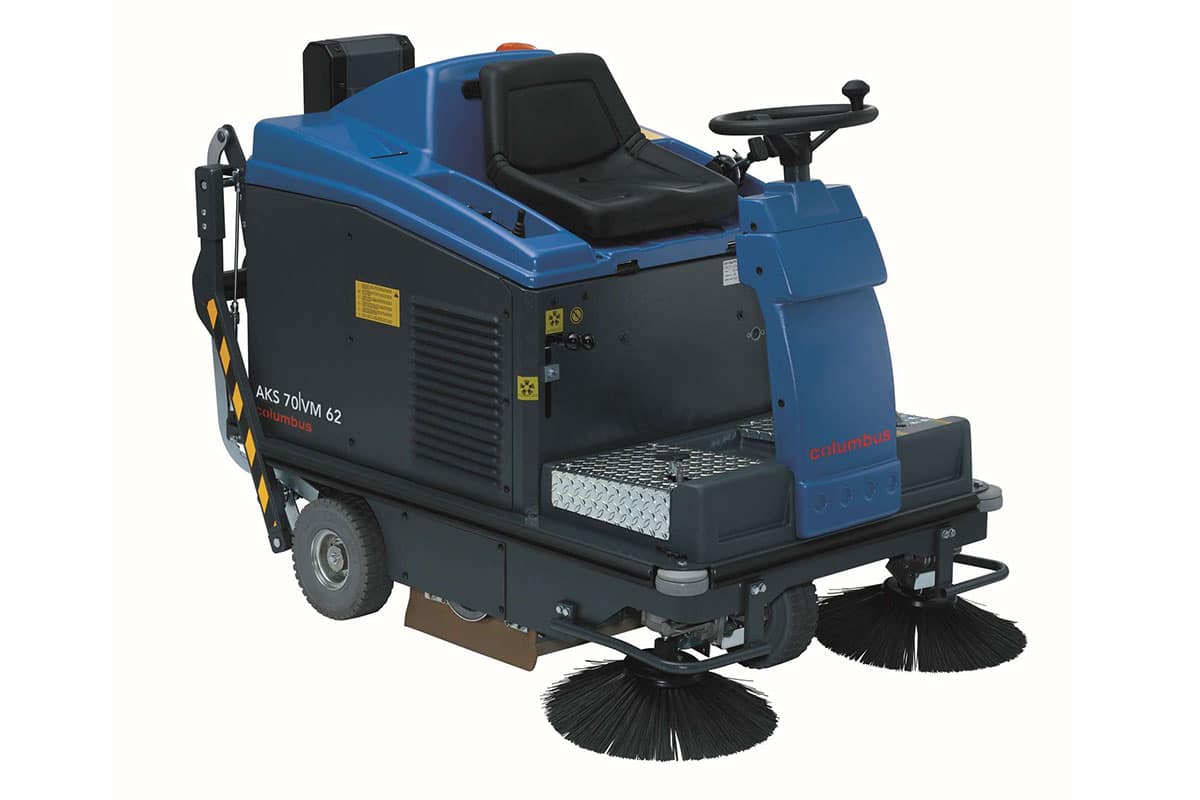

This compact, powerful ride-on sweeper with a powerful HONDA petrol motor is ideal for cleaning medium-sized outdoor areas. This ride-on sweeper with a robust steel construction can easily master inclines of up to 20%. A consistently good sweeping performance is guaranteed thanks to the 6 m² filter surface, which can be efficiently cleaned during operation with the electrical filter shaker.

Technical key data
  • Theoretical coverage max. 8850 m²/h
  • Working width max.1150 mm
  • Suction yes

  • Traction front wheel
  • Brush motor yes
AKS 70|VM 62
Product highlights
Vielseitig reinigen

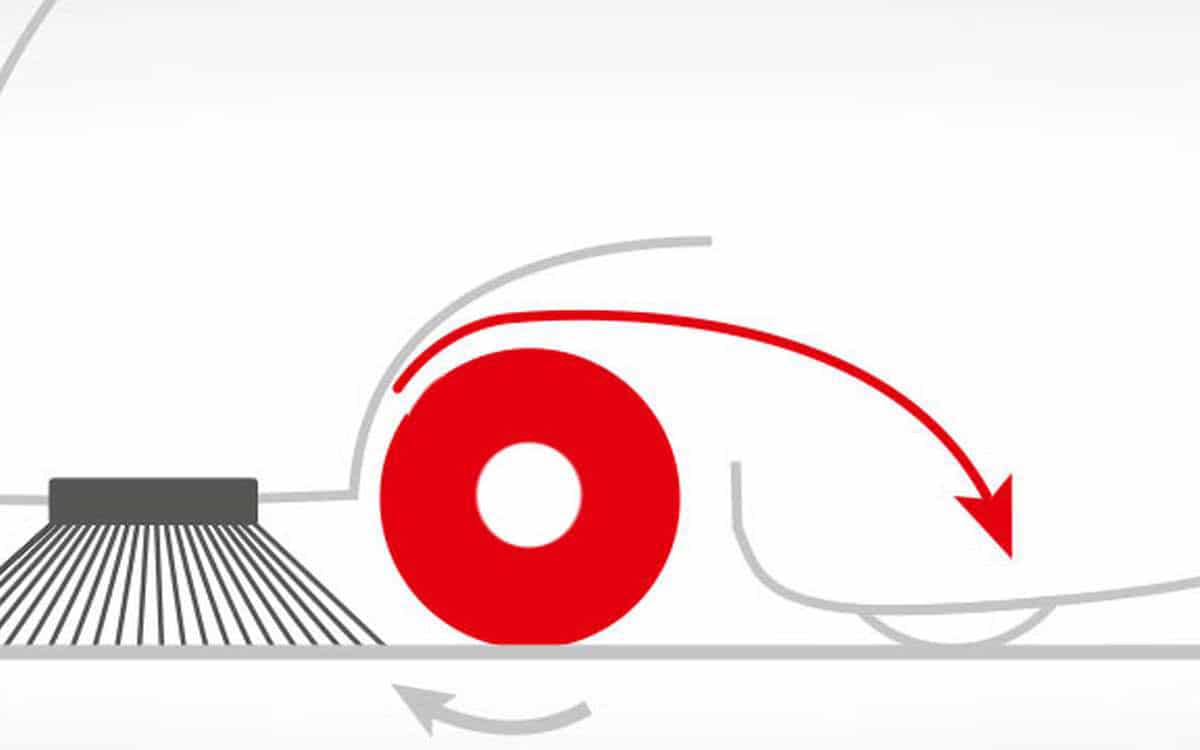

Overthrow principle

Effective sweeping: swept-up waste container is filled to the maximum for longer operating periods.

Vielseitig reinigen

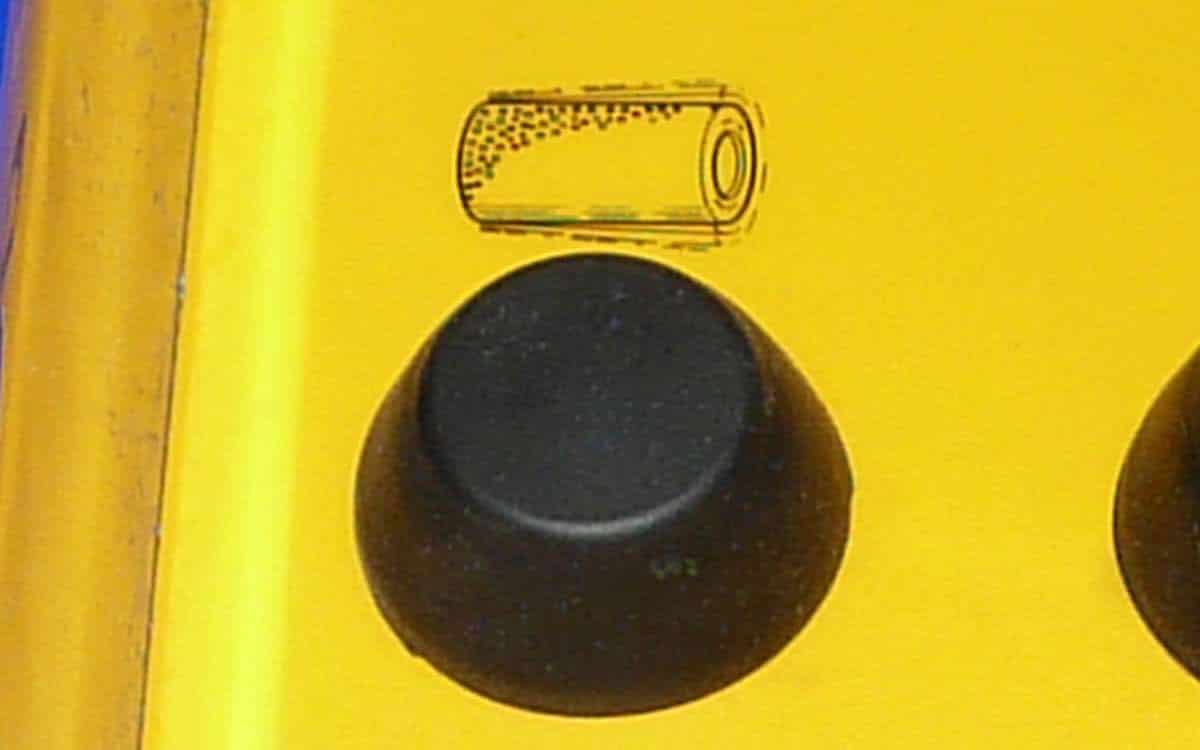

Electrical filter shaker

Simply shake the filter during normal operations to achieve constantly good sweeping and suction results.

Vielseitig reinigen

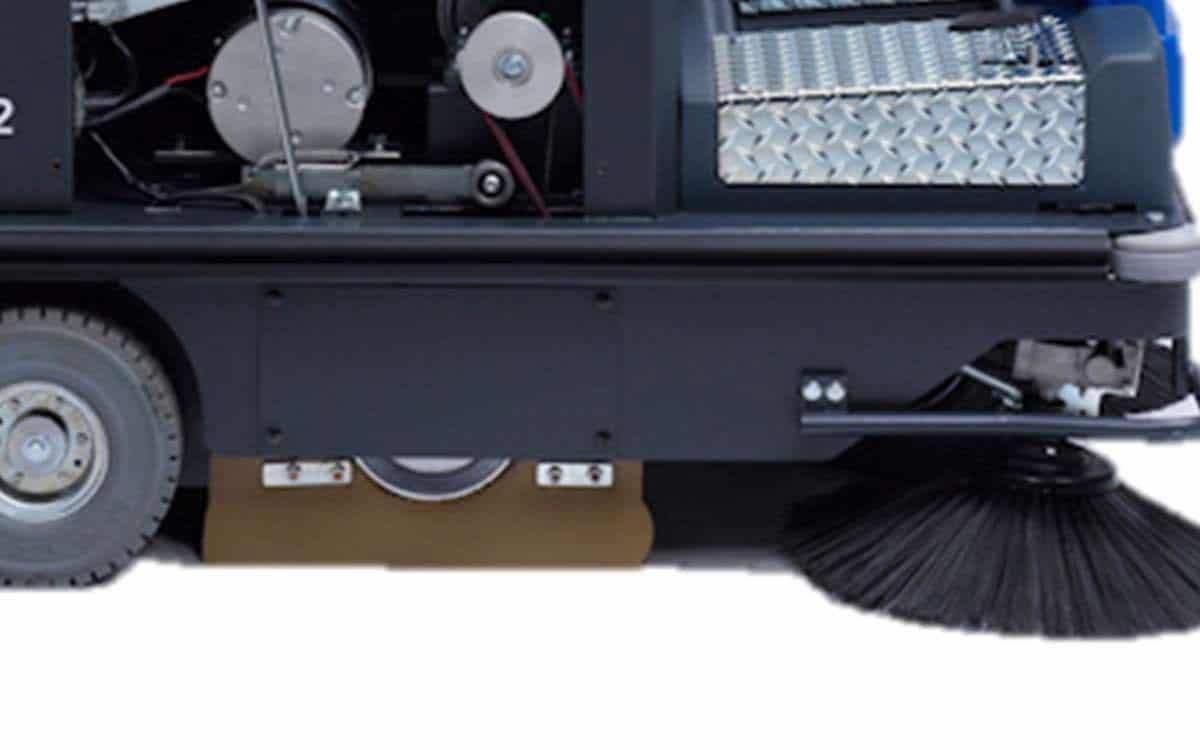

Steel frame

Extremely robust steel construction. Shock absorbers on the side brushes protect the machine and other objects alike.

Vielseitig reinigen

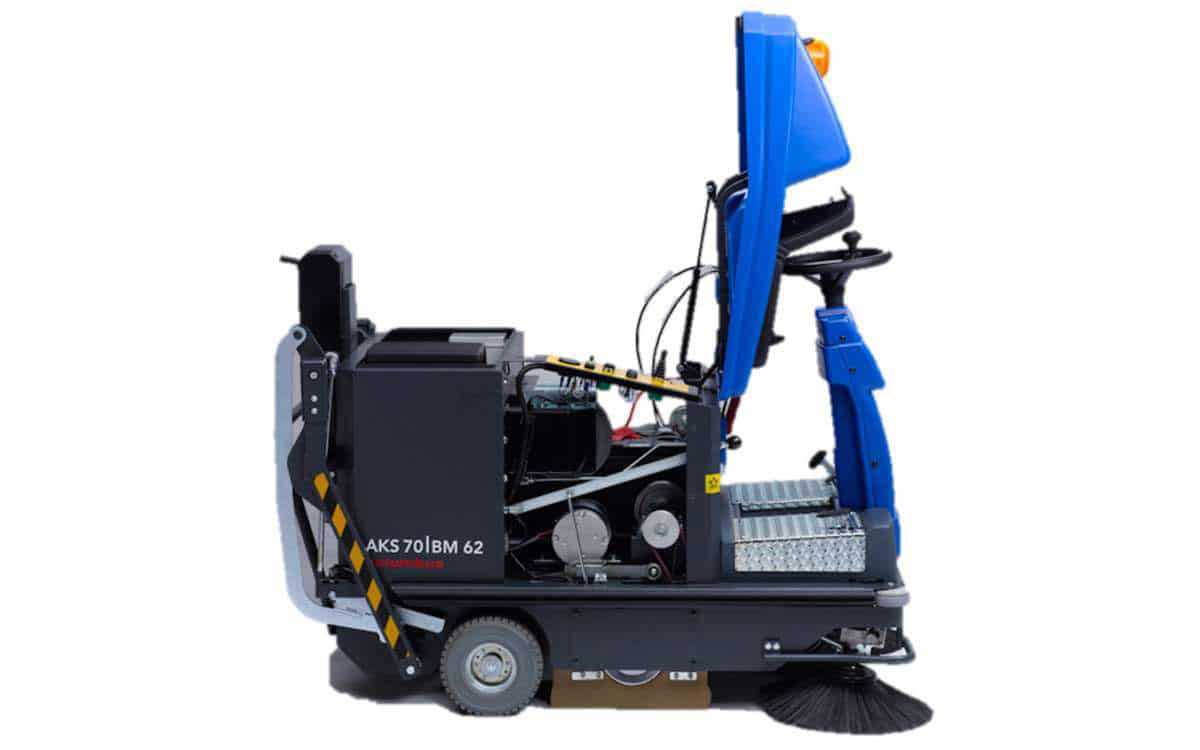

Traction drive protection

Filters, brush unit and motor all installed separately from each other to guarantee years of reliable operation.

Vielseitig reinigen

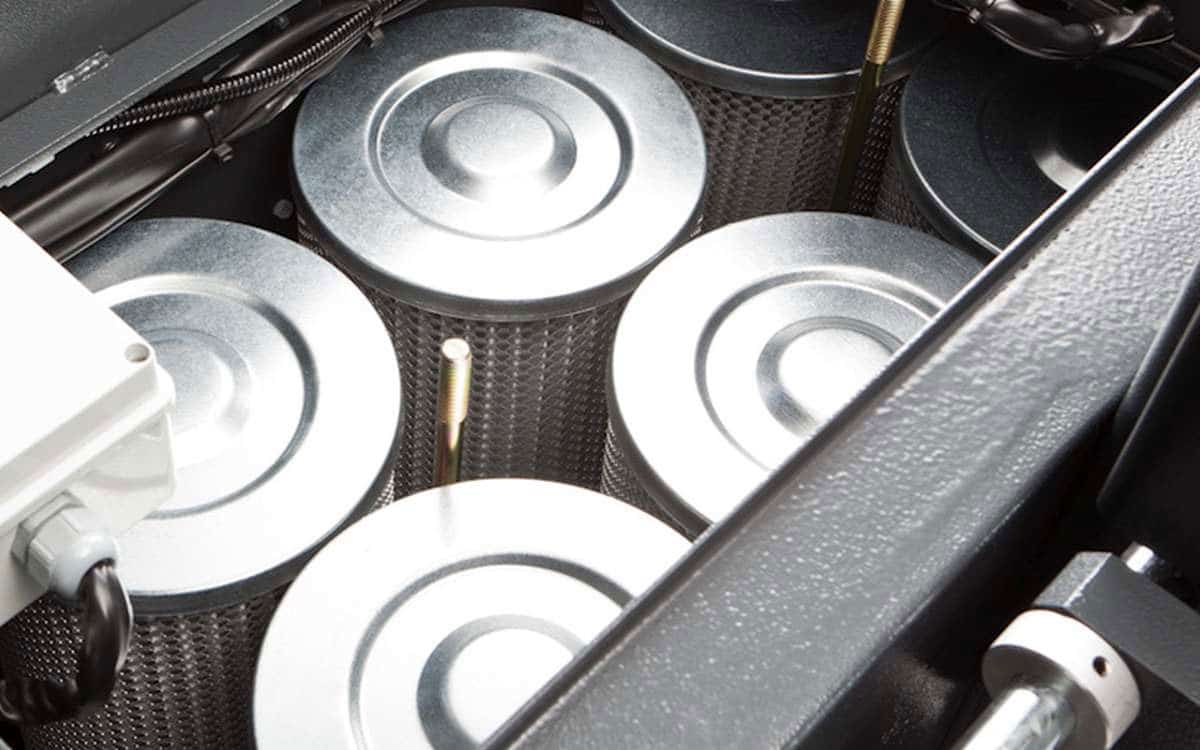

Large cylindrical filter

Large cylindrical polyester filter with 6m² filter area as standard.

Vielseitig reinigen

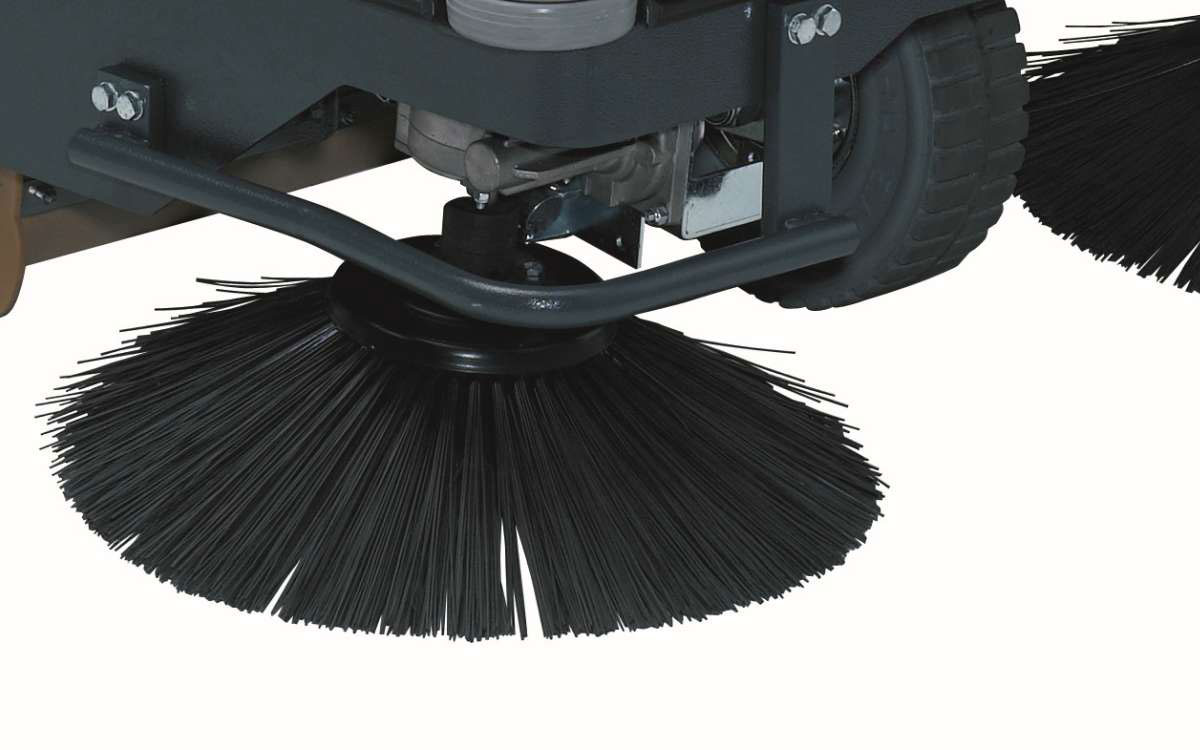

Sweep right up to the edge

Sweeps thoroughly in every corner, and right up to the wall.

  • Easy-to-service components

Well thought-through design provides quick and easy access to all vital machine components.

  • Bulk waste flap

Easily picks up coarse particles during normal operations.

  • Break in suction flow

Protects the filter when moving over wet surfaces.

  • Extendible swept-up waste container

The plastic swept-up waste container can be emptied quickly and easily.

  • Standard: extremely robust sweeping tools

Polypropylene brushes and side brushes: designed to handle the most challenging tasks.

AKS 70|VM 62
Optional equipment
Vielseitig reinigen

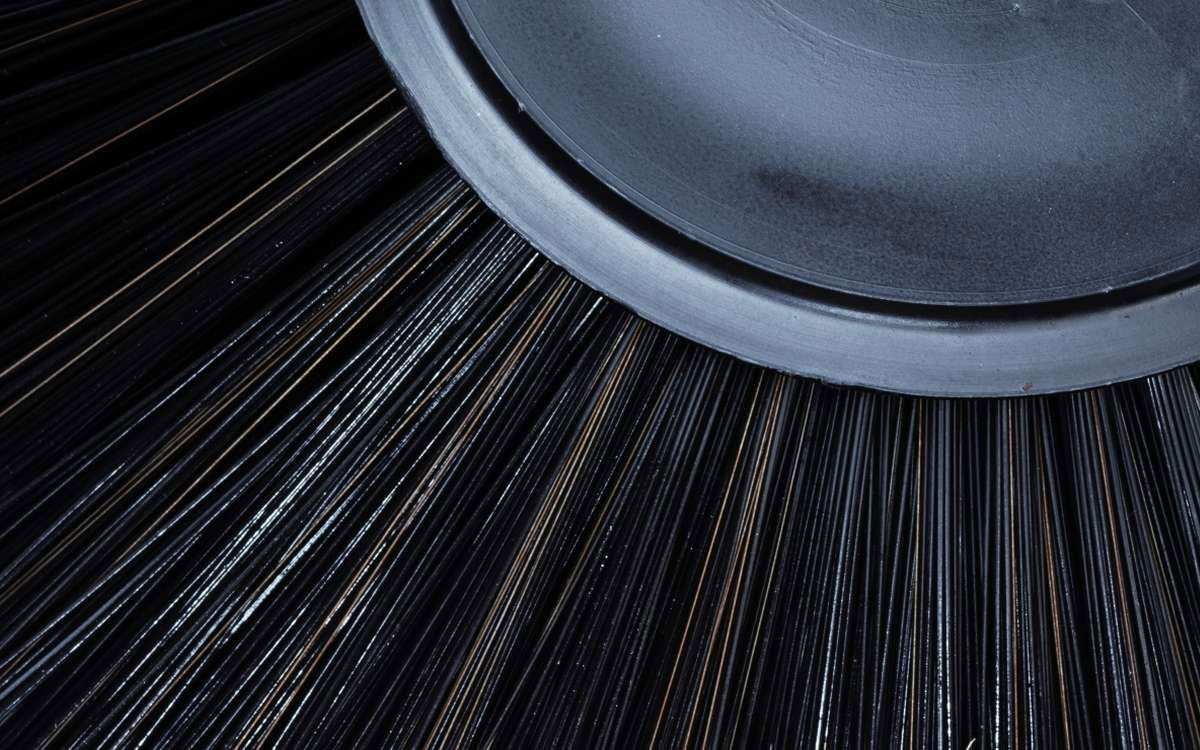

Brush and side brushes made of PP + wire

Optimum dust absorption and low wear when used on coarse surfaces, especially outdoors.

Vielseitig reinigen

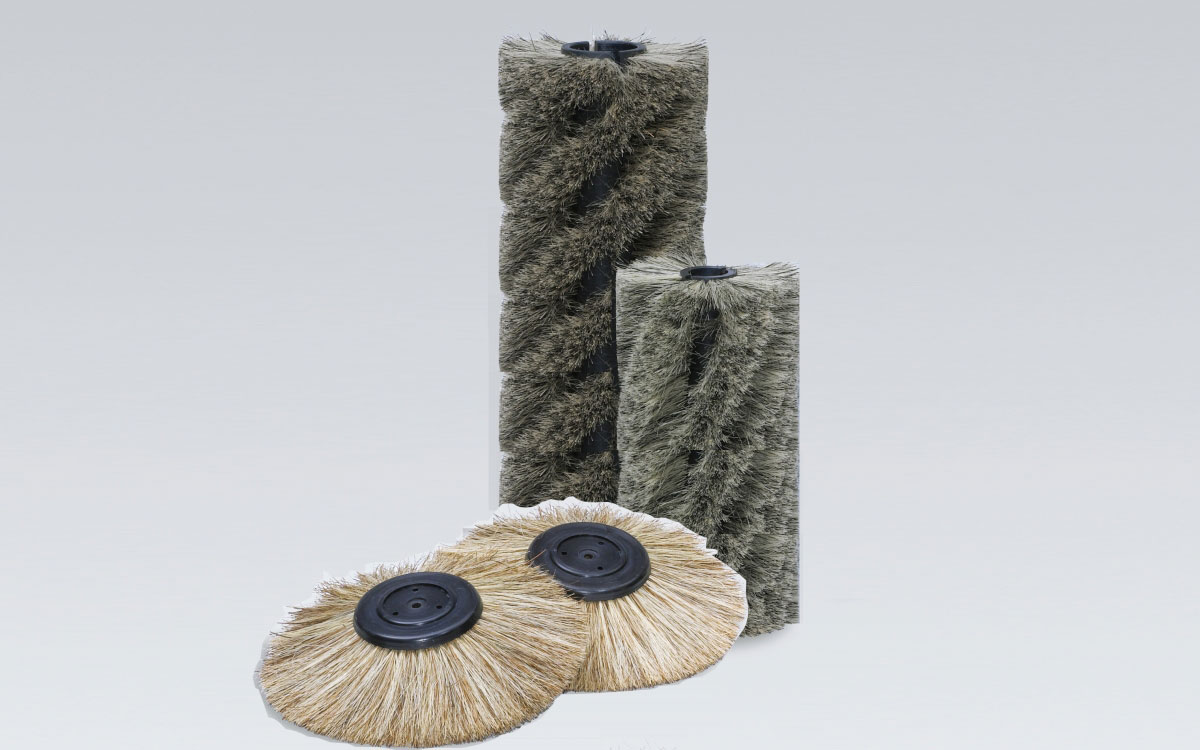

Roller Brush and Side Brush Nature

Optimum dust absorption on sensitive surfaces is possible with soft natural bristles.

Vielseitig reinigen

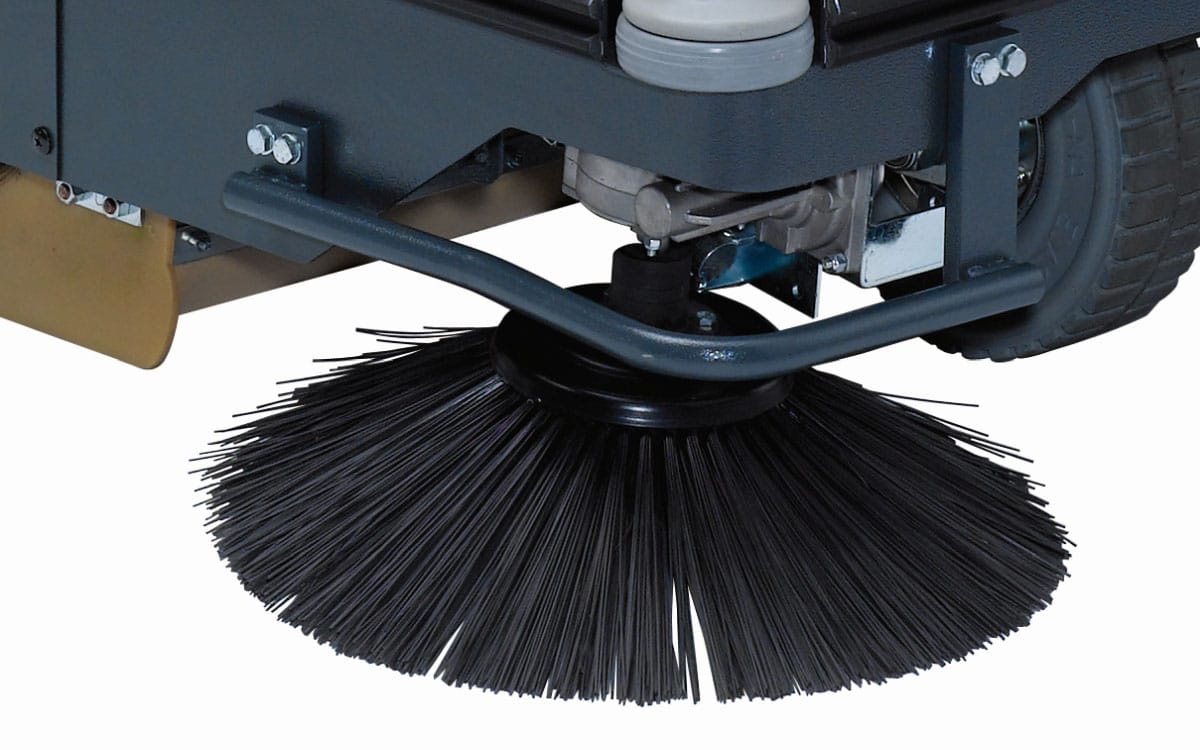

Side brush guard

Increased protection for machine, brushes and inventory.

Vielseitig reinigen

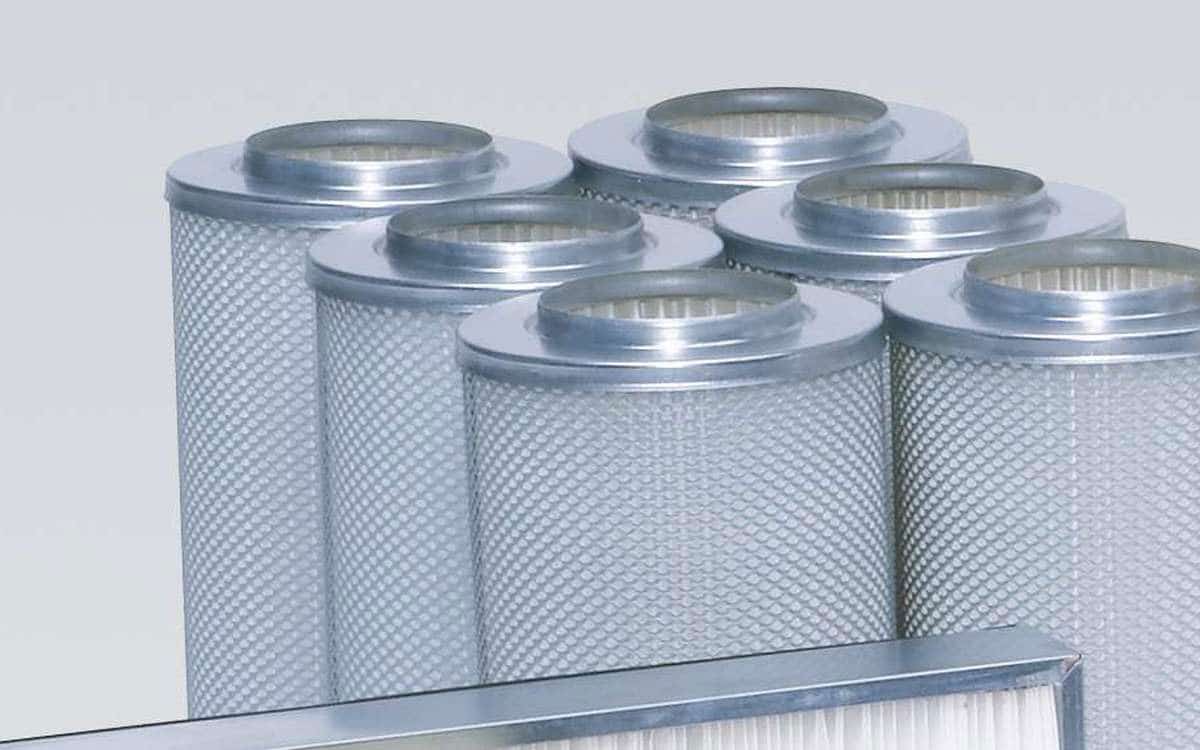

Maximum safety for the environment and users through filtration of fine dust, suspended particles and very small particles.

Vielseitig reinigen

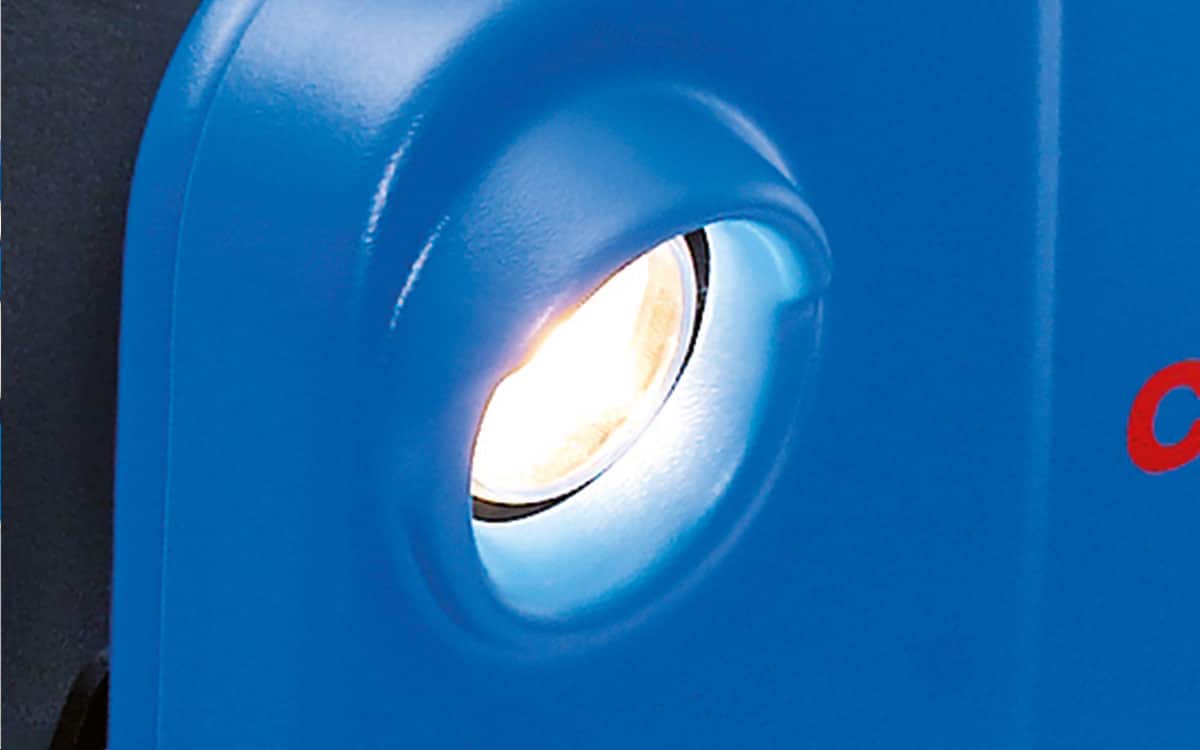

Front light

SAFETY after all: Best visibility during work and on traffic ways.

Vielseitig reinigen

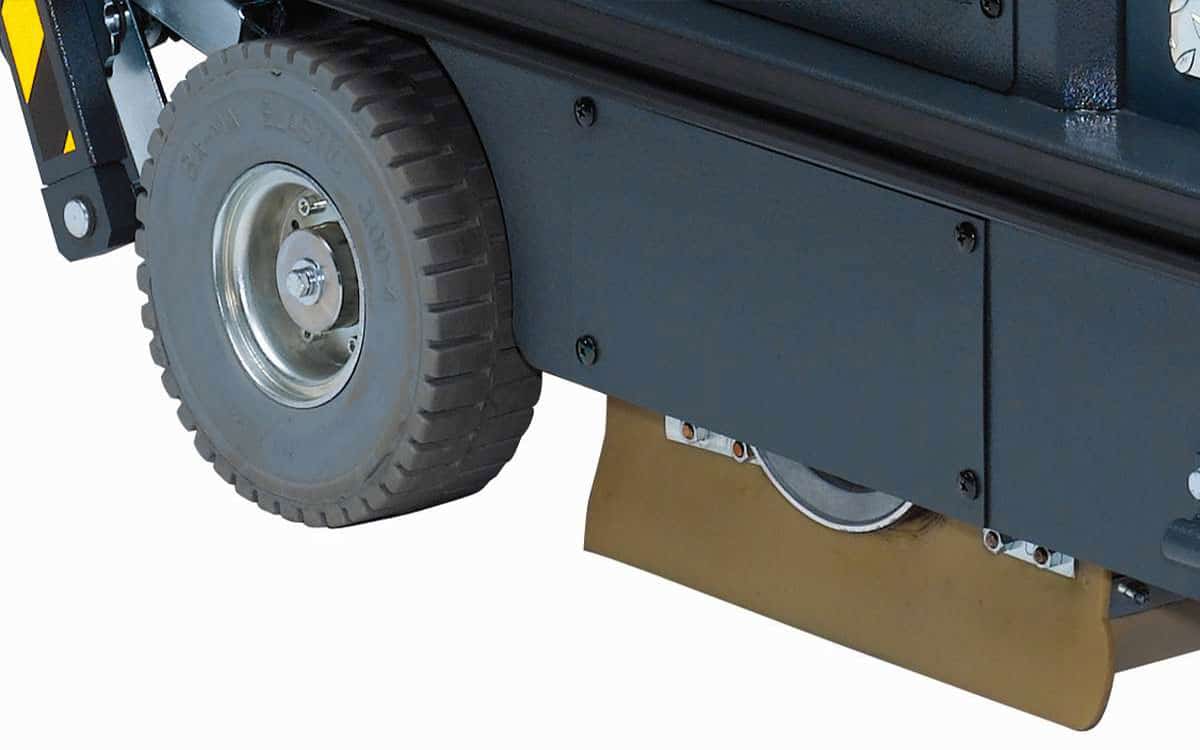

Non-Marking wheels

Trace-free sweeping with non-marking wheels.

  • Sweep container in steel

Maximum stability even after many years of use in heavy-duty areas.

  • Protective roof

Maximum safety for use in high-bay warehouses. Meets IEC 60335-2-72 requirements.

AKS 70|VM 62
Technical data
Technical data
L x W x H 1430 x 910 x 1140 mm
Sweeping principle overthrow
Working width w/o side brushes 700 mm
with 1 side brush 920 mm
with 2 side brushes 1150 mm
Empty weight w/o battery 312 kg
Operating weight 390 kg
Traction / drive
Mode of drive Petrol motor
Performance 4 kW
Traction drive hydraulic, front wheel
Climbing ability 20 %
Speed max. 7,7 km/h
Dust suction yes
Waste container 62 l
Filter size 6 m²
Shaker electric
