Sprayextractions

Spray extraction machines

Spray extraction machines

2024-07-30T08:48:36+02:00

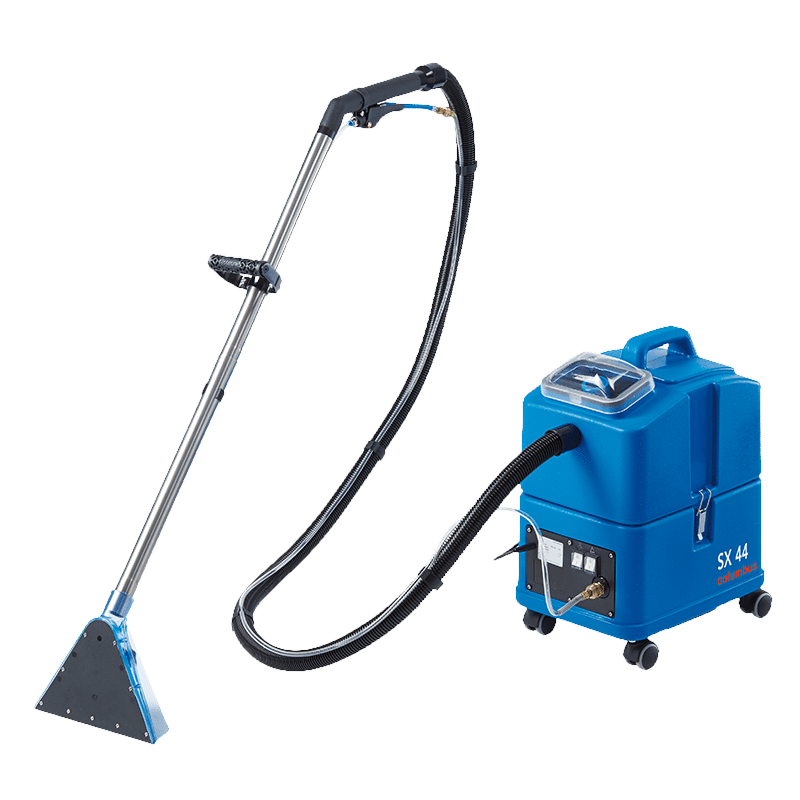

SX 44

  • Working width270 mm
  • Spray volume1,5 l/min mm
  • Spray pressure4 bar
  • Solution tank capacity14 l
Technical key data
  • L x W x H300 x 420 x 530 mm
  • Working width270 mm
  • Suction width-
  • Spray volume1,5 l/min mm
  • Spray pressure4 bar
  • Weight12 kg
Electrical data
  • Power max.1570 W
  • Mains cable10 m
Tank
  • Solution tank capacity14 l
  • Recovery tank capacity 14 l
Suction
  • Low pressure max.295 mbar
  • Air flow max.45 l/s
Standard equipment
  • Floor toolplastic
  • Tube2,5 m
2024-07-30T08:47:21+02:00

SX 344

  • Working width300 mm
  • Spray volume4,5 l/min mm
  • Spray pressure9 bar
  • Solution tank capacity30 l
Technical key data
  • L x W x H380 x 500 x 780 mm
  • Working width300 mm
  • Suction width-
  • Spray volume4,5 l/min mm
  • Spray pressure9 bar
  • Weight24 kg
Electrical data
  • Power max.1580 W
  • Mains cable10 m
Tank
  • Solution tank capacity30 l
  • Recovery tank capacity 30 l
Suction
  • Low pressure max.295 mbar
  • Air flow max.45 l/s
Standard equipment
  • Floor toolaluminium
  • Tube5 m
2024-07-30T08:47:04+02:00

TA 50|K 50

  • Working width500 mm
  • Spray volume4,5 l/min mm
  • Spray pressure9 bar
  • Solution tank capacity50 l
Technical key data
  • L x W x H500 x 860 x 950 mm
  • Working width500 mm
  • Suction width720 mm
  • Spray volume4,5 l/min mm
  • Spray pressure9 bar
  • Weight55 kg
Electrical data
  • Power max.1580 W
  • Mains cable15 m
Tank
  • Solution tank capacity50 l
  • Recovery tank capacity 50 l
Suction
  • Low pressure max.333 mbar
  • Air flow max.45 l/s
Standard equipment
  • Floor tool-
  • Tube-
