Project Description

Ride-on

ARA 80|BM 100

ARA 80|BM 100

Overview

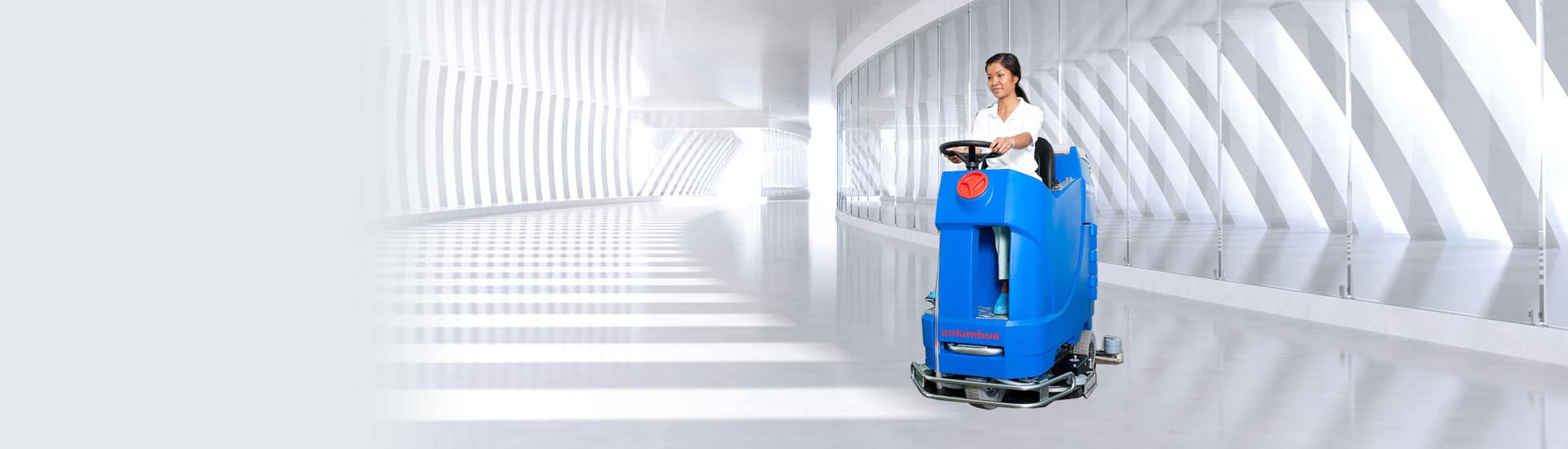

Simply clever: This sturdy ride-on scrubber dryer is characterized by its easy operation and reliable components. The high battery capacity enables efficient operation for up to eight hours. The compact dimensions and the small turning radius ensure optimum use even in the most confined spaces and problem-free transport in all conventional lifts. With a working width of 80 cm, this ride-on scrubber dryer is ideal for use on large areas and as a noBAC® version for use in buildings with special hygiene requirements.

Technical key data
  • Tank capacity 100 l

  • Working width 800 mm

  • Theoretical coverage max. 5600 m²/h

  • Traction motor yes

ARA 80|BM 100
Product highlights
Vielseitig reinigen
Very robust mechanics

Only truly durable machines are also truly green.

Vielseitig reinigen
Ergonomic machine design

Fatigue-free riding position with good all-round visibility, ideal for longer operating periods and cleaning large areas.

Vielseitig reinigen
Tight turning circle

Unbeatable manoeuvrability.

Vielseitig reinigen
Superb suction

Guarantees streak-free floors that can be walked on immediately after cleaning.

Vielseitig reinigen
High brush pressure

Excellent cleaning result with the lowest possible amounts of water and chemicals, even on very dirty surfaces.

Vielseitig reinigen
Easy-to-service components

Well thought-through design provides quick and easy access to all vital machine components.

more features
  • Clean right up to the edge

Perfect cleaning result, right up to the wall.

  • Sized to fit in lifts

The machine can be transported in any standard lift.

  • Toolflex as standard

Never without a mop.

  • Integrated bottle holder

Pre-spray bottle always ready to hand.

  • Made in Germany

Quality from Germany.

  • Tested and certified by DEKRA

Quality tested and certified by the world’s leading body of experts.

less features
ARA 80|BM 100
Optional equipment
Vielseitig reinigen
silent Version

For cleaning in noise-sensitive areas or during business hours.

Vielseitig reinigen
noBAC®

With antibacterial tanks for all applications with high hygienic requirements.

Vielseitig reinigen
ECD – electronic Chemical dosing system

Only as much chemicals as absolutely necessary; this is good for the environment and the budget.

Vielseitig reinigen
EWD – electronic water dosing system

Cleaning operations with constant water quantity for consistently good cleaning quality.

Vielseitig reinigen
Security-Kit

Maximum operational safety due to rotating beacon.

Vielseitig reinigen
Tyre equipment “comfort plus”

Different type ofTyres for greater driving comfort.

more options
  • Integrated charger

Charge the battery anywhere, with the high-quality integrated charger.

less options
ARA 80|BM 100
Technical data
Technical key data
L x W x H 1380 x 730 x 1325 mm
Working width 660 mm
Suction width 850 mm
Theoretical coverage max. 5600 m²/h
Noise level 64 / 60 dB(A) *
Empty weight 258 kg
Operating weight (180 Ah 5) 690 kg
Batteries / Electrical data
Rated voltage 24 V
Power max. 2290 W
Capacity wet 250 Ah 5** / 320 Ah 5
Capacity gel 240 Ah 5** / 280 Ah 5

* silent version, optional
** with integrated charger

Tank
Solution tank capacity 100 l
Recovery tank capacity 115 l
Motors
Suction: low pressure 170 mbar
Suction: air flow 33 l/s
Traction: power 750 W
Traction: speed 7 km/h
Traction
Power max. 750 mbar
Speed max. 7 km/h
Brushes and pad holders
Number 2
Speed 160 rpm
Brush pressure 50 kg
ARA 80|BM 100
Accessories

As a specialist for contract cleaning, columbus offers you, in addition to first-class machines, a wide range of accessories for an individual adaption to your equipment and your requirements.
