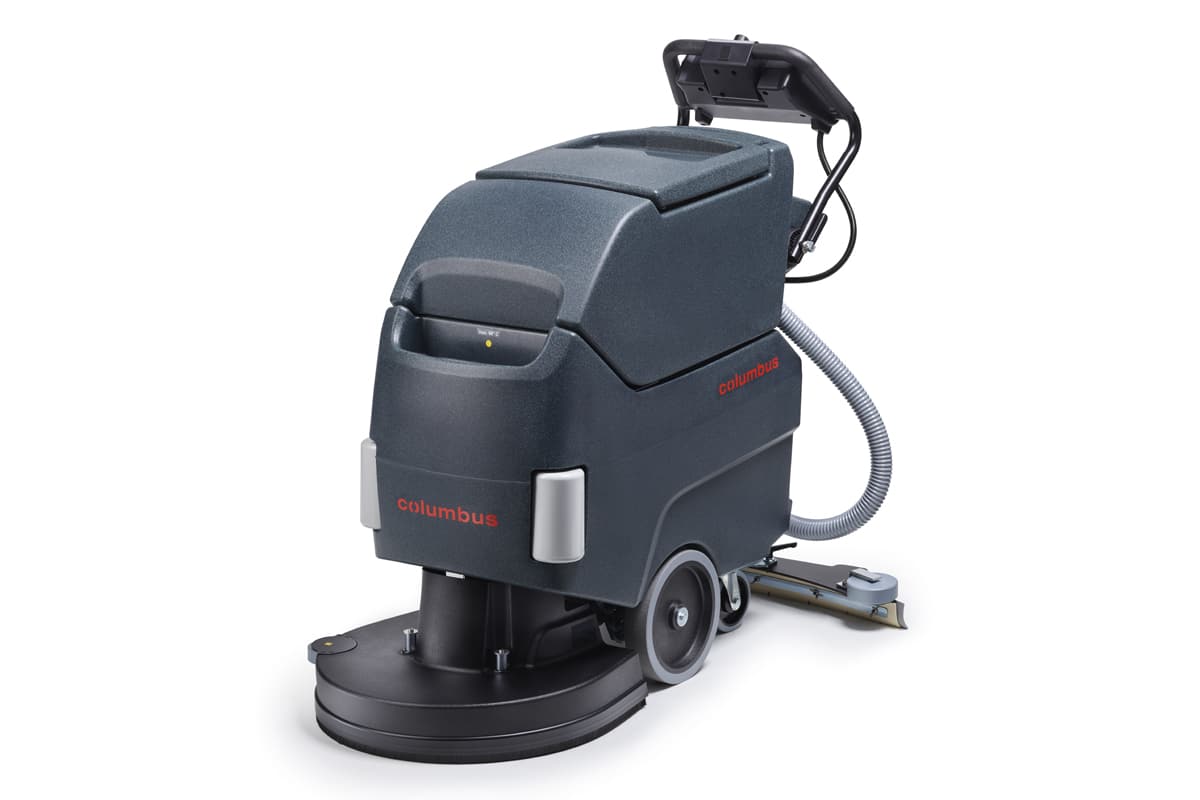

Walk-behind

RA 55|BM 40 CYCLE

RA 55|BM 40 CYCLE

Overview

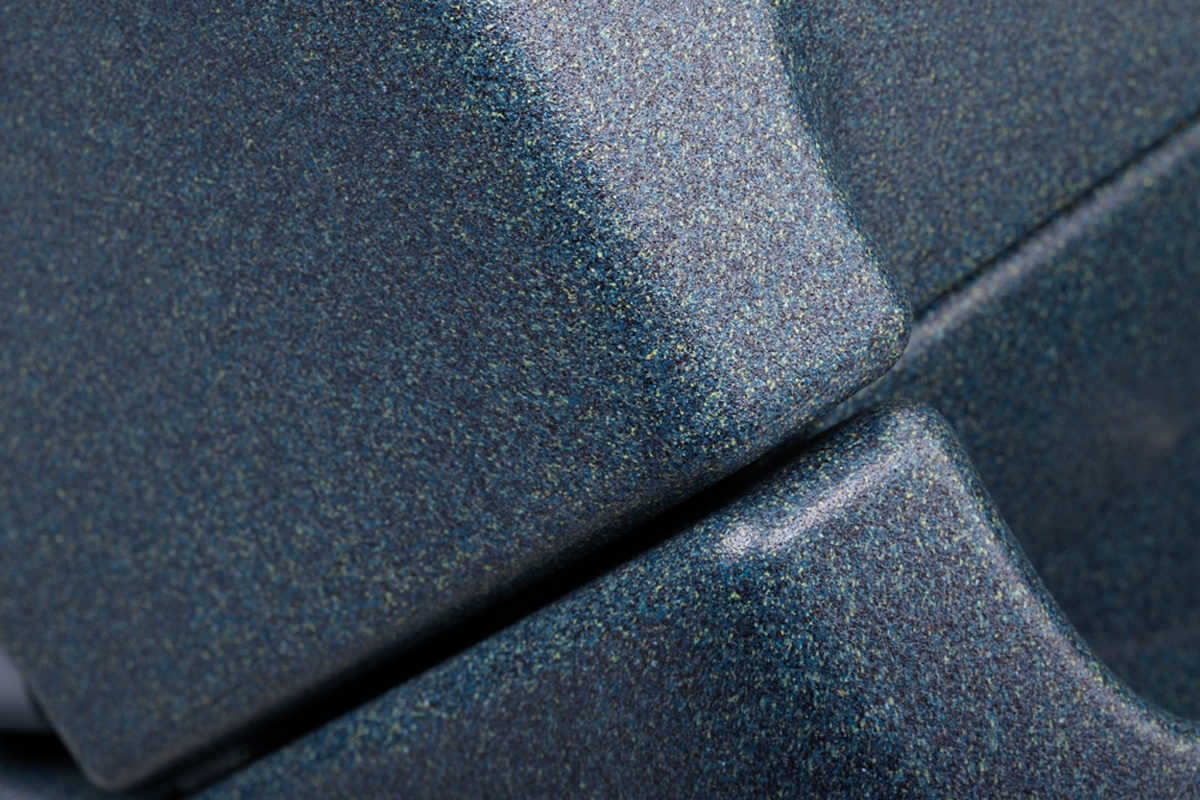

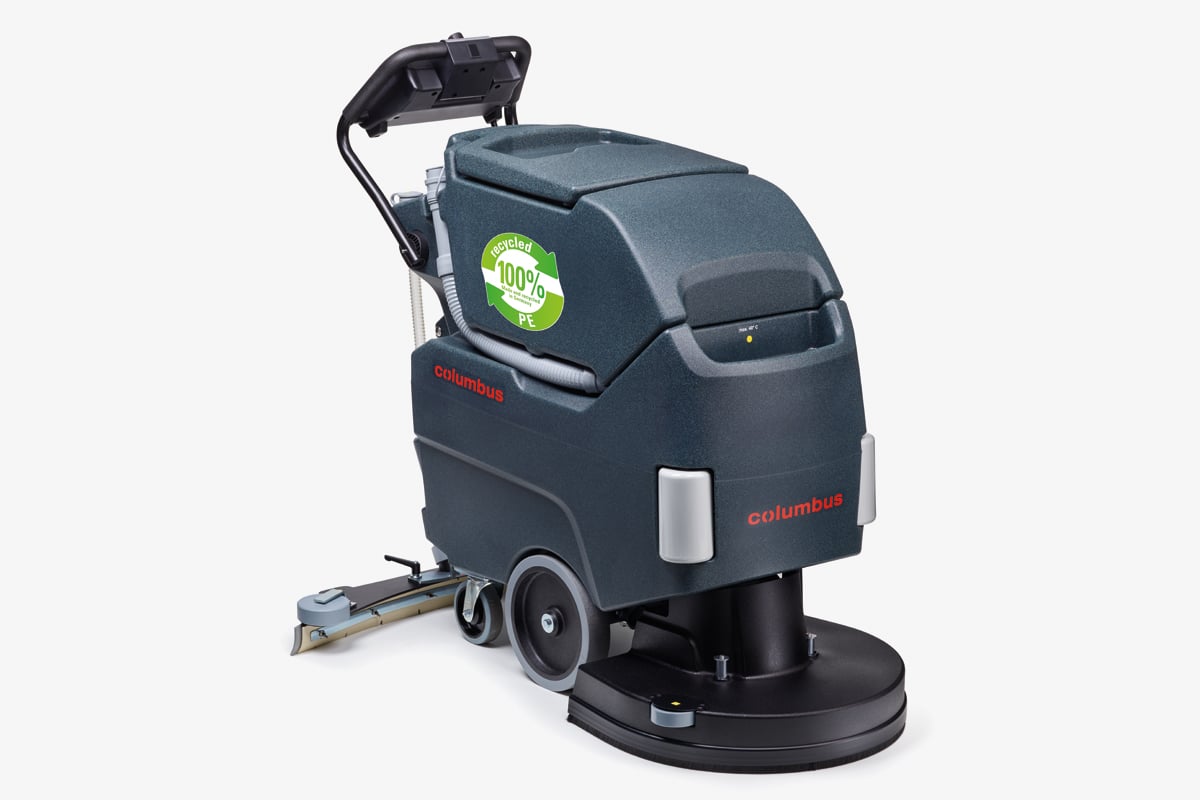

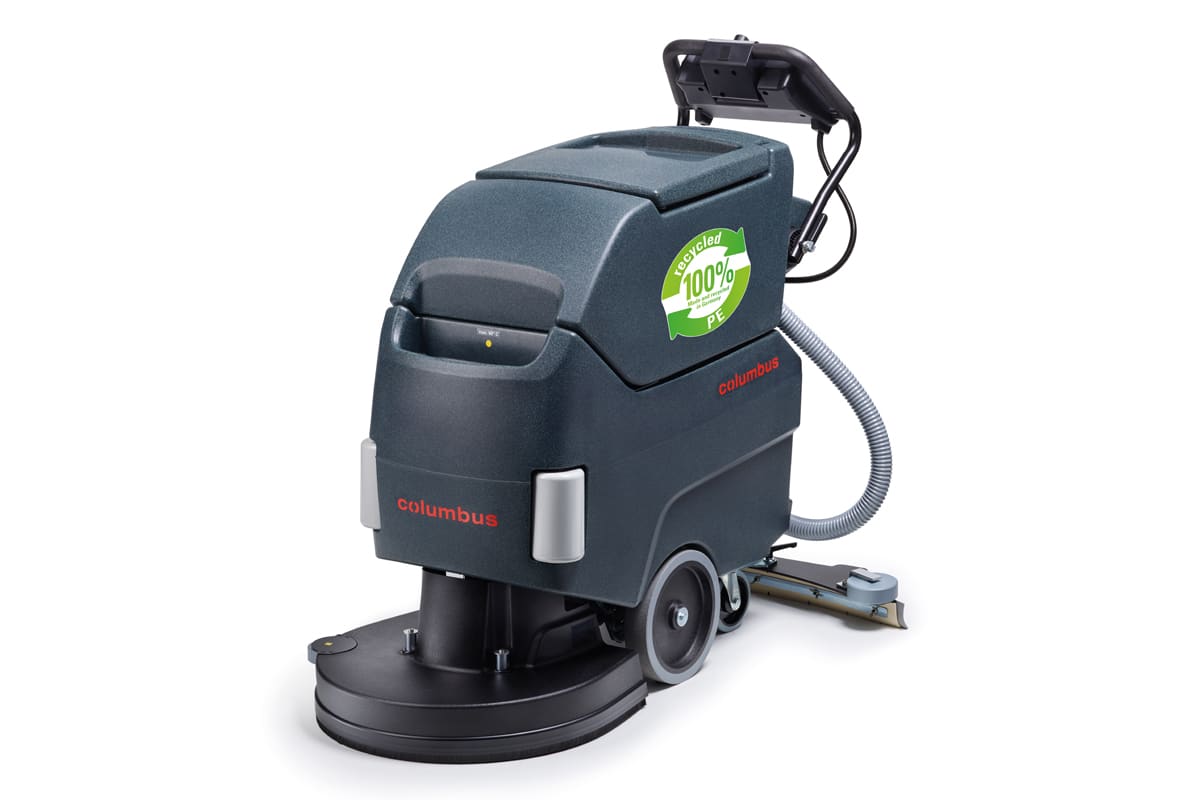

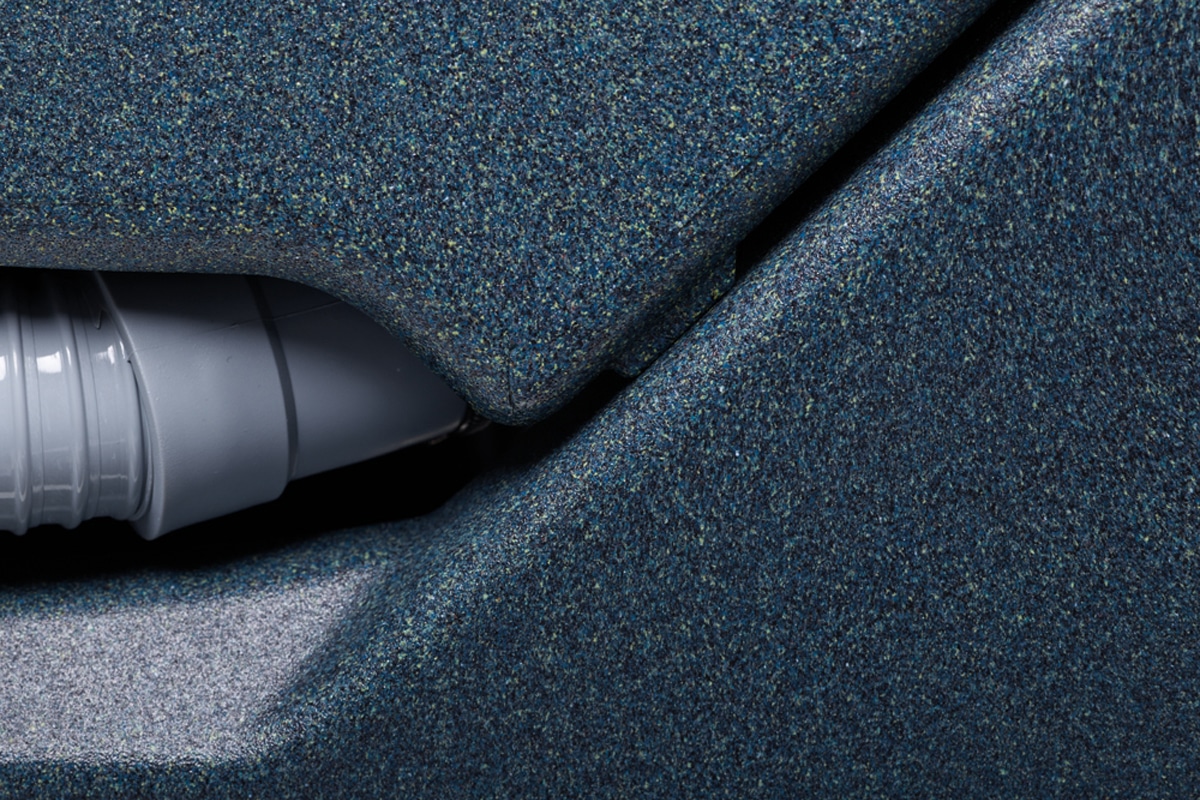

With the RA 55|BM 40 CYCLE columbus is heralding a new era in sustainability. The tank of the walk-behind scrubber dryer is made of 100 percent recycled plastic. This consistency gives us a unique selling point in the mid-range of 40 to 60-litre walk-behind scrubber dryers. Only offcuts and rejects from the production of our supplier of rotary sintered parts are used for the manufacture of the tank; an aspect that guarantees the grade purity of the PE material. The material is collected into larger batches, chopped and ground into powder, which is fed into the identical rotational moulding process using columbus moulds. In this way, an identical quality is given compared to our standard tanks. There is no colour sorting or mixing of the raw material. This saves energy and storage space, transport and the mixing process. No two tanks are alike.

Technical key data
  • Tank capacity 40 l
  • Working width 550 mm
  • Theoretical coverage max. 2200 m²/h
  • Brush pressure 25 kg
RA 55|BM 40 CYCLE
Product highlights
Vielseitig reinigen
Very robust mechanics

Only truly durable machines are also truly green.

Vielseitig reinigen

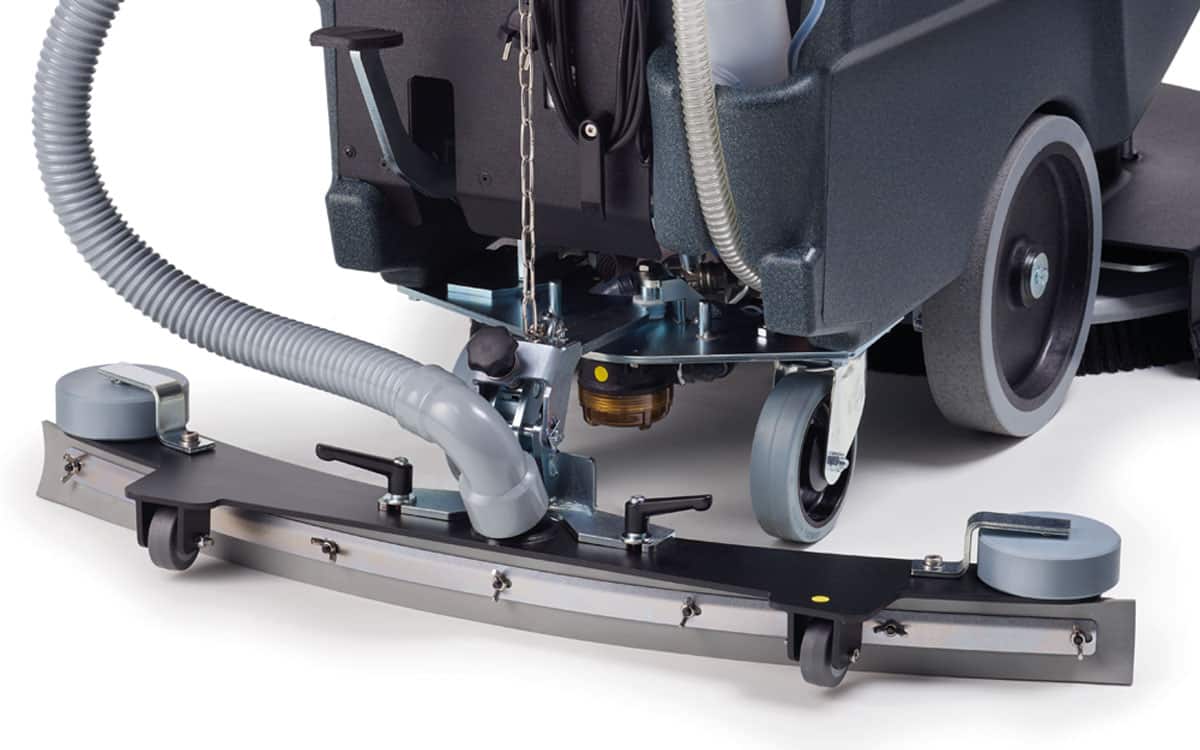

Superb suction

Guarantees streak-free floors that can be walked on immediately after cleaning.

Vielseitig reinigen

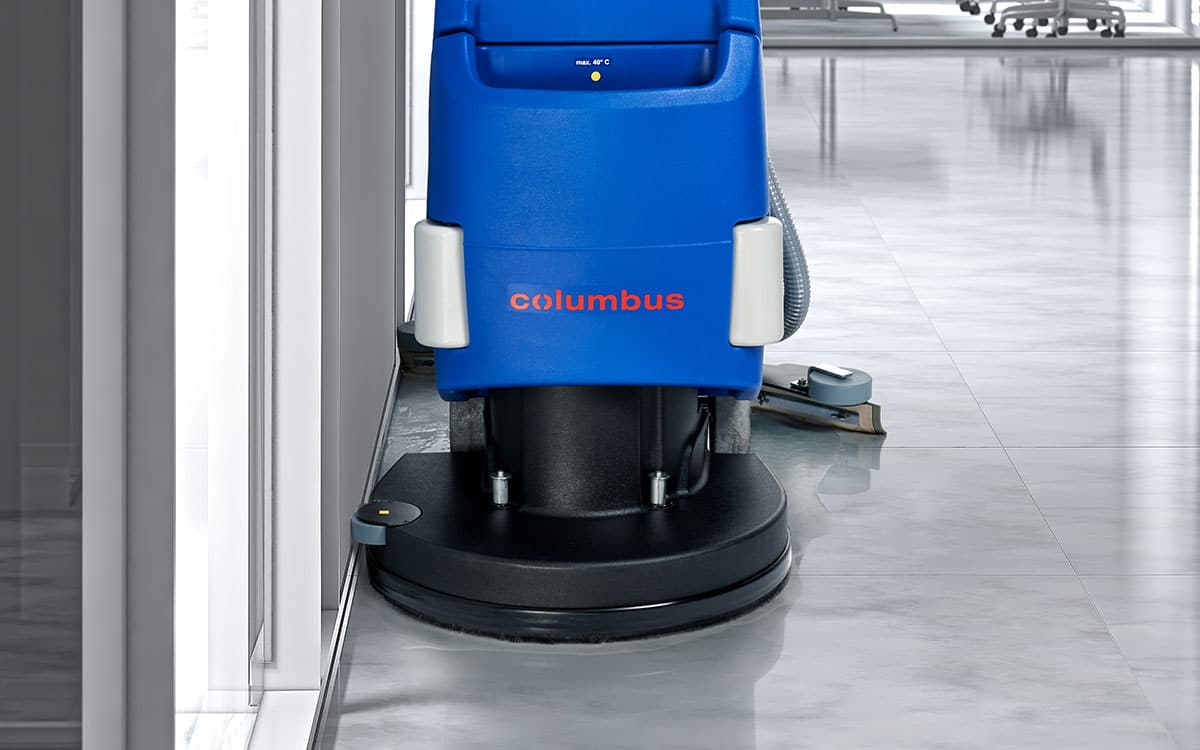

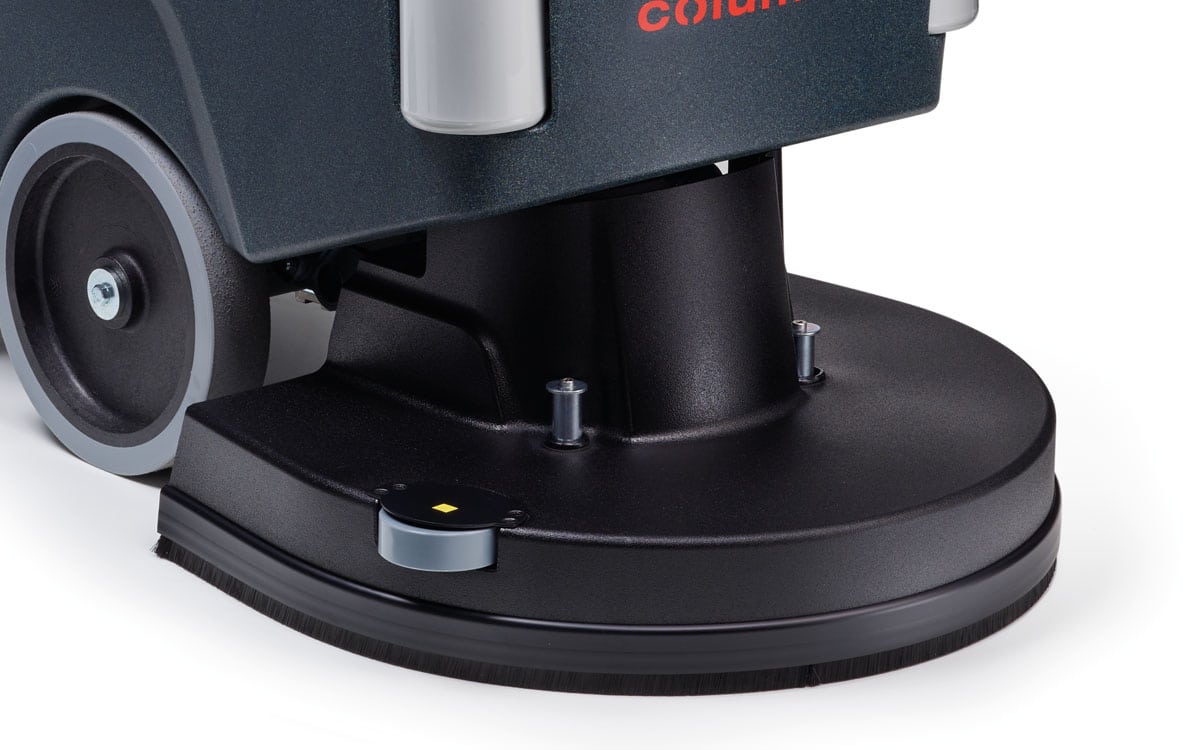

Clean right up to the edge

Perfect cleaning result, right up to the wall.

Vielseitig reinigen

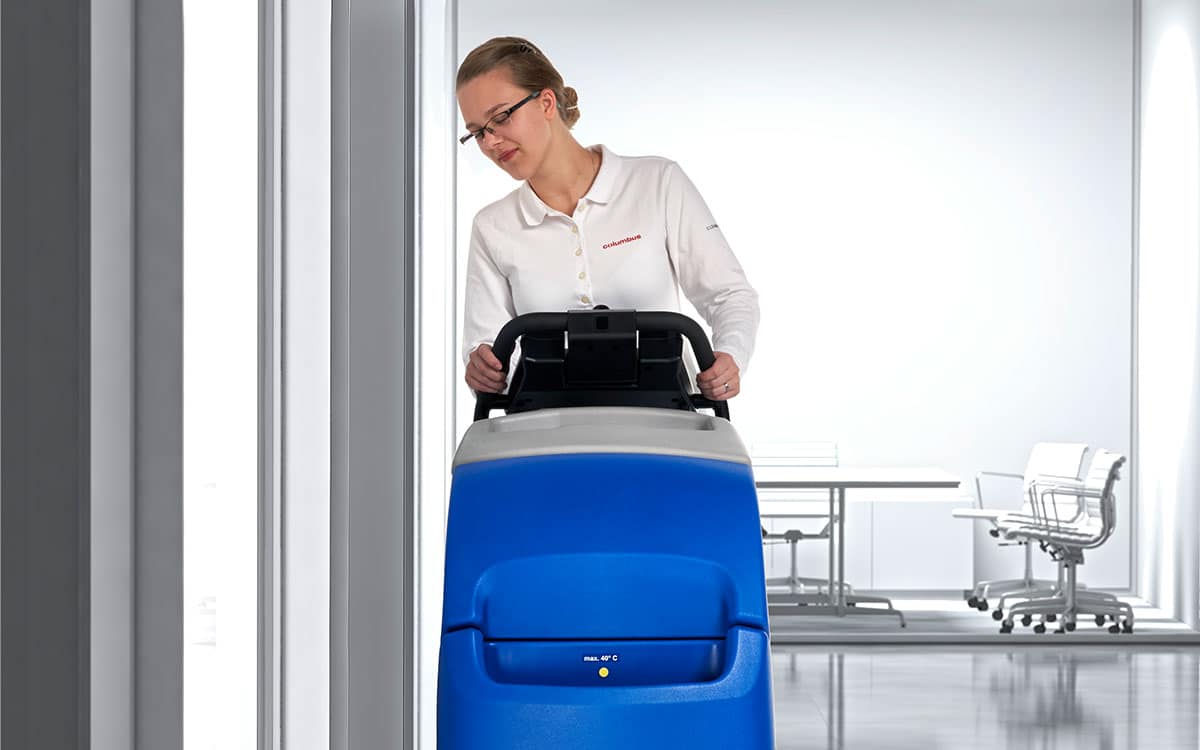

Silence comes as standard

Ultra-quiet cleaning at only 60 dB(A) in noise-sensitive areas.

Vielseitig reinigen
Quick Stop as standard

The brush motor and water supply stop automatically when you let go of the handle.

Vielseitig reinigen
Automatic brush holder

Change tools quickly and easily at the touch of a button.

more features
  • High brush pressure

Excellent cleaning result with the lowest possible amounts of water and chemicals, even on very dirty surfaces.

  • Functional display

Intuitive and easy to understand for every operator.

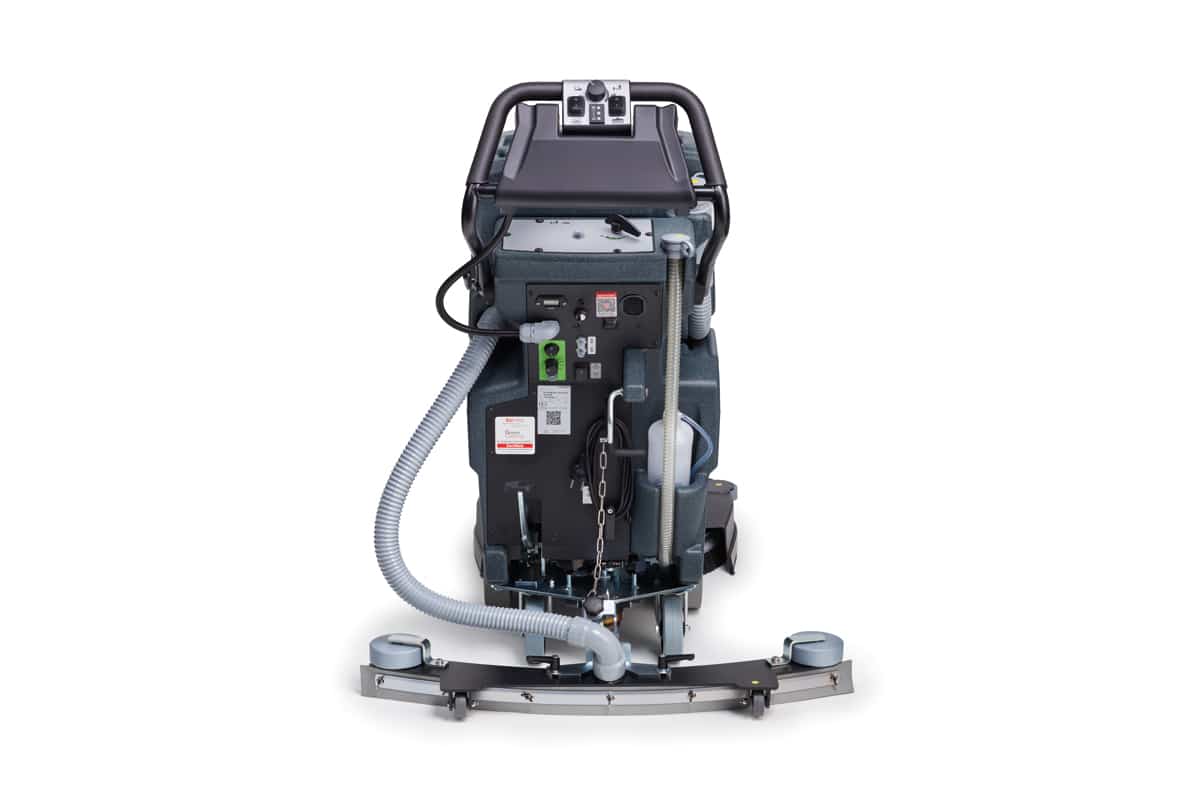

  • Easy-to-service components

Well thought-through design provides quick and easy access to all vital machine components.

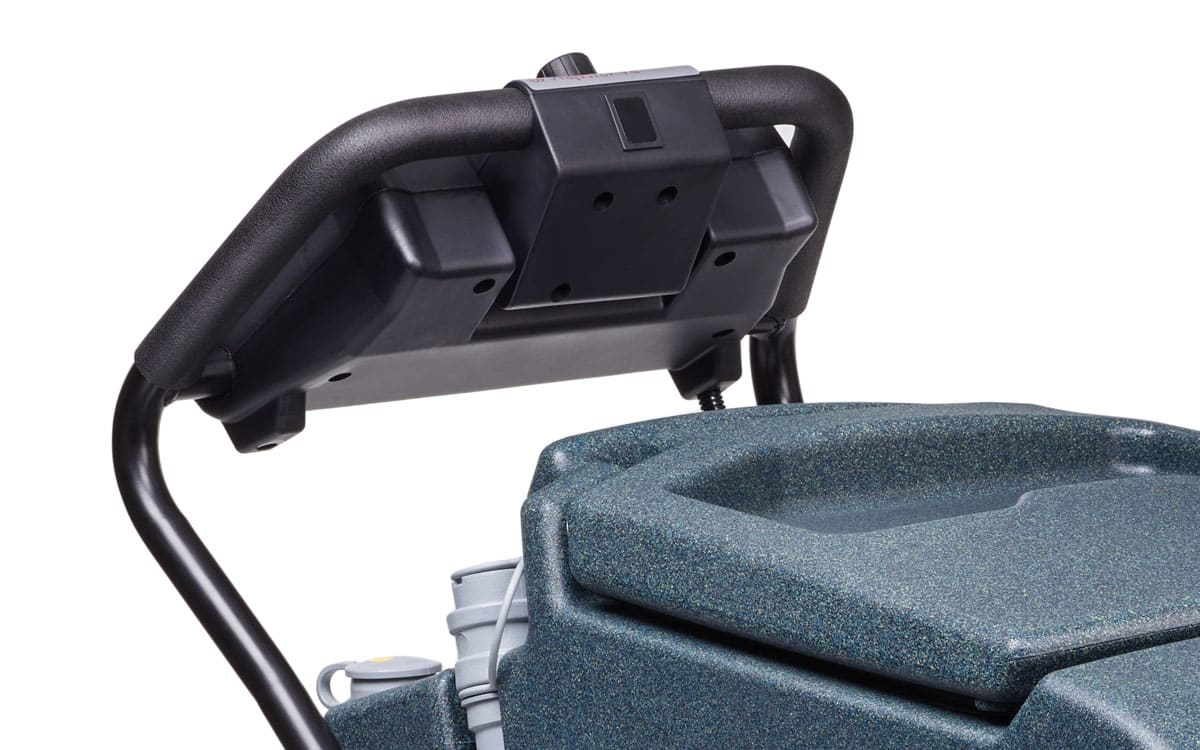

  • Ergonomic steering handle

Easily adjustable steering handle, convenient for every operator.

  • Maintenance Instructions

Service markings simplify day-to-day care of machines.

  • Easy-clean machine

HACCP-compliant hygiene measures easily applied to all critical components.

  • Compact construction

Maximum efficiency for the best possible size.

  • Made in Germany

Quality from Germany.

less features
RA 55|BM 40 CYCLE
Optional equipment
Vielseitig reinigen
V-Eraser mop and wipe disinfection

WHO- and RKI-compliant mop and wipe disinfection on medium to large surfaces.

Vielseitig reinigen
ECD – electronic Chemical dosing system

Only as much chemicals as absolutely necessary; this is good for the environment and the budget.

Vielseitig reinigen

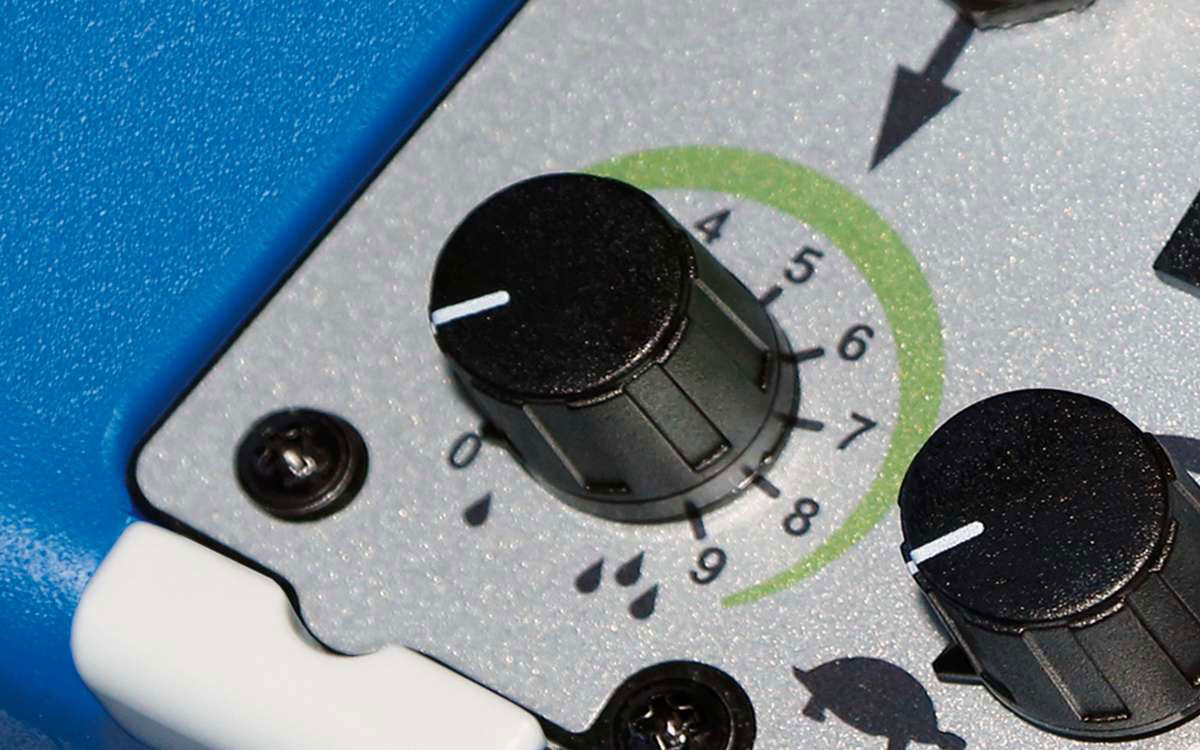

EWD – electronic water dosing system

Cleaning operations with constant water quantity for consistently good cleaning quality.

RA55BM60 scrubber dryer floor scrubber cleaning machine
Tool board

Working tools for manual cleaning always at hand.

Vielseitig reinigen
Integrated charger

Charge the battery anywhere, with the high-quality integrated charger.

RA 55|BM 40 CYCLE
Technical data
Technical key data
L x W x H 1250 x 570 x 980 mm
Working width 550 mm
Suction width 850 mm
Theoretical coverage max. 2200 m²/h
Noise level 60 dB (A)
Empty weight 84 kg
Operating weight 205 kg (105 Ah 5)
Batteries / Electrical data
Rated voltage 24 V
Power max. 1180 W
Power cable –
Capacity wet 110 Ah 5
Capacity gel 105 Ah 5
Tank
Tank material 100% recycled PE
Solution tank capacity 40 l
Recovery tank capacity 45 l
Motors
Suction: low pressure 125 mbar
Suction: air flow 28 l/s
Traction: power 180 W
Traction: speed 4 km/h
Brushes and pad holders
Number 1
Speed 180 rpm
Brush pressure 25 kg
RA 55|BM 40 CYCLE
