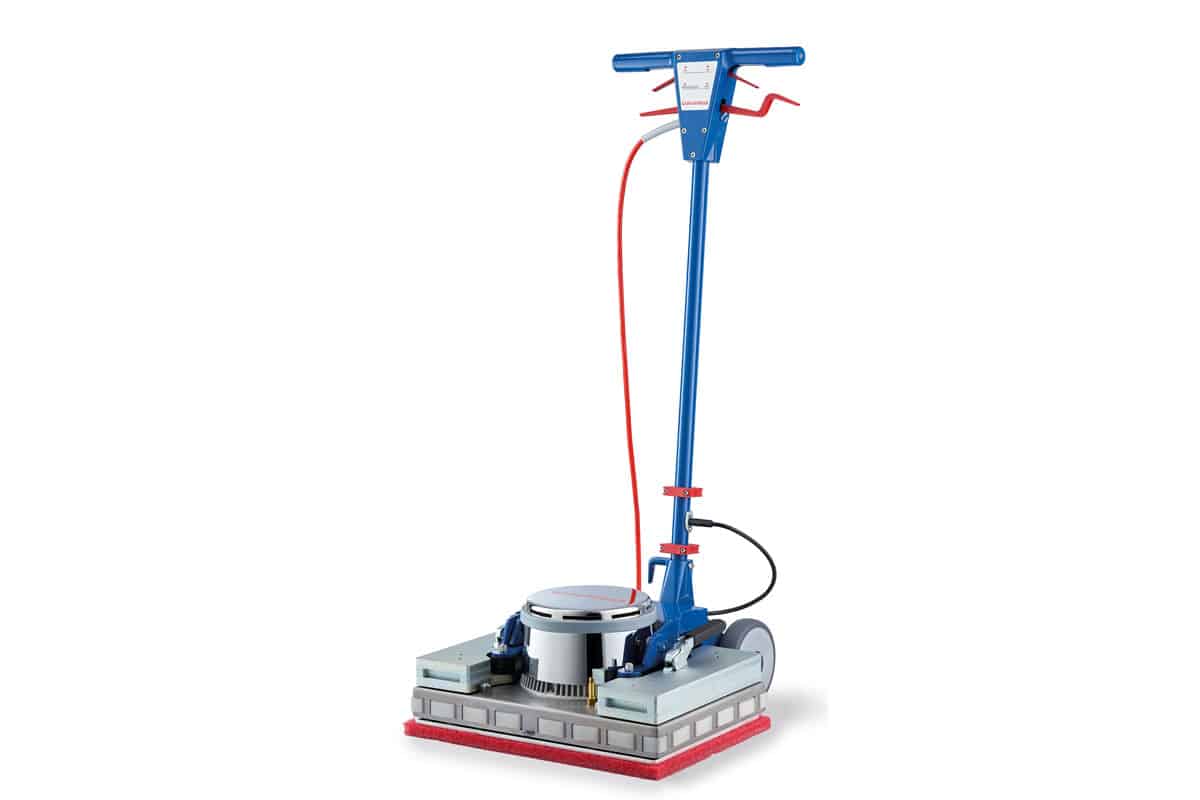

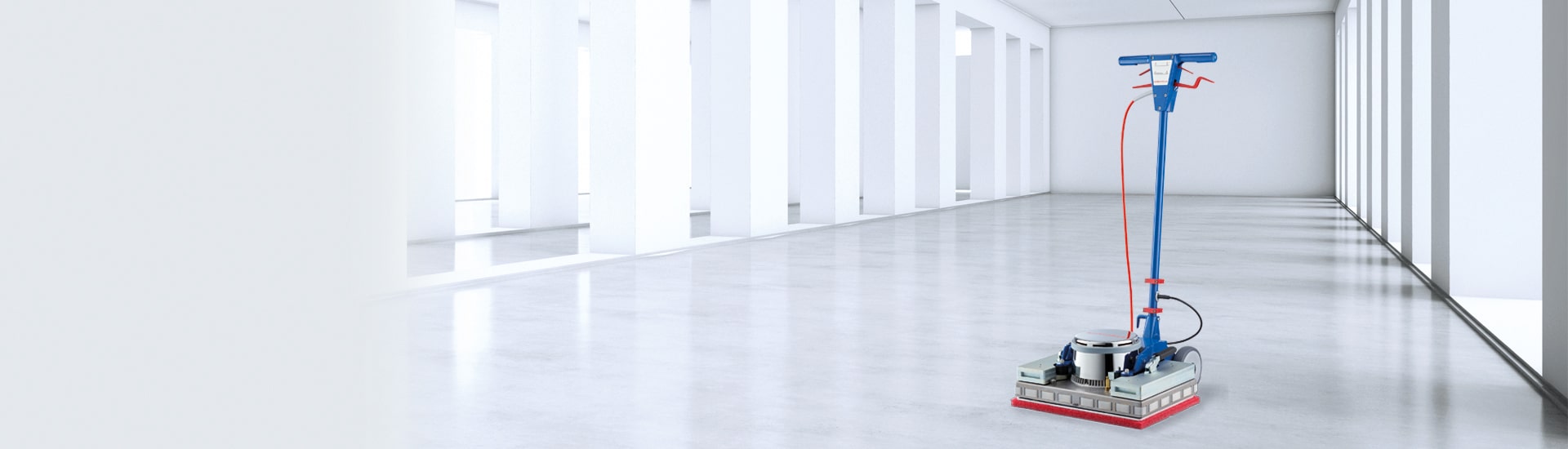

Excenter machine

X 500|S

X 500|S


Easy operation, fast working speed, effortless cleaning close to the edge – the X 500|S offers all the typical excenter advantages. But at the same time so much more: with its unbelievably quiet running, low underclearance and extremely modular design, it sets completely new standards in transportability and comfort. With these unique features and the highest quality, it proves to be what it is: the columbus among excenter machines.

Technical key data
  • Working width 500 mm

  • Ground clearance 240 mm

  • Weight 56 kg

  • Speed 3000 rpm

X 500|S
Product highlights
X500S single disc excenter machine easy transport

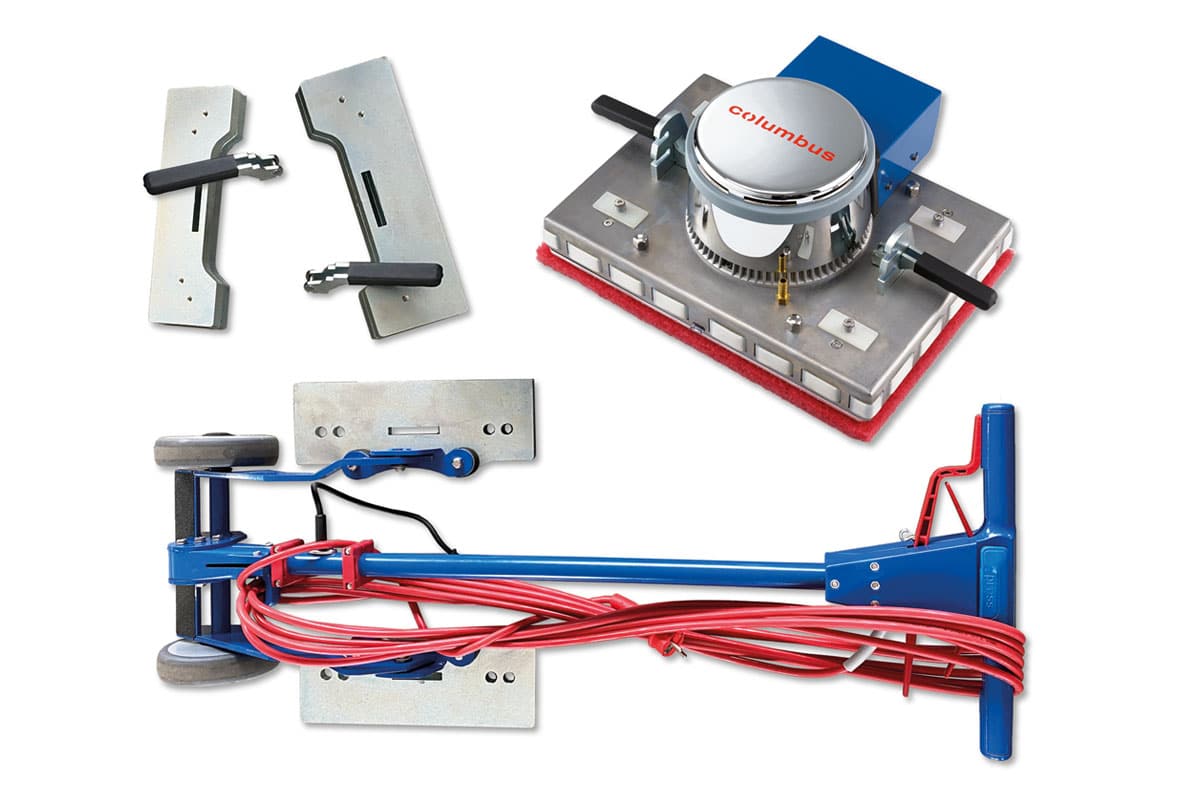

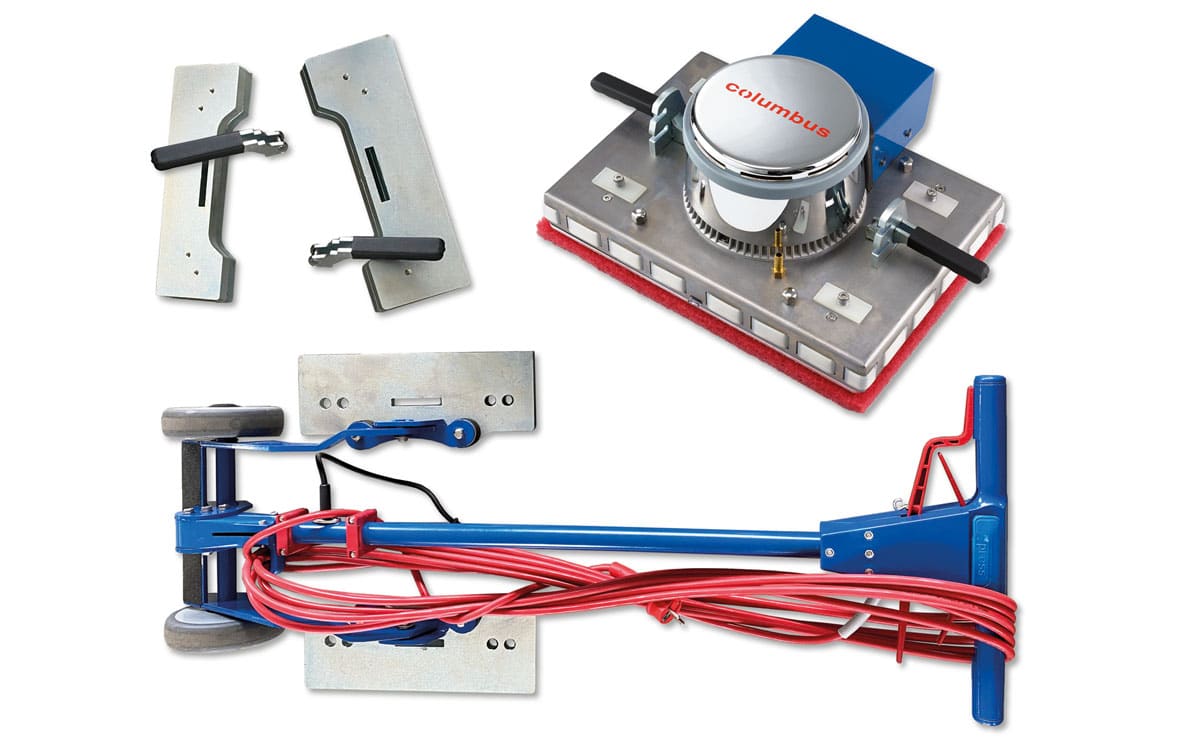

Easy transport

„The most transport-friendly excenter machine on the market!“ – The machine body and chassis can be separated without tools and transported individually.

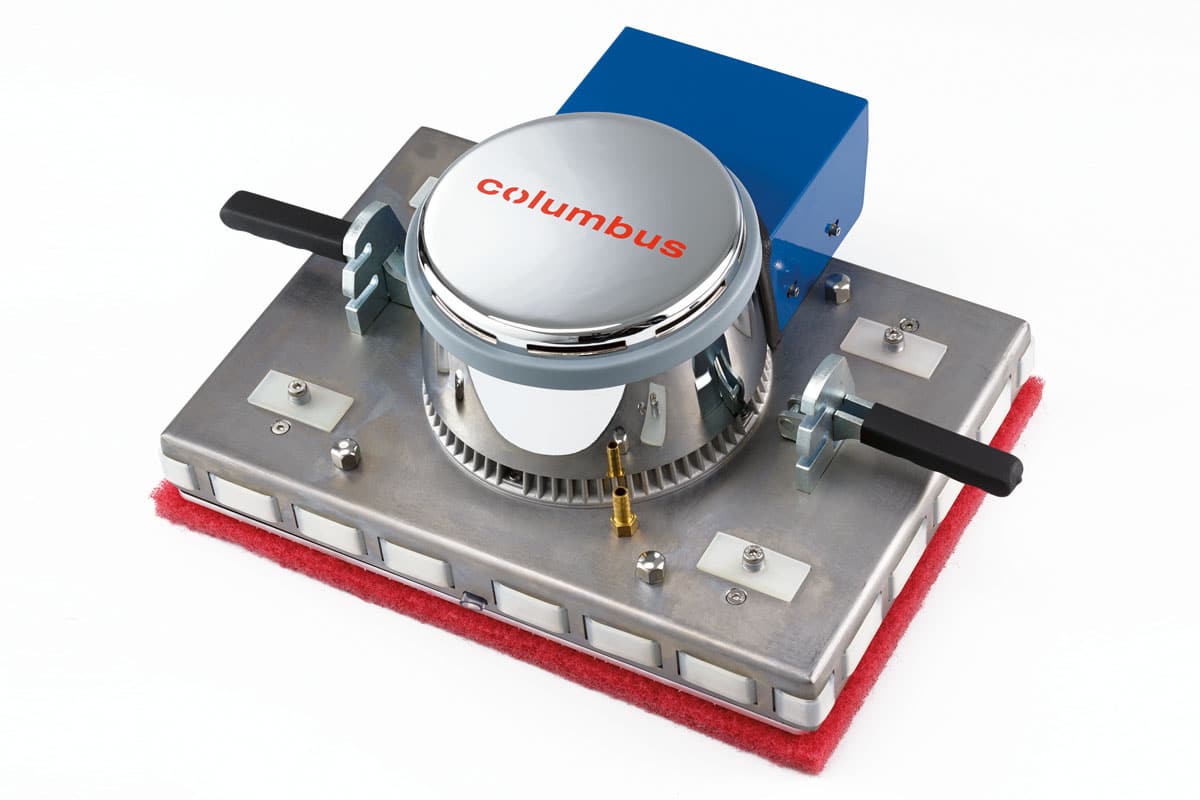

X500S single disc excenter machine quick clamping system

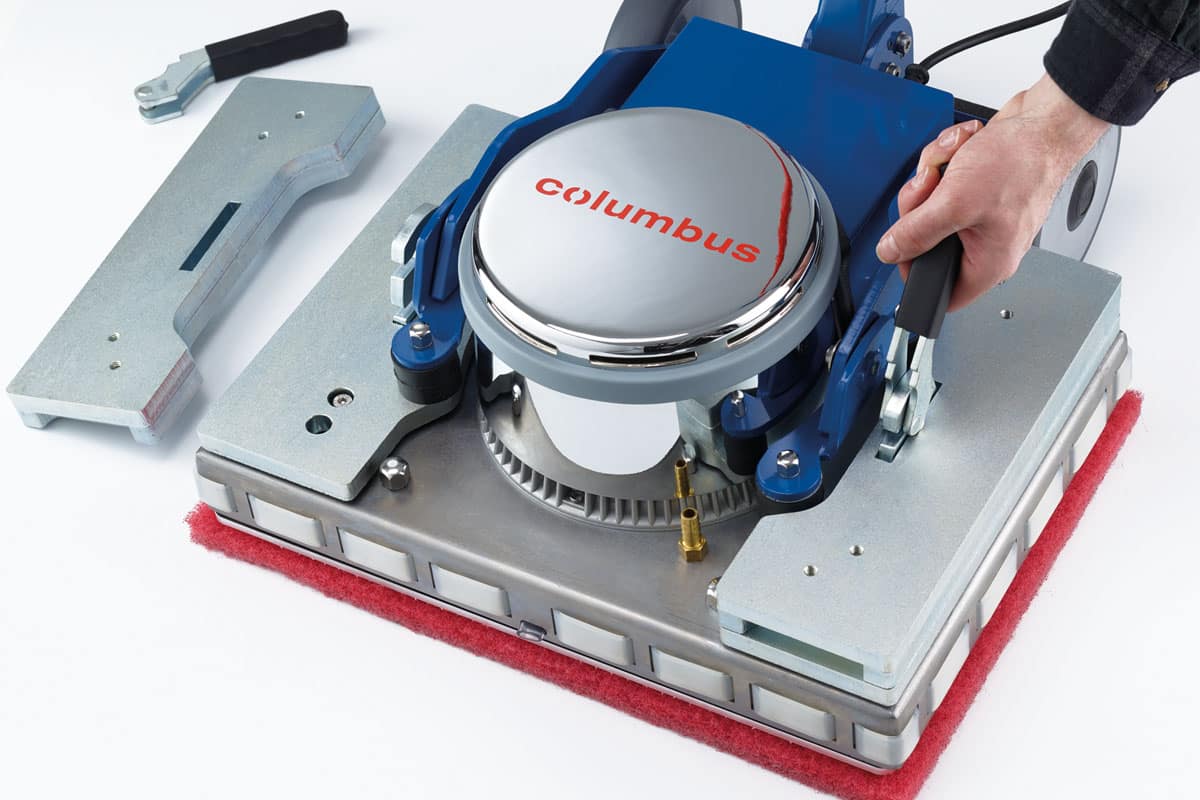

Quick clamping system (patent pending)

Ingeniously simple! With the patent-pending quick-clamping system, the machine can be disassembled and the weights loosened and fastened without tools. Used as comfortable carrying handles, the lifting load of less than 35 kg can be transported without any problems.

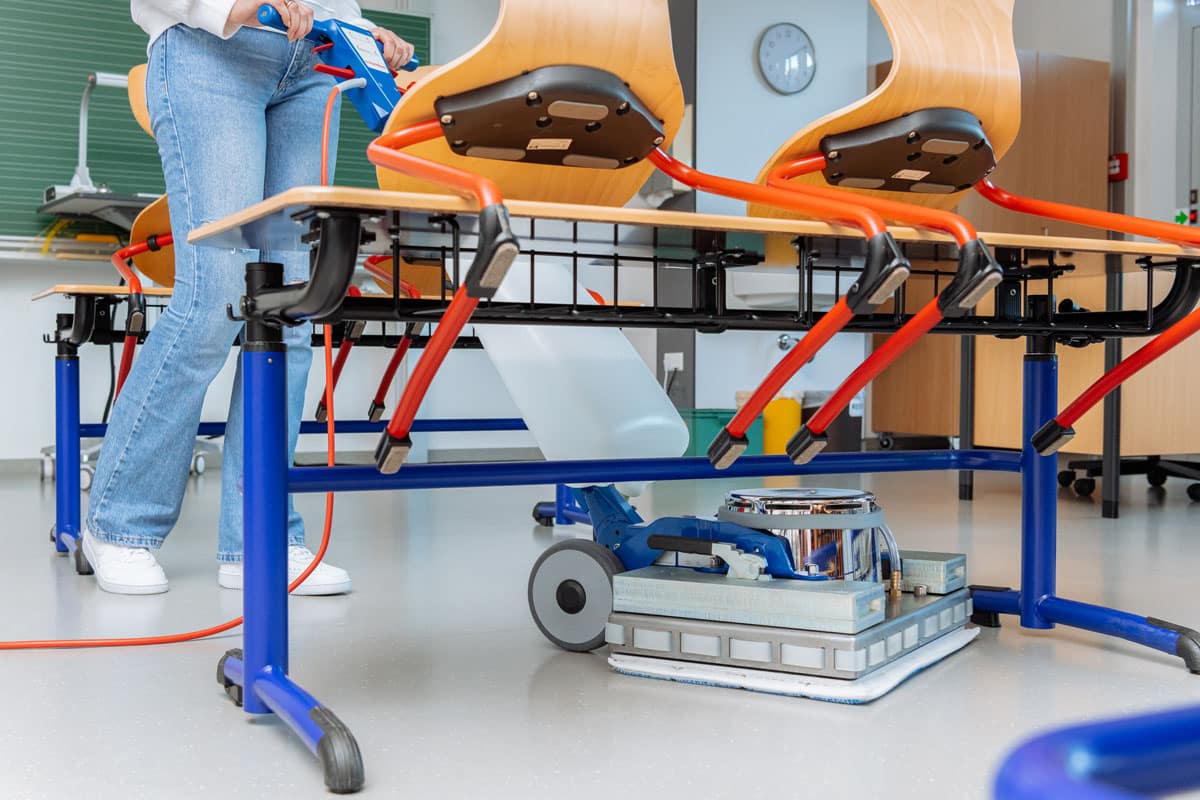

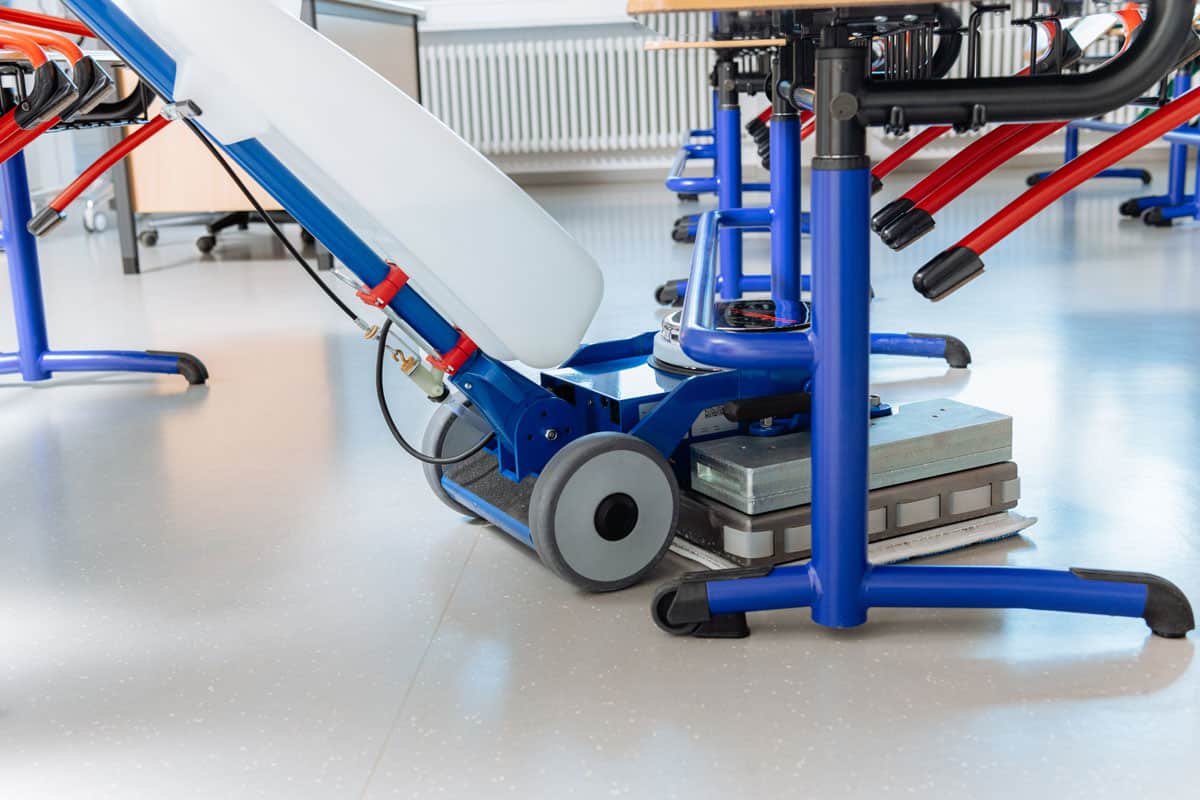

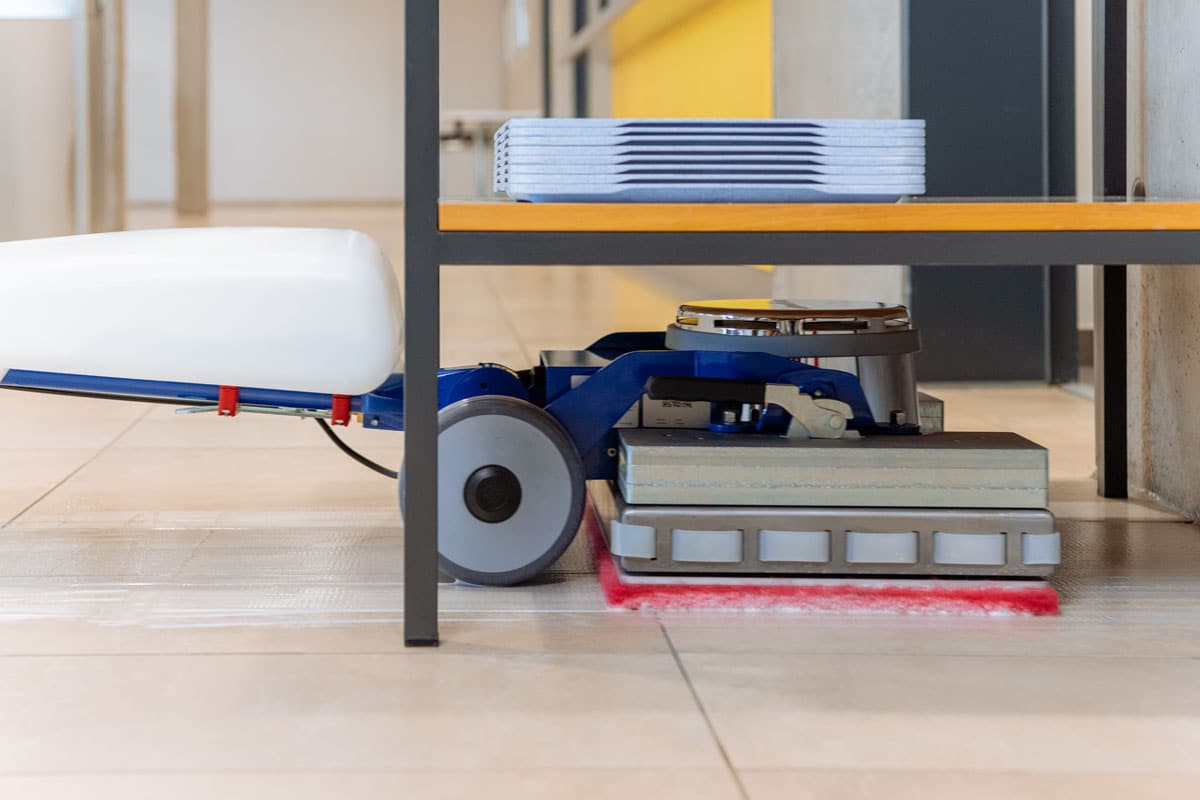

Extreme low-profile

An incredible 240 mm underclearance means less time consuming moving around, repositioning of objects and follow-up work. In other words: More efficiency and profitability.

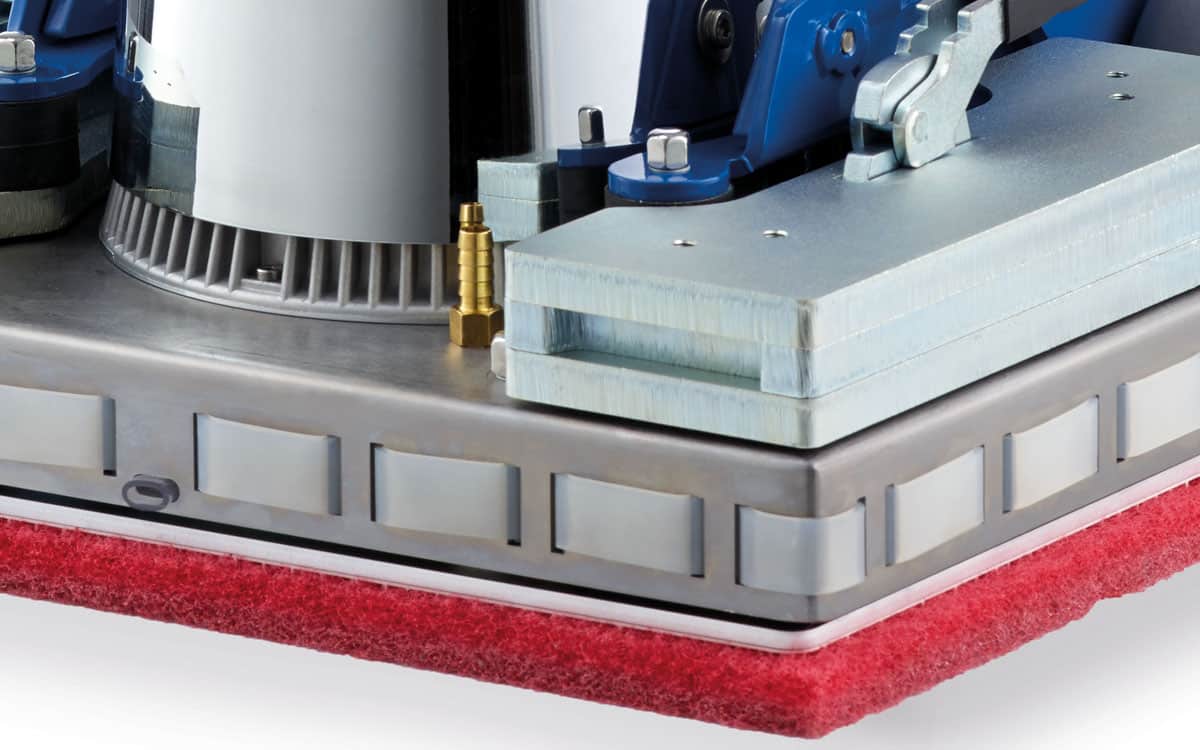

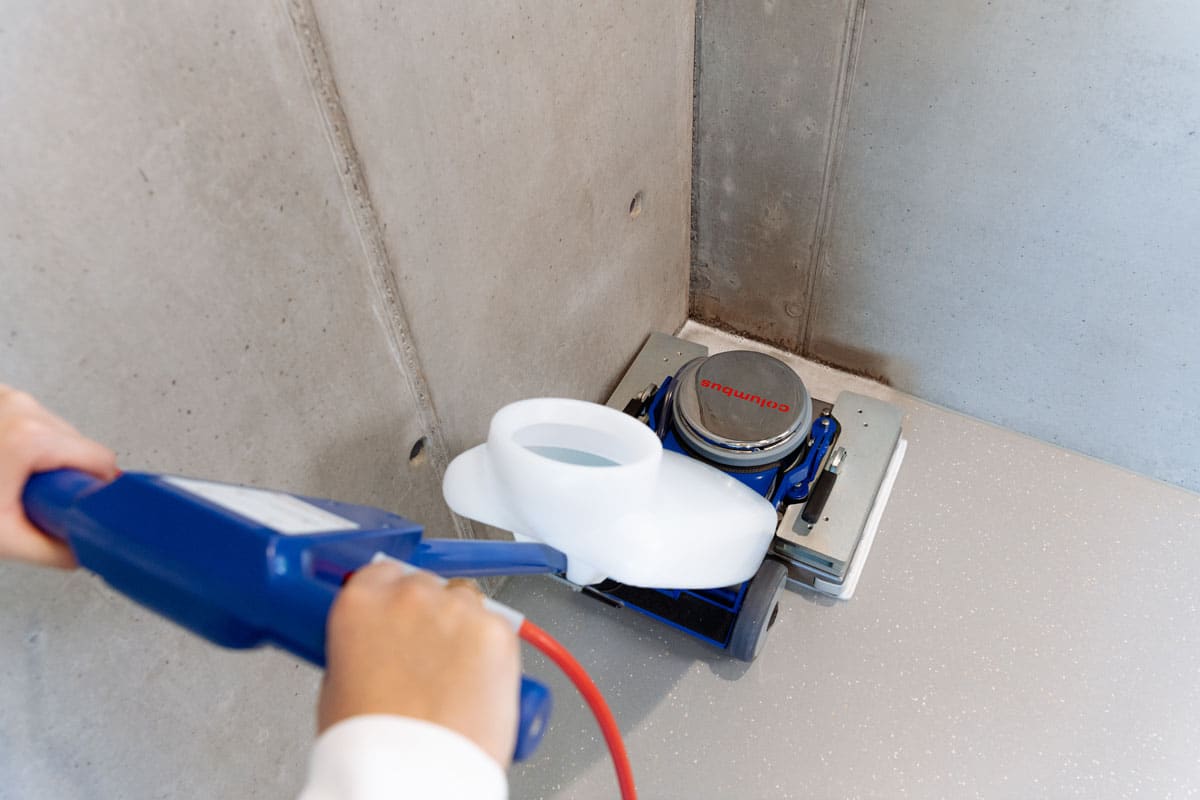

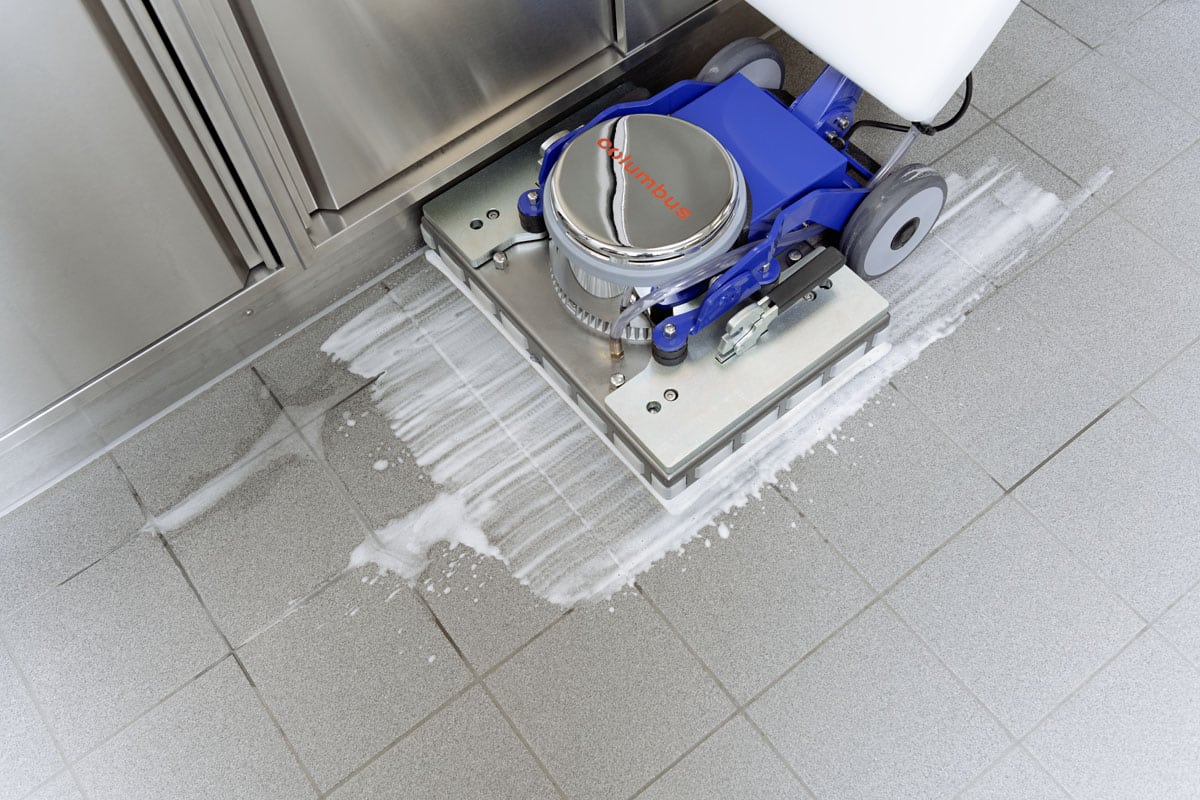

Close to the egde

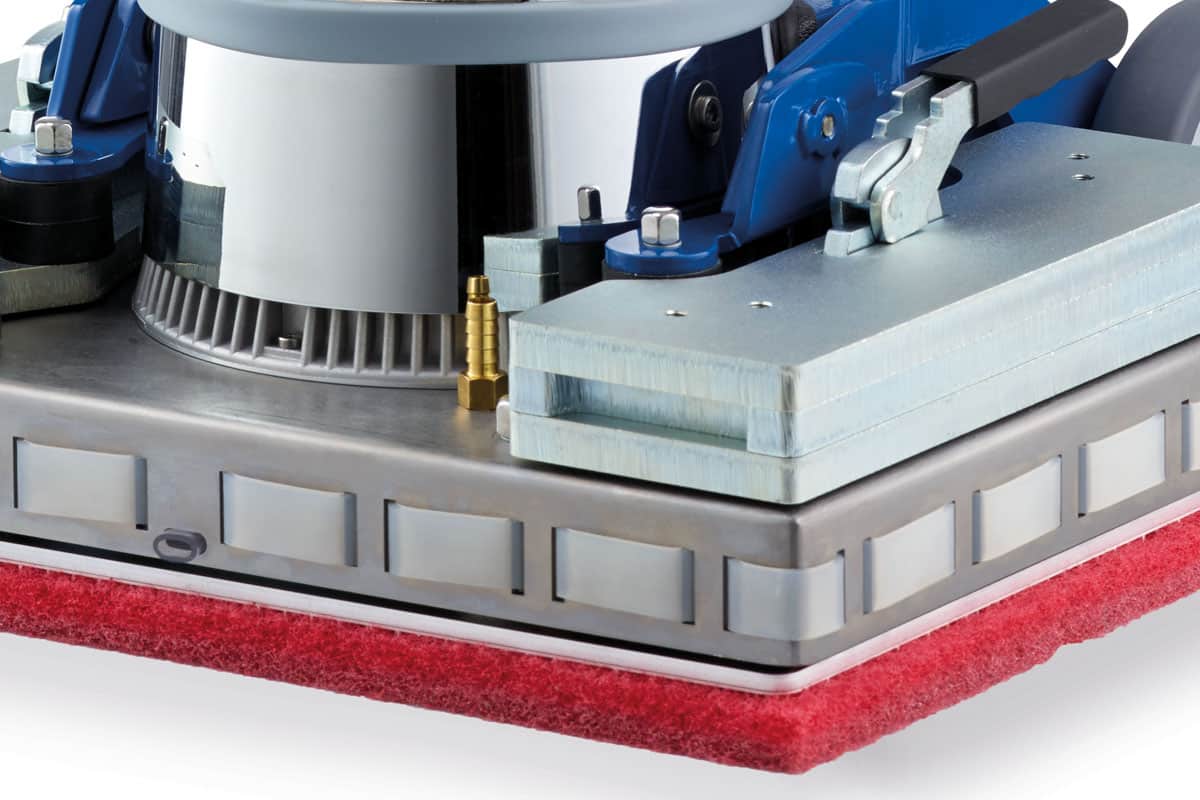

With their angular pads, our X 500 models get into every corner easily and thoroughly, helping to avoid time-consuming manual follow-up work.

X500S single disc excenter machine adjustable guide bar

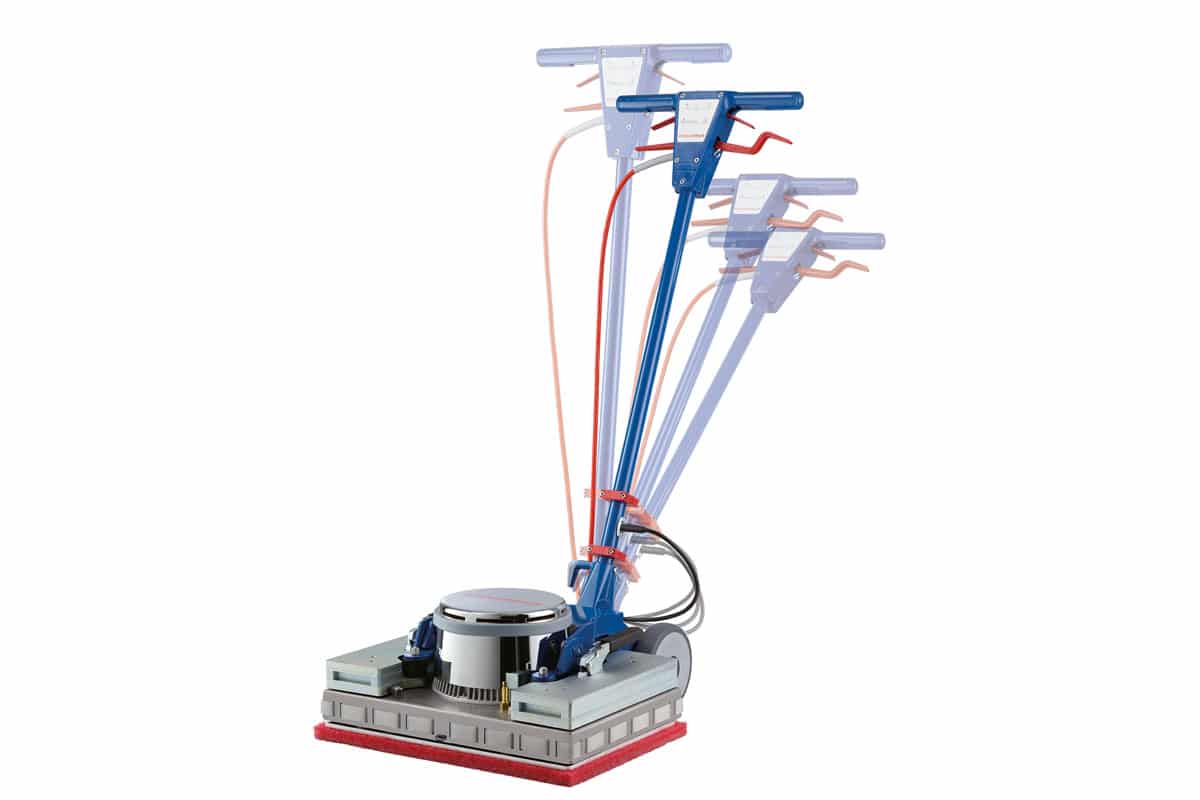

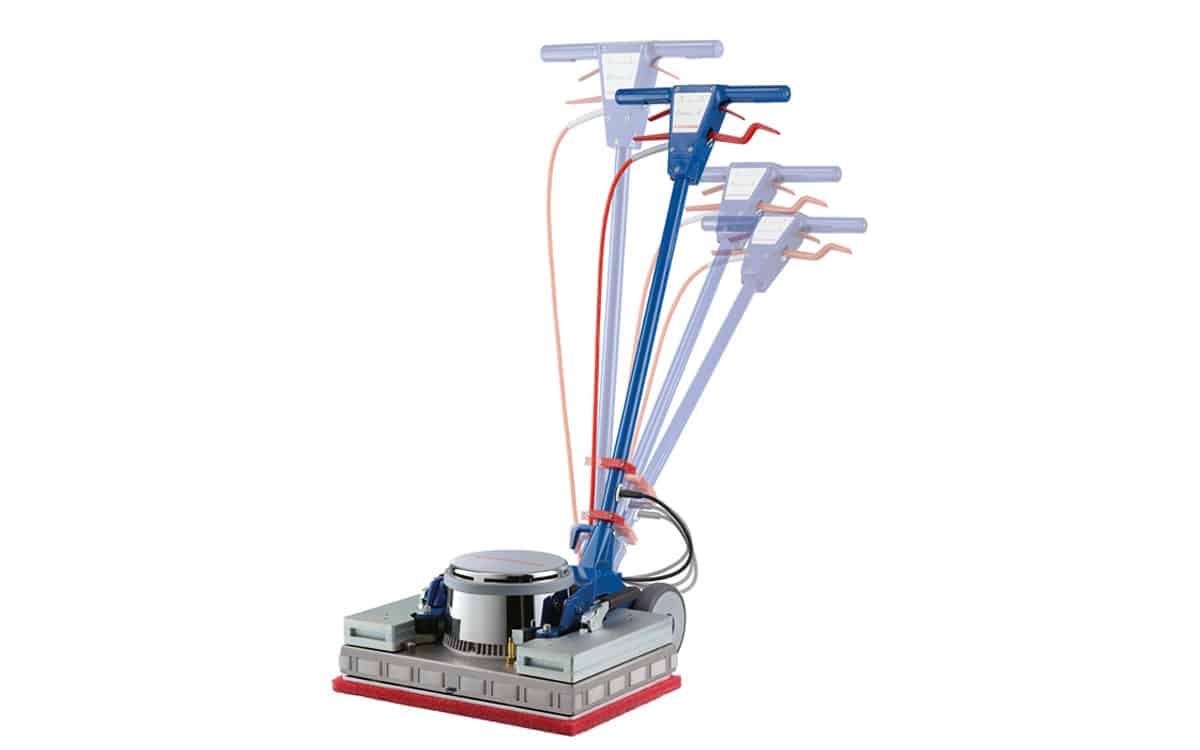

Adjustable Guide bar

The ergonomic guide bar on both models is individually adjustable to the user and can be locked in all positions.

X500S single disc excenter machine silicon bumper
Silicone bumper

The flexible and extremely tear-resistant silicone bumper provides optimum protection for the machine body as well as skirting boards and walls when working  close to the edge.

  • Additional weights

With the additional weights, available as accessories, with clever recessed grip and centring, the contact pressure can be increased by 15 kg.

  • signal red cable

The mains cable in bright red is made of robust PU, which effectively protects the internal cables from damage.

  • Safe footboard

The footboard is covered with an anti-slip tape to give the user a secure grip when tilting the machine.

  • Innovative hook plate

The flexible design of the hook plate gives the pad optimal support and ensures both comfort and ease of use.

  • Designed to be versatile

When fitted with the appropriate accessories, this machine can handle a multitude of different cleaning tasks.

  • Made in Germany

Robust single-brush machines for daily, long-term use. Tried and tested for over 70 years.

X 500|S
Technical data
Technical key data
L x W x H 540 x 500 x 1170 mm
Working width 500 mm
Ground clearance max. 240 mm
Working height max.
Noise level 64 db (A)
Weight 56 kg
Electrical data
Rated voltage 230 V / 50 Hz
Power total 1200 W
Mains cable 12 m
Brushes and pad holders
Speed 3000 rpm
