Walk-behind
RA 43|B 20
RA 43|B 20
Overview

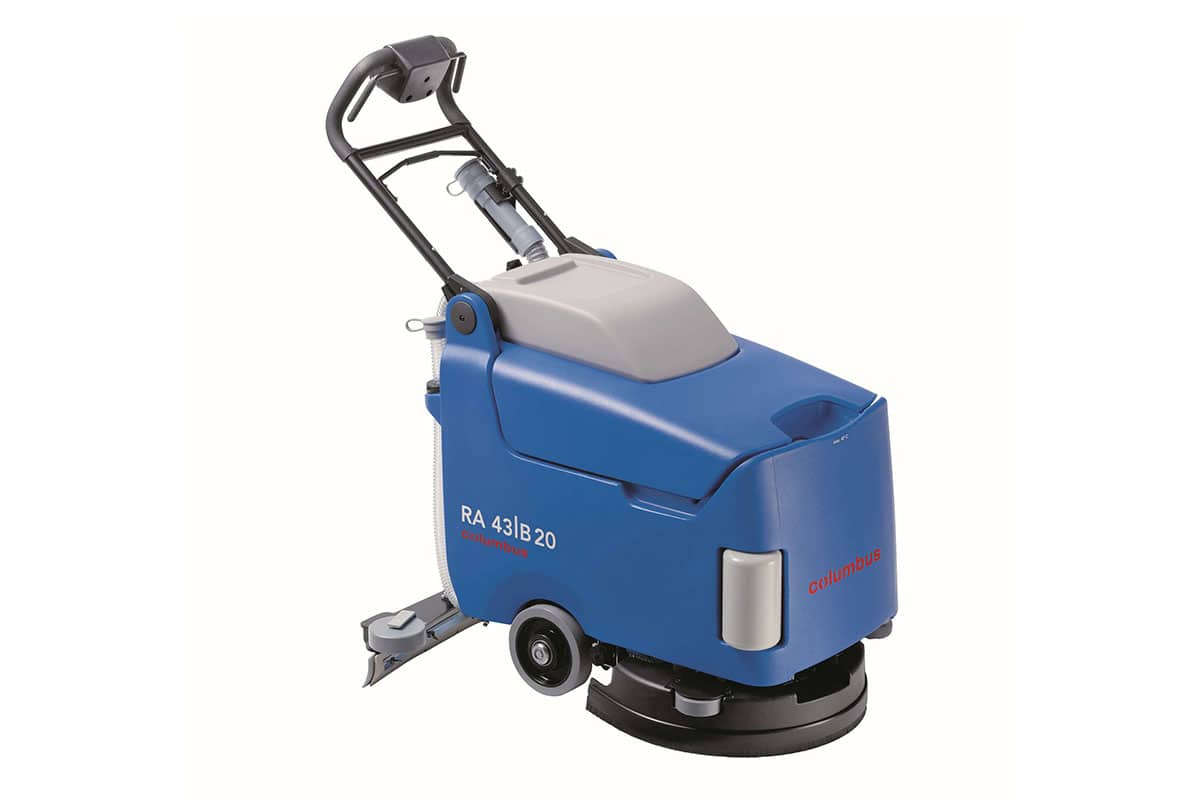

Featuring a number of handy details, the 20 litre walk behind scrubber dryer comes into its own wherever compactness and manoeuvrability are key. Thanks to the waste water tank, which can be heated in an autoclave, this scrubber dryer is also suitable for areas with the highest hygiene requirements.
Technical key data
RA 43|B 20
Product highlights

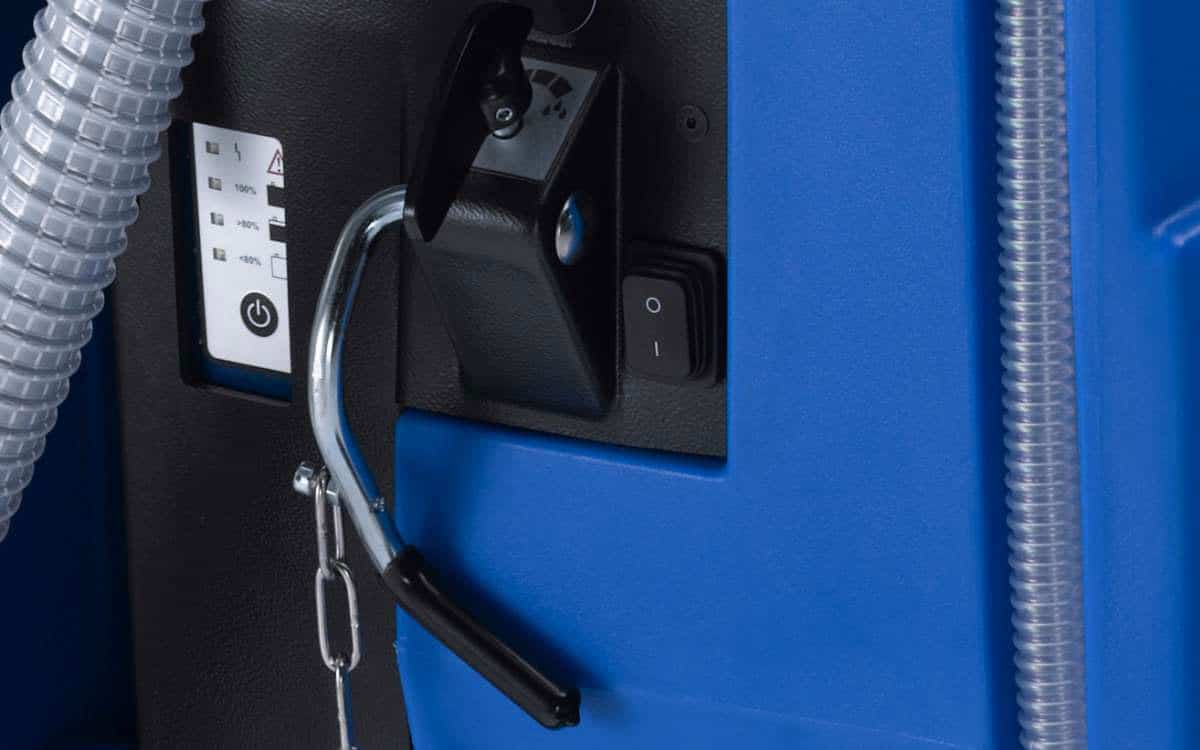

Very robust mechanics
Only truly durable machines are also truly green.

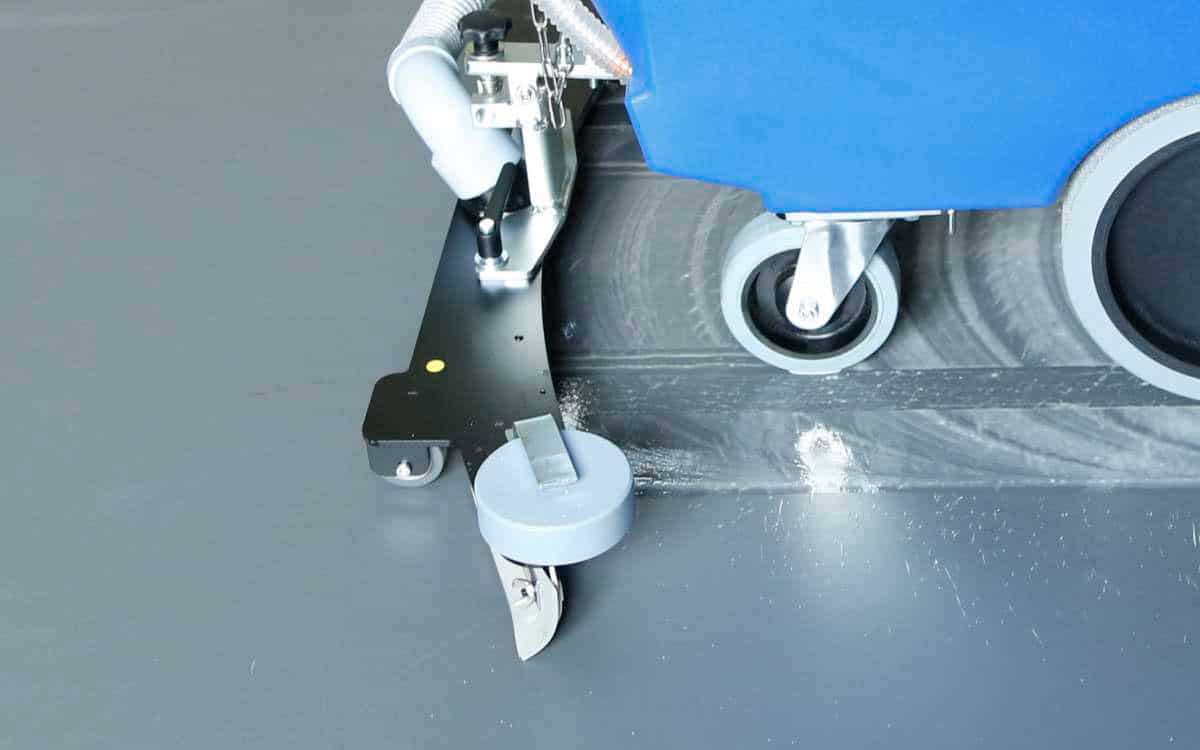

Superb suction
The patented squeegee tool achieves superb suction results, even in the tightest corners.

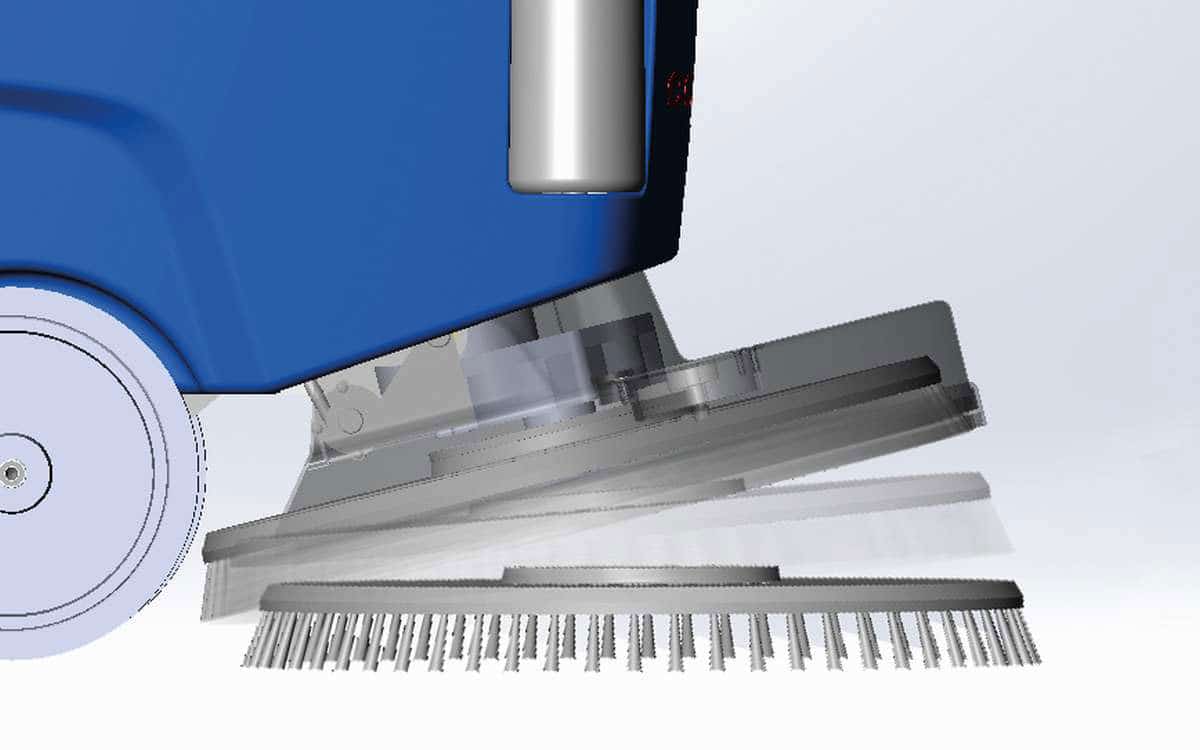

Automatic brush holder
Change tools quickly and easily at the touch of a button.

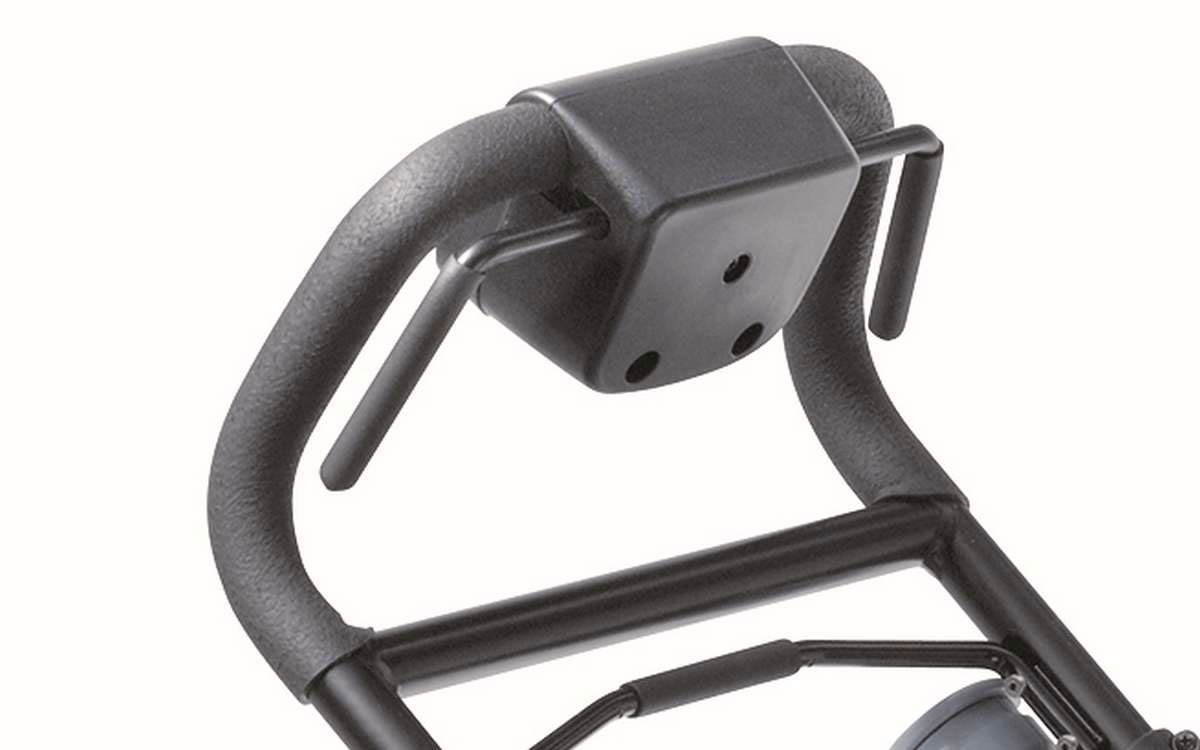

QUICK STOP as standard
The brush motor and water supply stop automatically when you let go of the handle.

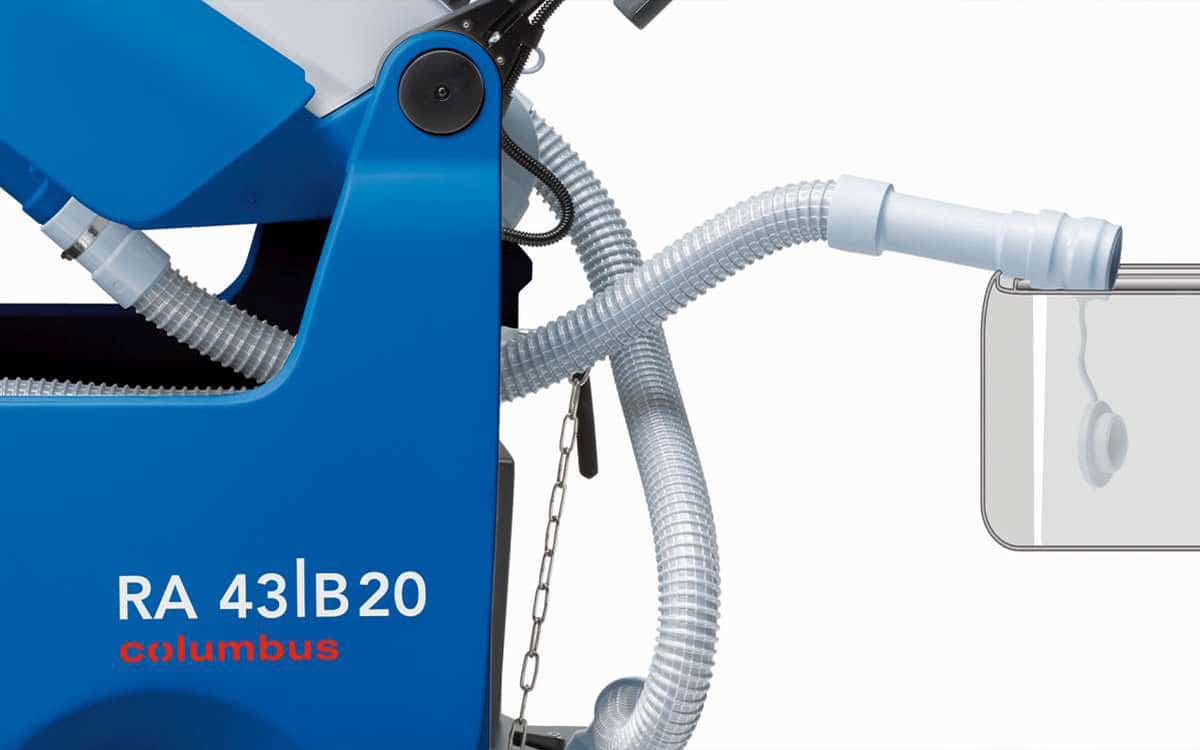

Clever emptying system
Dirty water can be emptied directly into a floor drain or quickly and easily drained into a drainage sink.

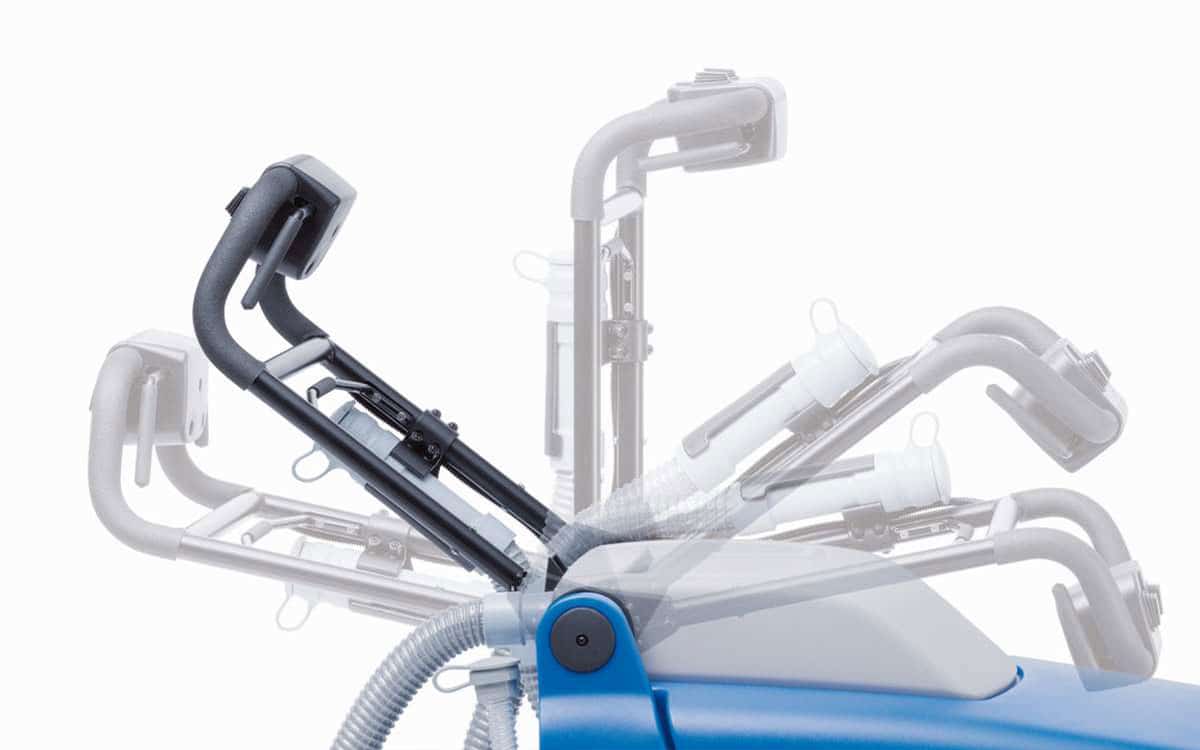

Adjustable steering handle
Can be operated ergonomically and stored conveniently in all locations.
Perfect cleaning result, right up to the wall.

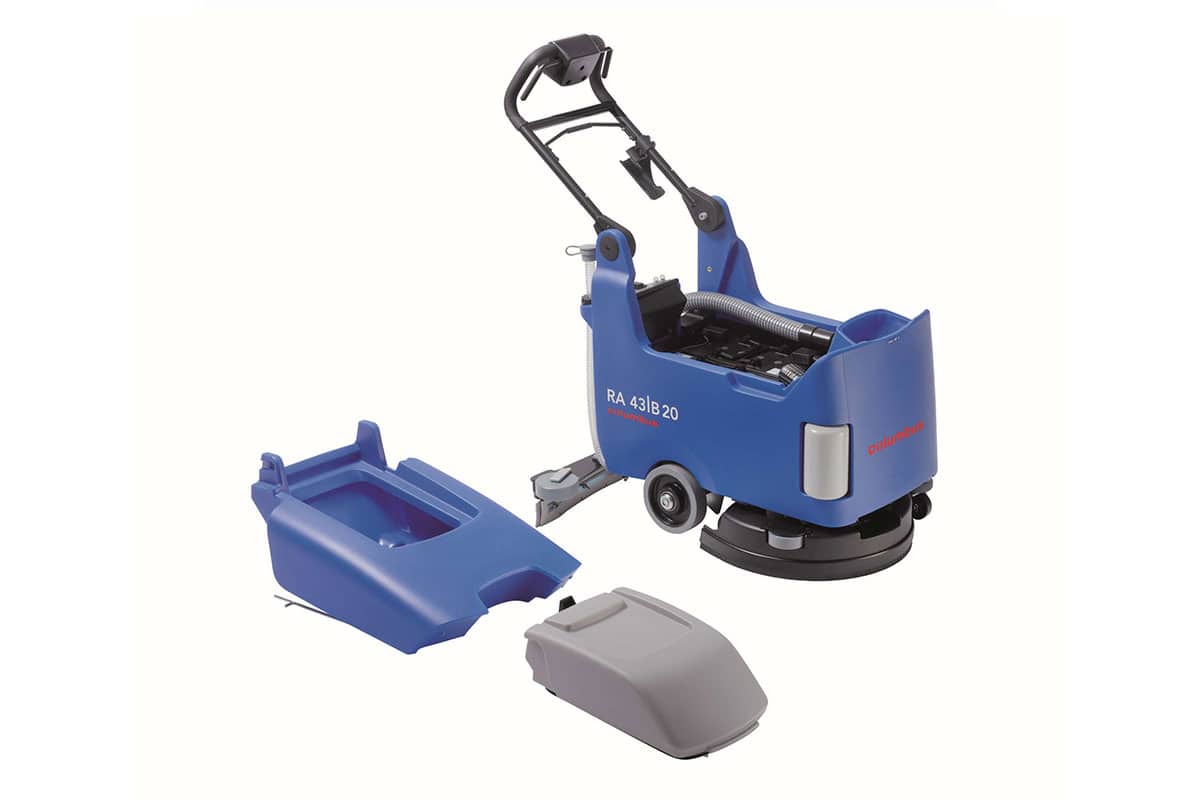

Well thought-through design provides quick and easy access to all vital machine components.
HACCP-compliant hygiene measures easily applied to all critical components.

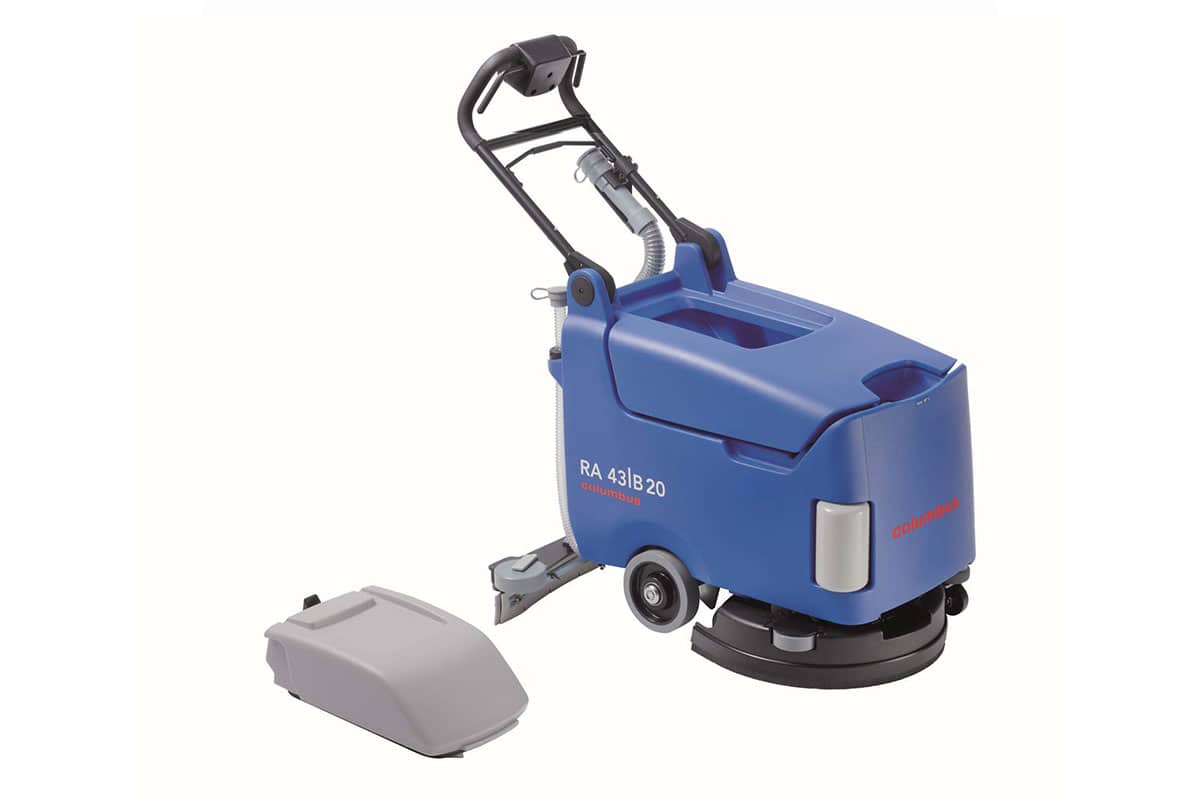

Dirty water tank can be removed without tools, guaranteeing the highest levels of disinfection, to comply with specific hygiene regulations.
Easily adjustable steering handle, convenient for every operator.
Simply tilt the machine onto its dolly wheel to move it easily to its place of use.
Quality from Germany.
Service markings simplify day-to-day care of machines.
RA 43|B 20
Optional equipment
Silent version
For cleaning in noise-sensitive areas or during business hours.
noBAC®
With antibacterial tanks for all applications with high hygienic requirements.
Integrated charger
Charge the battery anywhere, with the high-quality integrated charger.
RA 43|B 20
Technical data
| Technical key data | |
|---|---|
| L x W x H | 800 x 530 x 790 mm |
| Working width | 430 mm |
| Suction width | 735 mm |
| Theoretical coverage max. | 1720 m²/h |
| Noise level | 63/59 dB(A) |
| Empty weight | 56 kg |
| Operating weight | 134 kg (76 Ah 5) |
| Batteries / Electrical data | |
|---|---|
| Rated voltage | 24 V |
| Power max. | 950 W |
| Power cable | – |
| Capacity wet | – |
| Capacity gel | 76 Ah 5 |
| Tank | |
|---|---|
| Solution tank capacity | 20 l |
| Recovery tank capacity | 23 l |
| Motors | |
|---|---|
| Traction: power | 110 mbar |
| Traction: speed | 32 l/s |
| Brushes and pad holders | |
|---|---|
| Number | 1 |
| Speed | 180 rpm |
| Brush pressure | 30 kg |
