RA 55|BM 60
Overview
The scrubber dryer with traction motor as standard for all applications on medium to large areas. The ergonomically shaped handle bar and the clear control panel enable fatigue-free working even during long operations. With a compact design and length of 138 cm, it fits into all conventional lifts. Excellent suction performance with a low noise level of just 61 dB(A); the silent version has a level of just 58 dB(A).
Technical key data
- Tank capacity 60 l
- Working width 550 mm
- Theoretical coverage max. 2200 m²/h
- Brush pressure 30 kg
RA 55|BM 60
Product highlights

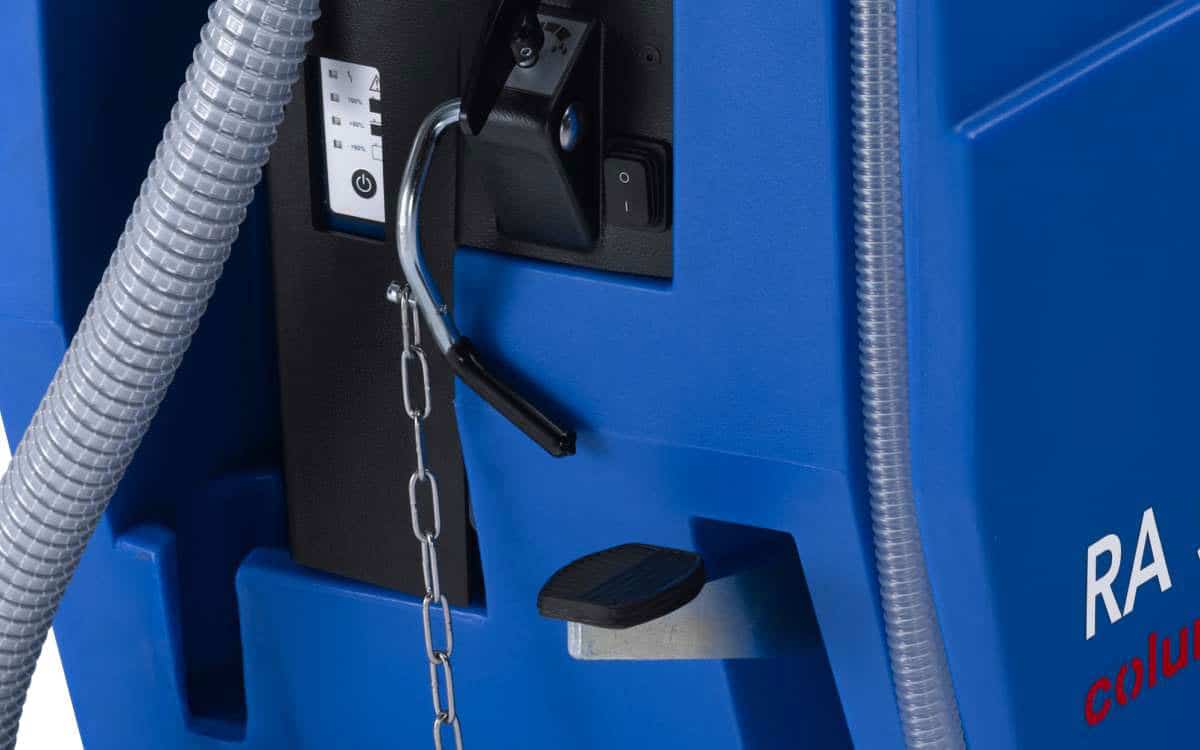

Very robust mechanics
Only truly durable machines are also truly green.
Superb suction
Guarantees streak-free floors that can be walked on immediately after cleaning.
Clean right up to the edge
Perfect cleaning result, right up to the wall.

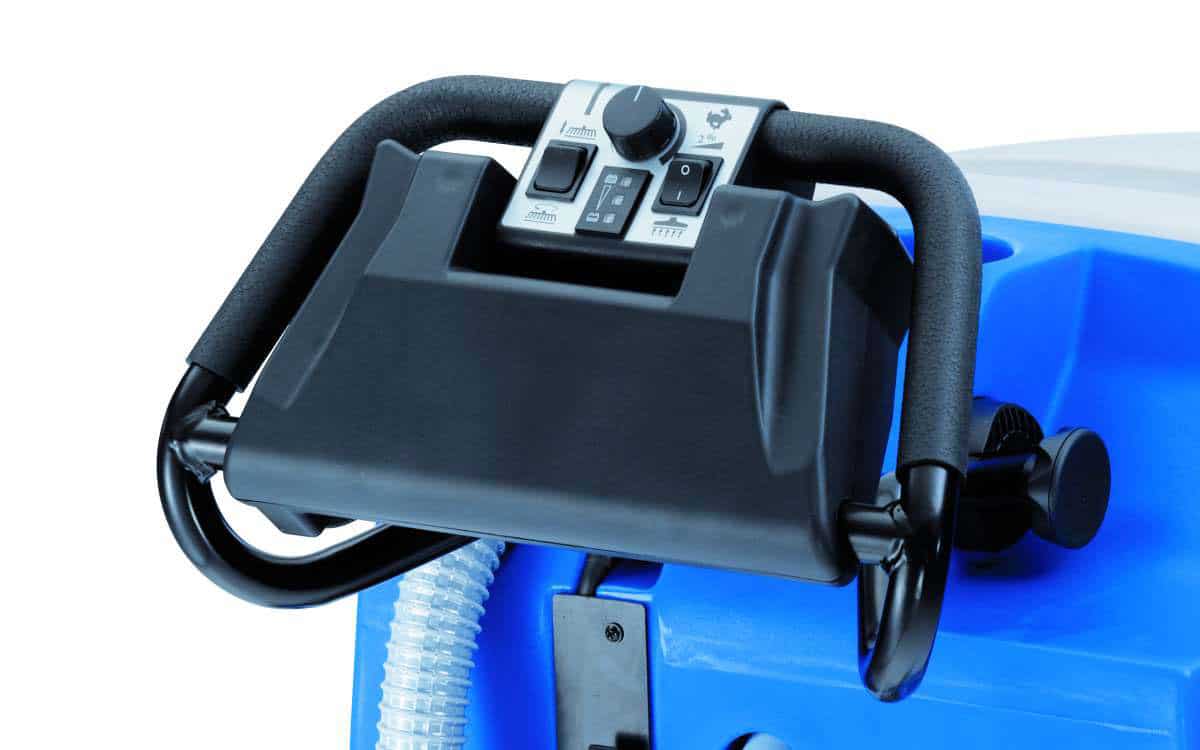

Quick Stop as standard
The brush motor and water supply stop automatically when you let go of the handle.
High brush pressure
Excellent cleaning result with the lowest possible amounts of water and chemicals, even on very dirty surfaces.

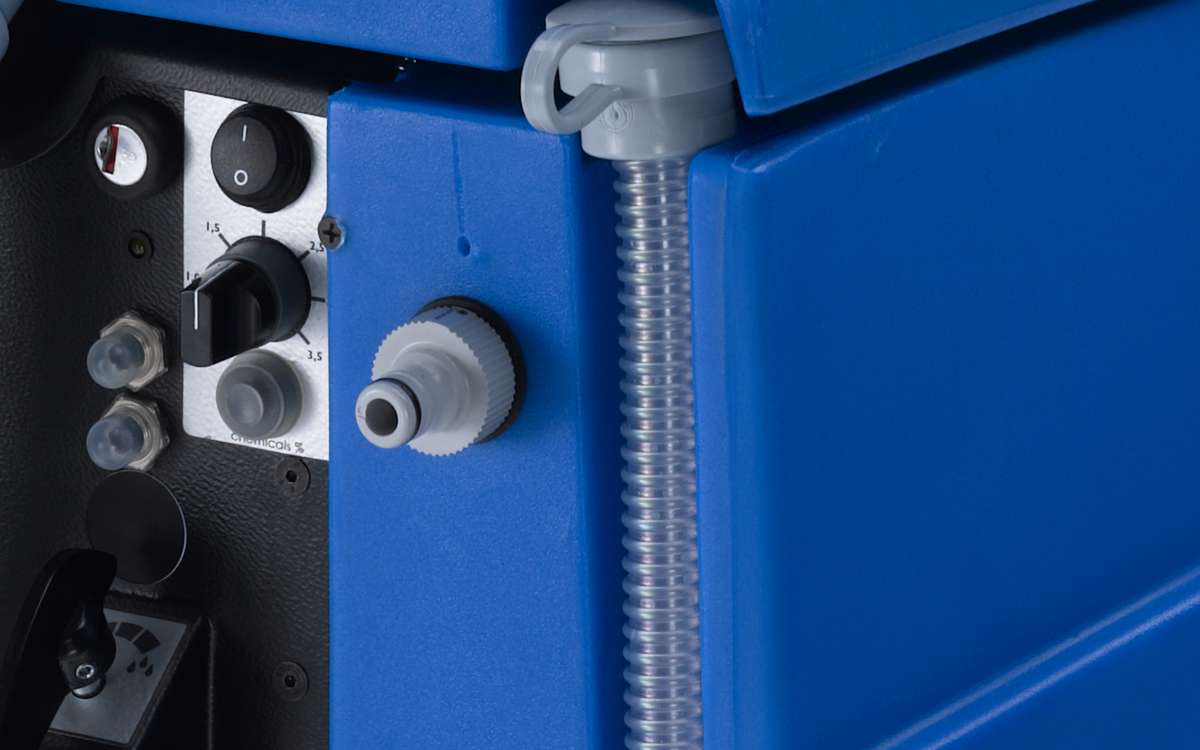

QUICK FILL function as standard
Clean water tank can be filled quickly and cleanly via the integrated system coupling.
- QUICK FILL function as standard
Clean water tank can be filled quickly and cleanly via the integrated system coupling.
- Functional display
Intuitive and easy to understand for every operator.

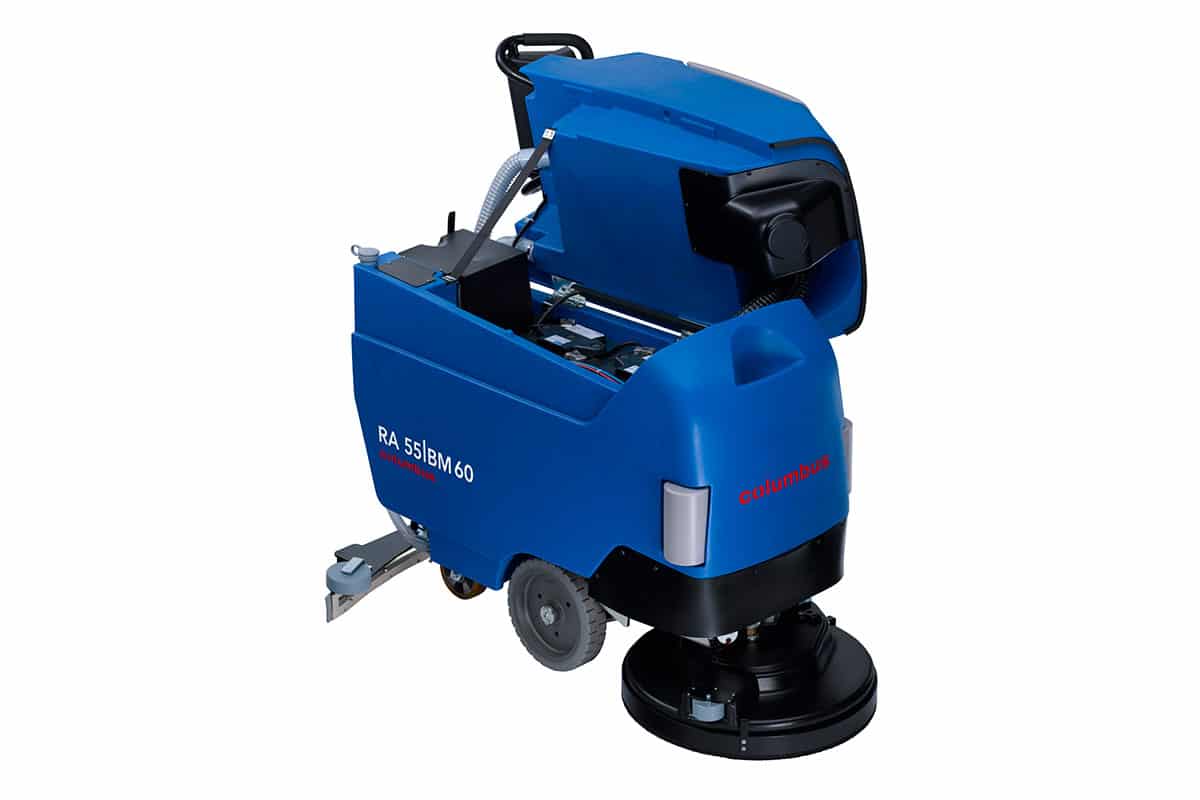

- Easy-to-service components
Well thought-through design provides quick and easy access to all vital machine components.
- Ergonomic steering handle
Easily adjustable steering handle, convenient for every operator.
- Sized to fit in lifts
The machine can be transported in any standard lift.
- Maintenance Instructions
Service markings simplify day-to-day care of machines.
- Made in Germany
Quality from Germany.
RA 55|BM 60
Optional equipment
V-Eraser mop and wipe disinfection
WHO- and RKI-compliant mop and wipe disinfection on medium to large surfaces.
noBAC®
With antibacterial tanks for all applications with high hygienic requirements.
silent Version
For cleaning in noise-sensitive areas or during business hours.
ECD - electronic Chemical dosing system
Only as much chemicals as absolutely necessary; this is good for the environment and the budget.
Double protection roller set
More protection for site and machine.
Performance Kit
More cleaning performance for special site requirements.
RA 55|BM 60
Technical data
| Technical key data | |
|---|---|
| L x W x H | 1470 x 550 x 1100 mm |
| Working width | 550 mm |
| Suction width | 850 mm |
| Theoretical coverage max. | 2200 m²/h |
| Noise level | 61 / 58 dB (A) |
| Empty weight | 140 kg |
| Operating weight | 324 kg (180 Ah 5) |
| Batteries / Electrical data | |
|---|---|
| Rated voltage | 24 V |
| Power max. | 1240 W |
| Power cable | 25 m |
| Capacity wet | 175 Ah 5 |
| Capacity gel | 180 Ah 5 |
| Tank | |
|---|---|
| Solution tank capacity | 60 l |
| Recovery tank capacity | 60 l |
| Motors | |
|---|---|
| Suction: low pressure | 110 mbar |
| Suction: air flow | 32 l/s |
| Traction: power | 300 W |
| Traction: speed | 6 km/h |
| Brushes and pad holders | |
|---|---|
| Number | 1 |
| Speed | 150 rpm |
| Brush pressure | 30 kg |
