RA 66|BM 60 IND

RA 66|BM 60 IND


The scrubber dryer with traction motor as standard for all applications on medium to large areas. The ergonomically shaped handle bar and the clear control panel enable fatigue-free working even during long operations. With a compact design and length of 138 cm, it fits into all conventional lifts. Excellent suction performance with a low noise level of just 61 dB(A); the silent version has a level of just 58 dB(A).

Technical key data
  • Tank capacity 60 l
  • Working width 660 mm
  • Theoretical coverage max. 2640 m²/h
  • Brush pressure 40 kg

RA 66|BM 60 IND
Product highlights
Vielseitig reinigen
Very robust mechanics

Only truly durable machines are also truly green.

Vielseitig reinigen
Superb suction

Guarantees streak-free floors that can be walked on immediately after cleaning.

Vielseitig reinigen
Clean right up to the edge

Perfect cleaning result, right up to the wall.

Vielseitig reinigen
Quick Stop as standard

The brush motor and water supply stop automatically when you let go of the handle.

Vielseitig reinigen
Automatic brush holder

Change tools quickly and easily at the touch of a button.

Vielseitig reinigen
High brush pressure

Excellent cleaning result with the lowest possible amounts of water and chemicals, even on very dirty surfaces.

  • QUICK FILL function as standard

Clean water tank can be filled quickly and cleanly via the integrated system coupling.

  • Functional display

Intuitive and easy to understand for every operator.

  • Easy-to-service components

Well thought-through design provides quick and easy access to all vital machine components.

  • Ergonomic steering handle

Easily adjustable steering handle, convenient for every operator.

  • Sized to fit in lifts

The machine can be transported in any standard lift.

  • Maintenance Instructions

Service markings simplify day-to-day care of machines.

  • Made in Germany

Quality from Germany.

RA 66|BM 60 IND
Optional equipment
Vielseitig reinigen
V-Eraser mop and wipe disinfection

WHO- and RKI-compliant mop and wipe disinfection on medium to large surfaces.

Vielseitig reinigen

With antibacterial tanks for all applications with high hygienic requirements.

Vielseitig reinigen
silent Version

For cleaning in noise-sensitive areas or during business hours.

Vielseitig reinigen
ECD – electronic Chemical dosing system

Only as much chemicals as absolutely necessary; this is good for the environment and the budget.

Vielseitig reinigen
High reflection roll

More protection for site and machine.

Vielseitig reinigen
Performance Kit

More cleaning performance for special site requirements.

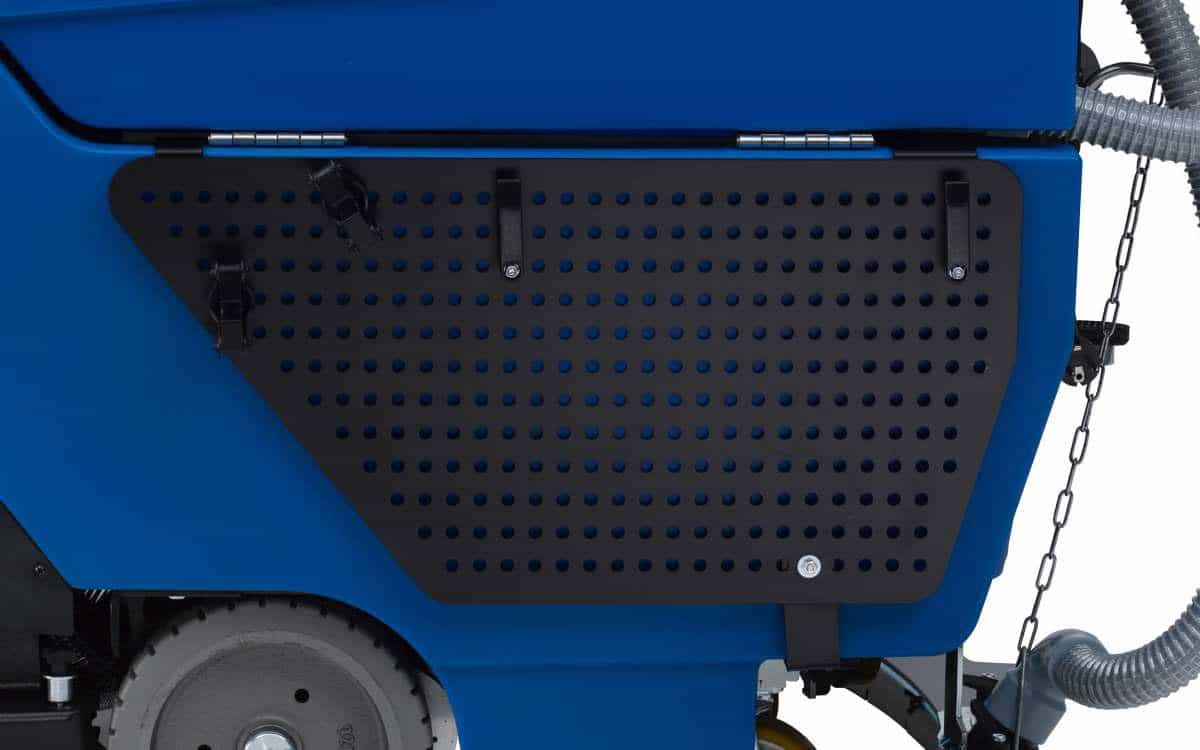

  • Tool board

Working tools for manual cleaning always at hand.

  • Integrated charger

Charge the battery anywhere, with the high-quality integrated charger.

RA 66|BM 60 IND
Technical data
Technical key data
L x W x H 1375 x 680 x 1100 mm
Working width 660 mm
Suction width 980 mm
Theoretical coverage max. 2640 m²/h
Noise level 61 / 58 dB (A)
Empty weight 147 kg
Operating weight 331 kg (180 Ah 5)
Batteries / Electrical data
Rated voltage 24 V
Power max. 1240 W
Power cable
Capacity wet 175 Ah 5
Capacity gel 180 Ah 5
Solution tank capacity 60 l
Recovery tank capacity 60 l
Suction: low pressure 110 mbar
Suction: air flow 32 l/s
Traction: power 300 W
Traction: speed 6 km/h
Brushes and pad holders
Number 2
Speed 180 rpm
Brush pressure 40 kg
RA 66|BM 60 IND
