Ride-on

ARA 66|BM 100

ARA 66|BM 100

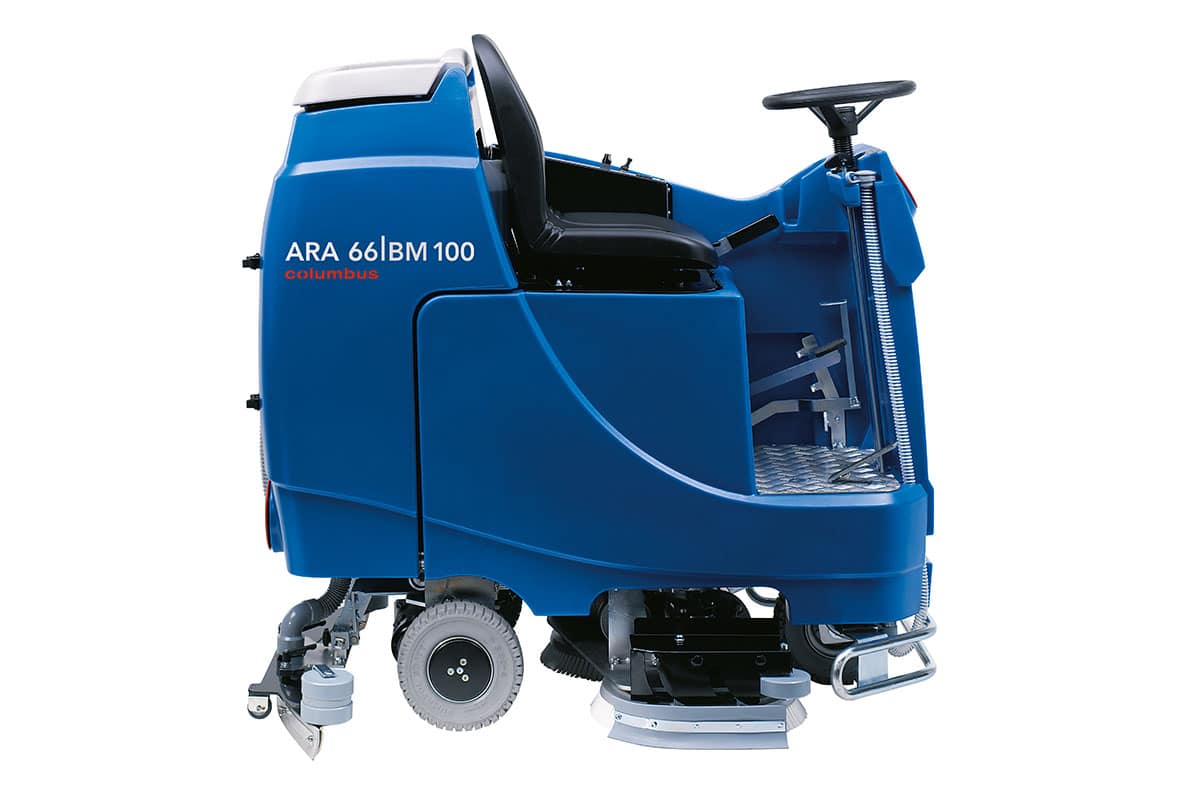

Overview

Simply clever: This sturdy ride-on scrubber dryer is characterized by its easy operation and reliable components. The high battery capacity enables efficient operation for up to eight hours. The compact dimensions and the small turning radius ensure optimum use even in the most confined spaces and problem-free transport in all conventional lifts. With a working width of 66 cm, this ride-on scrubber dryer is ideal for use in supermarkets with narrow aisles and checkout zones or as a noBAC® version for use in buildings with special hygiene requirements.

Technical key data
  • Tank capacity 100 l

  • Working width 660 mm

  • Theoretical coverage max. 4620 m²/h

  • Traction motor yes

ARA 66|BM 100
Product highlights
Vielseitig reinigen

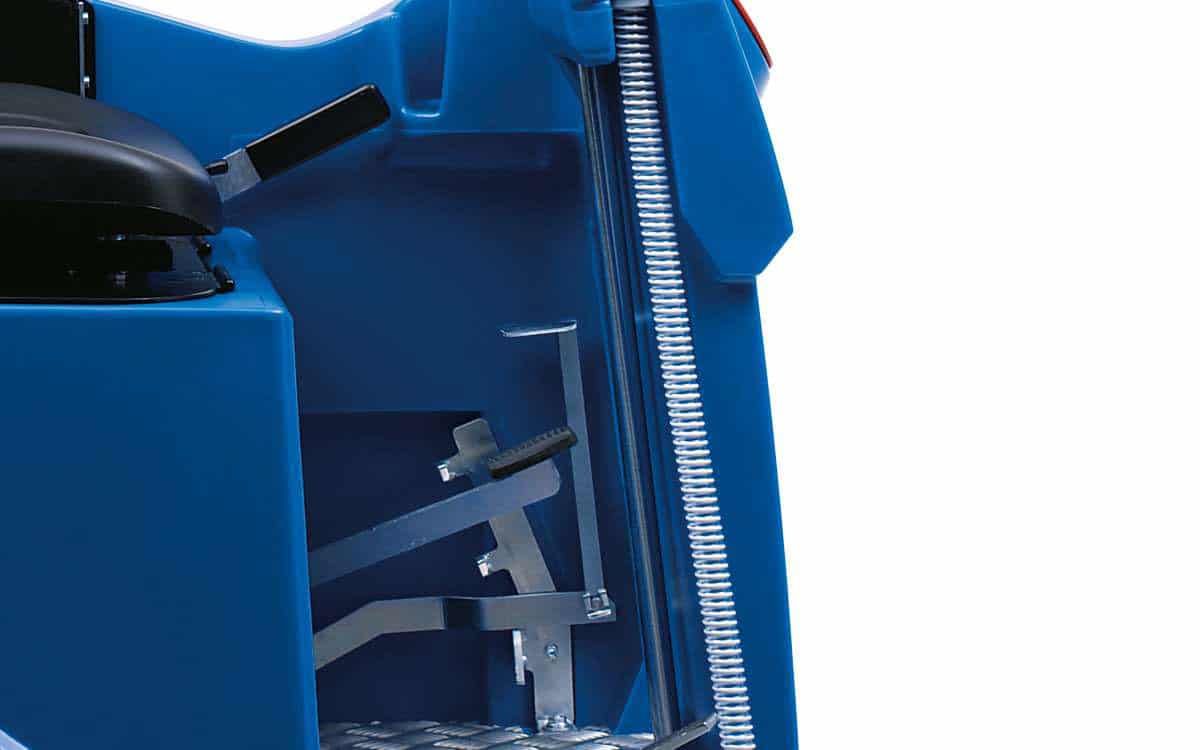

Very robust mechanics

Only truly durable machines are also truly green.

Vielseitig reinigen

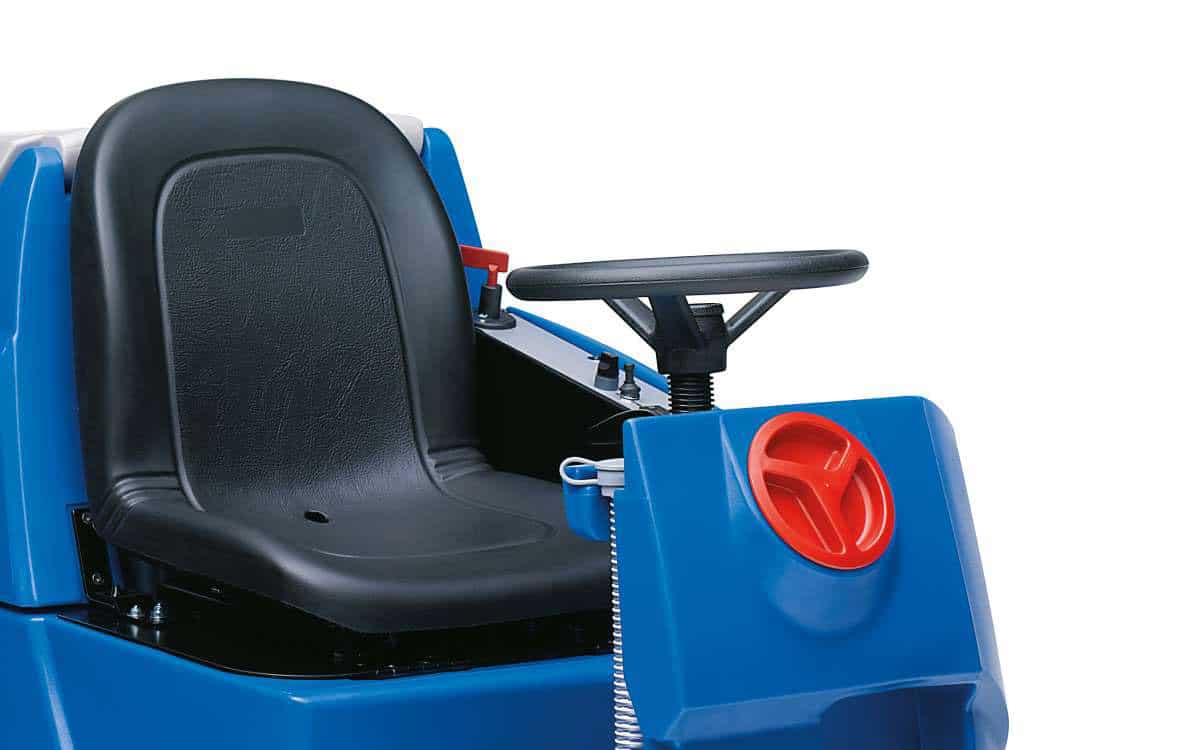

Ergonomic machine design

Fatigue-free riding position with good all-round visibility, ideal for longer operating periods and cleaning large areas.

Vielseitig reinigen
Tight turning circle

Unbeatable manoeuvrability.

Vielseitig reinigen

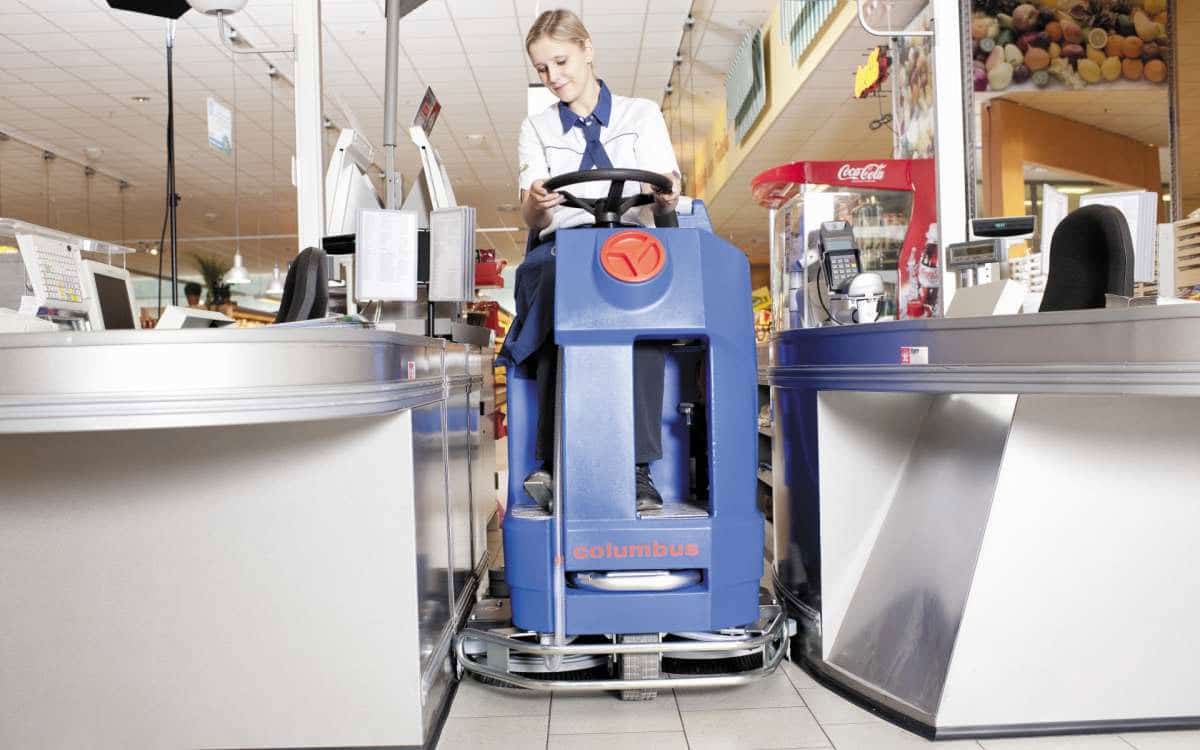

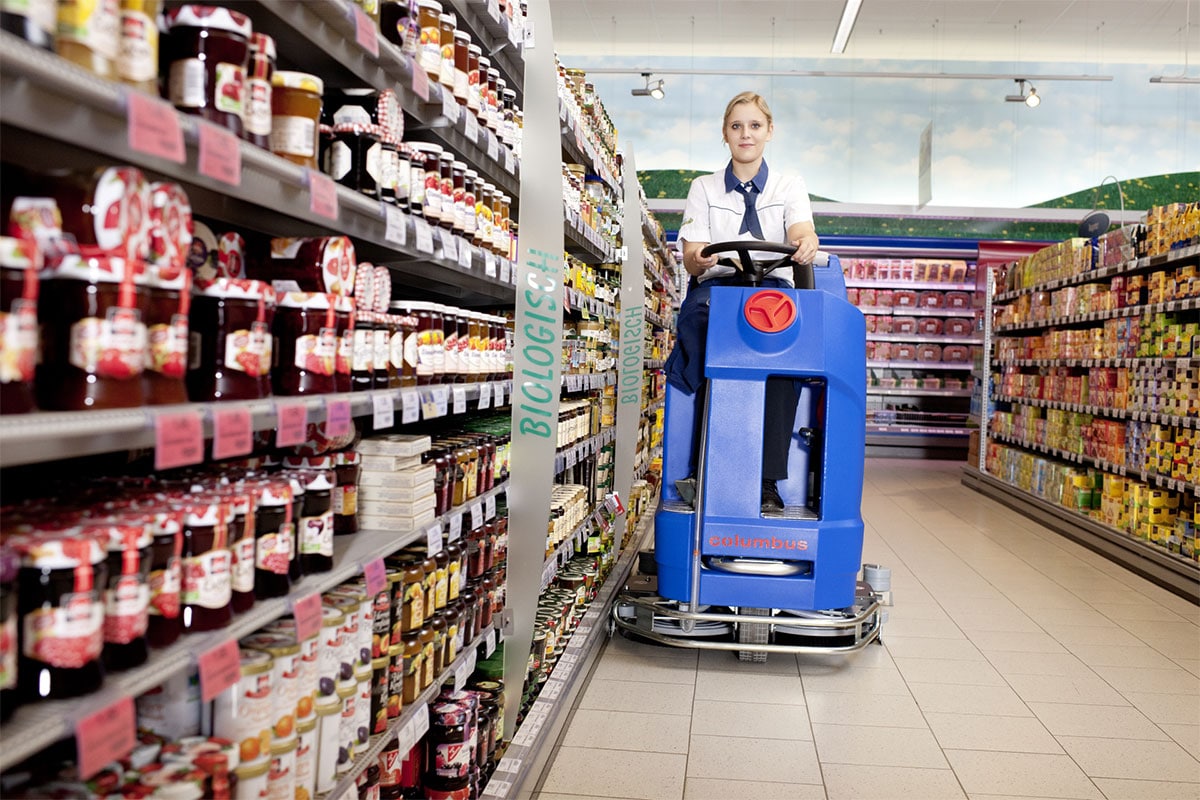

Operating width designed for checkout aisles

Optimum operating width for cleaning in supermarket checkout areas.

Vielseitig reinigen
High brush pressure

Excellent cleaning result with the lowest possible amounts of water and chemicals, even on very dirty surfaces.

Vielseitig reinigen
Superb suction

Guarantees streak-free floors that can be walked on immediately after cleaning.

more features

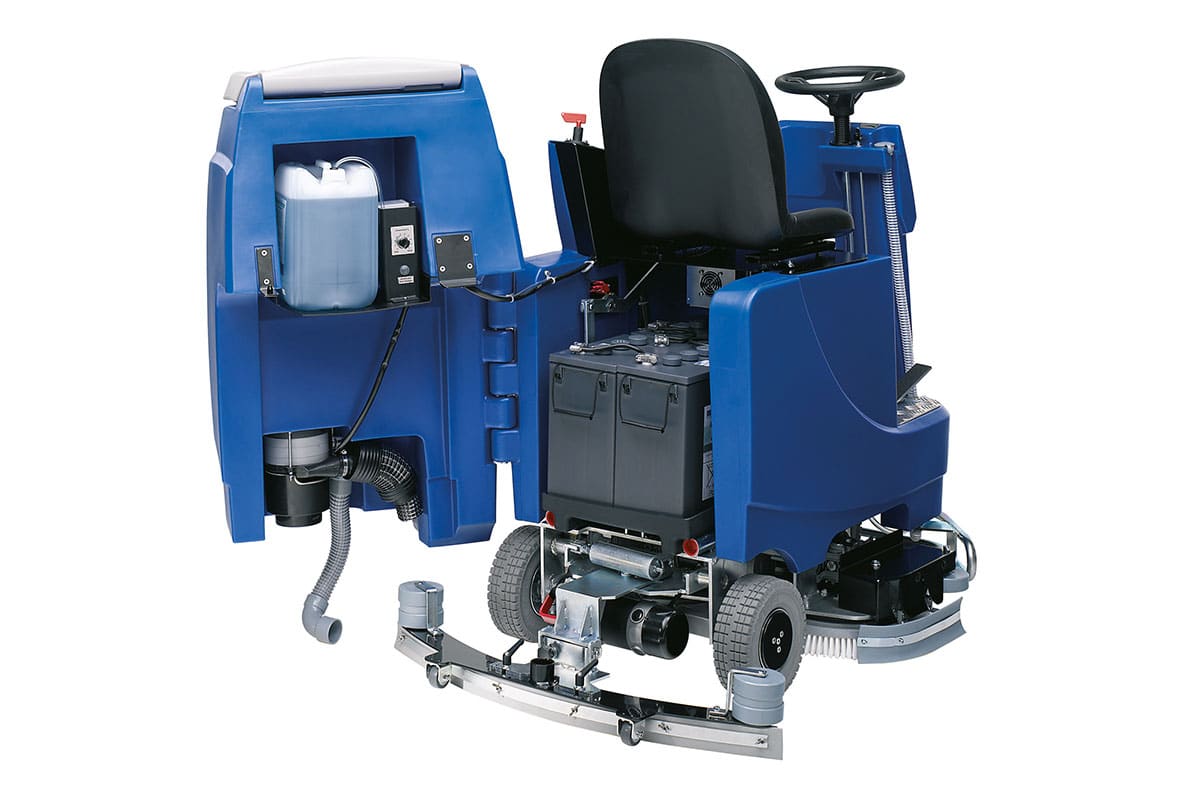

  • Easy-to-service components

Well thought-through design provides quick and easy access to all vital machine components.

  • Clean right up to the edge

Perfect cleaning result, right up to the wall.

  • Sized to fit in lifts

The machine can be transported in any standard lift.

  • Toolflex as standard

Never without a mop.

  • Integrated bottle holder

Pre-spray bottle always ready to hand.

  • Easy-to-service components

Well thought-through design provides quick and easy access to all vital machine components.

  • Made in Germany

Quality from Germany.

  • Tested and certified by DEKRA

Quality tested and certified by the world’s leading body of experts.

less features
ARA 66|BM 100
Optional equipment
Vielseitig reinigen
silent Version

For cleaning in noise-sensitive areas or during business hours.

Vielseitig reinigen
noBAC®

With antibacterial tanks for all applications with high hygienic requirements.

Vielseitig reinigen
EWD – electronic water dosing system

Cleaning operations with constant water quantity for consistently good cleaning quality.

Vielseitig reinigen
ECD – electronic Chemical dosing system

Only as much chemicals as absolutely necessary; this is good for the environment and the budget.

Vielseitig reinigen
Security-Kit

Maximum operational safety due to rotating beacon.

Vielseitig reinigen
Tyre equipment “comfort plus”

Different type ofTyres for greater driving comfort.

ARA 66|BM 100
Technical data
Technical key data
L x W x H 1380 x 730 x 1325 mm
Working width 660 mm
Suction width 850 mm
Theoretical coverage max. 4620 m²/h
Noise level 64 / 60 dB(A) *
Empty weight 258 kg
Operating weight 690 kg (320 Ah 5)
Batteries / Electrical data
Rated voltage 24 V
Power max. 2290 W
Capacity wet 250 Ah 5** / 320 Ah 5
Capacity gel 240 Ah 5** / 280 Ah 5

* silent version, optional
** with integrated charger

Tank
Solution tank capacity 100 l
Recovery tank capacity 115 l
Motors
Suction: Low pressure 170 mbar
Suction: Air flow 33 l/s
Traction: power 750 W
Traction: speed 7 km/h
Traction
Power max. 750 mbar
Speed max. 7 km/h
Brushes and pad holders
Number 2
Speed 160 rpm
Brush pressure 50 kg
ARA 66|BM 100
Accessories

As a specialist for contract cleaning, columbus offers you, in addition to first-class machines, a wide range of accessories for an individual adaption to your equipment and your requirements.
