Ride-on

ARA 85|BM 120

ARA 85|BM 120

Overview

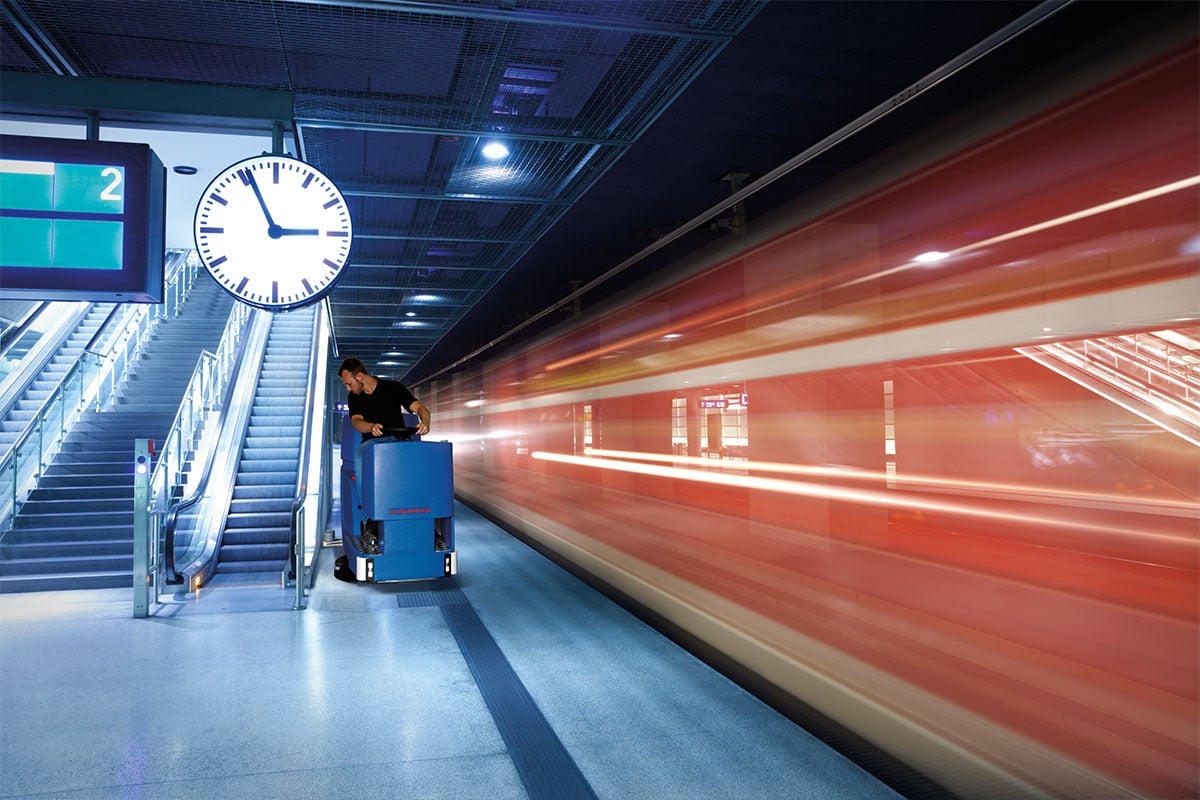

Greater efficiency per tank: this highly efficient ride-on scrubber dryer enables non-stop cleaning operations for two hours on just one tank. The proven details, such as the standard electronic water dosing system, the comfortable low access height and the automatic brush pick-up system ensure the high level of efficiency that is expected when working on large floor areas.

Technical key data
  • Tank capacity 120 l
  • Working width 850 mm
  • Theoretical coverage max. 5100 m²/h
  • Traction motor yes
ARA 85|BM 120
Product highlights
Vielseitig reinigen

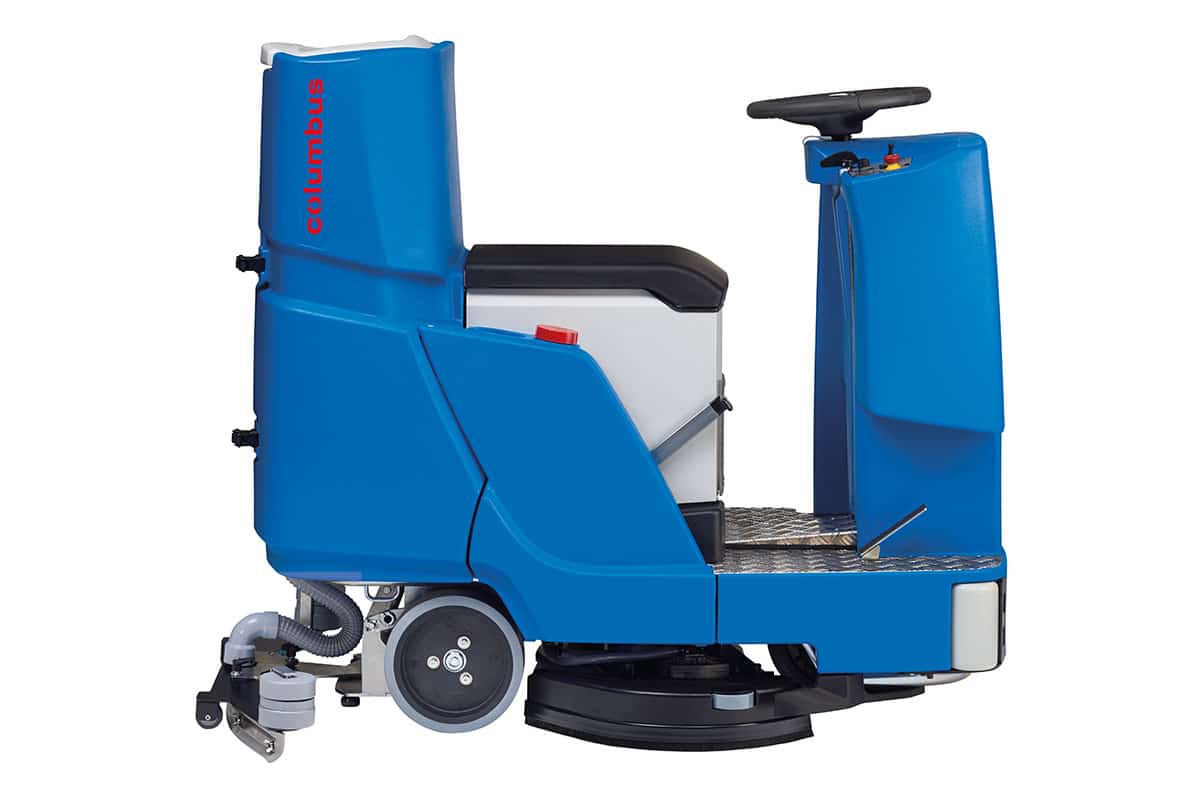

Compact construction

Flat design and extendible steering handle make cleaning under furniture etc. easy.

Vielseitig reinigen
Automatic brush holder

Change tools quickly and easily at the touch of a button.

Vielseitig reinigen

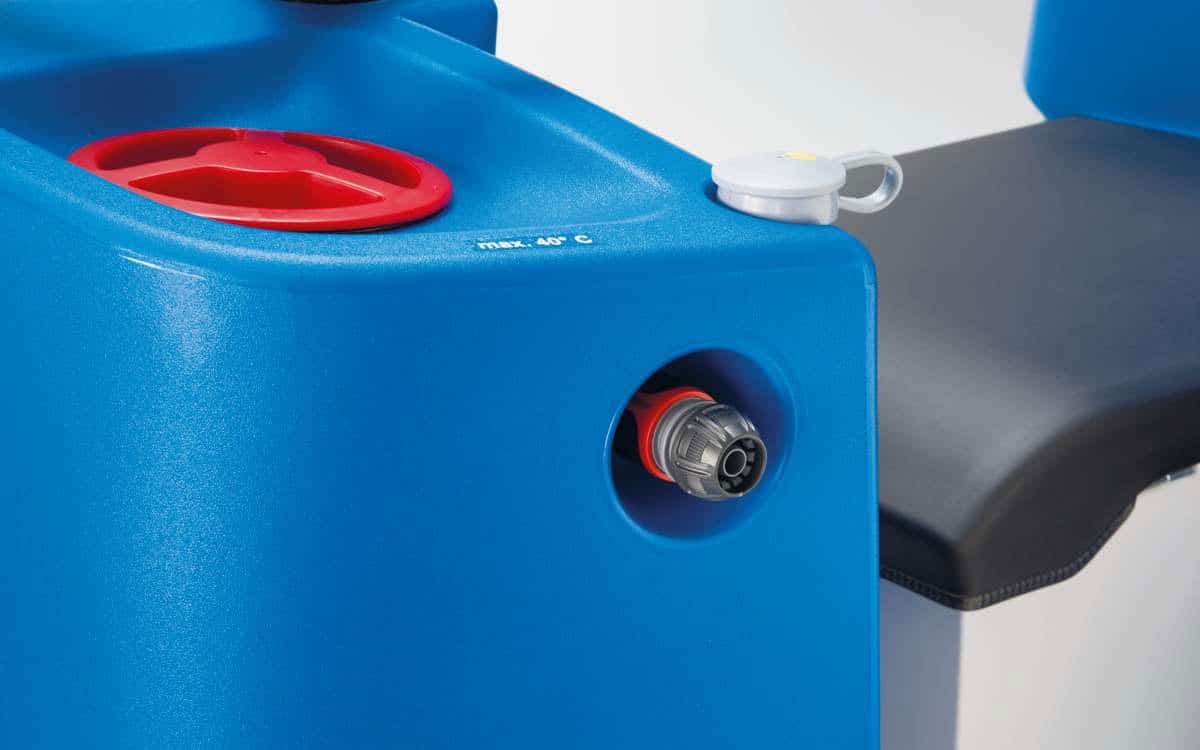

Quick-Fill function as standard

Clean water tank can be filled quickly and cleanly via the integrated system coupling.

Vielseitig reinigen

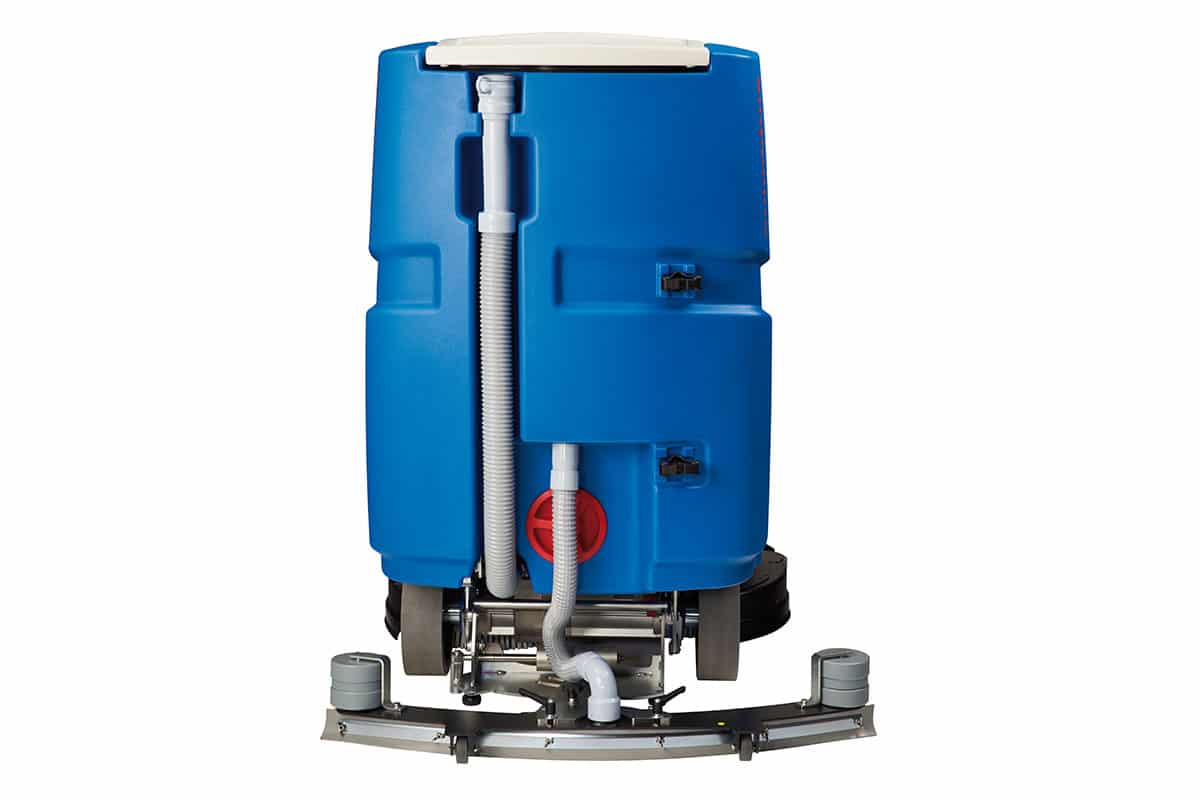

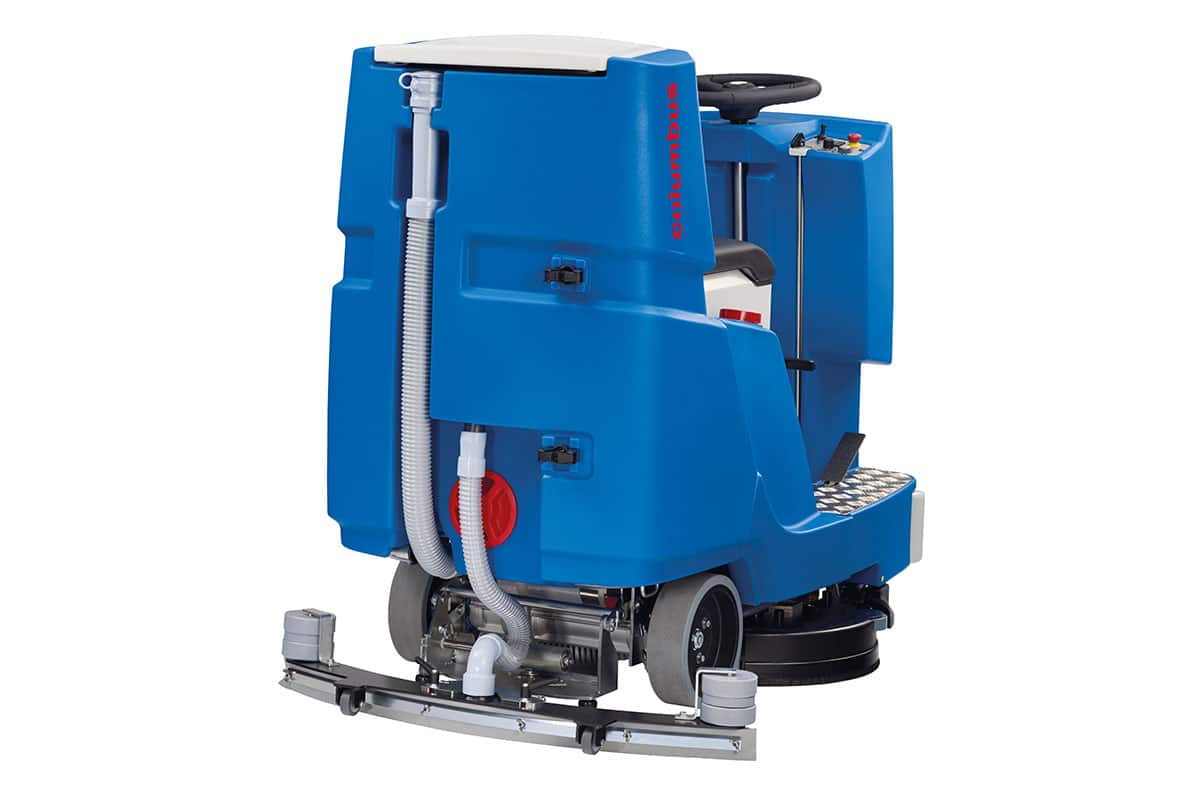

Superb suction

Guarantees streak-free floors that can be walked on immediately after cleaning.

Vielseitig reinigen
Optimum access height

Ideal if the operator has to step on and off frequently during long cleaning periods.

Vielseitig reinigen

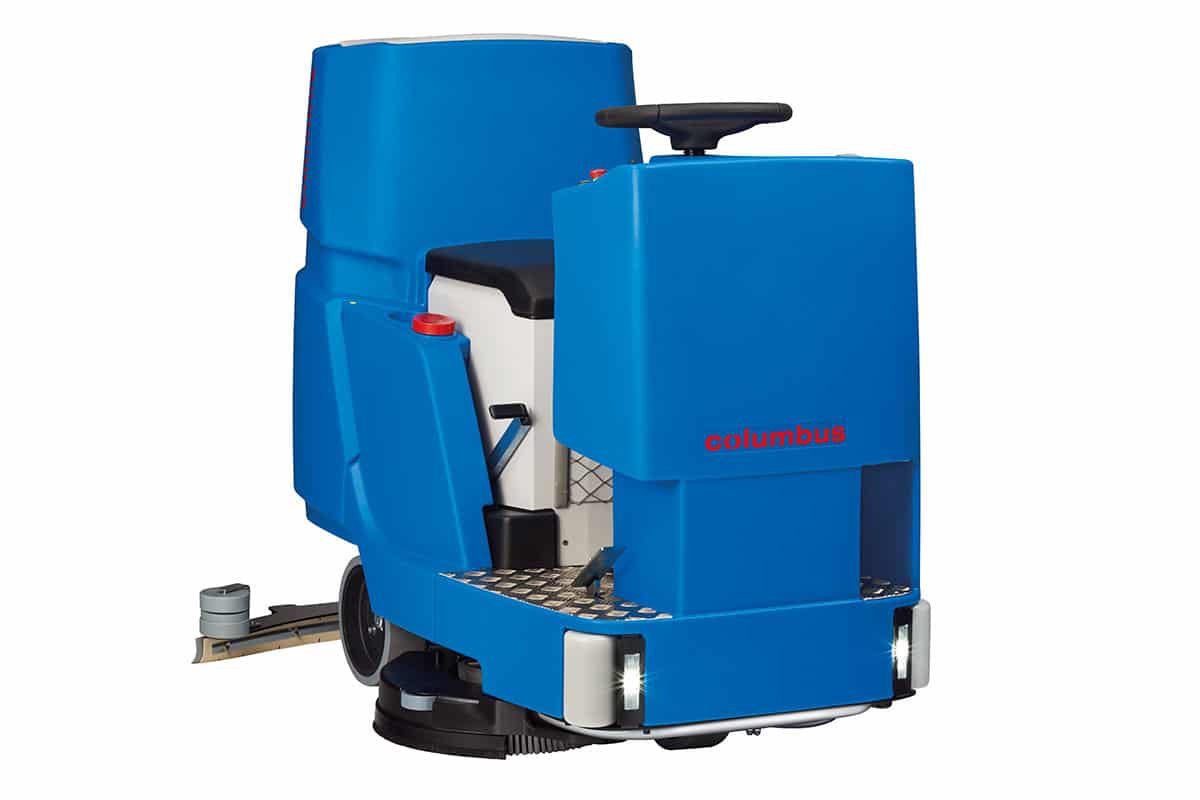

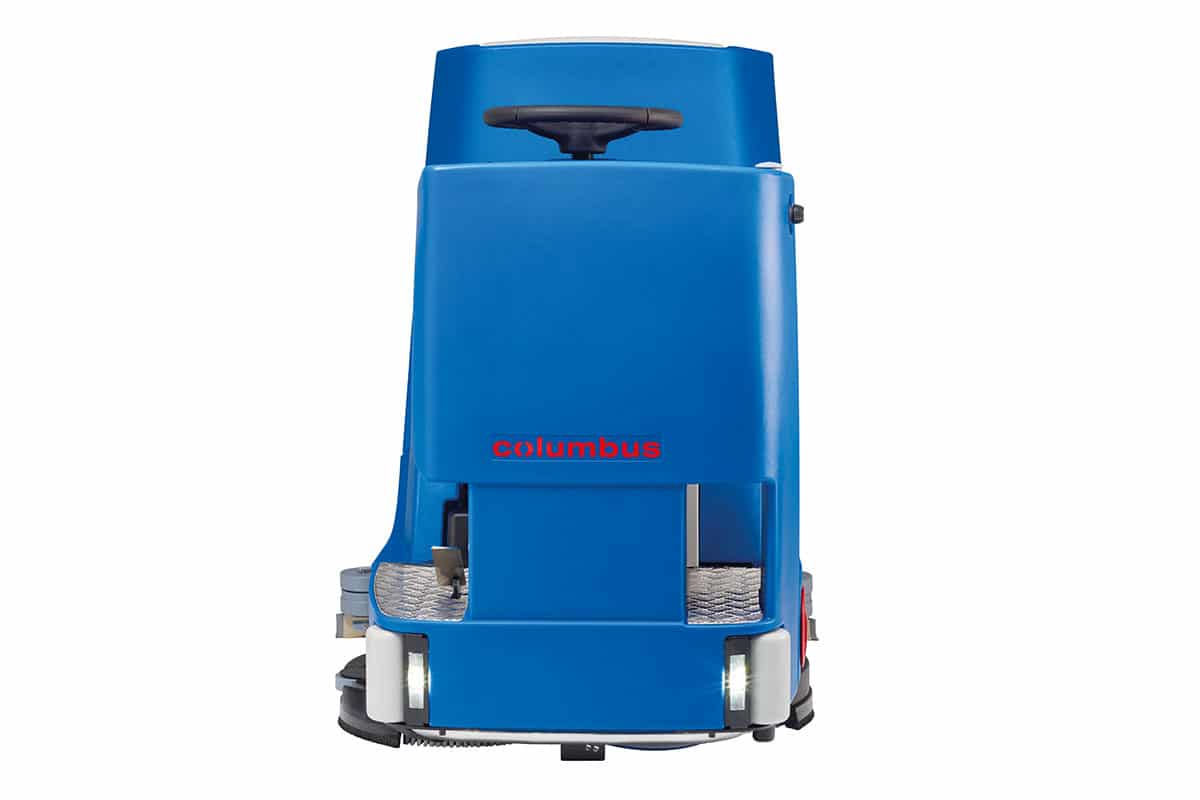

LED on the front

Safe while on the move: all-round visibility while working and when on the move.

more features
  • High brush pressure

Excellent cleaning result with the lowest possible amounts of water and chemicals, even on very dirty surfaces.

  • EWD – Electronic water-dispensing system

The electronic water-dispensing system supplies exactly the right volume of water.

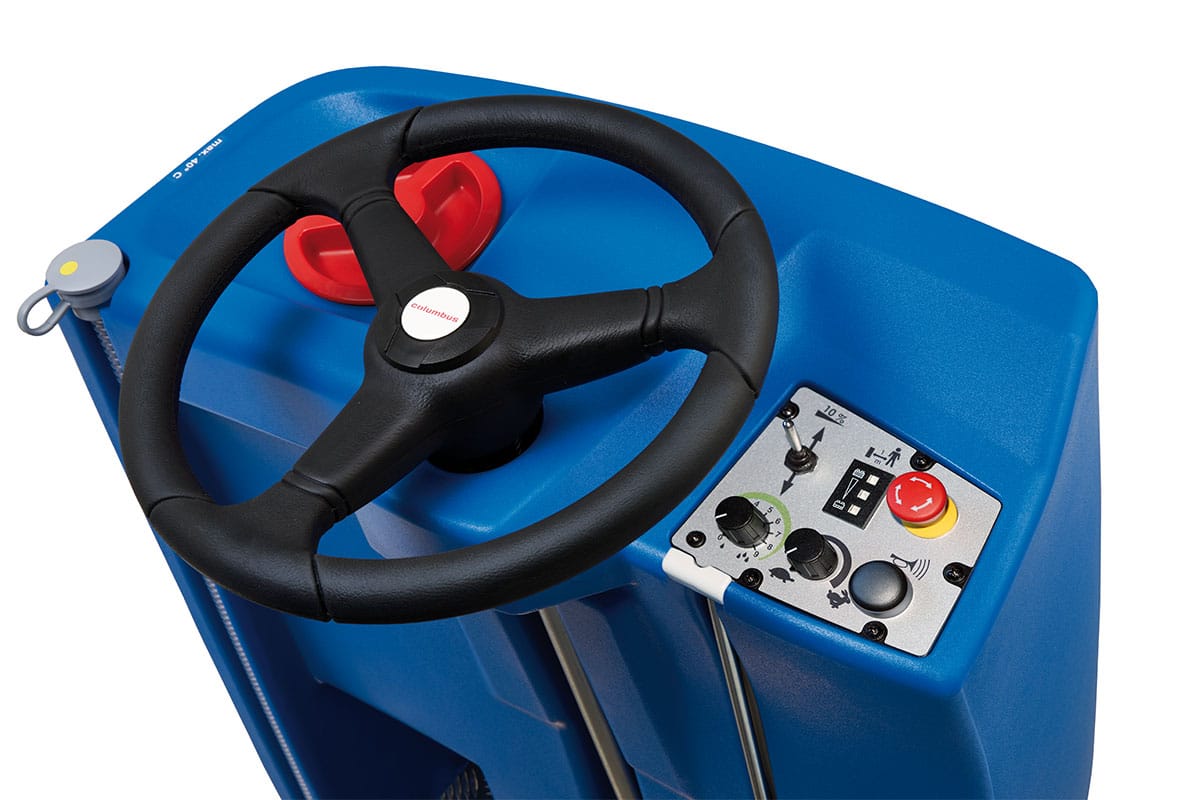

  • Ergonomic steering handle

Easily adjustable steering handle, convenient for every operator.

  • Easy-to-service components

Well thought-through design provides quick and easy access to all vital machine components.

  • Very robust mechanics

Only truly durable machines are also truly green.

  • HACCP-compliant

Large inspection openings enable both tanks to be cleaned thoroughly, with ease.

  • Excellent climbing ability

Optimum cleaning results on up to 12% slope.

  • Ergonomic machine design

Fatigue-free riding position with good all-round visibility, ideal for longer operating periods and cleaning large areas.

  • Toolflex as standard

Never without a mop.

  • Made in Germany

Quality from Germany.

less features
ARA 85|BM 120
Optional equipment
Vielseitig reinigen
silent Version

For cleaning in noise-sensitive areas or during business hours.

Vielseitig reinigen
ECD – electronic Chemical dosing system

Only as much chemicals as absolutely necessary; this is good for the environment and the budget.

Vielseitig reinigen

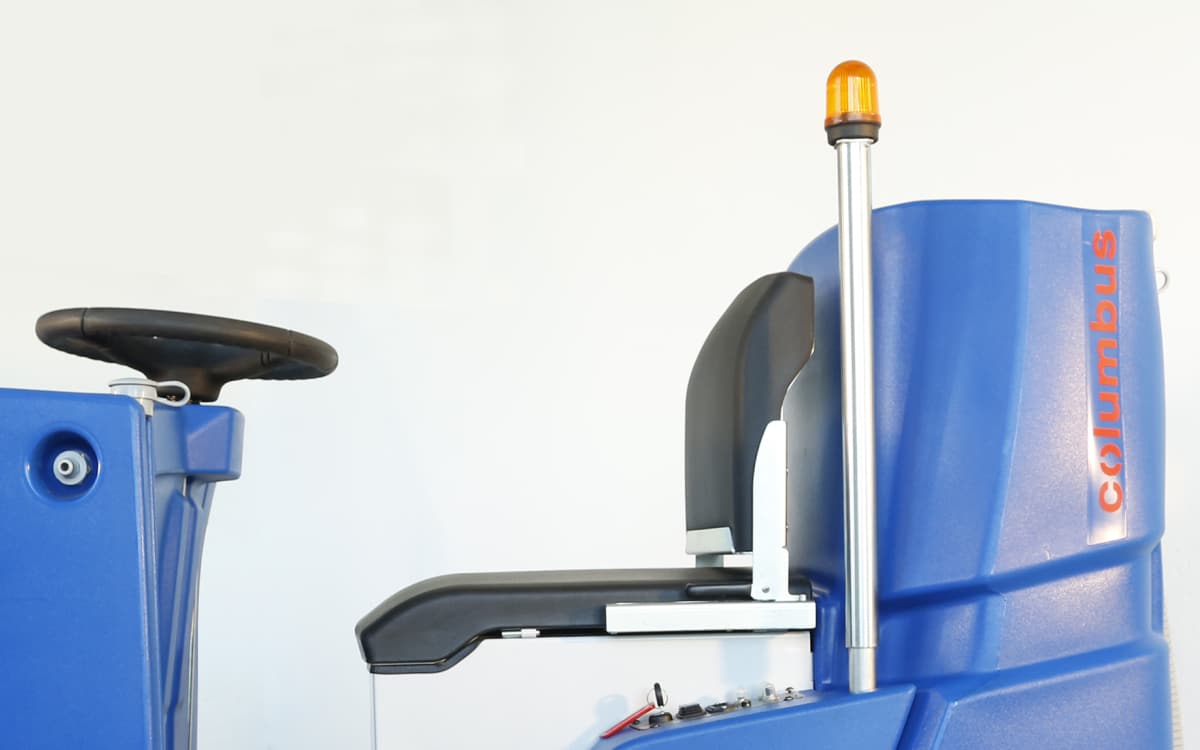

Security-Kit

Maximum operational safety due to rotating beacon.

Vielseitig reinigen
Performance Kit

More cleaning performance for special site requirements.

Vielseitig reinigen
Tyre equipment “comfort plus”

Different type ofTyres for greater driving comfort.

Vielseitig reinigen

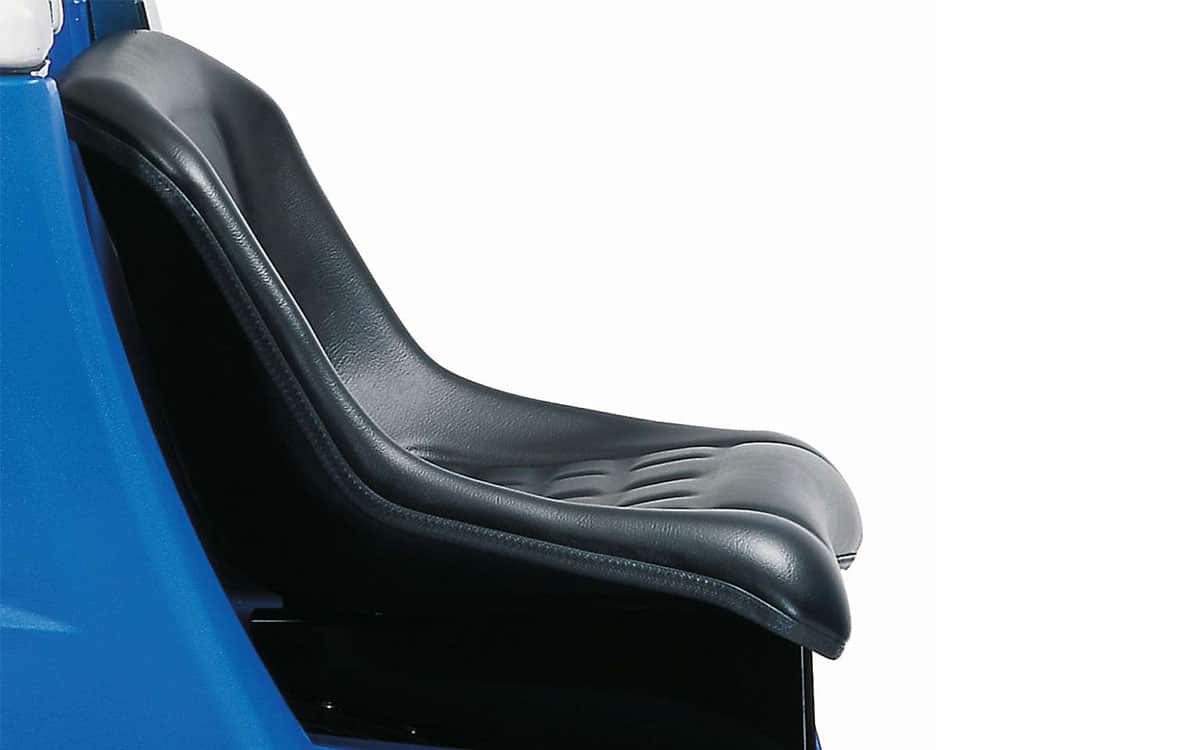

Driver’s seat “comfort plus”

More ergonomics and comfort for the driver during long working hours.

more options

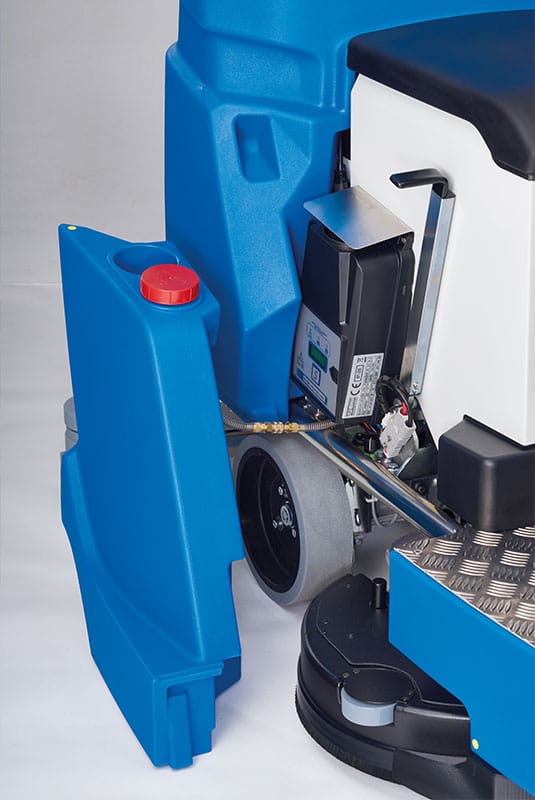

  • Additional tank for cleaning chemicals

More effectiveness in case of frequent changes of cleaning chemicals.

less options
ARA 85|BM 120
Technical data
Technical key data
L x W x H 1490 x 880 x 1260 mm
Working width 850 mm
Suction width 980 mm
Theoretical coverage max. 5100 m²/h
Noise level 62/60* dB(A)
Empty weight 209 kg
Operating weight 596 kg
Batteries / Electrical data
Rated voltage 24 V
Power max. 2395 W
Capacity wet on request
Capacity gel 240 Ah 5
Tank
Solution tank capacity 120 l
Recovery tank capacity 140 l
Motors
Suction: Low pressure 110 mbar
Suction: Air flow 32 l/s
Traction: power 750 W
Traction: speed 6 km/h
Brushes and pad holders
Number 2
Speed 180 rpm
Brush pressure 36 kg
ARA 85|BM 120
Accessories

As a specialist for contract cleaning, columbus offers you, in addition to first-class machines, a wide range of accessories for an individual adaption to your equipment and your requirements.
