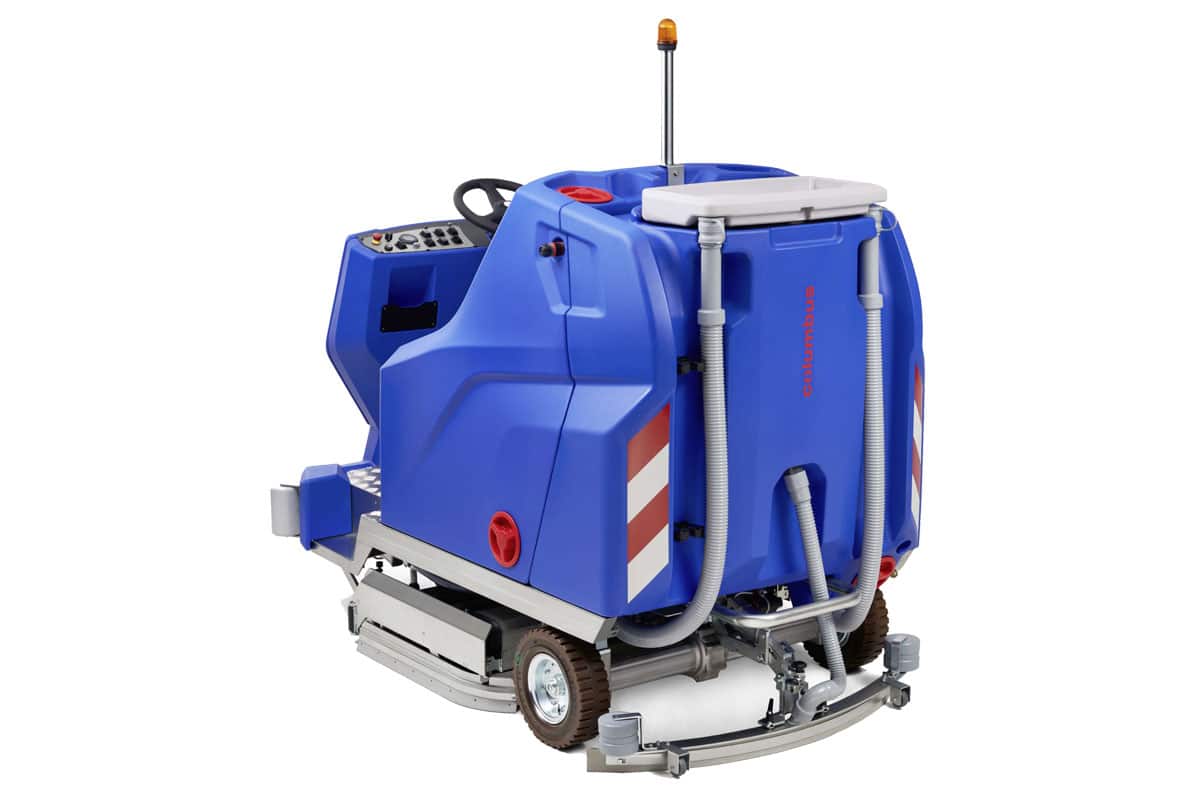

ARA 100|BM 200 W
Overview

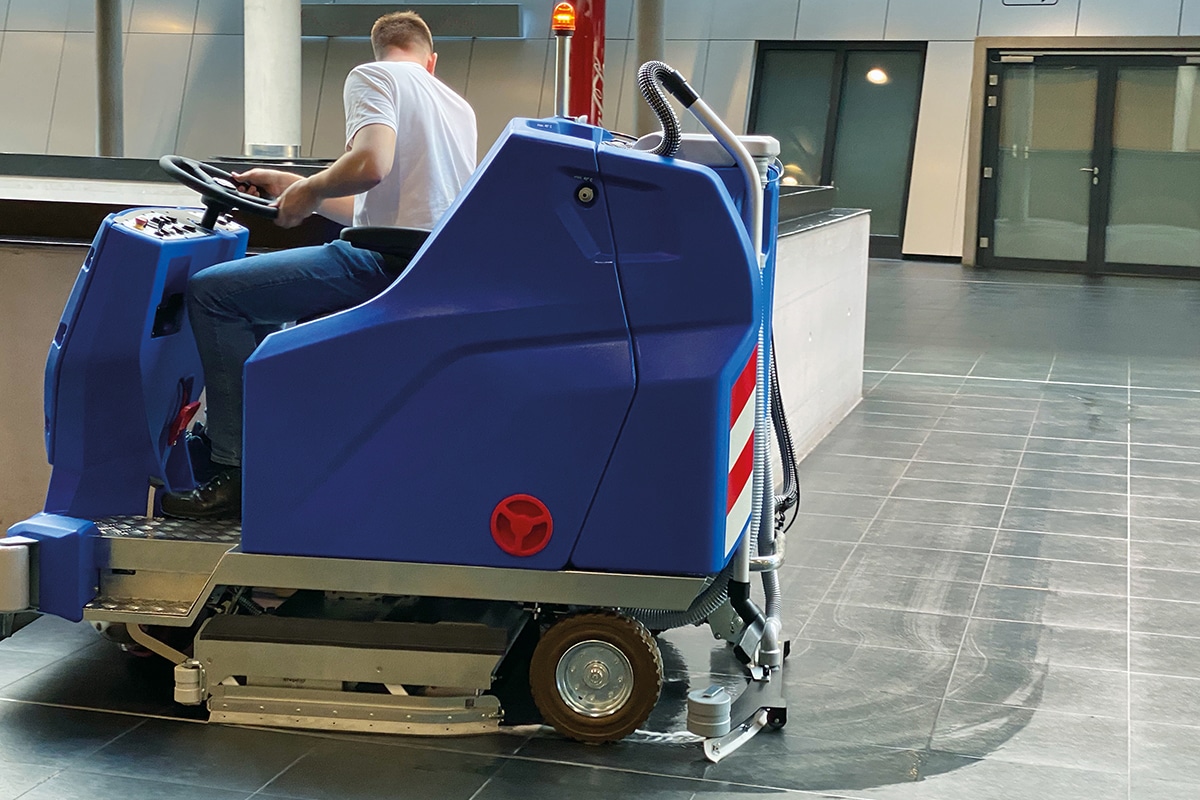

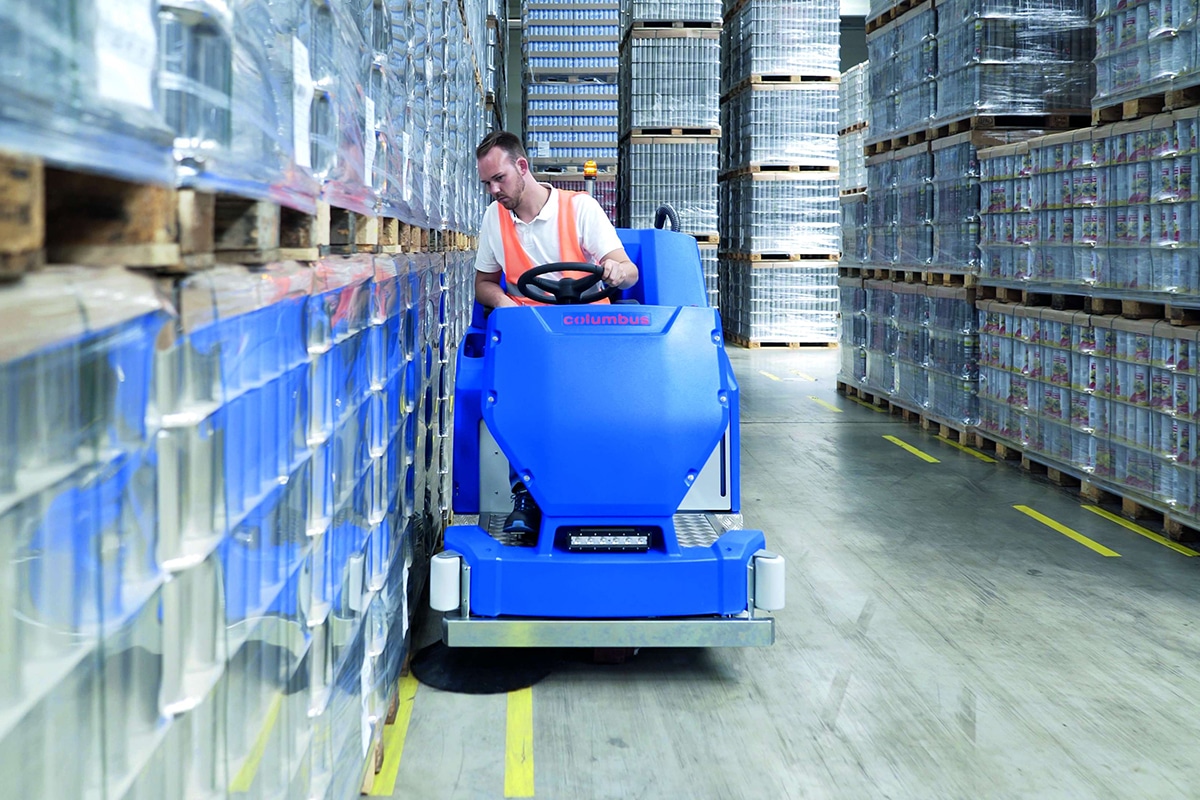

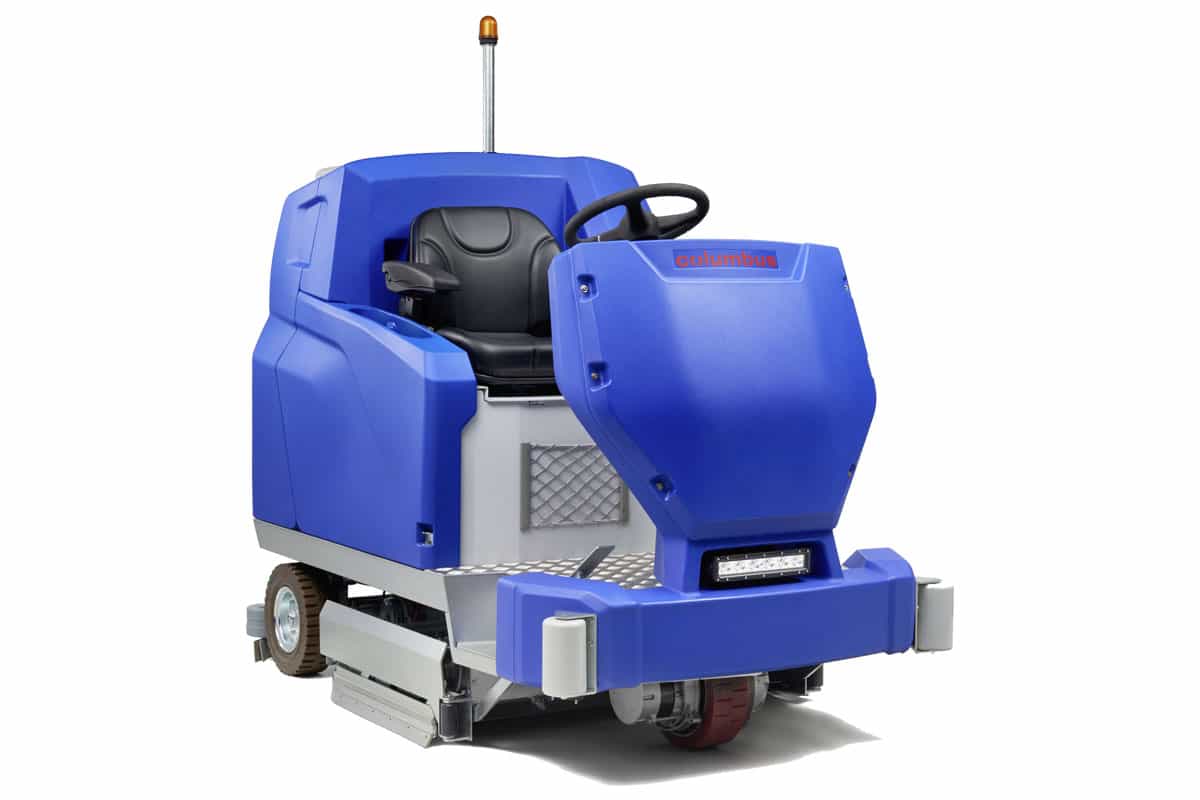

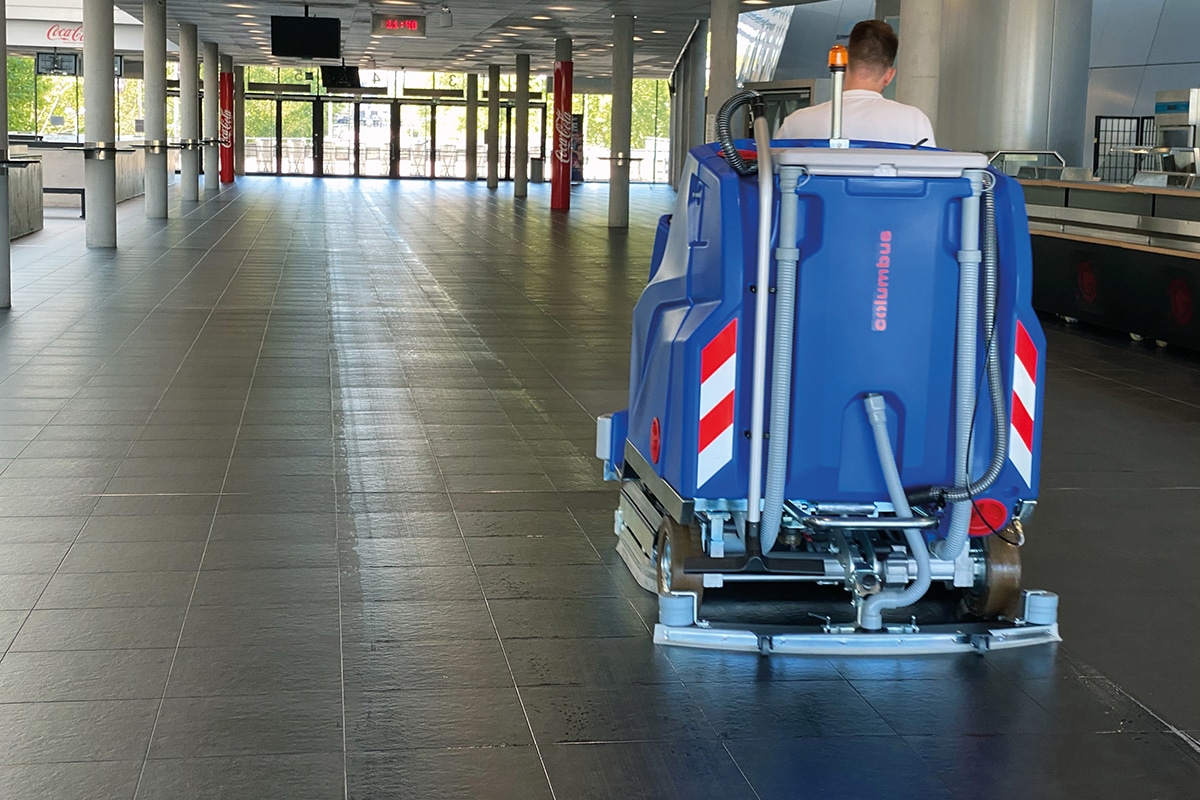

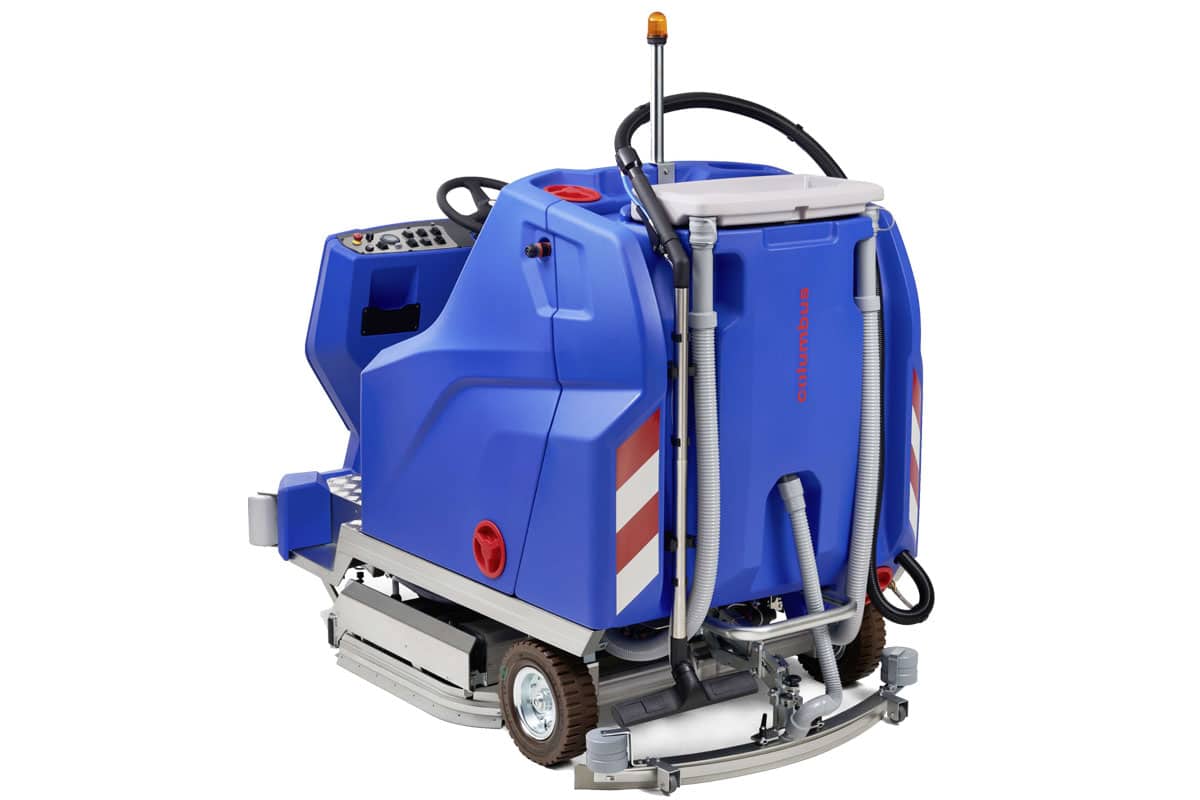

The high-quality 200 liter ride-on scrubber dryer with cylindrical brushes, powerful motor, extremely long battery life, high theoretical coverage and incredible ability to climb 20 percent inclines thanks to its all-wheel drive function is just the type of powerful machine needed for large areas. Perfectly tailored to any application, whether in industry, parking garages, logistics, malls or communal spaces. Also available with disc brushes (ARA 100|BM 200)
Technical key data
Tank capacity 200 l
Working width 1020 mm
Theoretical coverage max. 9000 m²/h
Brush pressure80 kg
ARA 100|BM 200 W
Product highlights

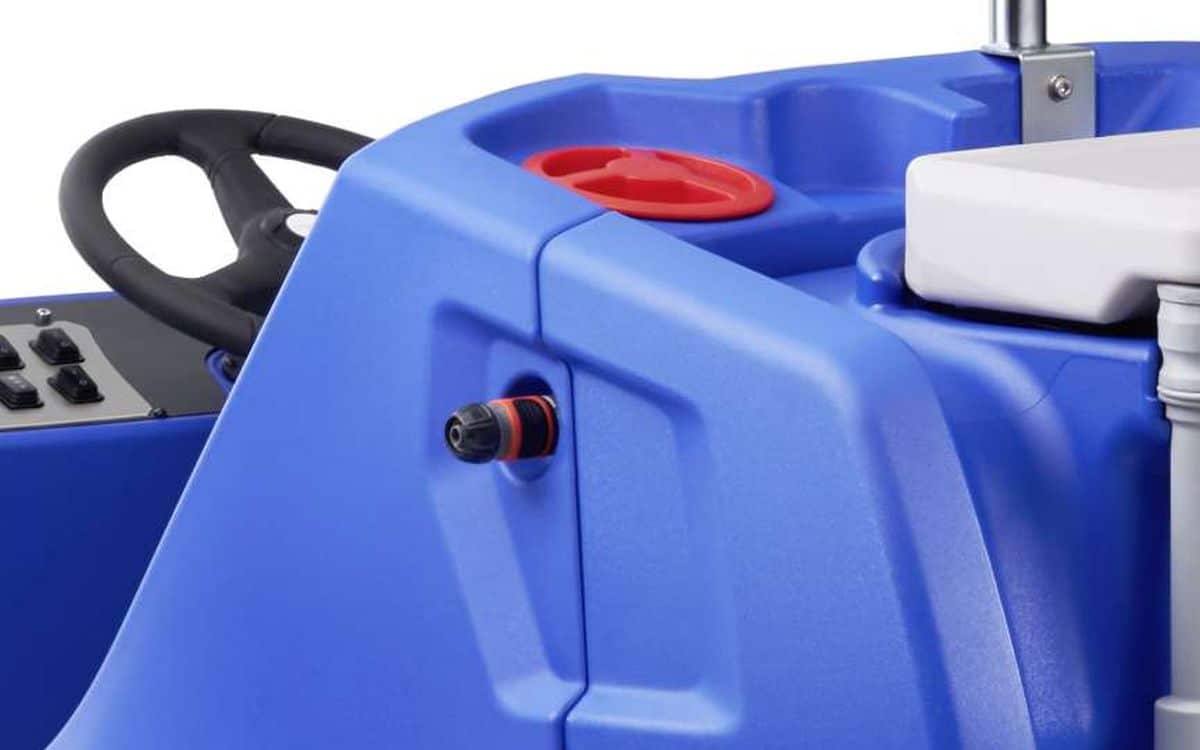

QUICK FILL function as standard
Fill the solution tank quickly and cleanly.

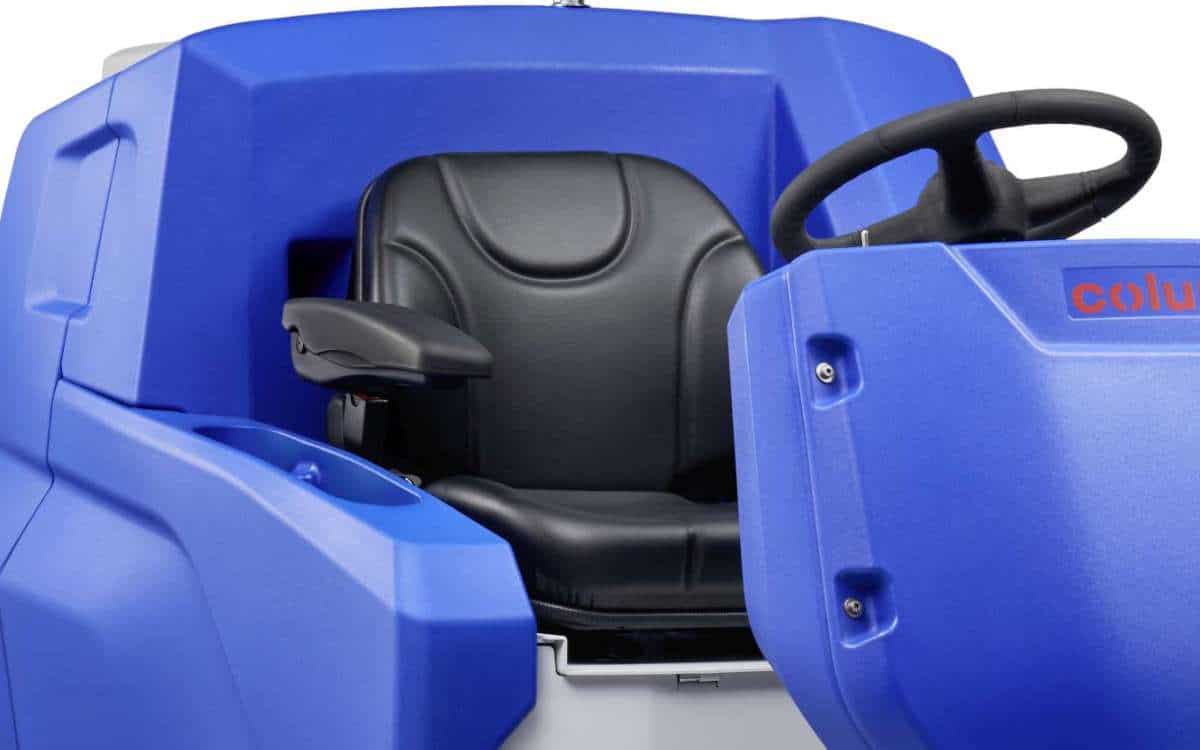

Comfortable seat
Individually adjustable, ergonomic, includes armrests.

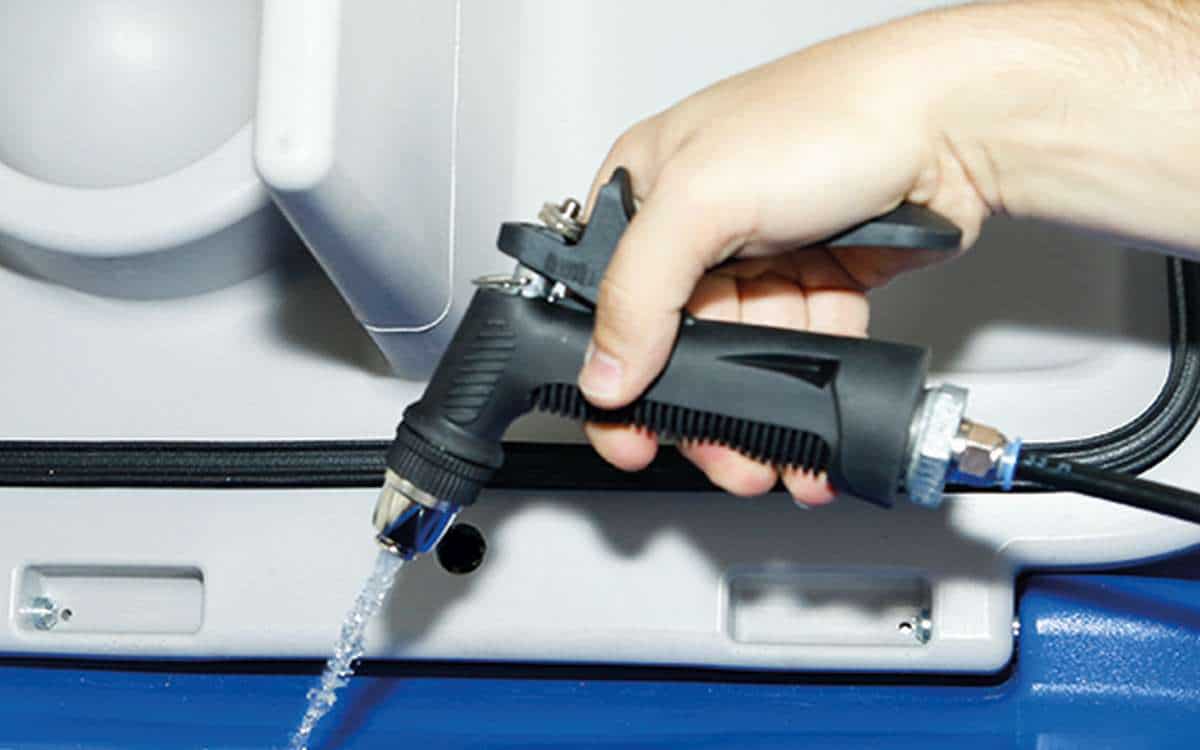

Spray gun as standard
For cleaning the recovery tank, for example.

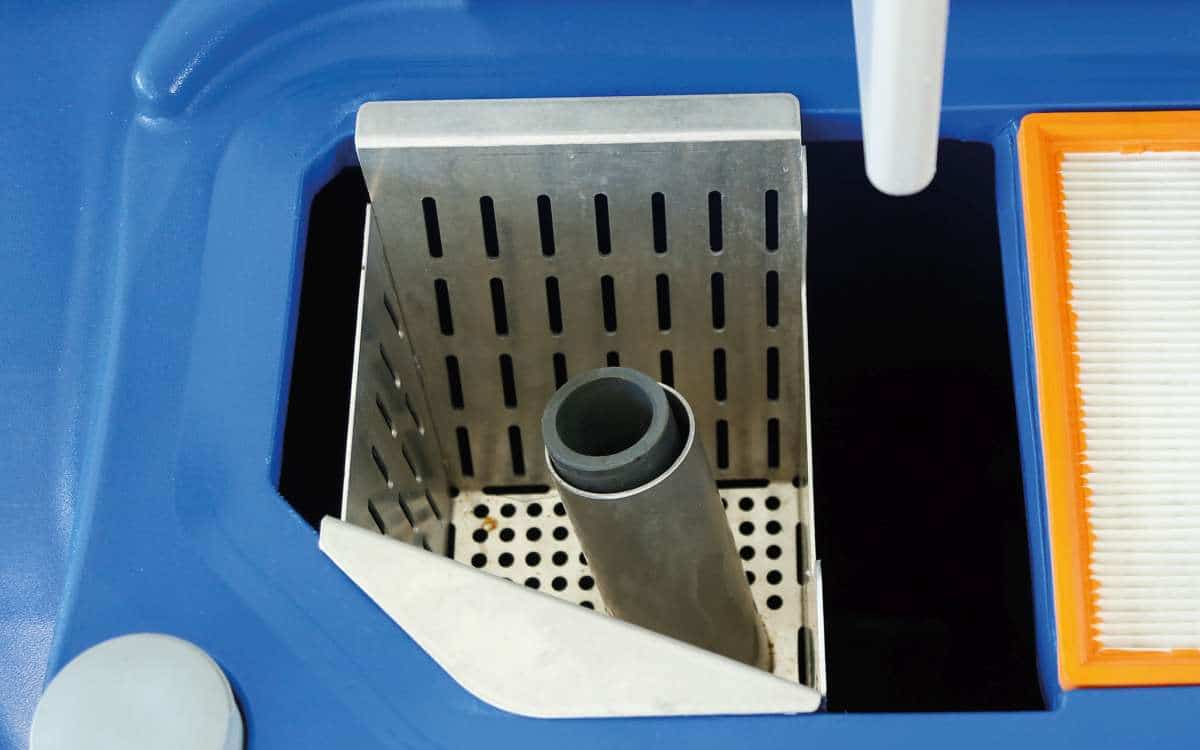

Debris container
Stainless steel container that can be removed without tools for easy cleaning.
Rear impact protection
Highly resilient steel protection for the rear.

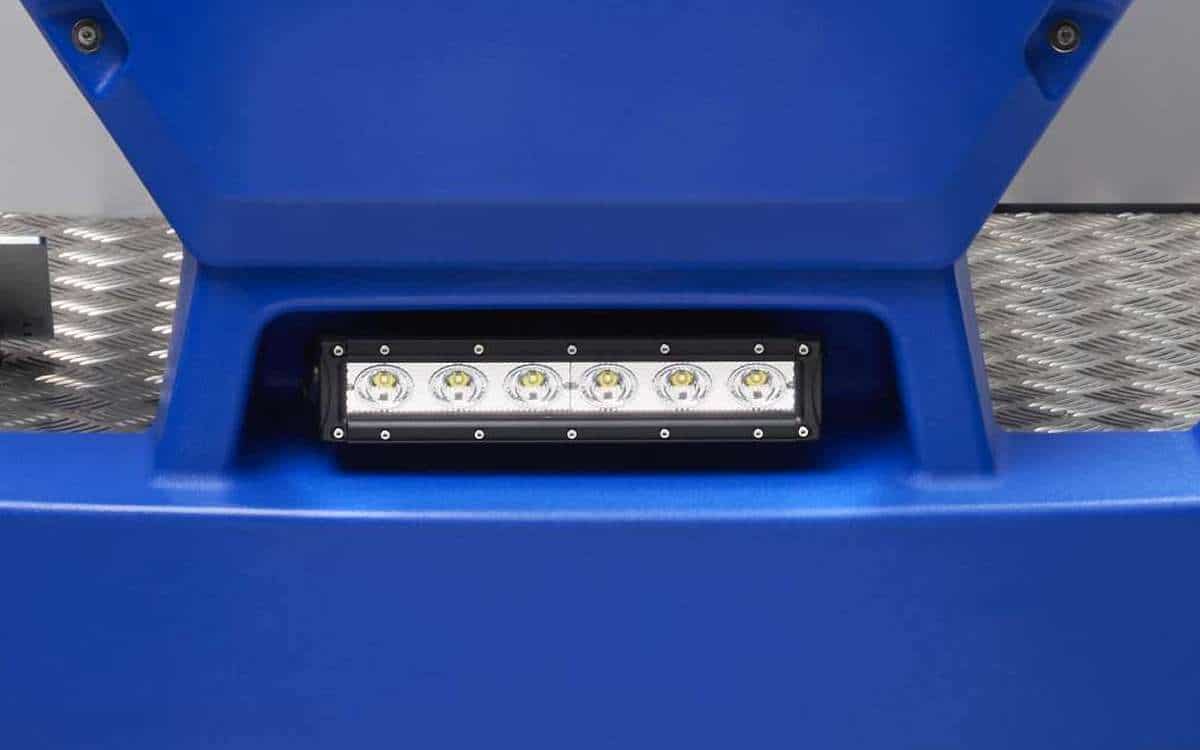

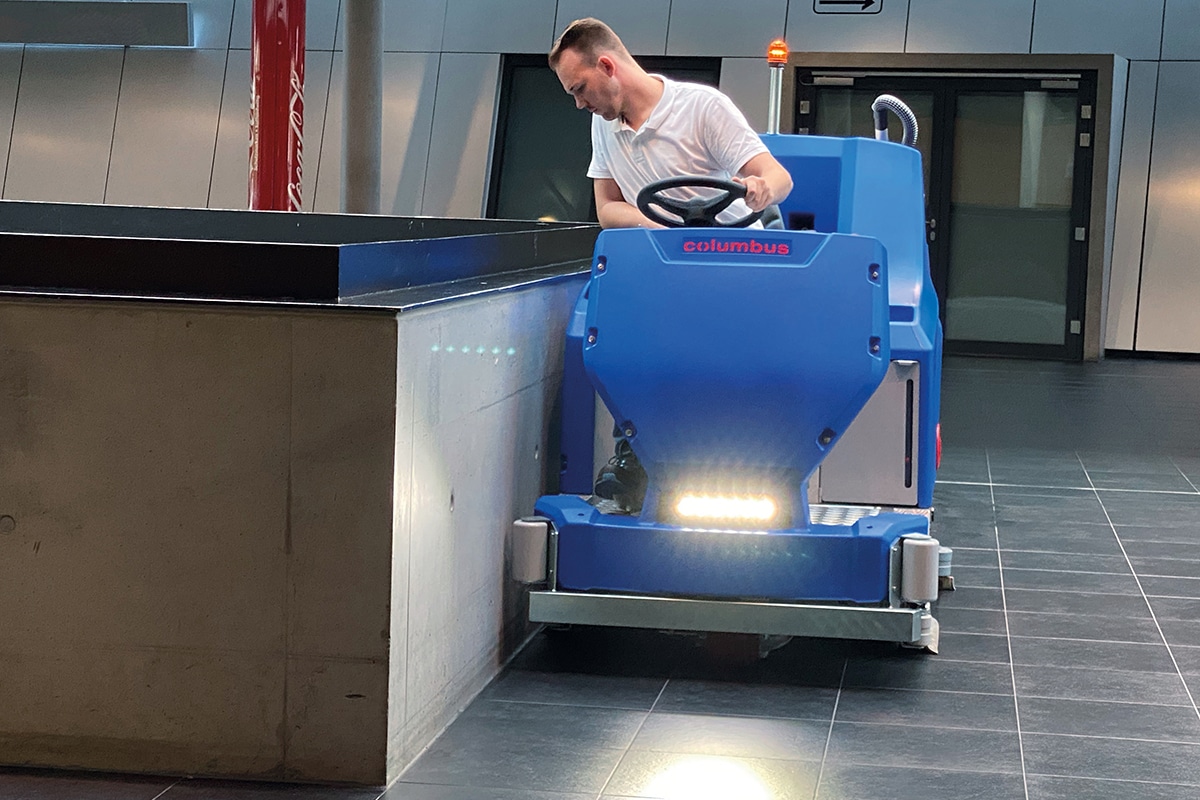

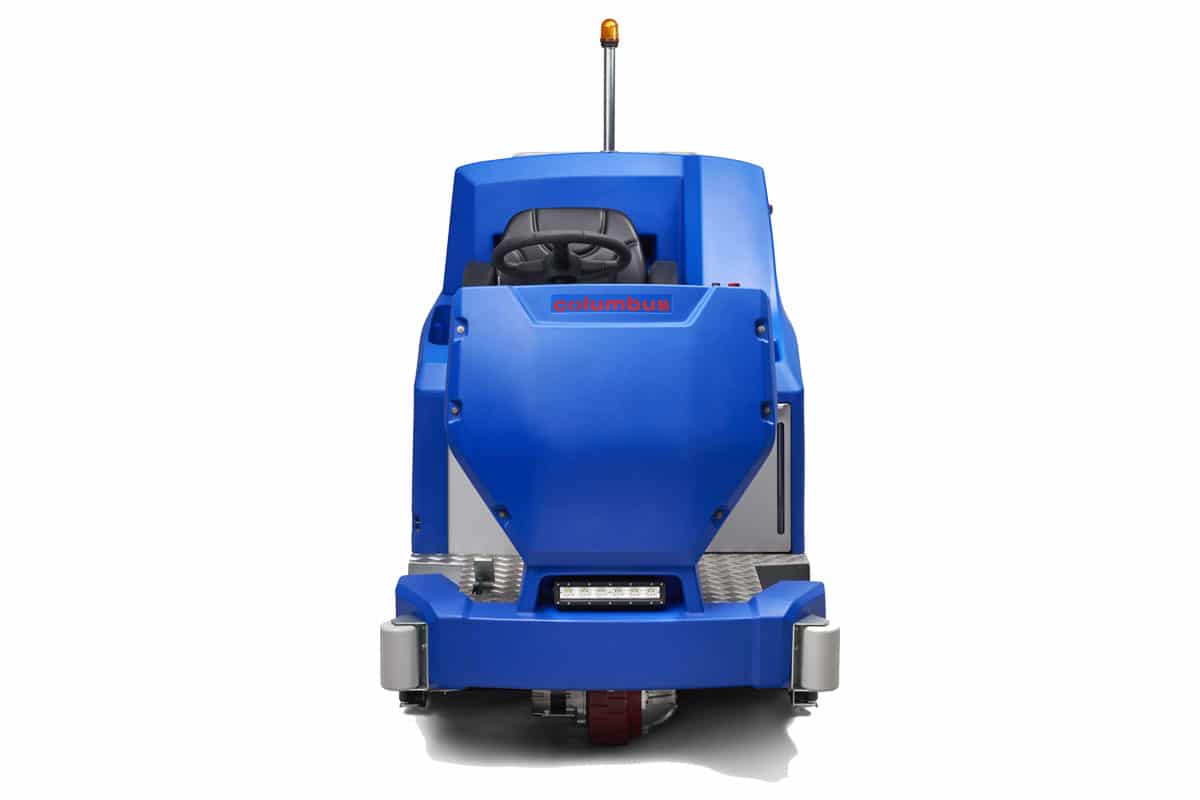

Front LED lamp
For optimum visibility (and thus safety) during operation.
Security kit as standard
Maximum operational safety thanks to rotating beacon.
Mobile charging station
Convenient tray with integrated USB charging point.

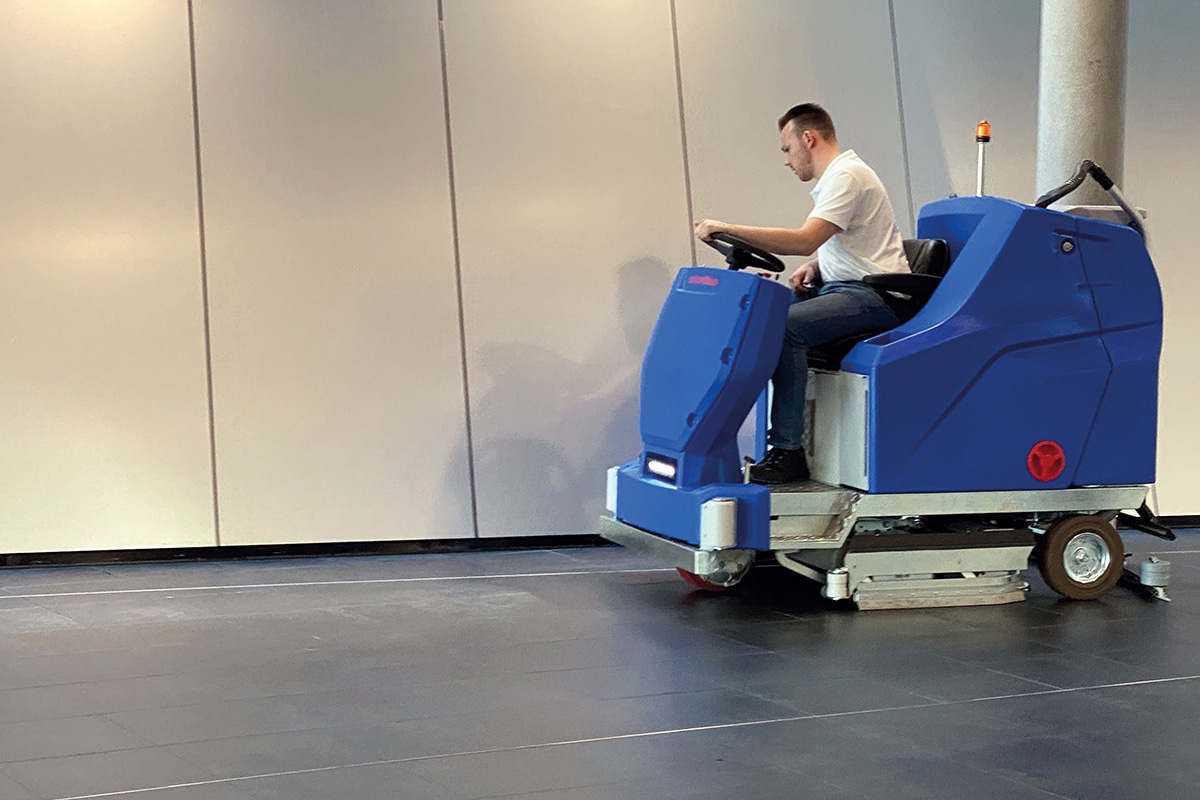

Optimum access height
Ideal if the operator has to step on and off frequently during long cleaning periods.
Large filling opening
Tanks can be maintained quickly and easily after use.
Adjustable brush pressure
Perfect cleaning results: the brush pressure can be adjusted to suit floor characteristics and the soiling level.
- Made in Germany
Quality from Germany.
ARA 100|BM 200 W
Optional equipment

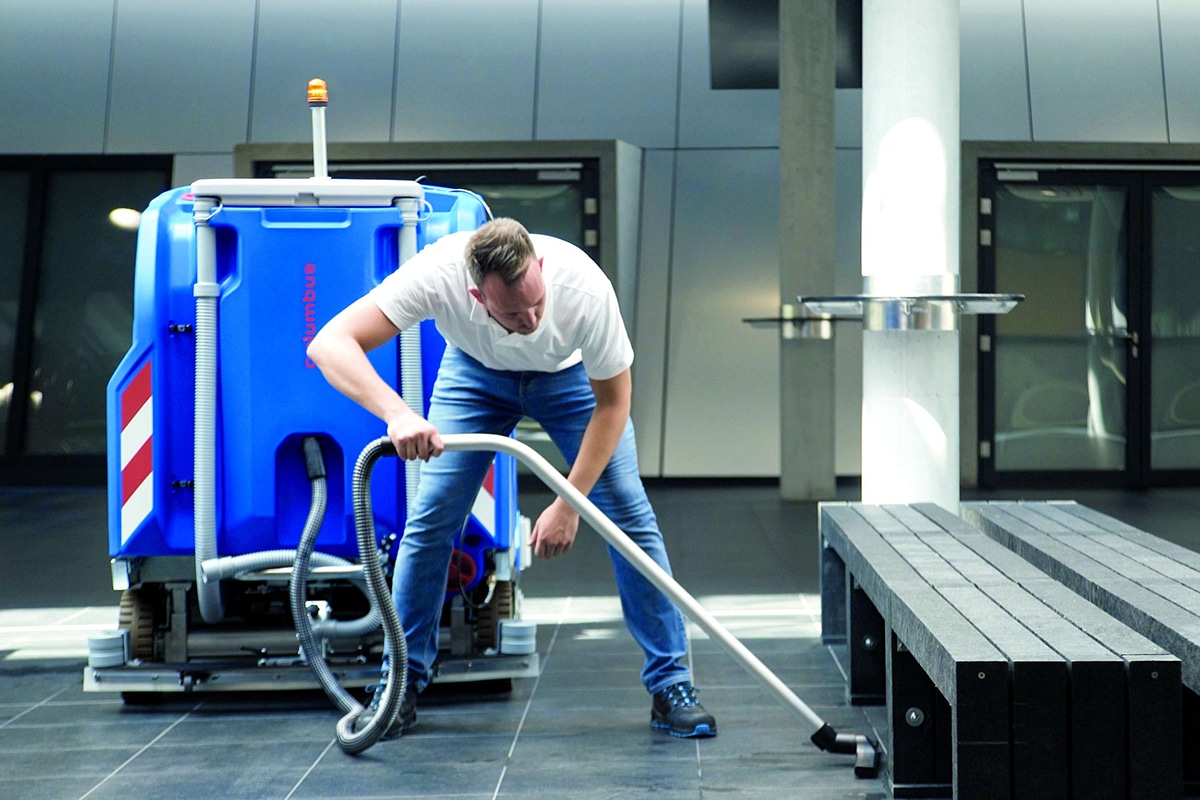

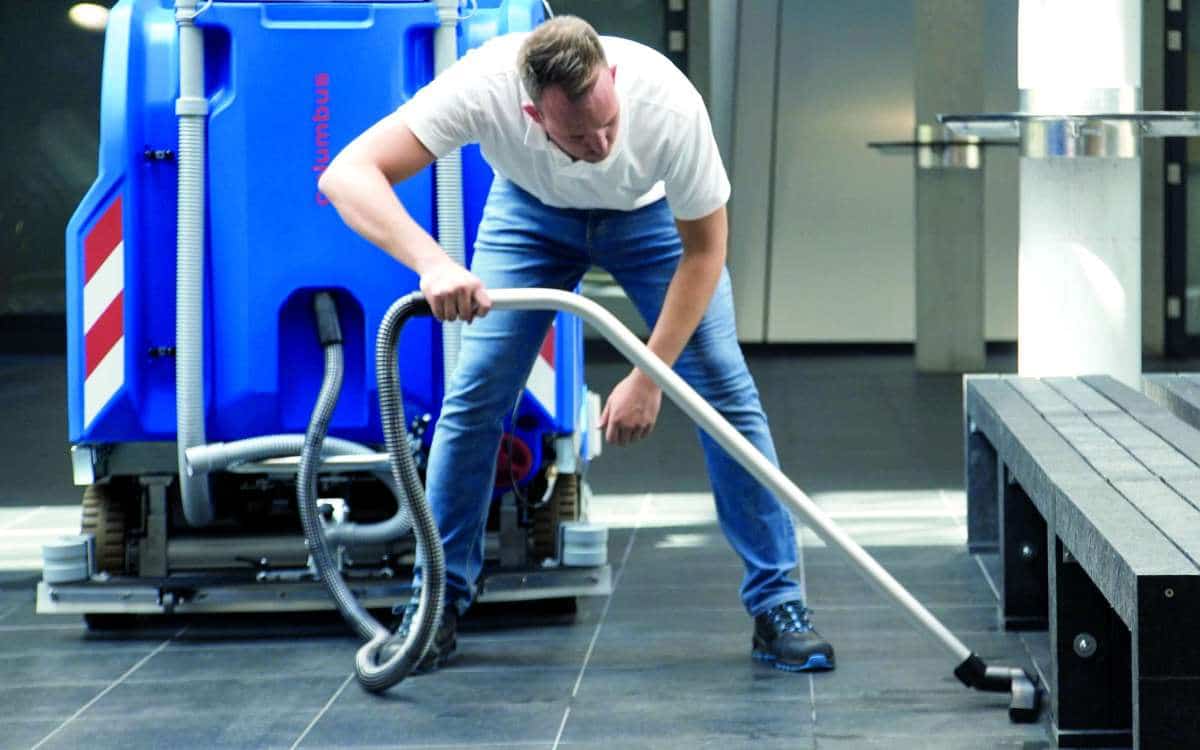

Manual suction tool
Thorough cleaning, even in difficult areas.

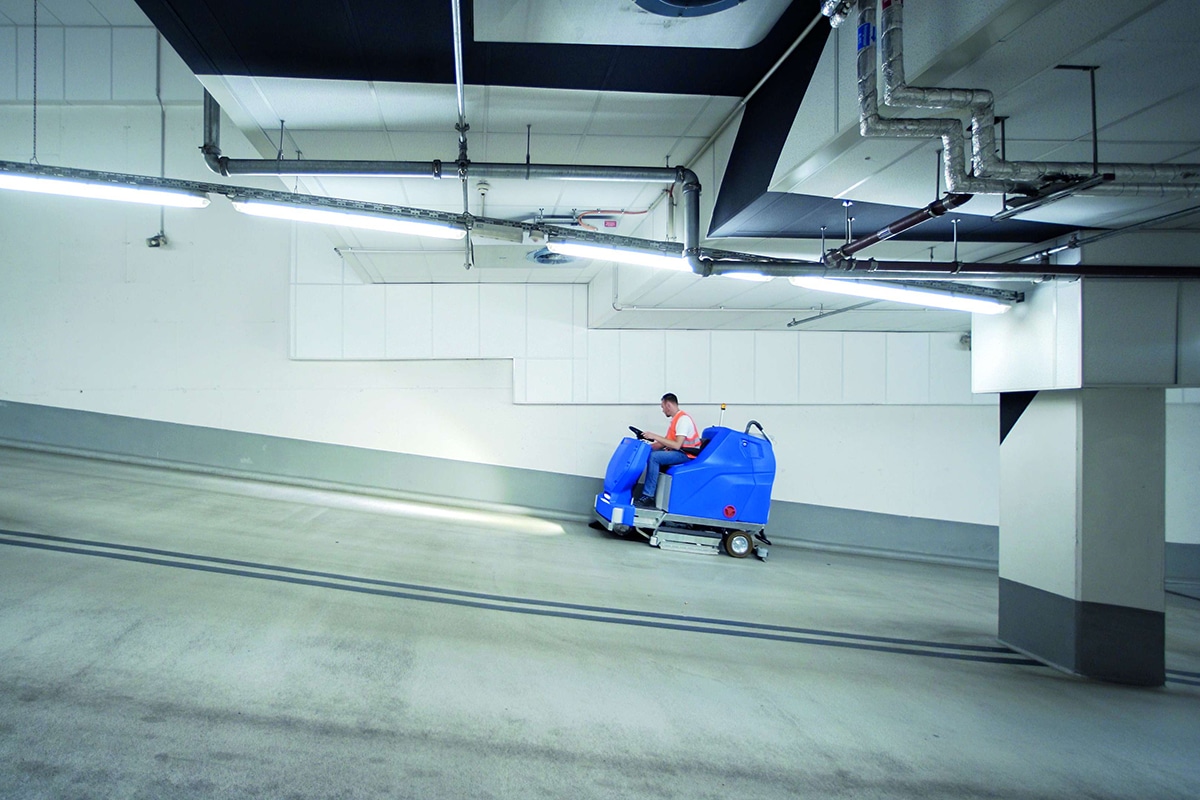

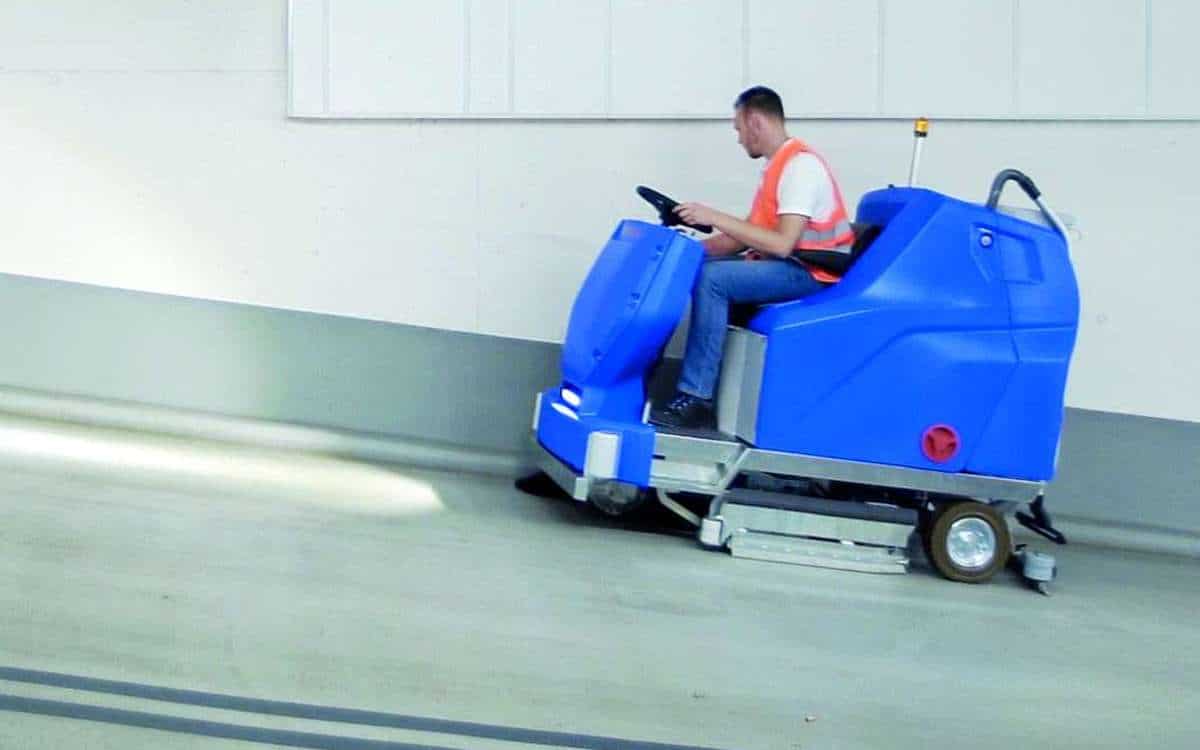

All-wheel drive
For inclines of up to 20 percent. Ideal for multi-storey car parks.

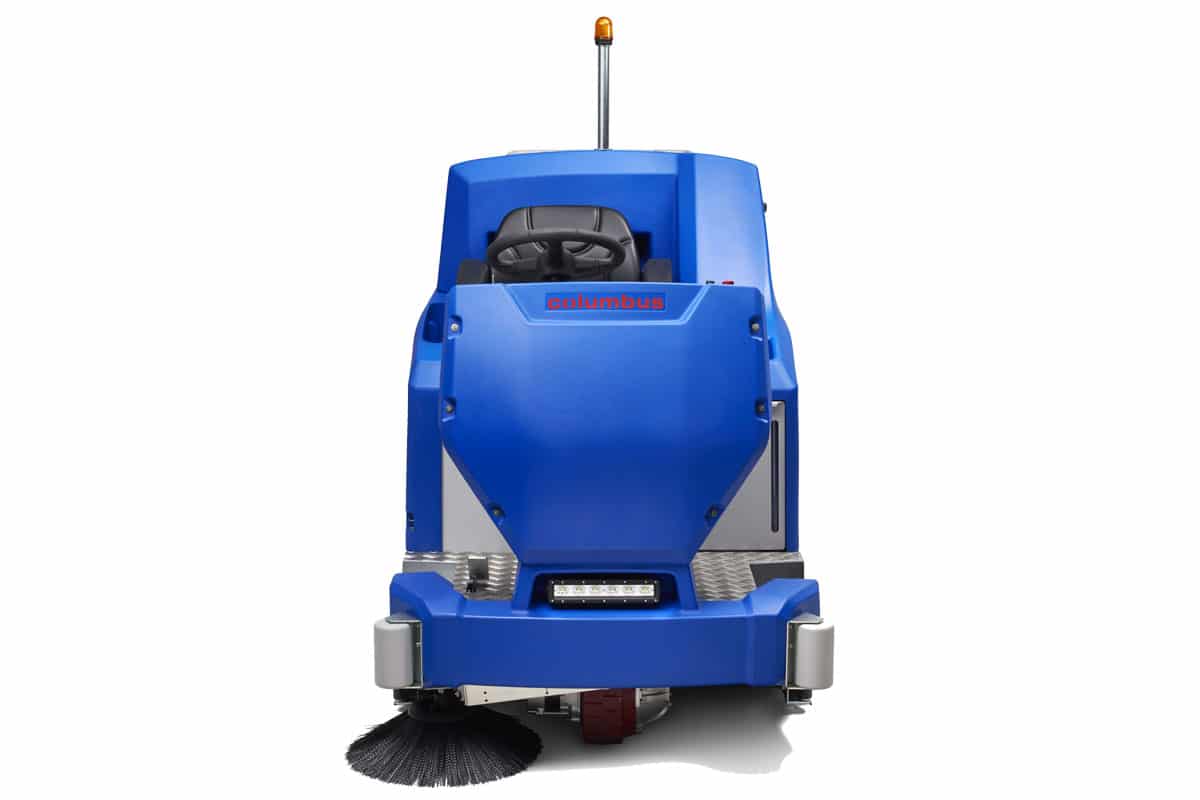

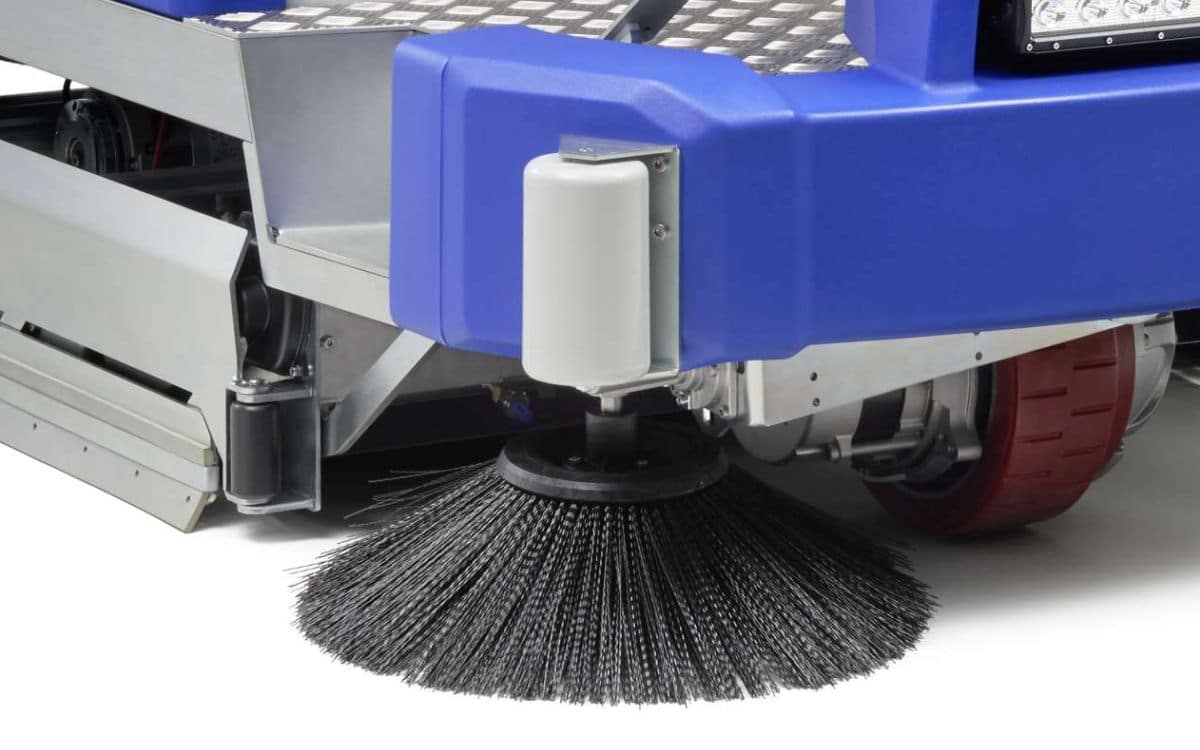

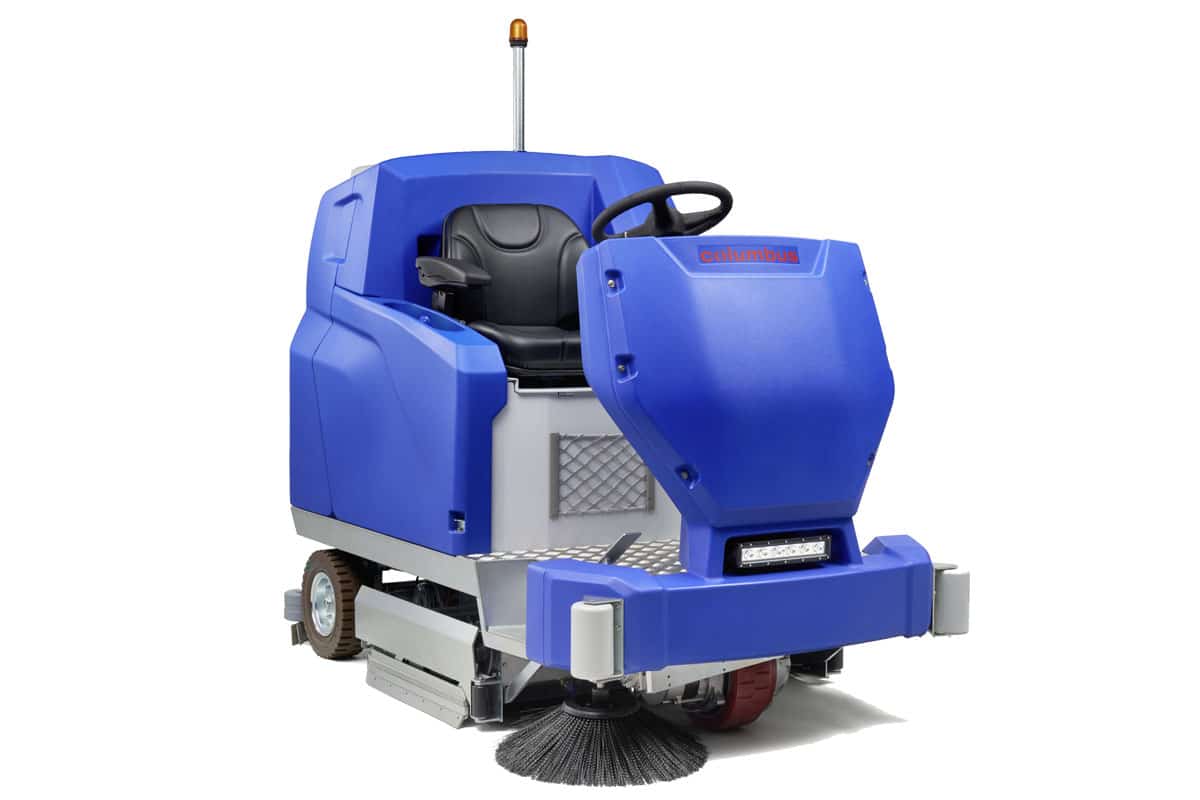

Rotary side brush
For perfect brushing results near the edges.

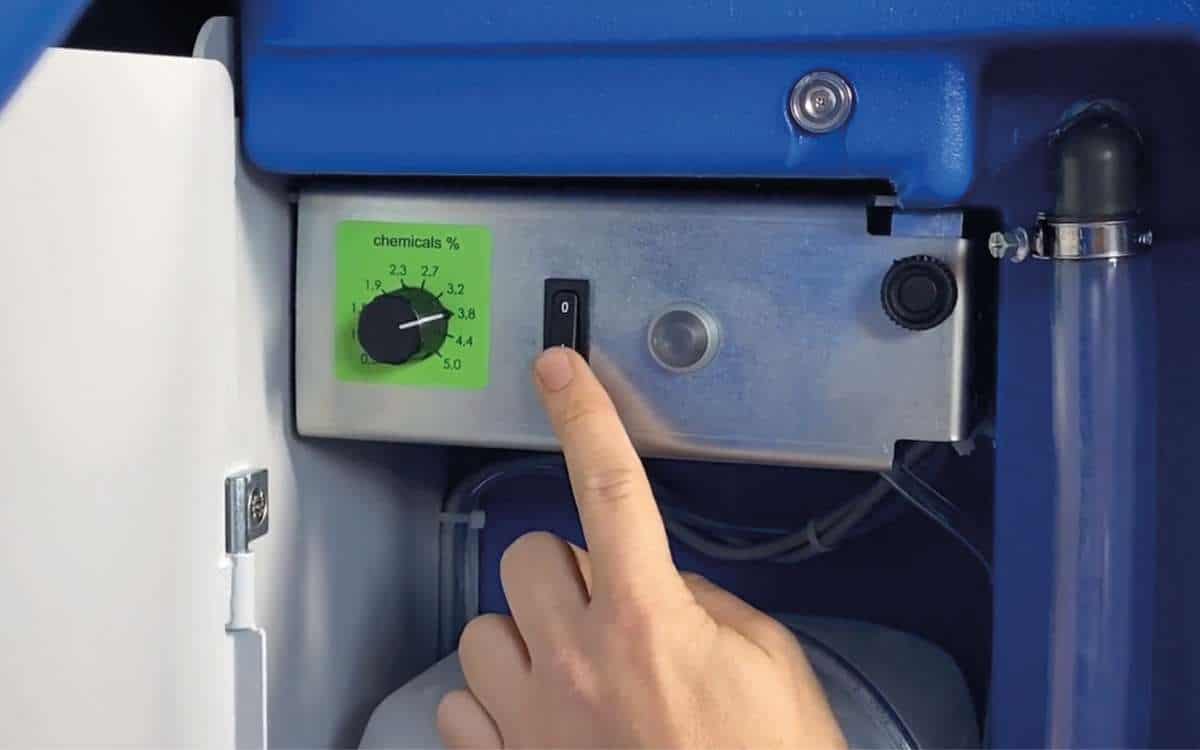

ECD – electronic Chemical dosing system
Only as much chemicals as absolutely necessary; this is good for the environment and the budget.

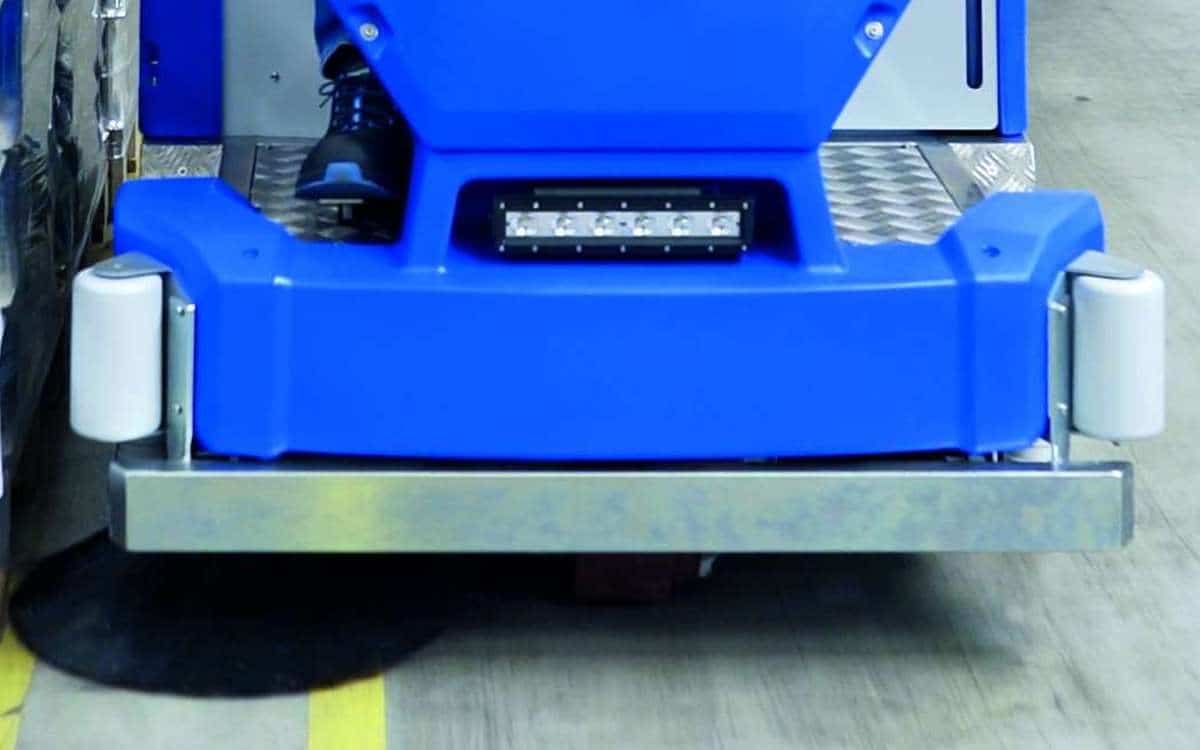

Front impact protection
Highly resilient steel protection for the front.
ARA 100|BM 200 W
Technical data
| Eckdaten | |
|---|---|
| L x W x H | 1990 x 1120 x 1455 mm |
| Working width | 1020 mm |
| Suction width | 1200 mm |
| Theoretical coverage max. | 9000 m²/h |
| Noise level | 62 dB(A) |
| Empty weight | 485 kg |
| Operating weight | 1160 kg (330 Ah 5) |
| Batteriea / elektronical data | |
|---|---|
| Rated voltage | 36 V |
| Pover max. | 3450 W |
| Capacity wet, max. | 330 Ah 5 |
| Capacity gel, max. | 285 Ah 5 |
| Tank | |
|---|---|
| Solution tank capacity | 200 l |
| Recovery tank capacity | 220 l |
| Motors | |
|---|---|
| Suction motor: low pressure, max. | 230 mbar |
| Suction motor: air flow, max. | 32 l/s |
| Traction: power, max. | 1400 W |
| Traction, speed, max. | 9 km/h |
| Brushes and pad holders | |
|---|---|
| Number | 2 |
| Speed | 500 rpm |
| Brush pressure max. | 80 kg |
