Project Description

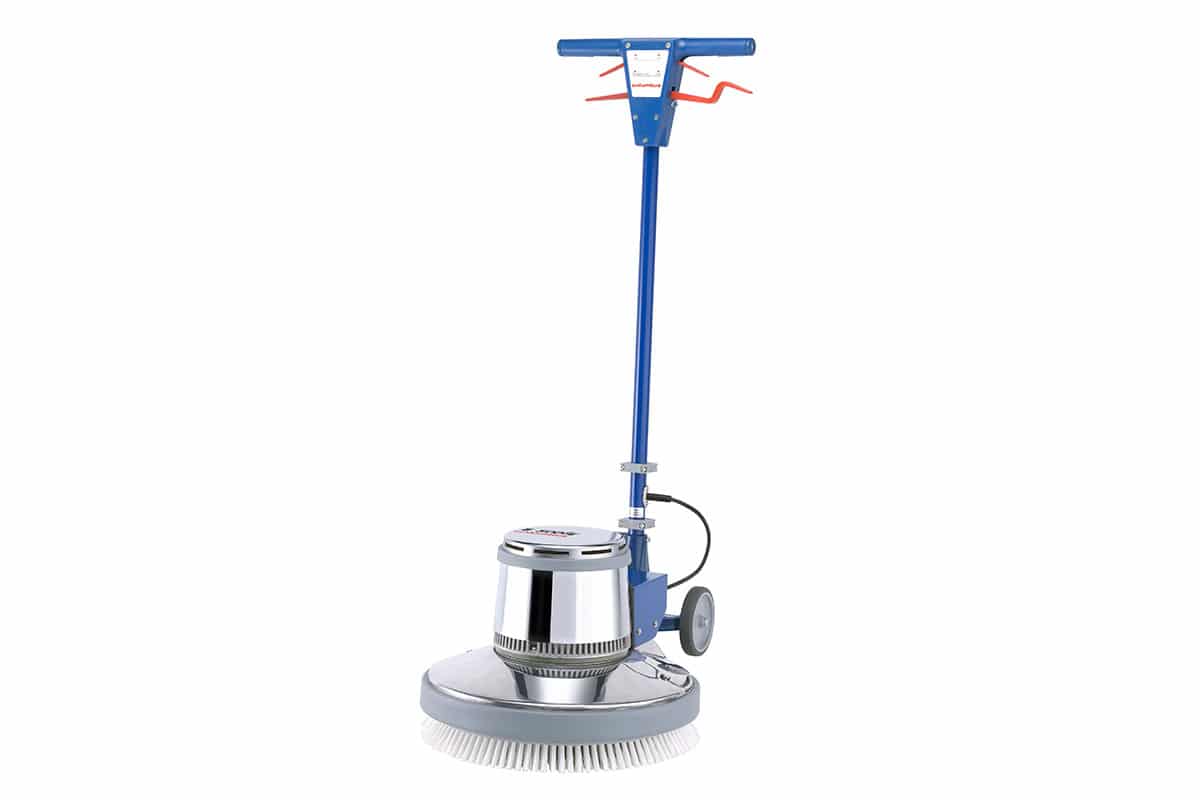

Single disc machine

E 500|S

E 500|S

Overview

Low-speed single disc machines from columbus are true classics. For more than 70 years we have been developing and manufacturing single disc machines in Stuttgart, which always deliver excellent cleaning results in daily hard continuous use. This single disc machine in an all-metal design and equipped with a 1800 W motor is extremely robust and suitable for demanding tasks on large surfaces and in industrial buildings. This low-speed machine provides even power transfer over the entire working width thanks to the planetary drive with three non-wear, helically toothed planetary gears, and guarantees smooth running and easy guidance of the machine.

Technical key data
  • Working width 500 mm

  • Ground clearance max. 150 mm

  • Weight 50 kg

  • Speed 140 rpm

E 500|S
Product highlights
Vielseitig reinigen
Infinitely adjustable steering handle

Work safely and ergonomically with an infinitely adjustable steering handle.

Vielseitig reinigen
Ultra-quiet

The machine operates so quietly that it can even be used during working hours.

Vielseitig reinigen

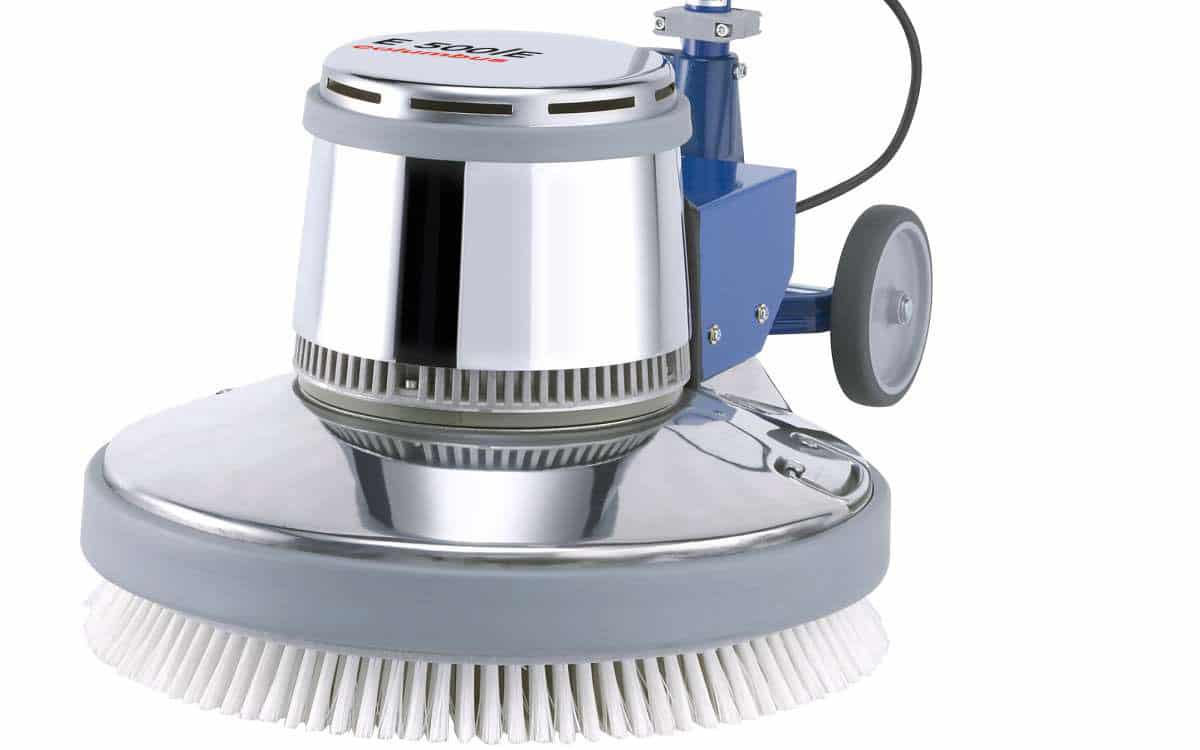

Solid metal construction

Robust cast aluminium housing.

Vielseitig reinigen
10 years warranty

Long service life guaranteed: 10 years warranty for motors and drives.

Vielseitig reinigen
Made in Germany

Robust single-brush machines for daily, long-term use. Tried and tested for over 70 years.

Vielseitig reinigen
Planetary gearing

The maintenance-free planetary gearing ensures ultra-quiet, reliable operation.

more features
  • Especially powerful

1800 Watt motor and 50 kg weight for any cleaning task involving large areas.

  • Designed to be versatile

When fitted with the appropriate accessories, this machine can handle a multitude of different cleaning tasks.

  • Low speed

Low-speed machine. Ideal for stripping hard floors and crystallising stone flooring.

less features
E 500|S
Technical data
Technical key data
L x W x H 480 x 630 x 1215 mm
Working width 500 mm
Ground clearance max. 150 mm
Working height max. 345 mm
Noise level 63 db (A)
Weight 50 kg
Electrical data
Rated voltage 230 V / 50 Hz
Power total 1800 W
Power heater fan
Driving motor
Mains cable 12 m
Brushes and pad holders
Speed 140 rpm
E 500|S
Accessories

As a specialist for contract cleaning, columbus offers you, in addition to first-class machines, a wide range of accessories for an individual adaption to your equipment and your requirements.

Accessories
