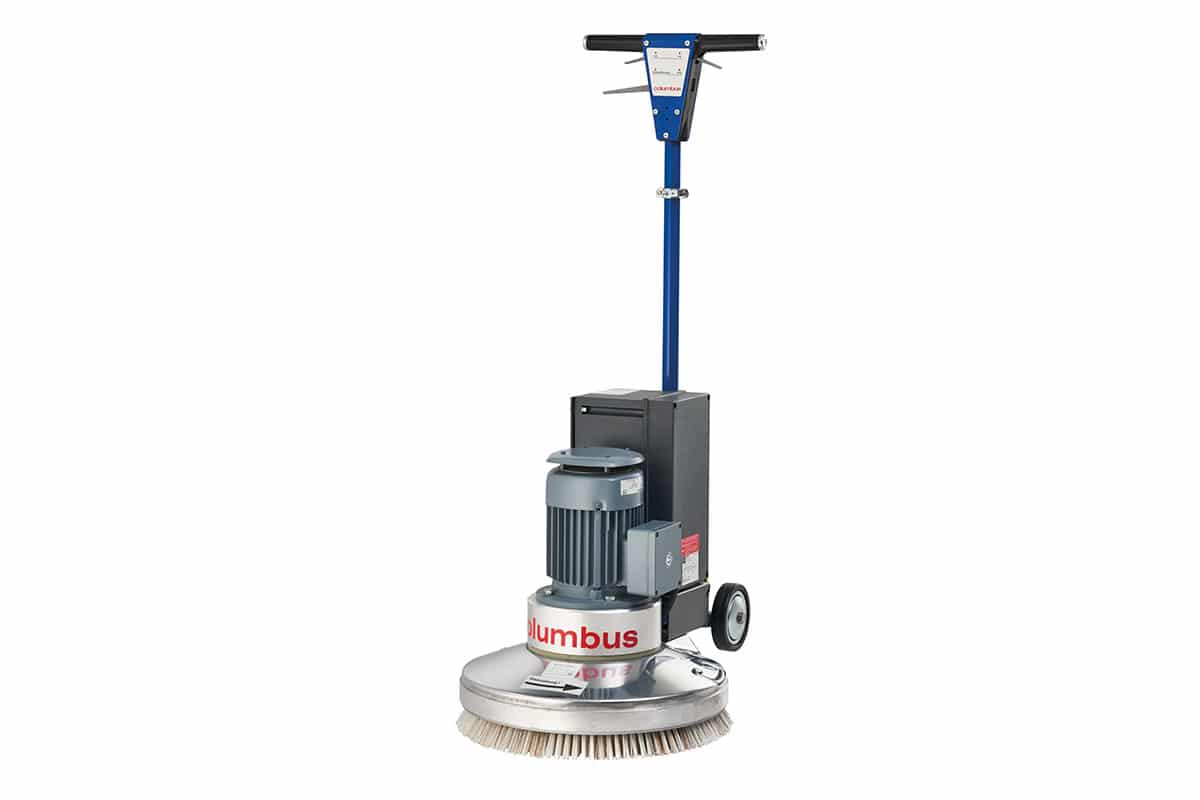

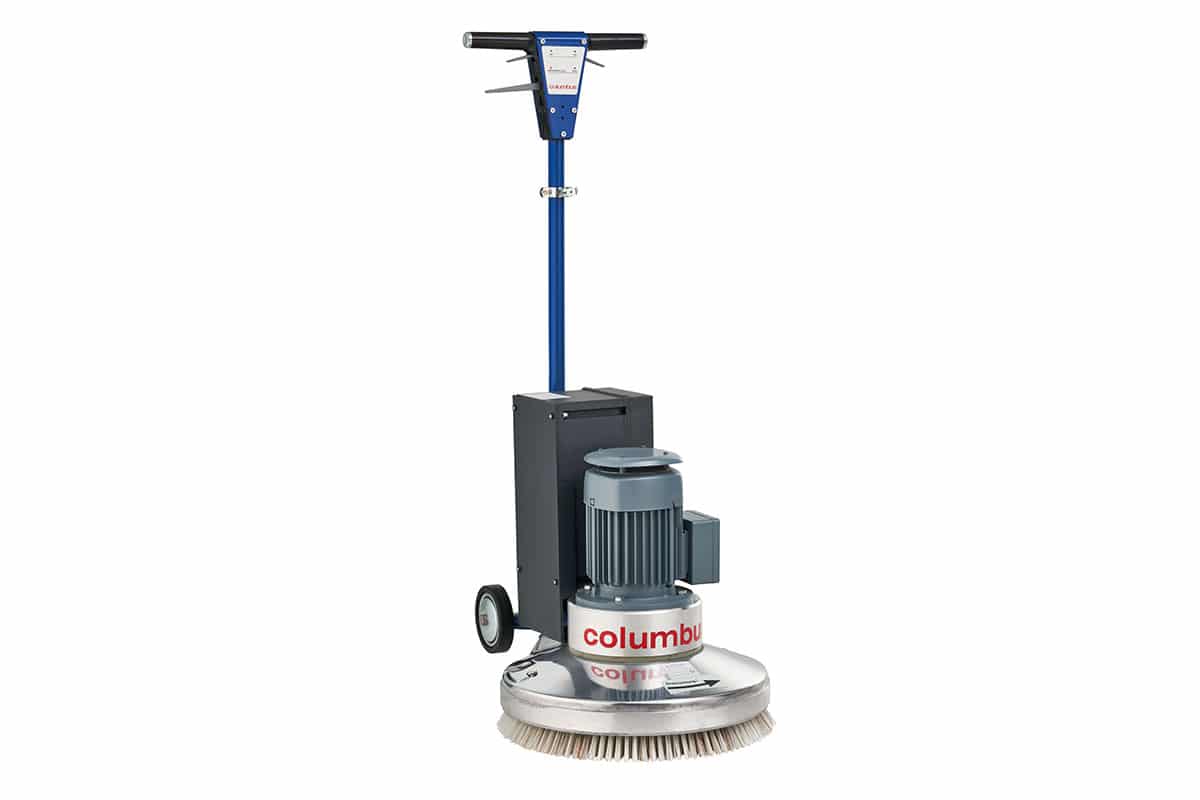

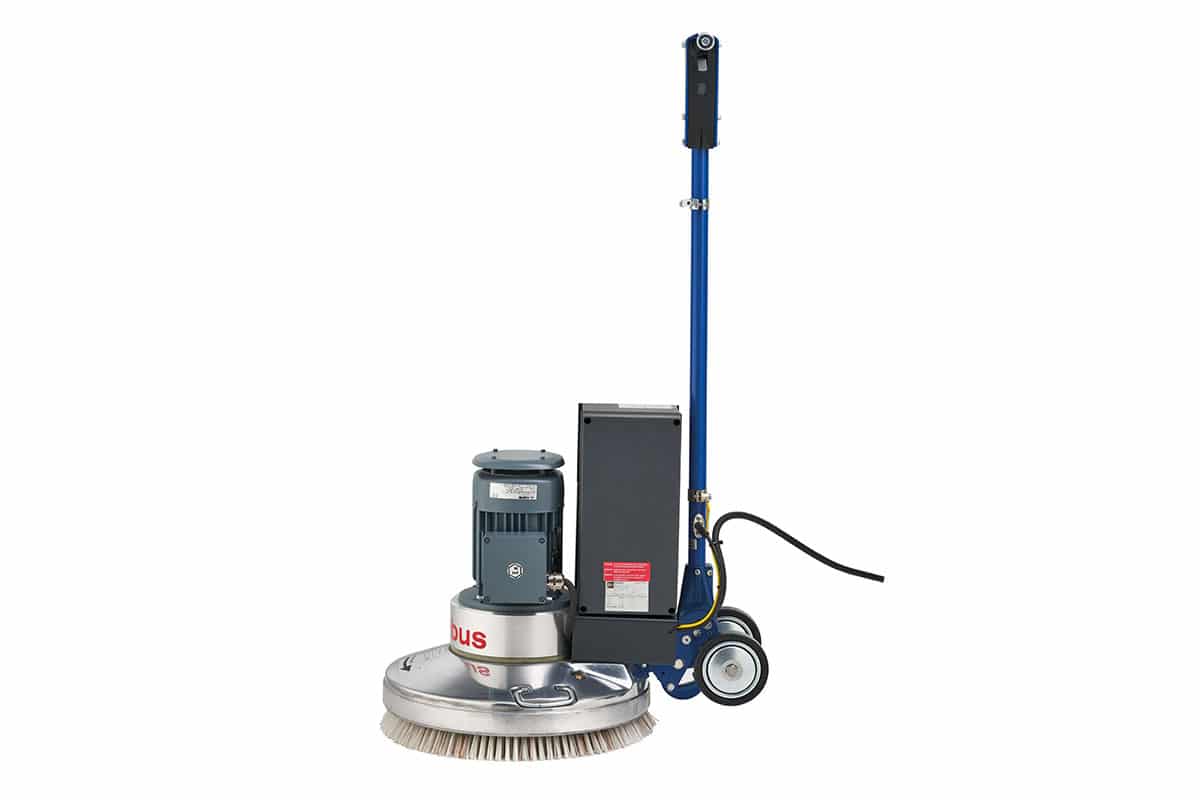

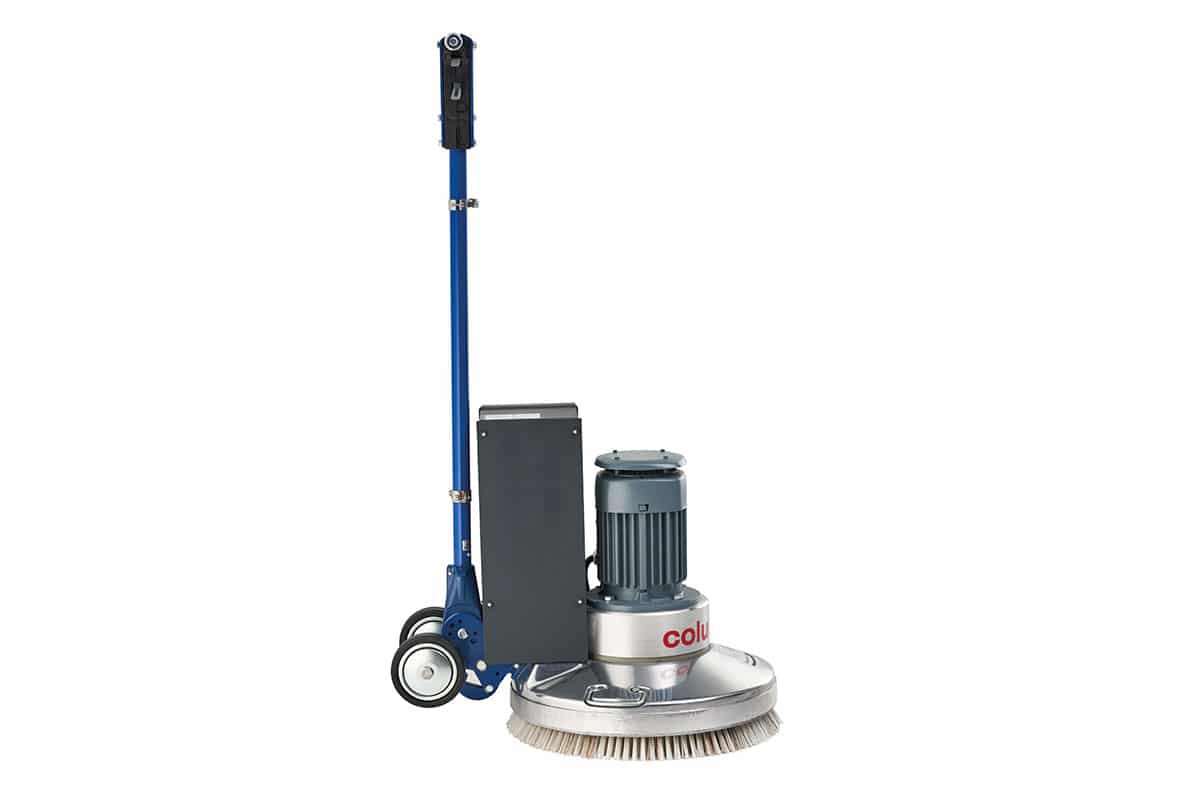

Single disc machine

E 505|S ex

E 505|S ex

Overview

This ex-protected single disc machine is ideally suited for thorough wet cleaning in industrial ATEX zones, for example in petrochemical and pharmaceutical industry applications. Excellent cleaning results with original non-conductive accessories from columbus, even with the heaviest soiling. The maintenance-free planetary drive with three non-wear, helically toothed planetary gears transfers the power optimally across the entire working width. The optimal tuning of the powerful three-phase motor guarantees a constantly high performance and a long service life.

Technical key data
  • Working width 500 mm

  • Ground clearance max. 150 mm

  • Weight 58 kg

  • Speed 142 rpm

E 505|S ex
Product highlights
Vielseitig reinigen
Ex-protected

Ex-protected accessories ensure safety when wet-cleaning hard floors.

Vielseitig reinigen
Atex zones 1 and 2

For use in Atex zones 1 and 2.

Vielseitig reinigen
Infinitely adjustable steering handle

Work safely and ergonomically with an infinitely adjustable steering handle.

Vielseitig reinigen

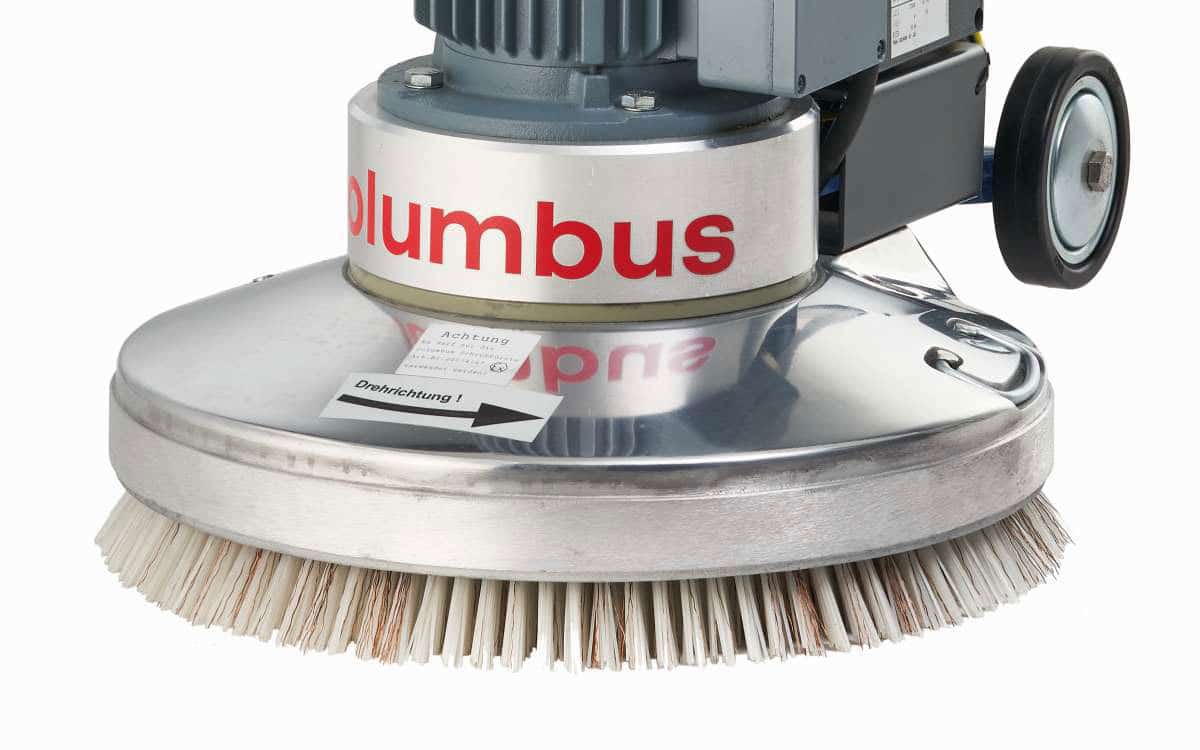

Solid metal construction

Robust cast aluminium housing.

Vielseitig reinigen

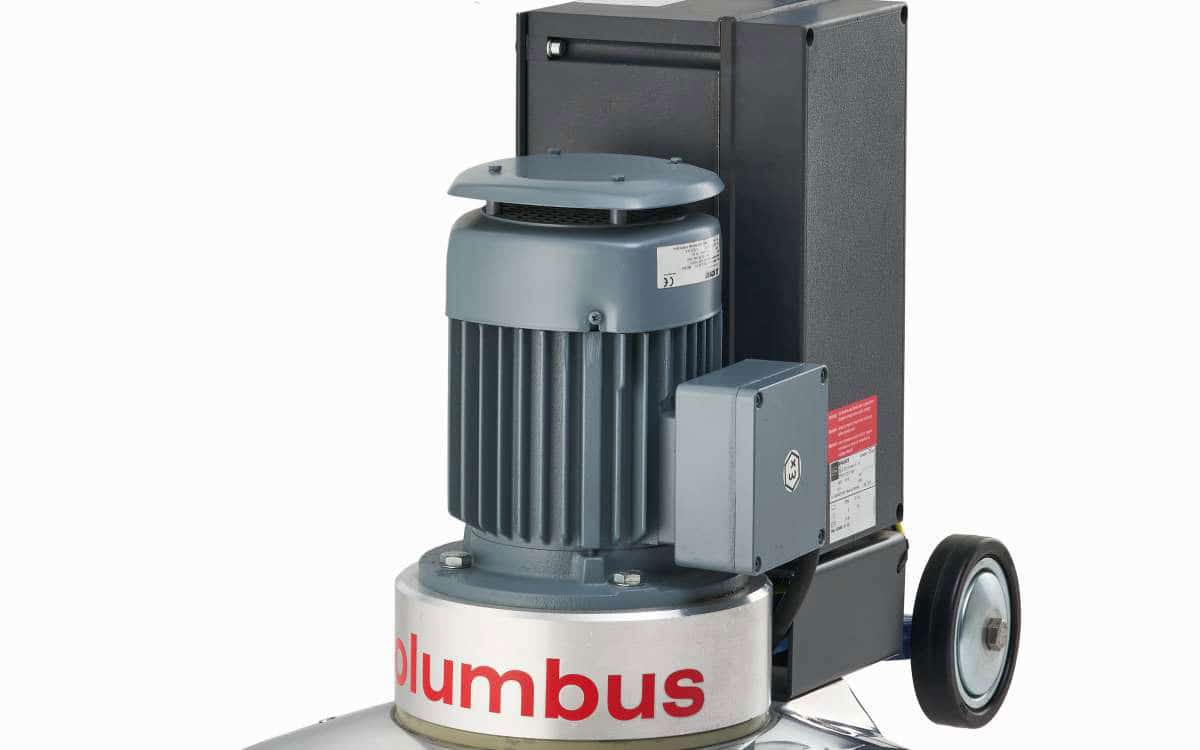

10 years warranty

Long service life guaranteed: 10 years warranty for motors and drives.

Vielseitig reinigen
Made in Germany

Robust single-brush machines for daily, long-term use. Tried and tested for over 70 years.

more features
  • Designed to be versatile

When fitted with the appropriate accessories, this machine can handle a multitude of different cleaning tasks.

  • Low speed

Low-speed machine. Ideal for stripping hard floors and crystallising stone flooring.

less features
E 505|S ex
Technical data
Technical key data
L x W x H 480 x 610 x 1215 mm
Working width 500 mm
Ground clearance max. 145 mm
Working height max. 450 mm
Noise level 71 db(A)
Weight 58 kg
Electrical data
Rated voltage 380 V / 50 Hz
Power total 1000 W
Power heater fan
Driving motor
Mains cable 12 m
Brushes and pad holders
Speed 142 rpm
E 505|S ex
Accessories

As a specialist for contract cleaning, columbus offers you, in addition to first-class machines, a wide range of accessories for an individual adaption to your equipment and your requirements.
