Industrial vacuums

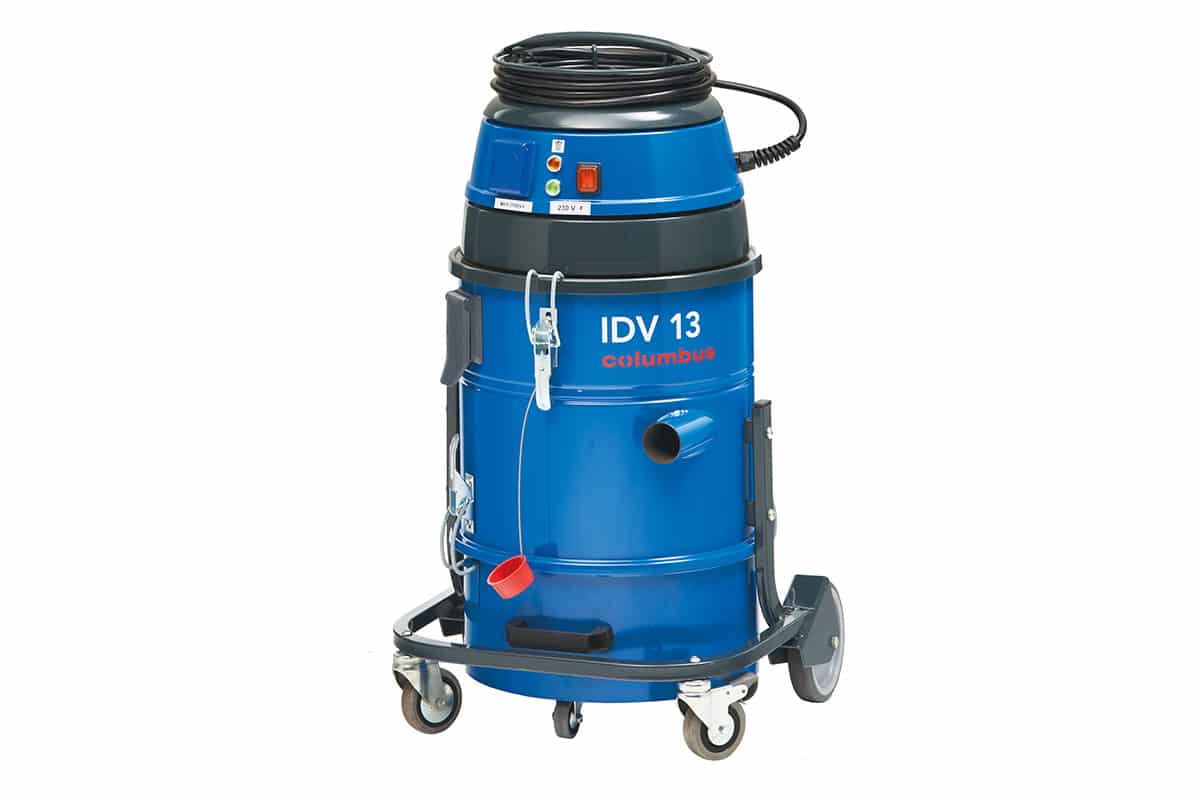

IDV 13

IDV 13

Overview

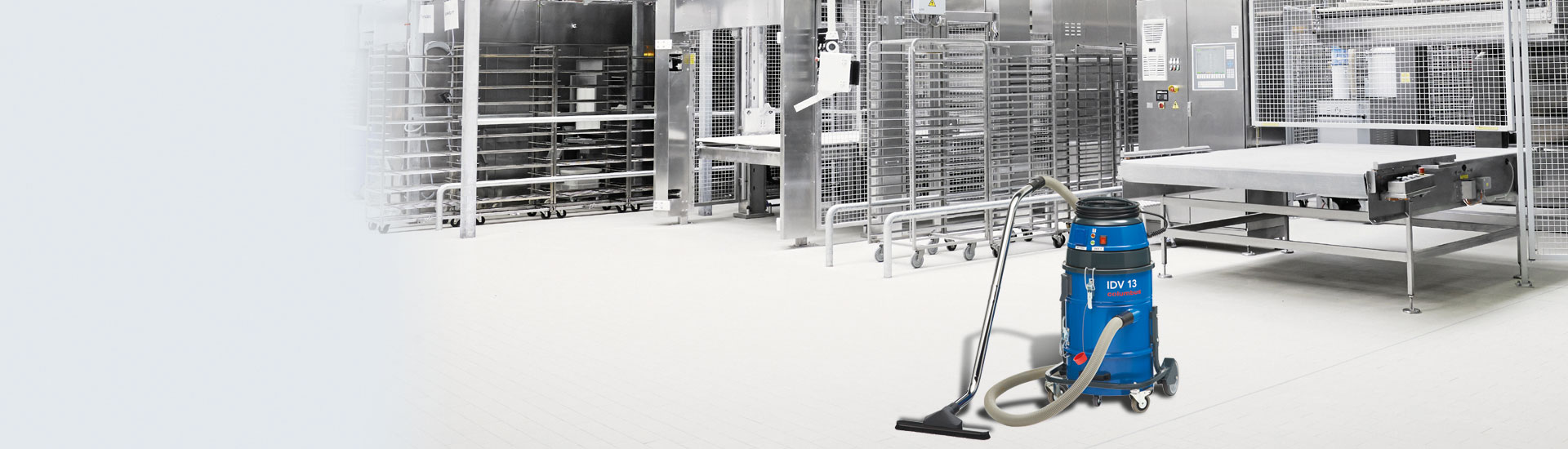

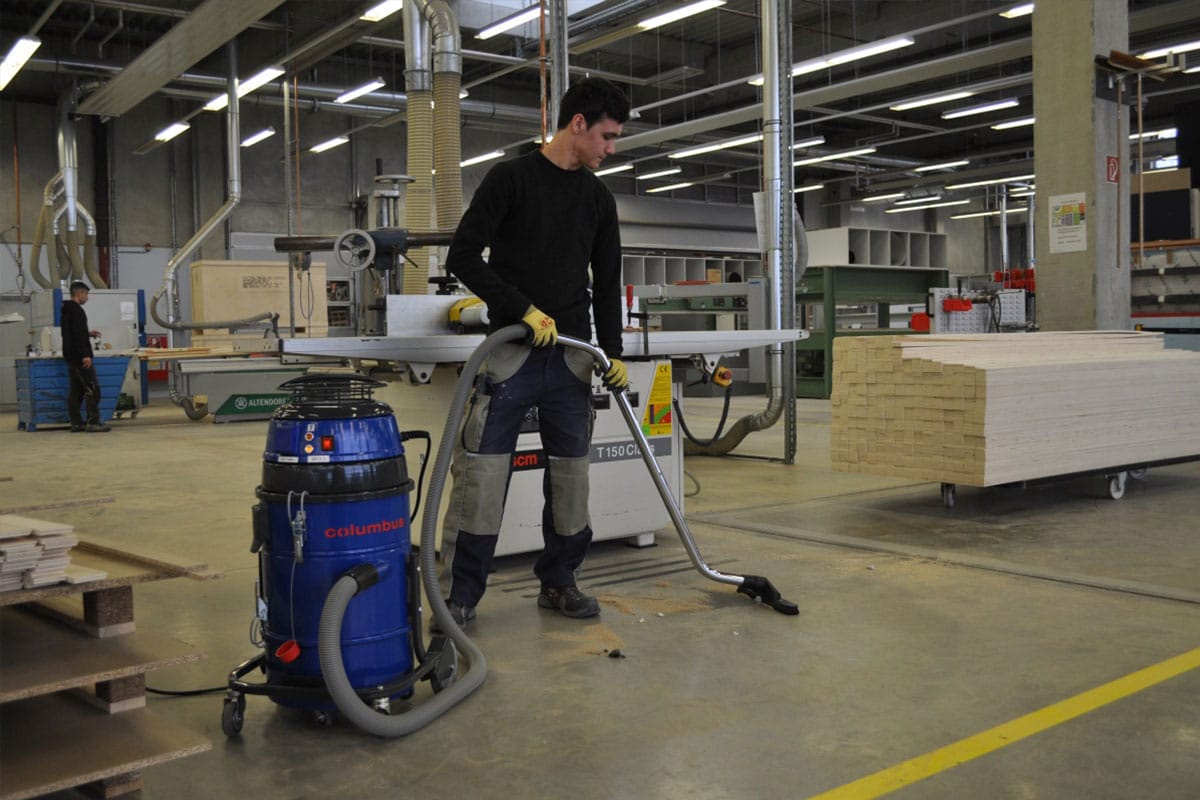

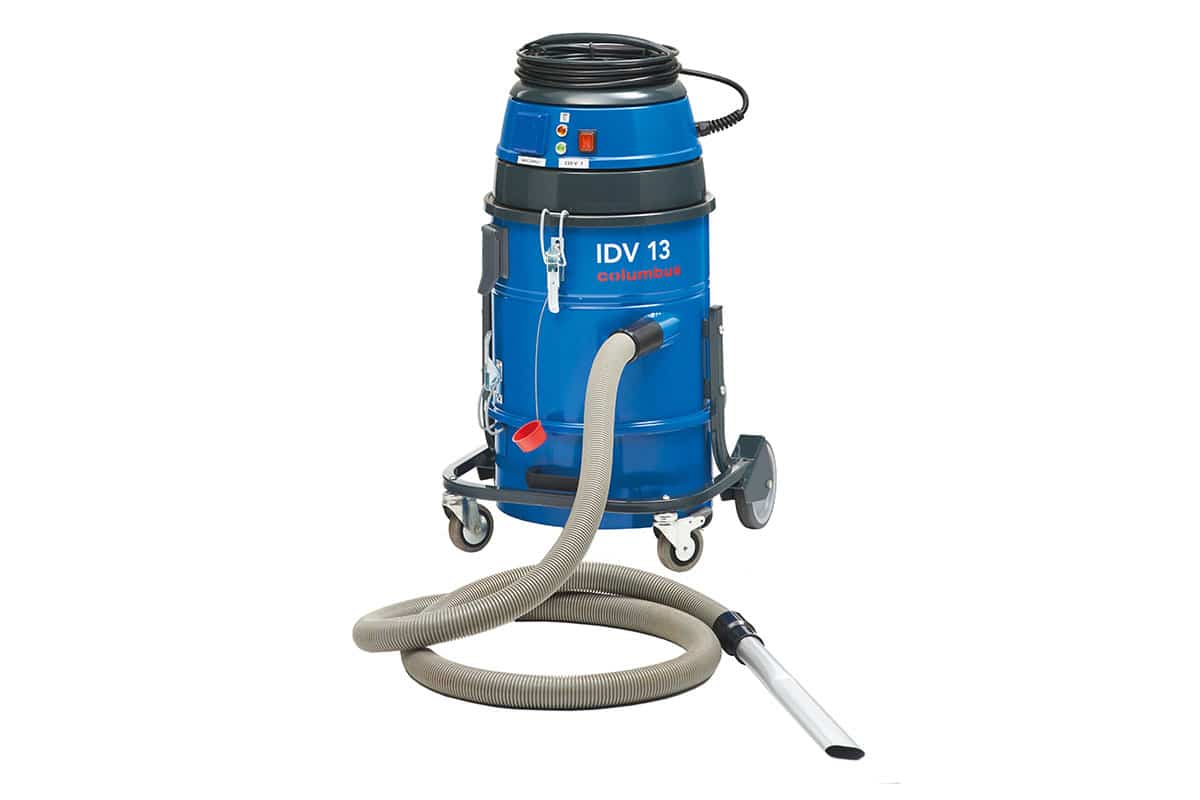

This entry-level model is characterised by its stability, performance and efficiency. Featuring many practical details and a compact design, this dry vacuum cleaner can be used for all applications and is particularly suitable for workshops. With the semi-automatic filter cleaning system, the large filter cartridge suitable for dust class M can be cleaned easily and guarantees a long service life. The powerful 1,150 W bypass suction motor is protected by a robust metal housing. The collection container on a solid steel frame with non-marking rollers and parking brake can be easily emptied. With the extensive range of accessories, the IDV 13 can be configured as required for almost all vacuum cleaning tasks.

Technical key data
  • Tank capacity 13 l

  • Power max. 1,15 kW
  • AC voltage

  • Dry / wet dry

IDV 13
Product highlights
Vielseitig reinigen
Epoxy-lacquered steel

Robust construction: for industrial use and extreme requirements.

Vielseitig reinigen

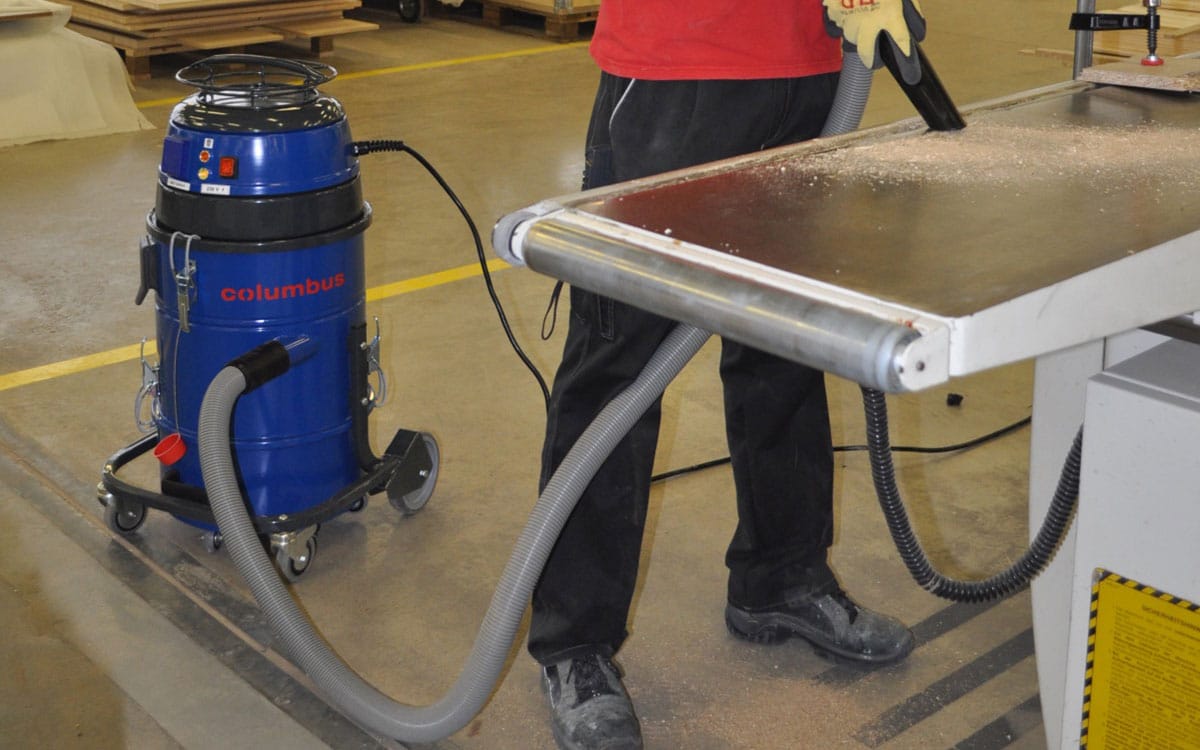

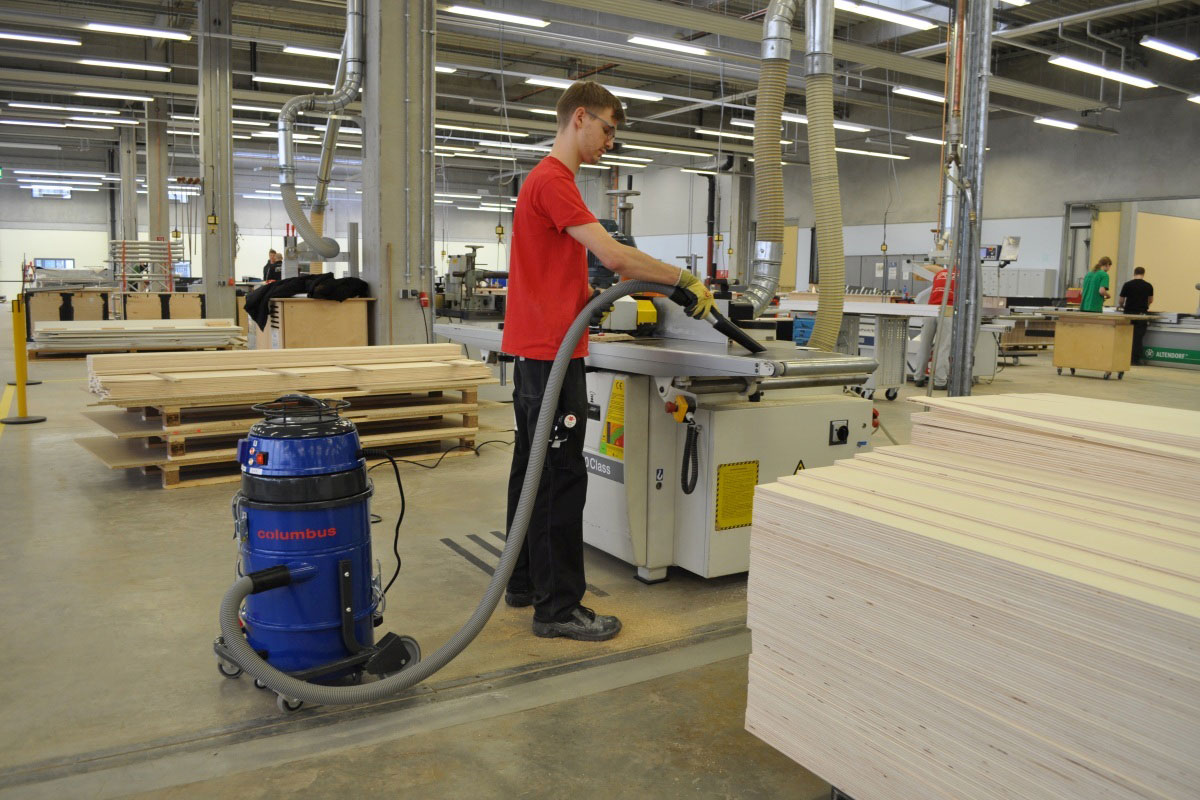

Compact design

Ideal for mobile dust removal, whether in the construction industry or when cleaning buildings.

Vielseitig reinigen
High-performance AC current bypass motors

Bypass technology guarantees operating safety: motors cooled by a separate air flow.

Vielseitig reinigen

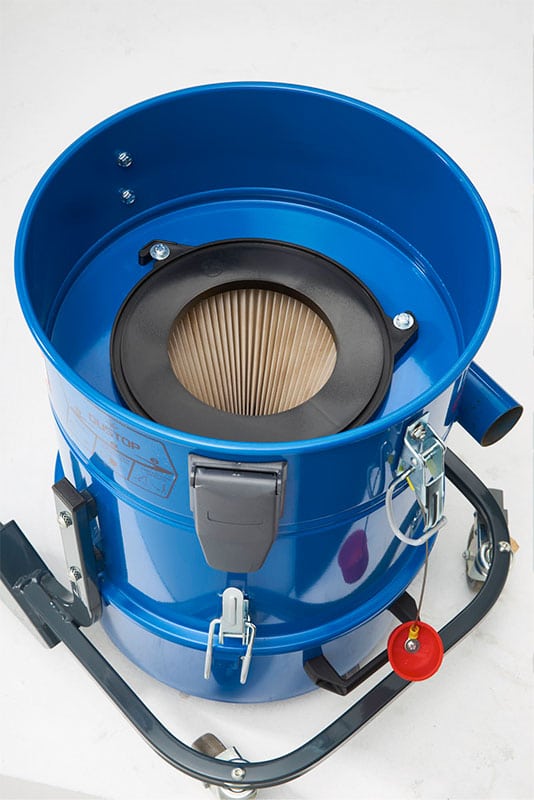

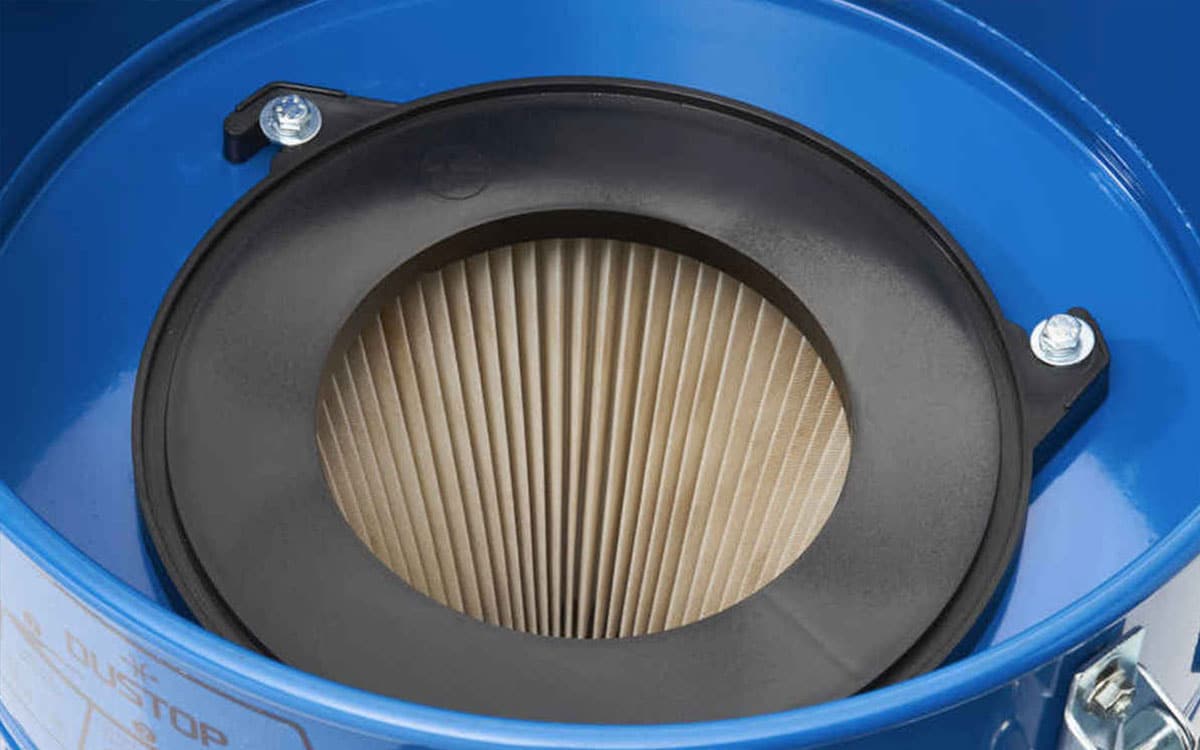

Conical polyester cartridge filter, dust class M-compliant, as standard

The dry vacuum cleaner’s 6000 cm² filter surface area ensures long-term operation without loss of suction force.

Vielseitig reinigen

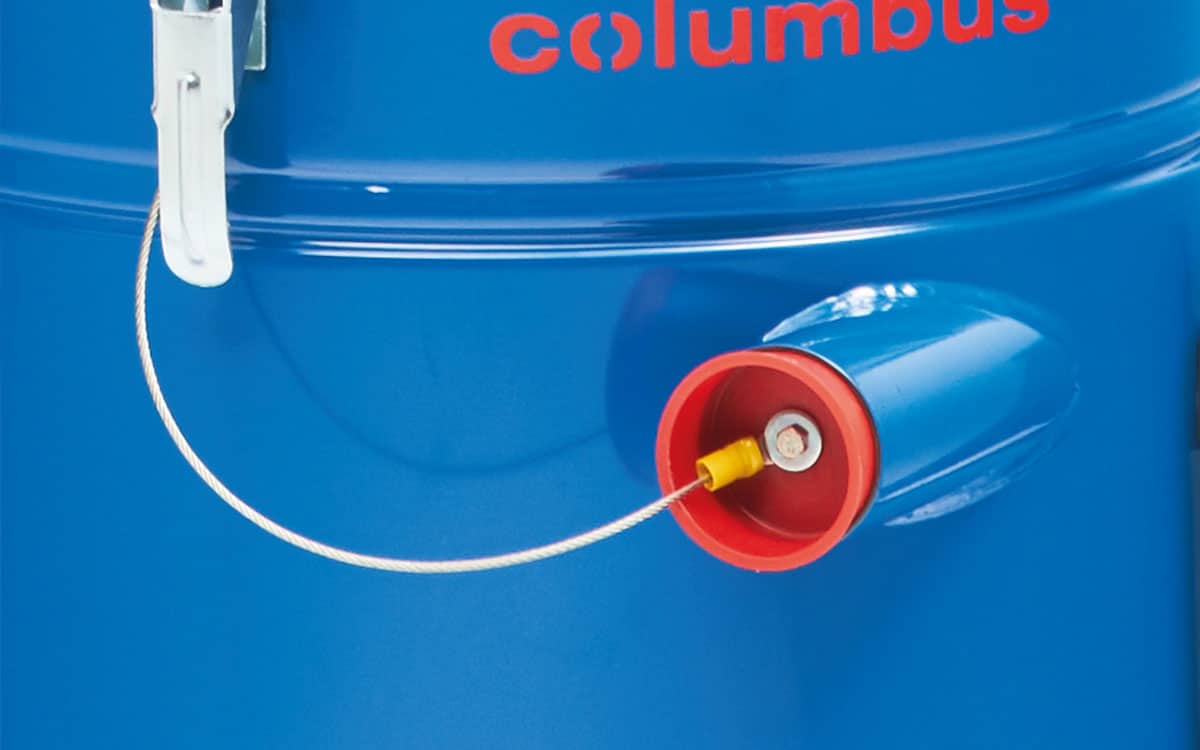

Semi-automatic cartridge filter cleaning

Filter surface cleaned efficiently with pressure pulses.

Vielseitig reinigen
Unit power socket as standard

Cleaning made easy: simply connect electric tools to the appliance socket. Ideal for use in workshops.

more features

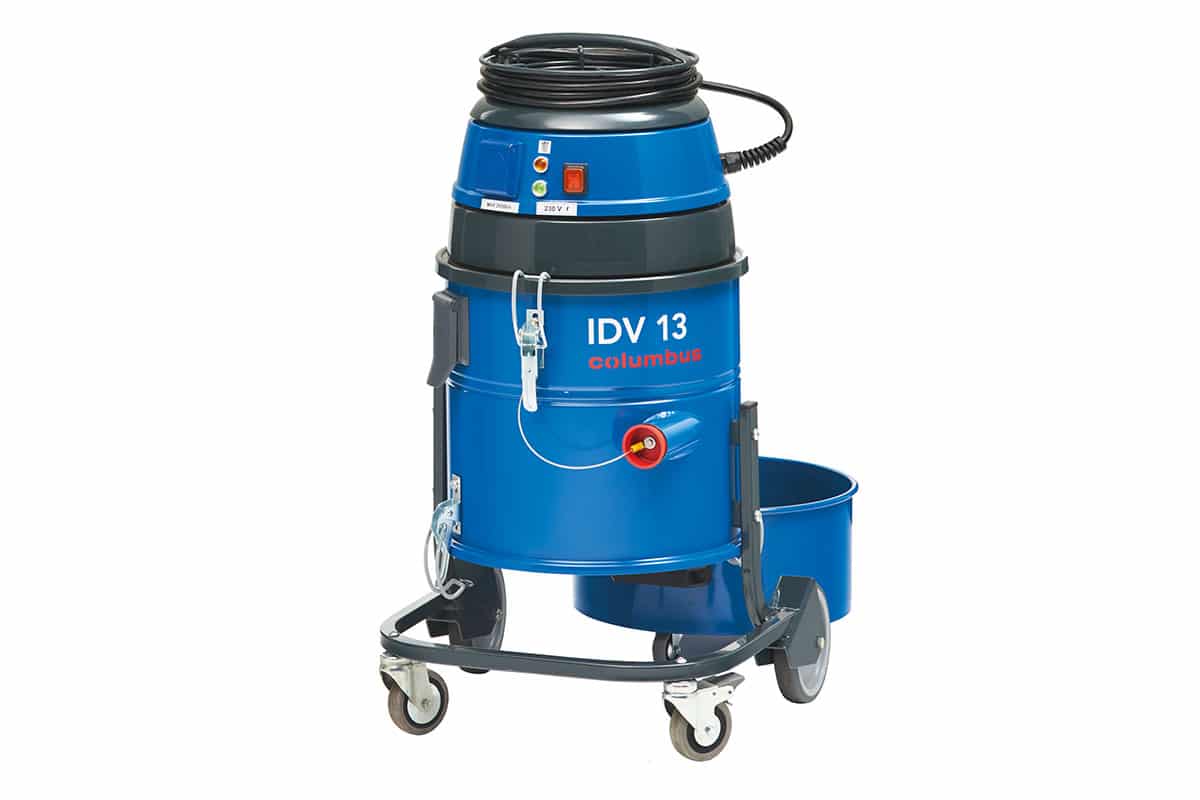

  • Removable ride-on container

Collected dirt can be emptied quickly and easily.

  • Non-marking rollers

Leaves no trace behind: ideal for use at any industrial site.

  • Locking brake

Maximum safety in stationary operation and when emptying.

  • Low pressure display

Continuous monitoring to ensure flawless operation and detect filter clogging.

less features
IDV 13
Optional equipment
Vielseitig reinigen

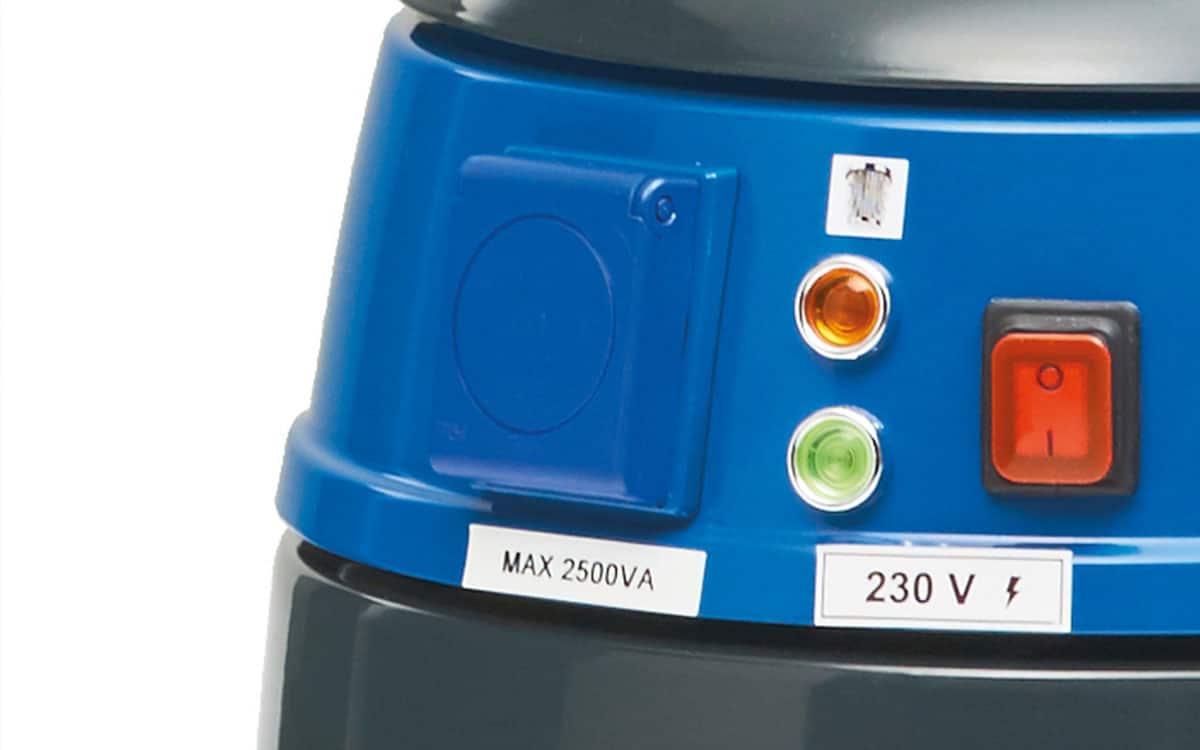

Automatic switch-on for socket outlet

Ideal in combination with power tools.

Vielseitig reinigen
Grounding

The additional grounding reliably prevents electrostatic charging.

Vielseitig reinigen

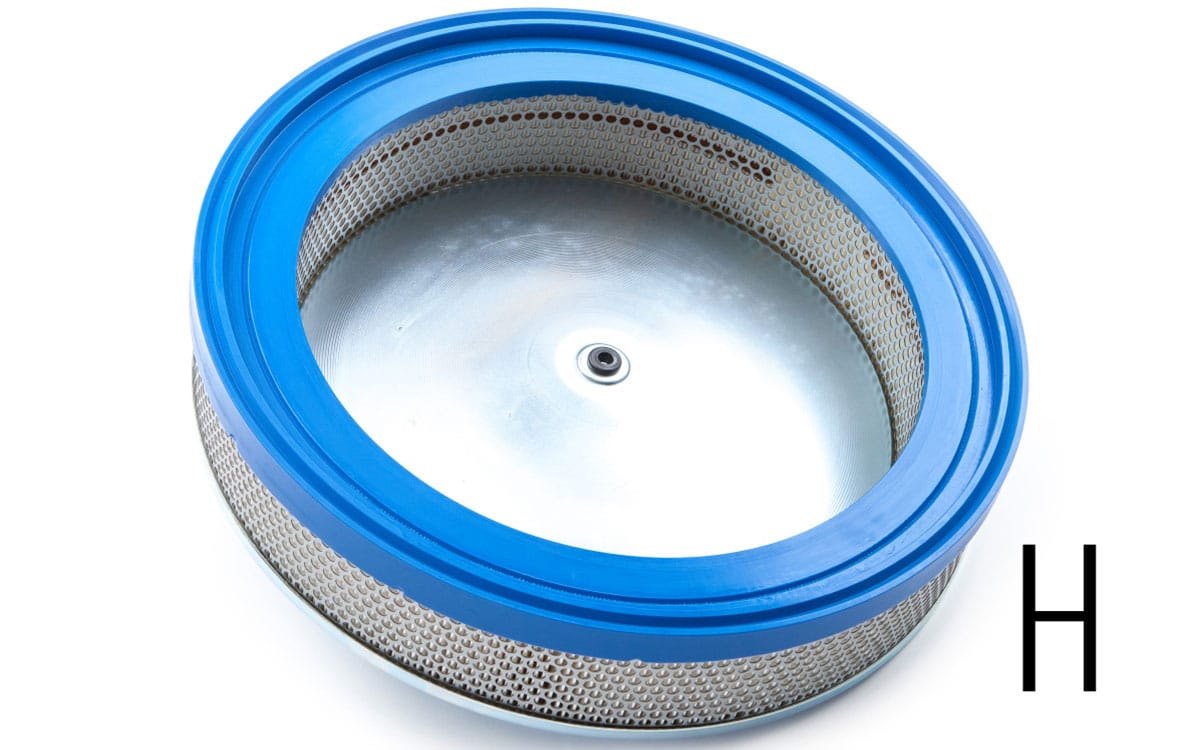

Filter Dust class H

Suitable for the filtration of hazardous and carcinogenic substances such as mould spores, lead dust and various types of mineral fibres.
Recommended for ATEX Zone 21

Vielseitig reinigen

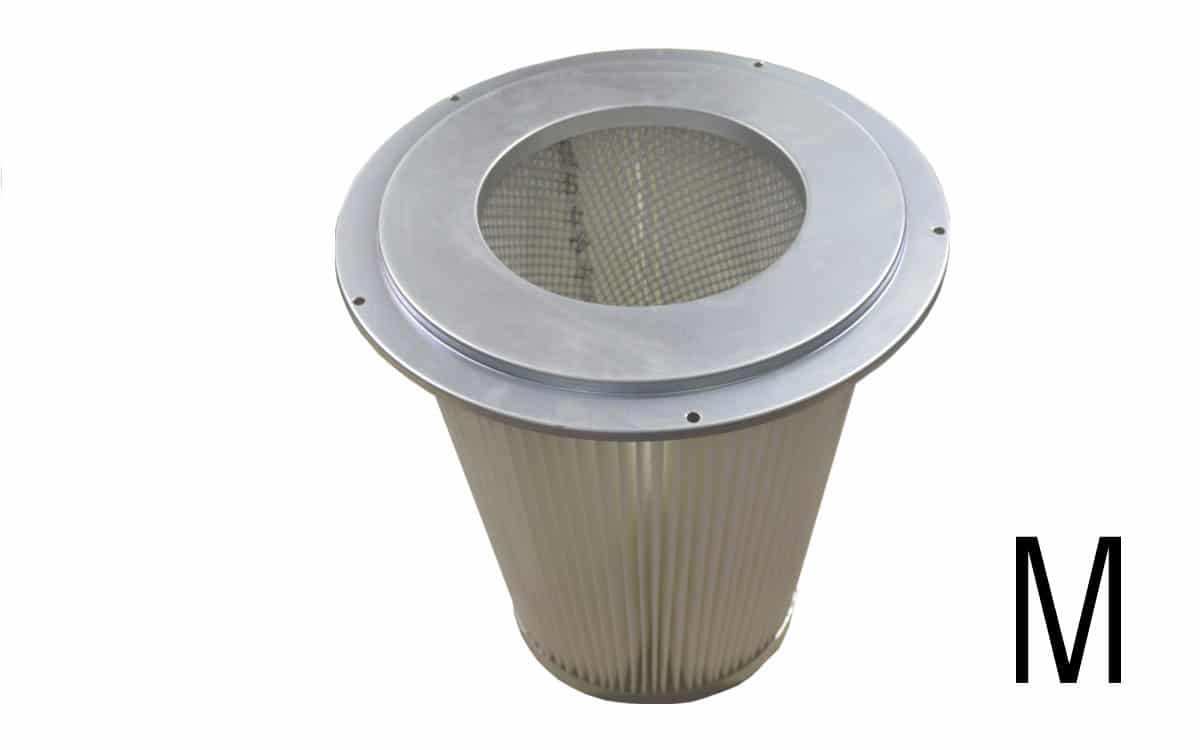

Filter antistatic class M

Recommended for filtering wood dusts, paint particles and various metal dusts. The dust class M is especially recommended for intensive work with wood, in antistatic design in combination with the earthing option.

Vielseitig reinigen
HEPA Filtration

Maximum protection against fine dust

Vielseitig reinigen

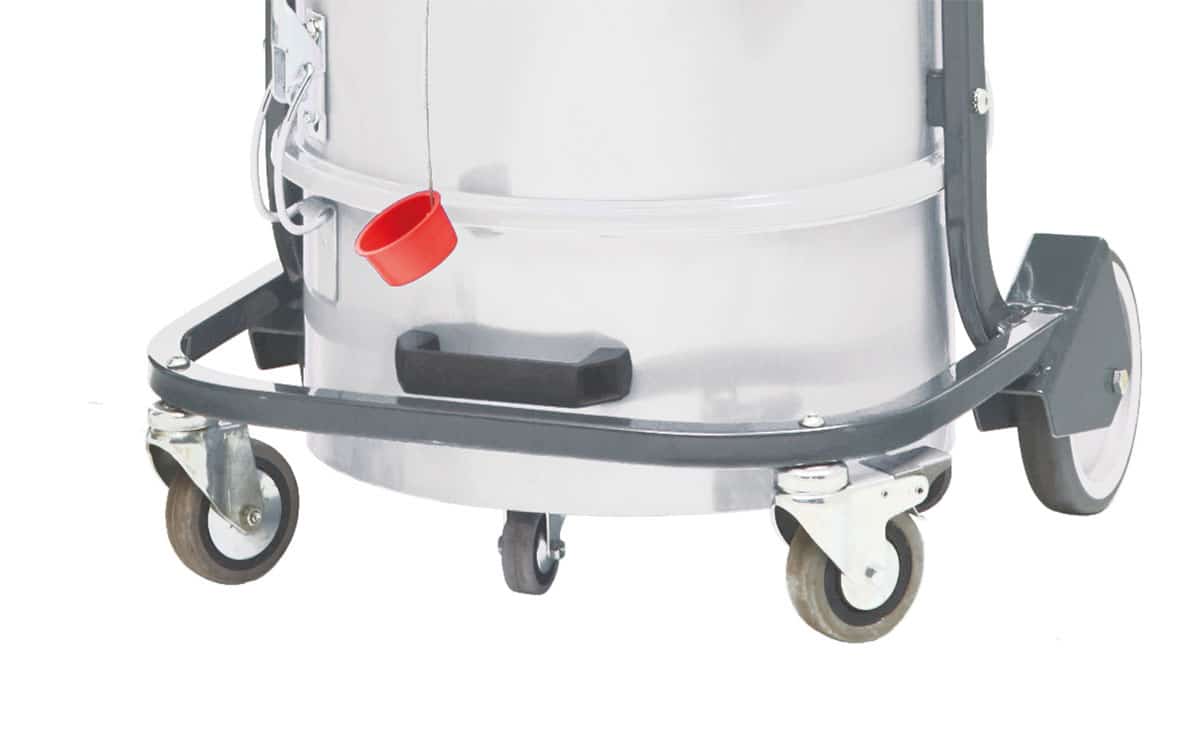

Stainless steel container V2A

The stainless steel version is ideal for use under harsh conditions.

more options
  • ATEX, explosion-proof

Explosion-protected for use in highly explosive areas. – ATEX zones 1, 2, 21 or 22.

  • Stainless steel container V2A with filter chamber

For special applications (e.g. laboratory conditions) the complete equipment in stainless steel is optimal.

  • Various suction hose lengths and materials on request

A wide range of hose lengths and materials are available for different applications.

  • Further configurations on request

We can configure the appropriate industrial vacuum cleaner for almost all extraction tasks on request.

less options
IDV 13
Technical data
Technical key data
L x W x H 500 x 480 x 850 mm
Tool connection 50 mm
PVC hose PVC 2,5 m / 3 m, 38 mm
Tank volume 13 l
Filter surface area 6000 cm²
Filter type Polyester catridge
Filter dust class M
Weight 30 kg
Batteries / Electrical data
Rated voltage 230 V
Power total 1200 W
Mains cable 12 m
Suction motor
Low pressure max. 240 mbar
Air flow max. 58 l/s
Number of motors 1
IDV 13
Accessories

As a specialist for contract cleaning, columbus offers you, in addition to first-class machines, a wide range of accessories for an individual adaption to your equipment and your requirements.
