Industrial vacuum

IWV 40|100

IWV 40|100

Overview

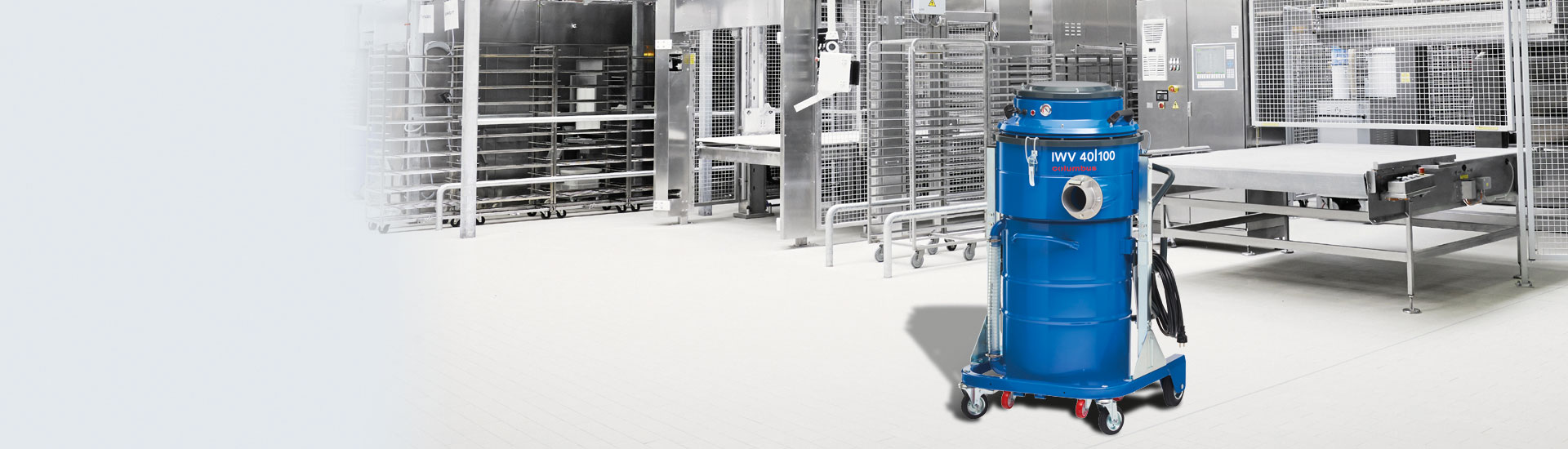

This compact industrial vacuum cleaner for oil and chips made of robust epoxy-coated steel is equipped with three powerful bypass motors and is characterized by its easy handling. The collection container with removable chip sieve enables the easy separation of liquids and metal chips and ensures comfortable and safe disposal. A reliable float system interrupts the suction process and prevents the container from overfilling.

Technical key data
  • Tank capacity 40 l solids /100 l wet
  • Power max. 2,3 kW

  • AC voltage

  • Dry / wet wet

IWV 40|100
Product highlights
Vielseitig reinigen
Epoxy-lacquered steel

Robust construction: for industrial use and extreme requirements.

Vielseitig reinigen
High-performance AC current bypass motors

Bypass technology guarantees operating safety: motors cooled by a separate air flow.

Vielseitig reinigen
Three individually switchable bypass motors

The motors can be switched on, or off, to suit the specific task.

Vielseitig reinigen
Tried and tested floater system

Maximum protection: the floater reliably cuts suction flow as soon as the maximum level is reached in the container.

Vielseitig reinigen
40 litre chip and swarf collector

Chips and swarf are separated from collected liquid cleanly: ideal for use in mechanical engineering workshops and for cleaning machines.

Vielseitig reinigen
Drain valve on container floor

Drainage made easy: liquid empties directly through the drain valve at the bottom of the liquid container.

more features
  • Removable ride-on container

Collected dirt can be emptied quickly and easily.

  • Non-marking rollers

Leaves no trace behind: ideal for use at any industrial site.

  • Low pressure display

Continuous monitoring to ensure flawless operation and detect filter clogging.

  • Compact design

Ideal for mobile dust removal, whether in the construction industry or when cleaning buildings.

less features
IWV 40|100
Optional equipment
Vielseitig reinigen
Stainless steel container V2A with chip basket

The stainless steel container and chip basket are ideal for use under the toughest conditions.

Vielseitig reinigen
Various suction hose lengths and materials on request

A wide range of hose lengths and materials are available for different applications.

Vielseitig reinigen
Further configurations on request

We can configure the appropriate industrial vacuum cleaner for almost all extraction tasks on request.

IWV 40|100
Technical data
Technical key data
L x W x H 660 x 650 x 1160 mm
Tool connection 80 mm
PVC hose Polyurethane 3 m / 50 mm
Tank volume 40 l solids / 100 l wet
Filter surface area 6000 cm²
Filter type Polyester Patrone
Filter dust class M
Weight 48 kg
Batteries / Electrical data
Rated voltage 230 V
Power total 2,3 kW
Mains cable 10 m
Suction motor
Low pressure max. 2 500 mm H²O
Air flow max. 360 m³/h
Number of motors 3
IWV 40|100
