Industrial vacuum

IWV 80 pump

IWV 80 pump

Overview

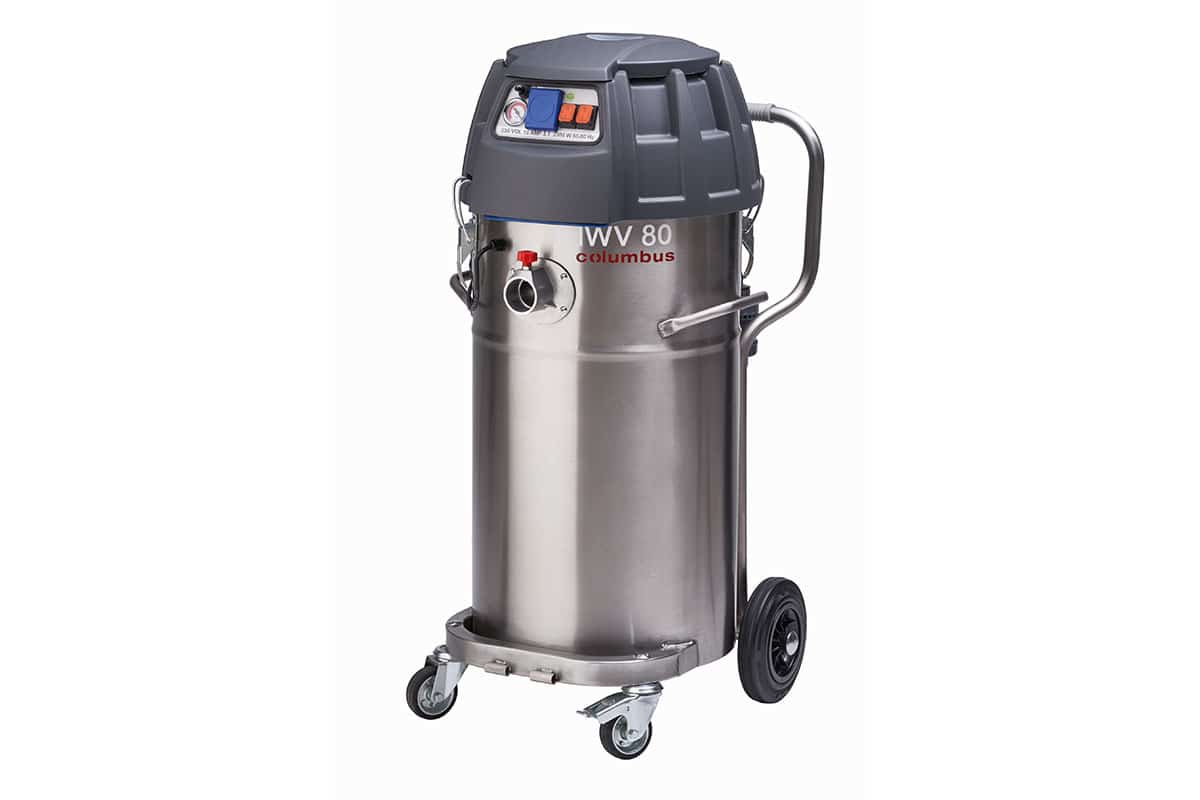

This powerful industrial wet vacuum cleaner made of stainless steel is equipped with two powerful and individually switched bypass motors. It is the ideal solution for all applications where liquids have to be extracted and pumped out simultaneously. Controlled emptying of the 80-litre container is possible at any time thanks to the integrated drain hose. It can also be integrated ideally into an emptying system as an intermediate station.
With its extensive range of accessories, this industrial vacuum cleaner can be perfectly configured for all vacuum and cleaning tasks.

Technical key data
  • Tank capacity 80 l

  • Power max. 2,3 kW
  • AC voltage

  • Dry / wet wet

IWV 80 pump
Product highlights
Vielseitig reinigen

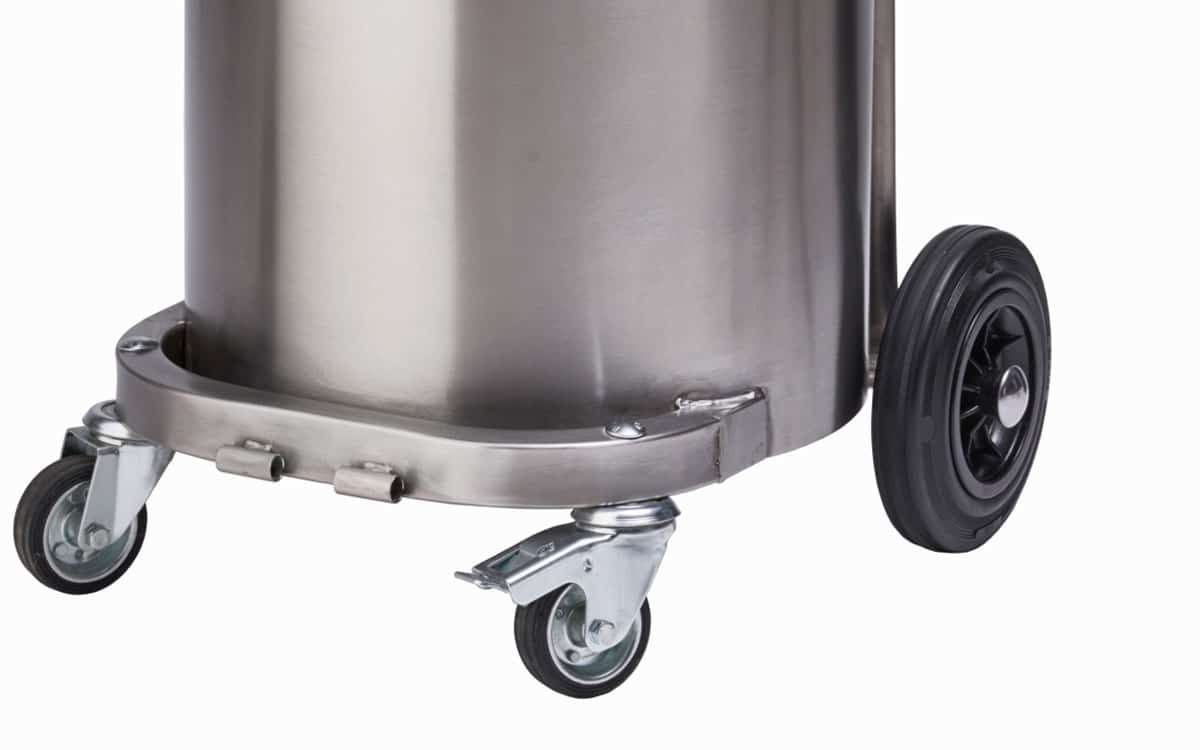

Robust stainless steel

Hard-wearing containers and filter chambers for use in the toughest environments.

Vielseitig reinigen
High-performance AC current bypass motors

Bypass technology guarantees operating safety: motors cooled by a separate air flow.

Vielseitig reinigen

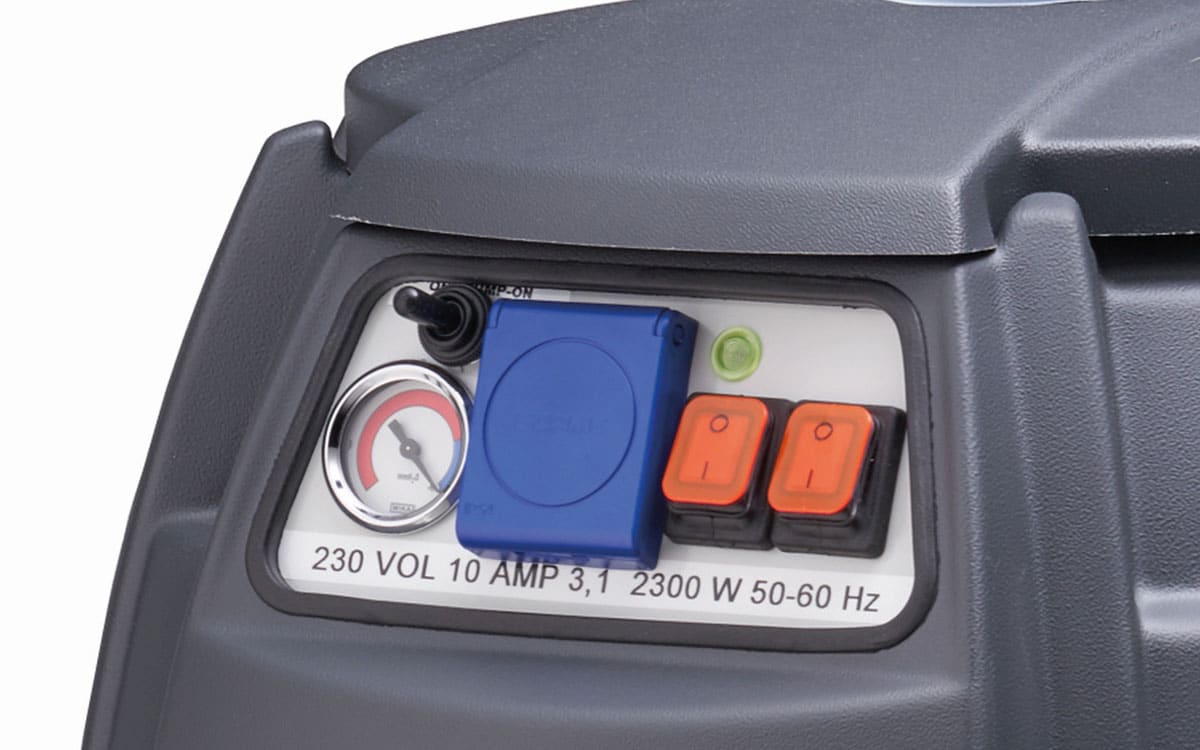

Two individually switchable bypass motors

The motors can be switched on, or off, to suit the specific task.

Vielseitig reinigen

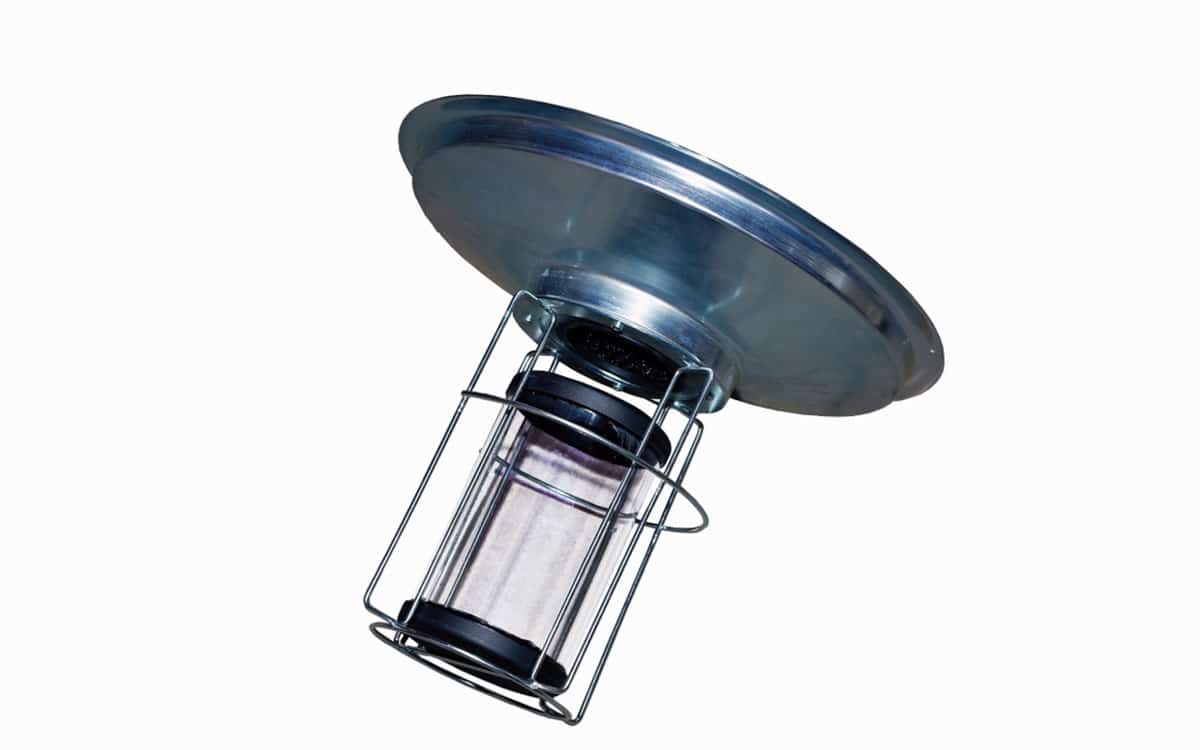

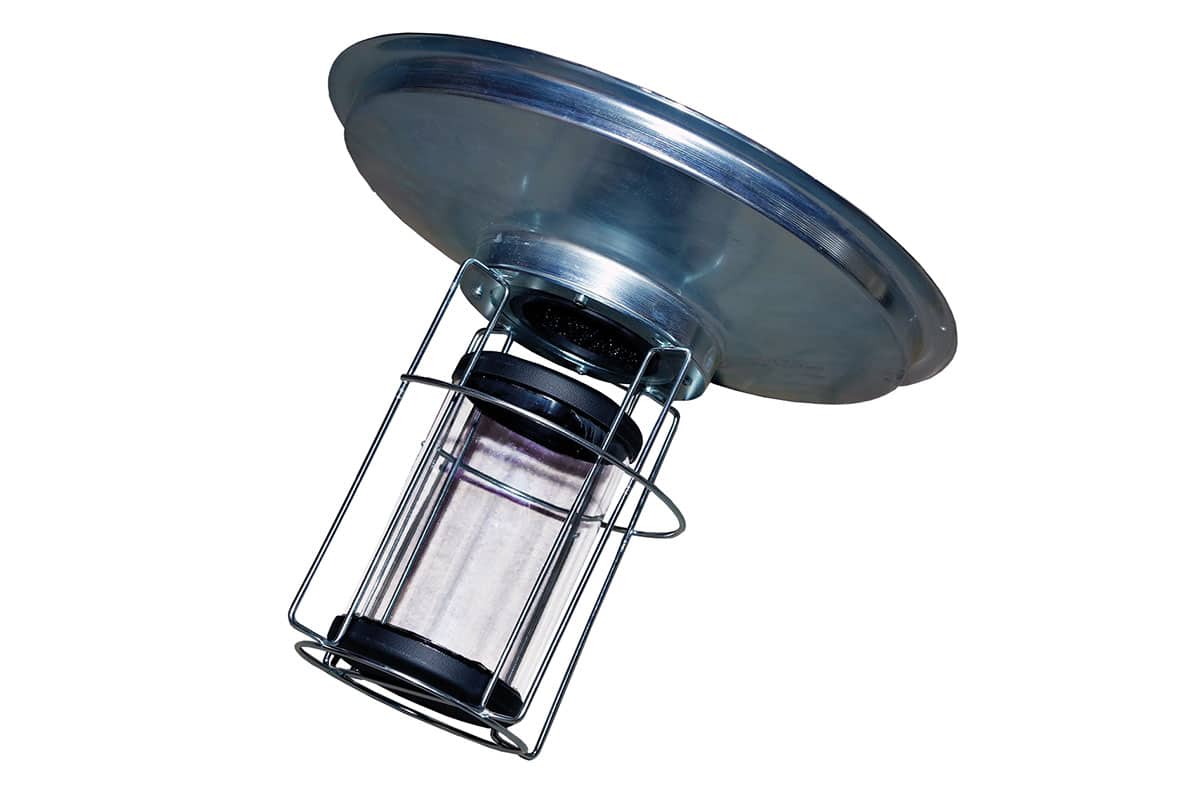

Tried and tested floater system

Maximum protection: the floater reliably cuts suction flow as soon as the maximum level is reached in the container.

Vielseitig reinigen

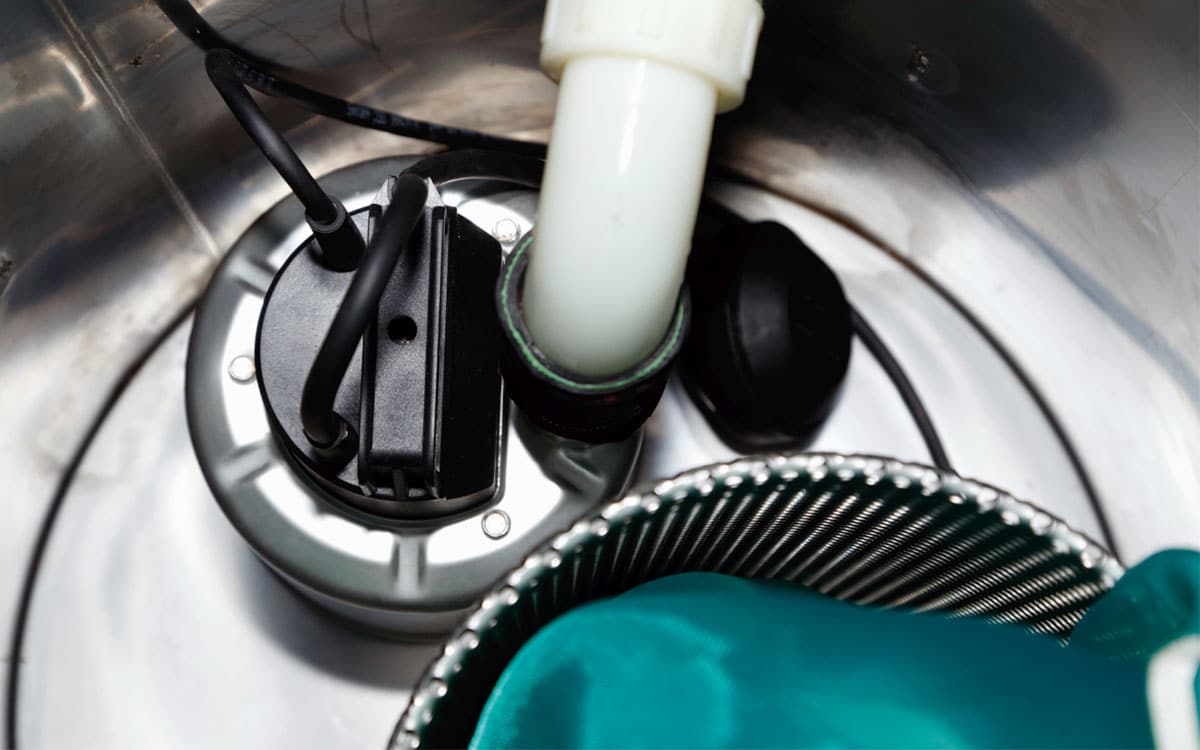

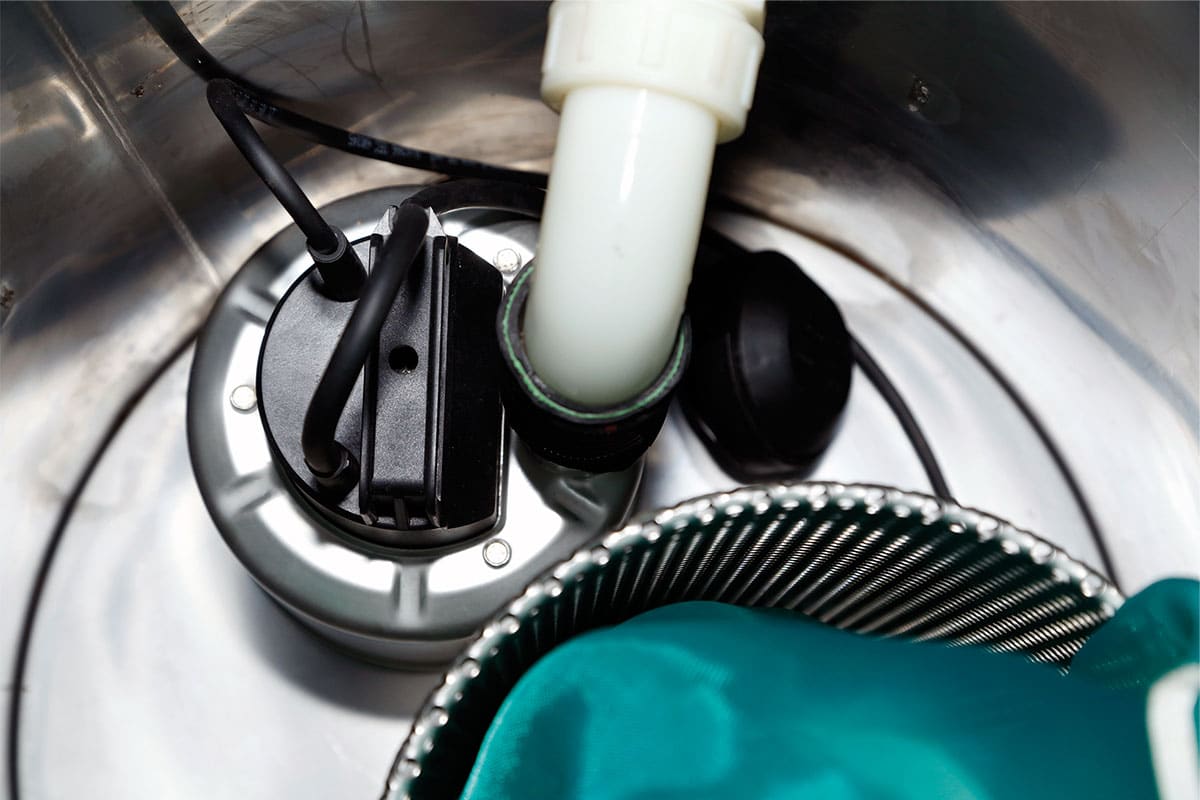

Industrial immersion pump as standard

Ideal for every industrial sector in which suction and drainage are involved.

Vielseitig reinigen

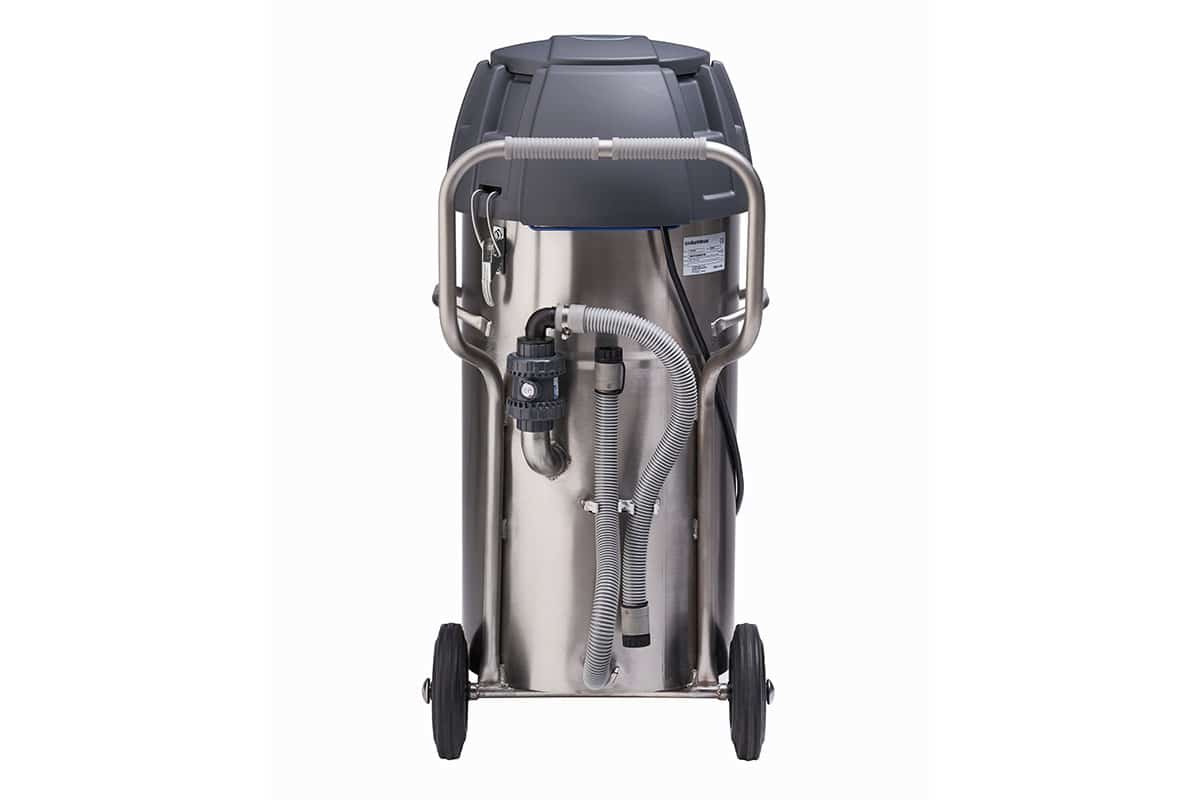

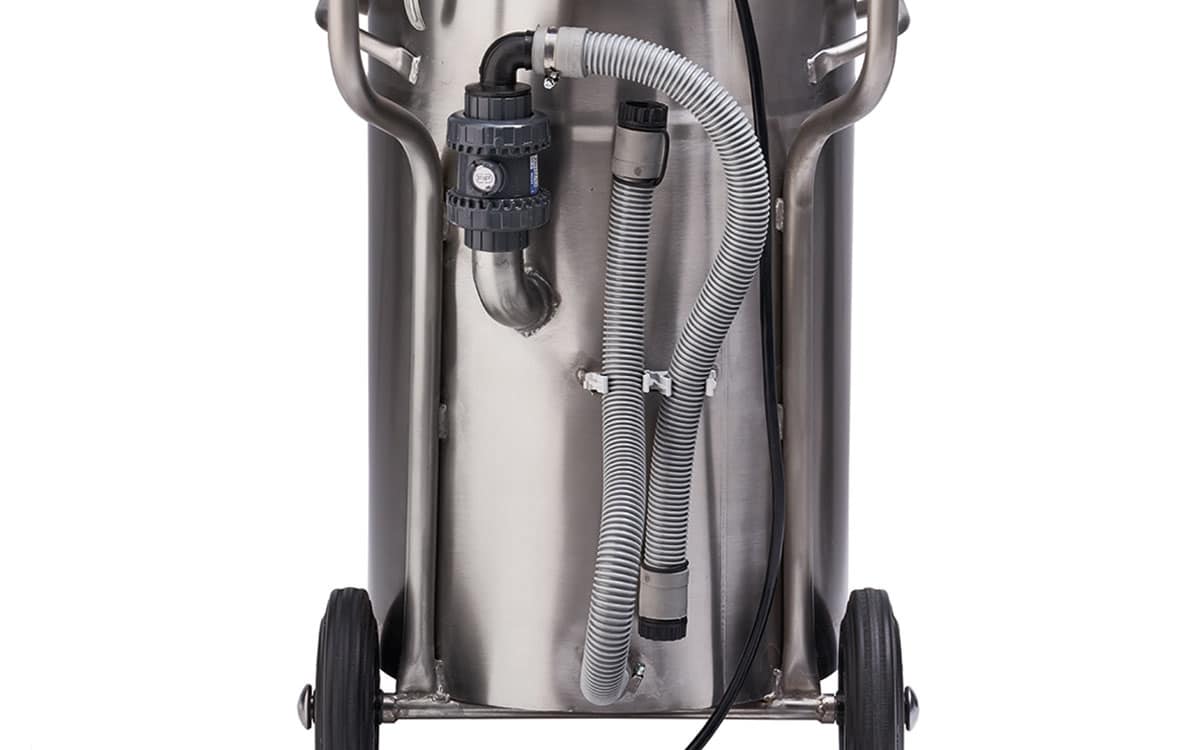

Drainage tube

Collected liquids drain safely and efficiently through the drainage tube.

more features

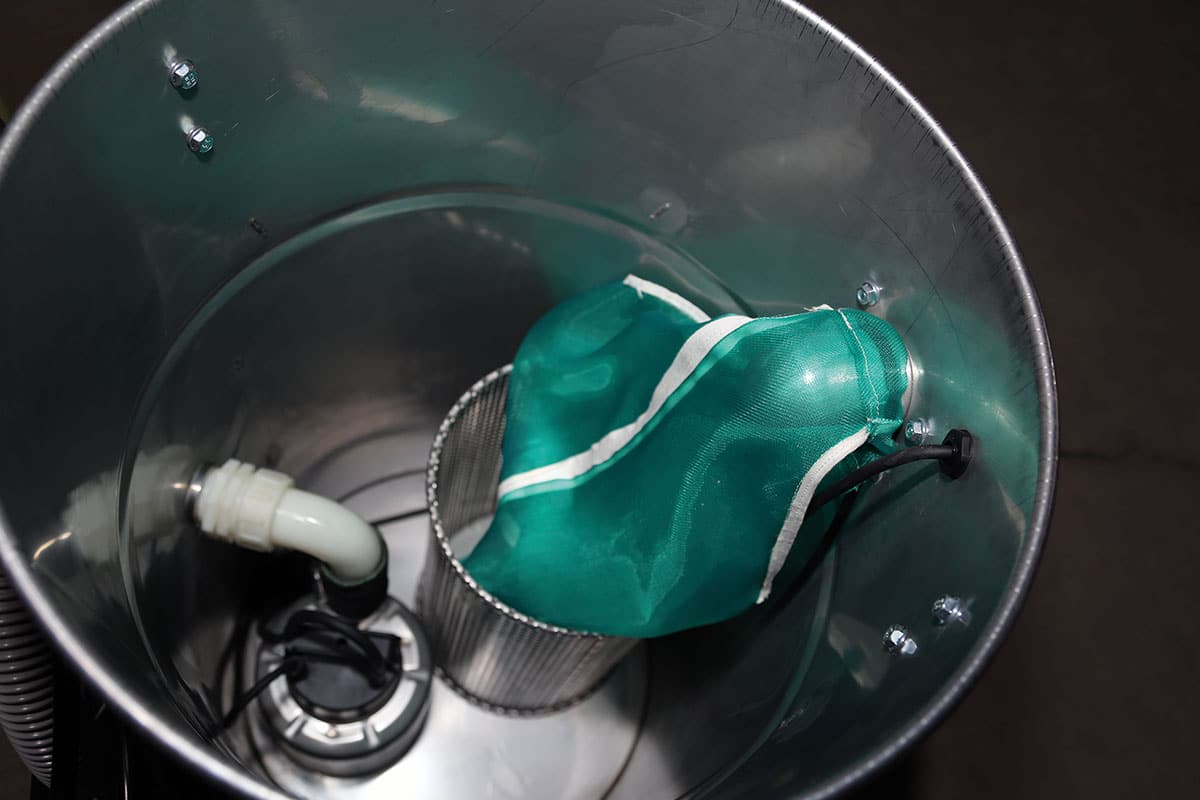

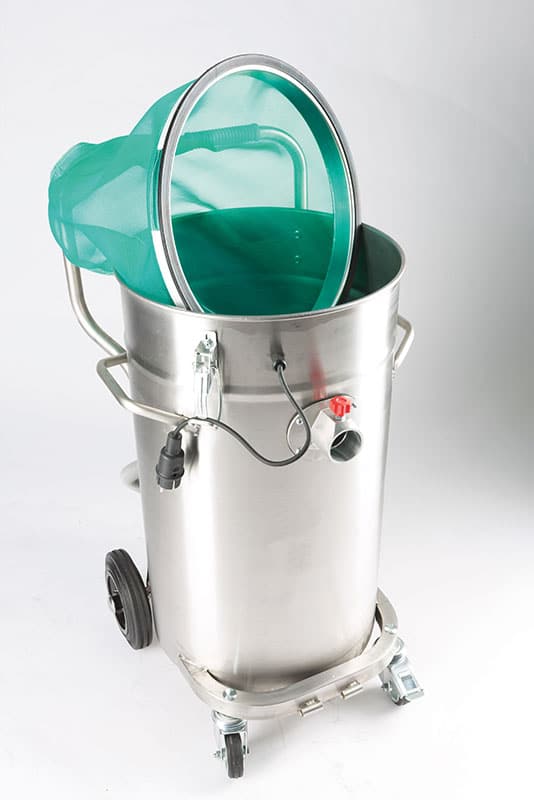

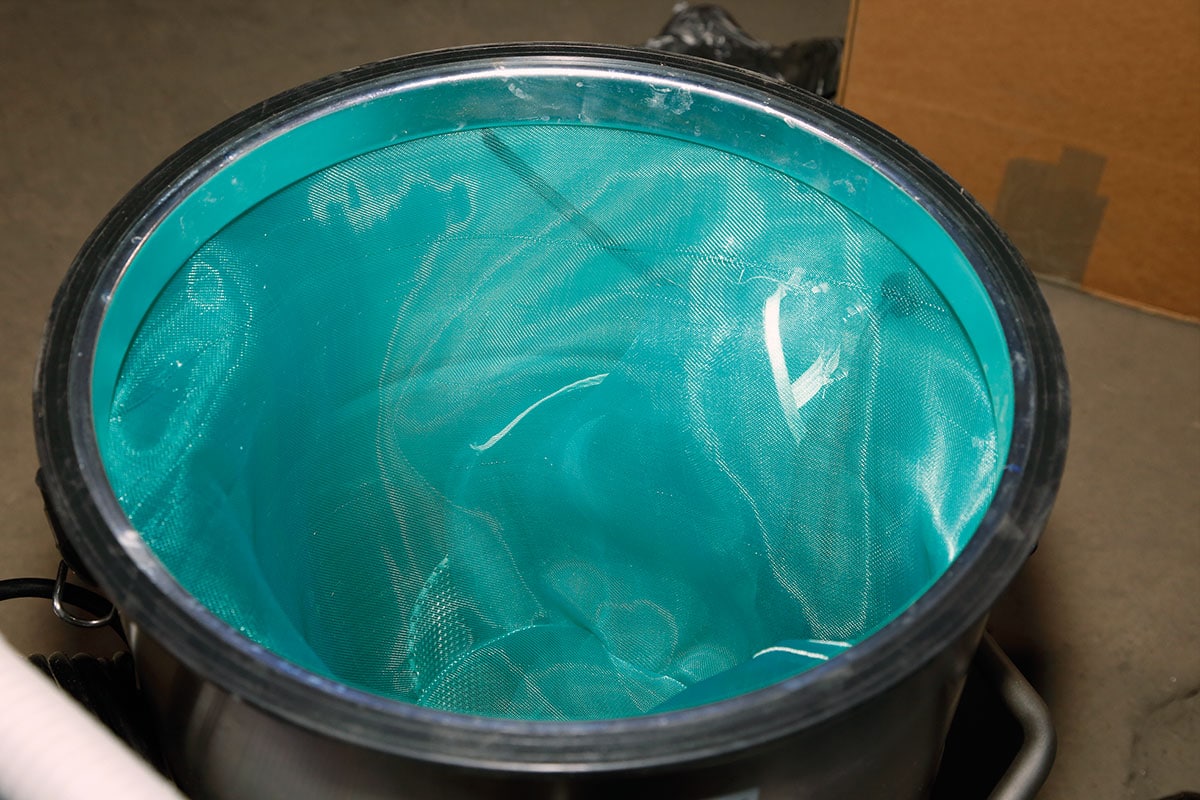

  • Wet filter as standard

Prevents foaming and the picking up of foreign bodies, to protect pump and motors. Made of robust 300 micron PPL.

  • Low pressure display

Continuous monitoring to ensure flawless operation and detect filter clogging.

  • Compact design

Ideal for mobile dust removal, whether in the construction industry or when cleaning buildings.

less features
IWV 80 pump
Optional equipment
Vielseitig reinigen

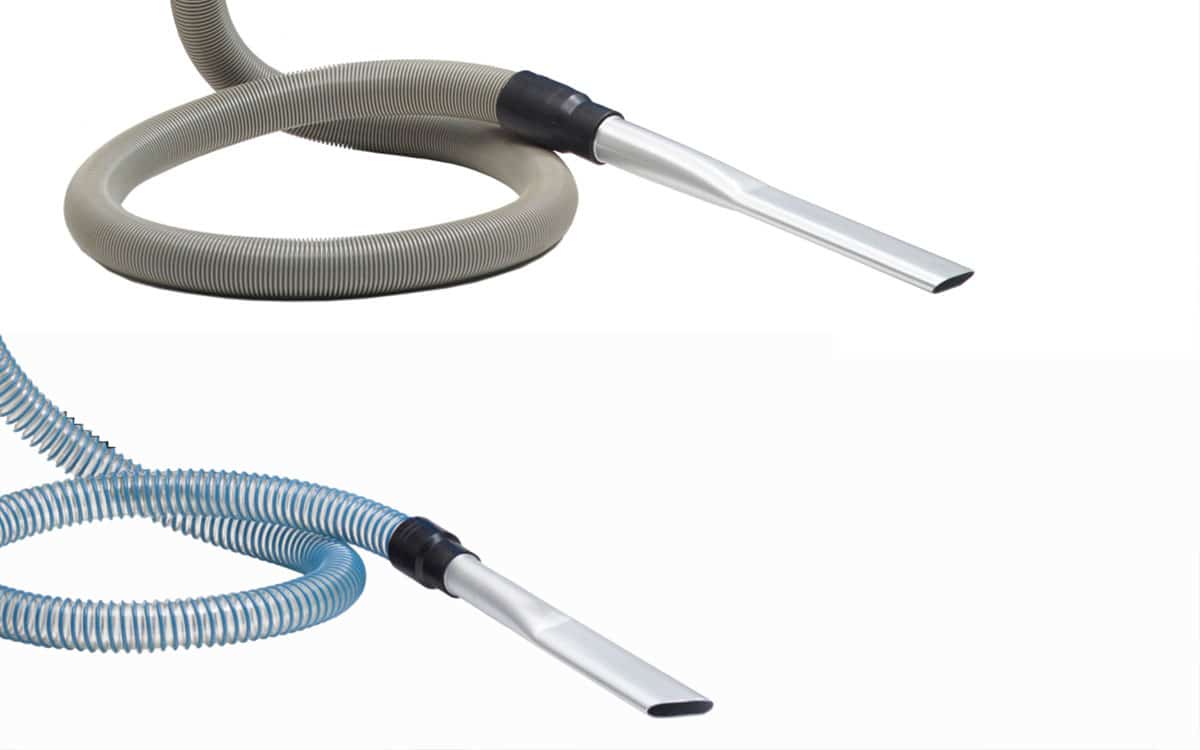

Various suction hose lengths and materials on request

A wide range of hose lengths and materials are available for different applications.

Vielseitig reinigen
Further configurations on request

We can configure the appropriate industrial vacuum cleaner for almost all extraction tasks on request.

IWV 80 pump
Technical data
Technical key data
L x W x H 530 x 660 x 1080 mm
Tool connection 50 mm
PVC hose PVC 3 m / 50 mm
Tank volume 80 l
Filter surface area
Filter type Polypropylen wetfilter
Filter dust class 135 l/min.
Weight 40 kg
Batteries / Electrical data
Rated voltage 230 V
Power total 2,3 kW
Mains cable 10 m
Suction motor
Low pressure max. 25 000 mm H²O
Air flow max. 360 m³/h
Number of motors 2
IWV 80 pump
Accessories

As a specialist for contract cleaning, columbus offers you, in addition to first-class machines, a wide range of accessories for an individual adaption to your equipment and your requirements.
