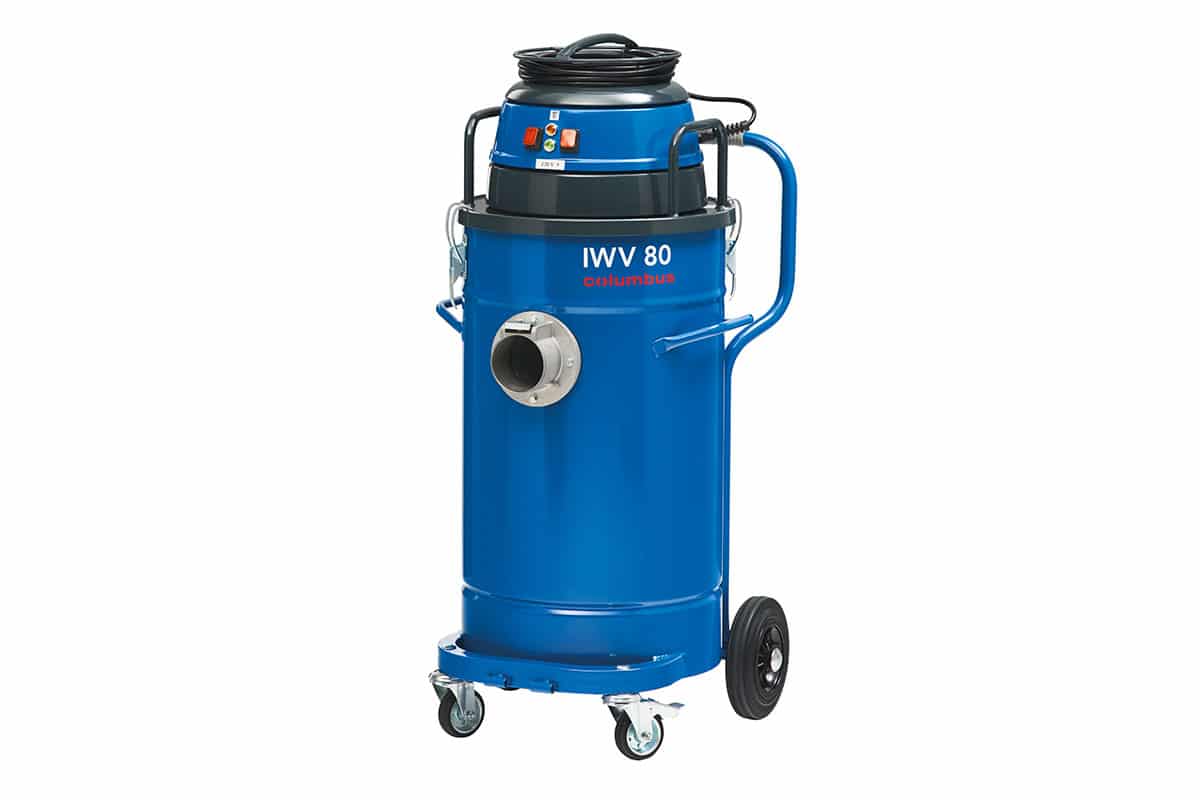

Industrial vacuum

IWV 80

IWV 80

Overview

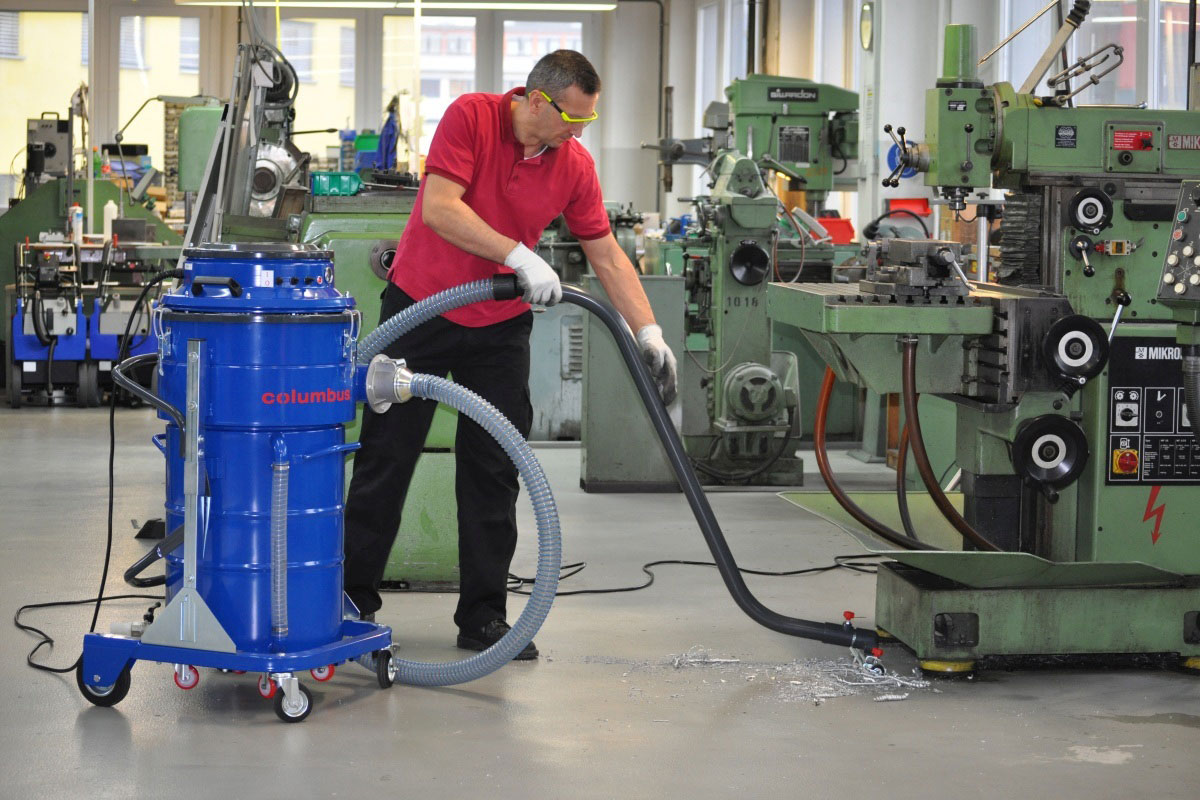

Made of robust epoxy-coated steel and equipped with 2 strong and individually switchable bypass motors, this wet vacuum cleaner can be used flexibly in all branches of industry. Controlled emptying of the 80 liter container is possible at any time thanks to the integrated drain hose. With the extensive range of accessories and optional equipment, this industrial vacuum cleaner can be perfectly configured for every extraction and cleaning task. Also available in stainless steel.

Technical key data
  • Tank capacity 80 l

  • Power max. 2,3 KW

  • AC voltage

  • Dry / wet wet

IWV 80
Product highlights
Vielseitig reinigen
Epoxy-lacquered steel

Robust construction: for industrial use and extreme requirements.

Vielseitig reinigen
High-performance AC current bypass motors

Bypass technology guarantees operating safety: motors cooled by a separate air flow.

Vielseitig reinigen
Two individually switchable bypass motors

The motors can be switched on, or off, to suit the specific task.

Vielseitig reinigen

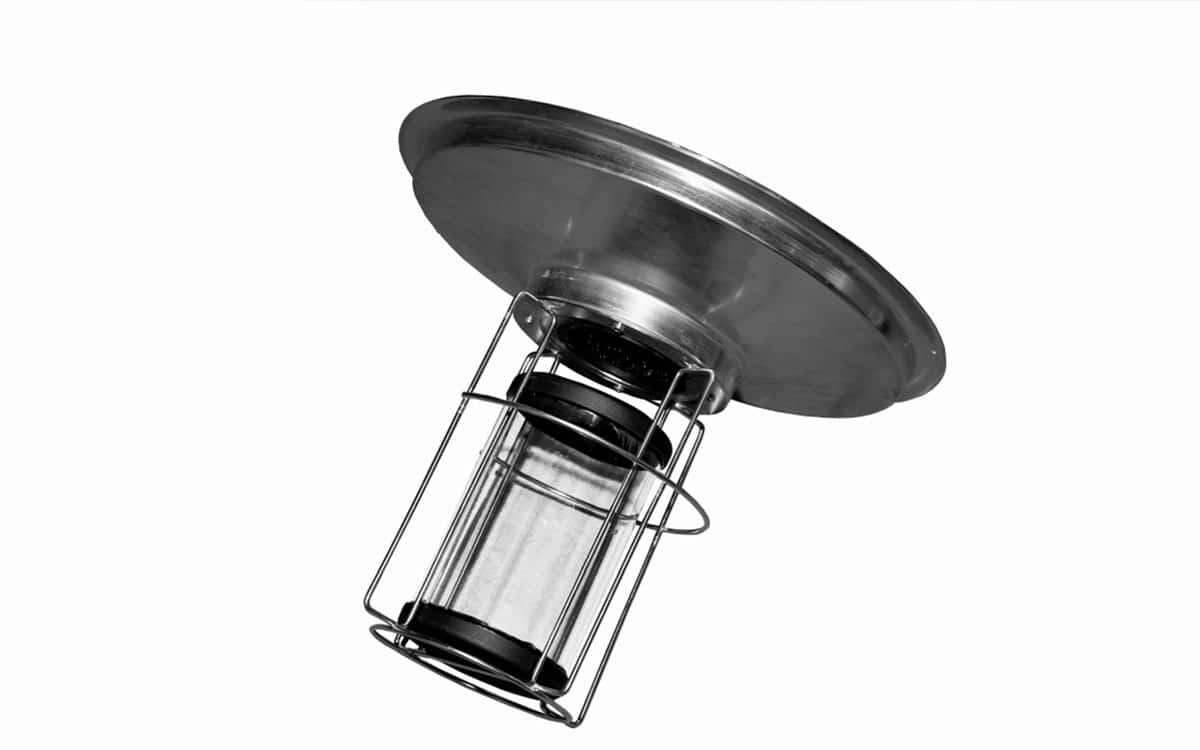

Tried and tested floater system

Maximum protection: the floater reliably cuts suction flow as soon as the maximum level is reached in the container.

Vielseitig reinigen

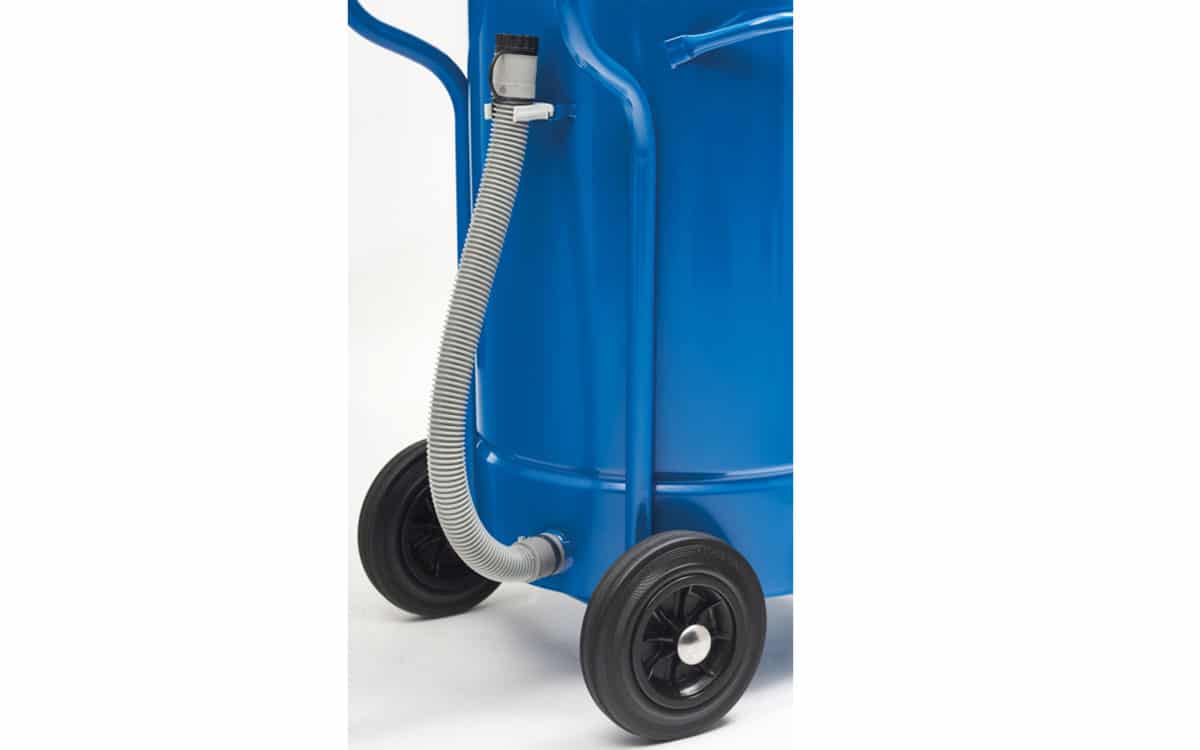

Drainage tube

Collected liquids drain safely and efficiently through the drainage tube.

Vielseitig reinigen

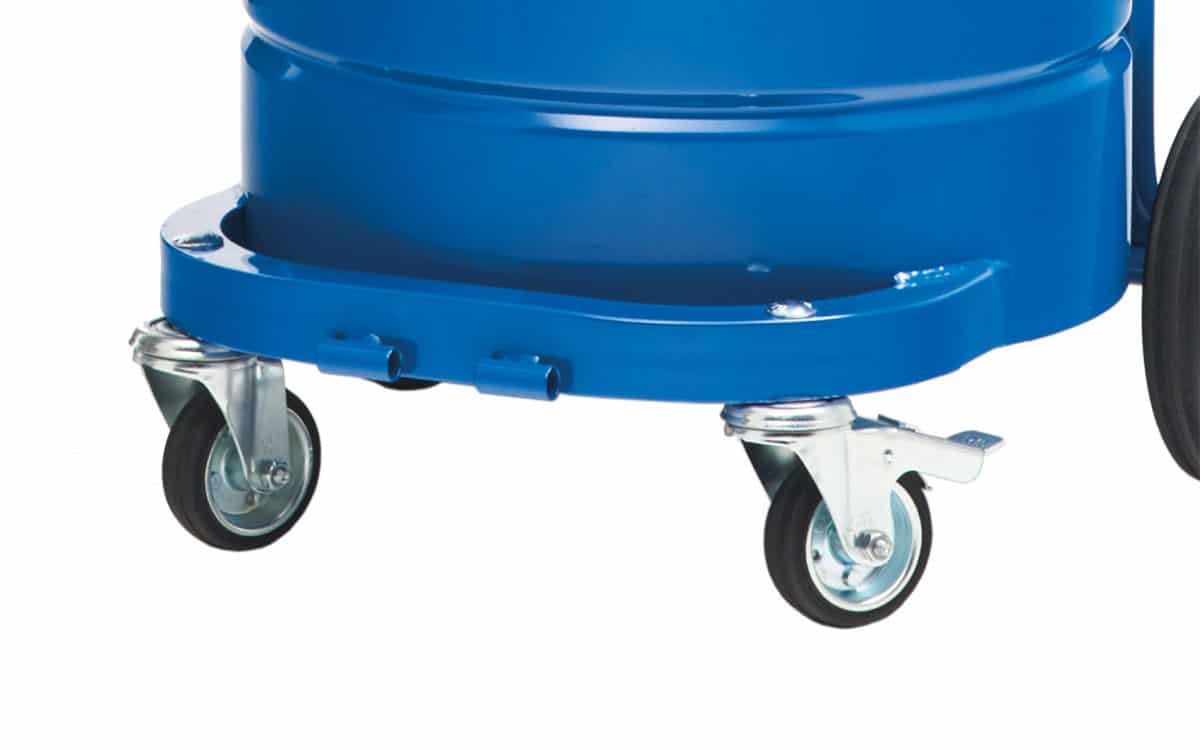

Locking brake

Maximum safety in stationary operation and when emptying.

  • Low pressure display

Continuous monitoring to ensure flawless operation and detect filter clogging.

  • Compact design

Ideal for mobile dust removal, whether in the construction industry or when cleaning buildings.

IWV 80
Optional equipment
Vielseitig reinigen

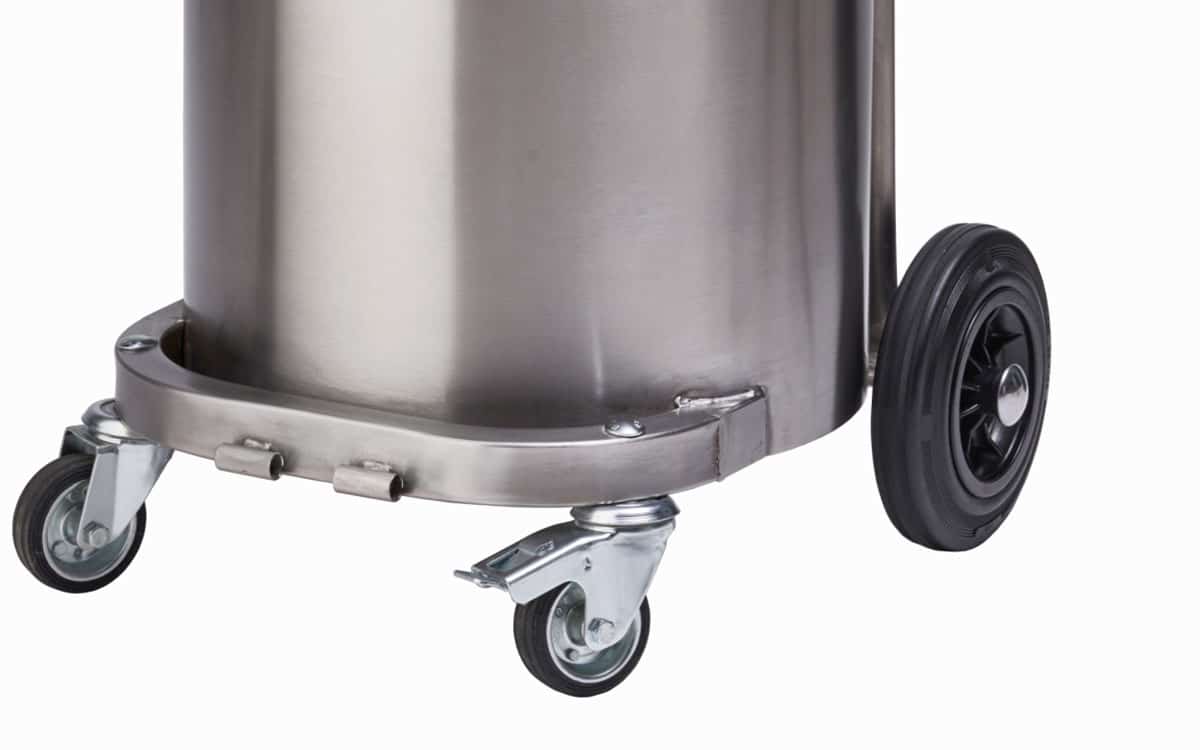

Stainless steel container V2A

The stainless steel version is ideal for use under harsh conditions.

Vielseitig reinigen
Various suction hose lengths and materials on request

A wide range of hose lengths and materials are available for different applications.

Vielseitig reinigen

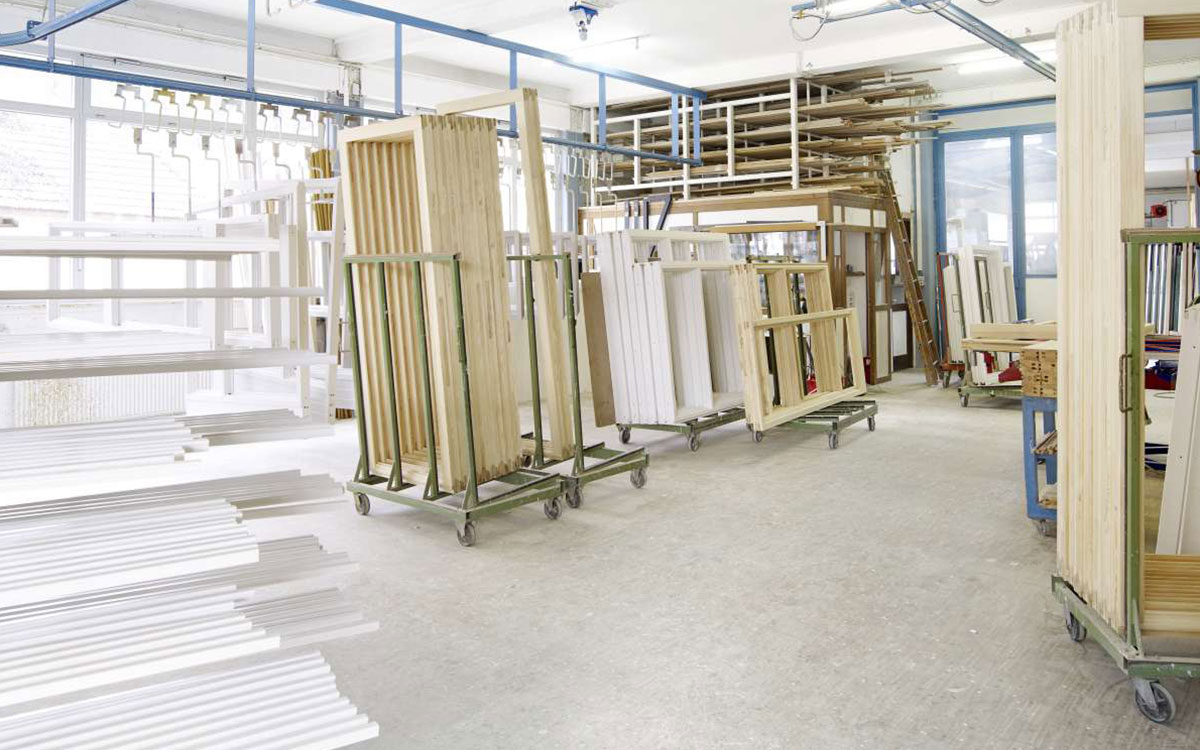

Further configurations on request

We can configure the appropriate industrial vacuum cleaner for almost all extraction tasks on request.

IWV 80
Technical data
Technical key data
L x W x H 500 x 480 x 1080 mm
Tool connection 80 mm
PVC hose PVC 3 m / 40 mm
Tank volume 80 l
Filter surface area

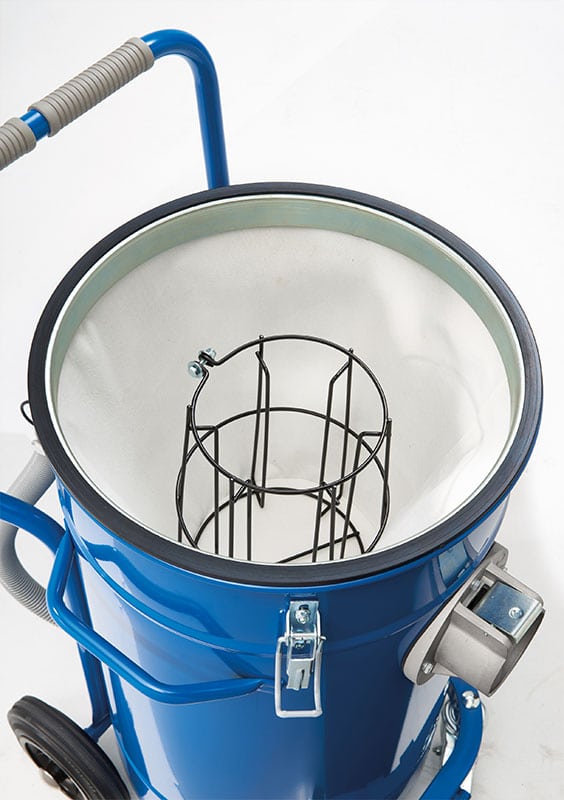

Filter type Polyester catridge
Filter dust class
Weight 30 kg
Batteries / Electrical data
Rated voltage 230 V
Power total 2,3 kW
Mains cable 10 m
Suction motor
Low pressure max. 2500 mm H²O
Air flow max. 360 m³/h
Number of motors 2
IWV 80
