Walk-behind

RA 35|B 10

RA 35|B 10

Overview

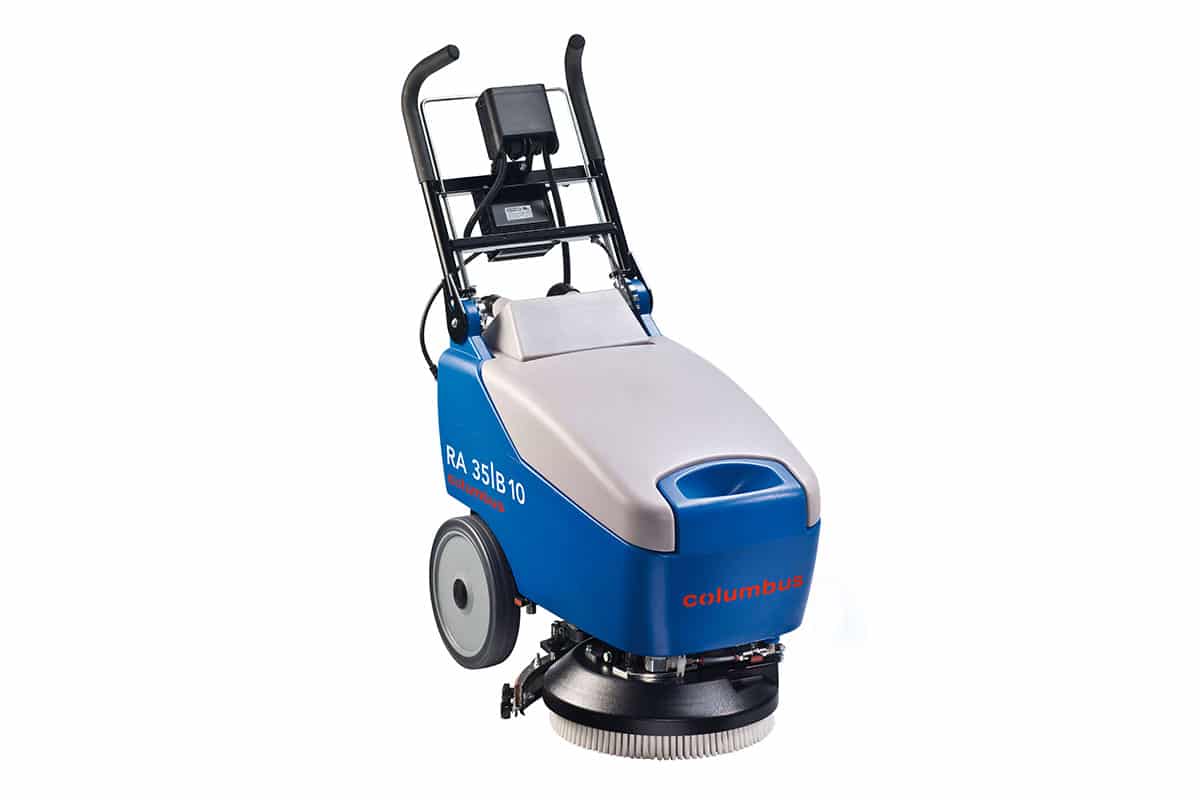

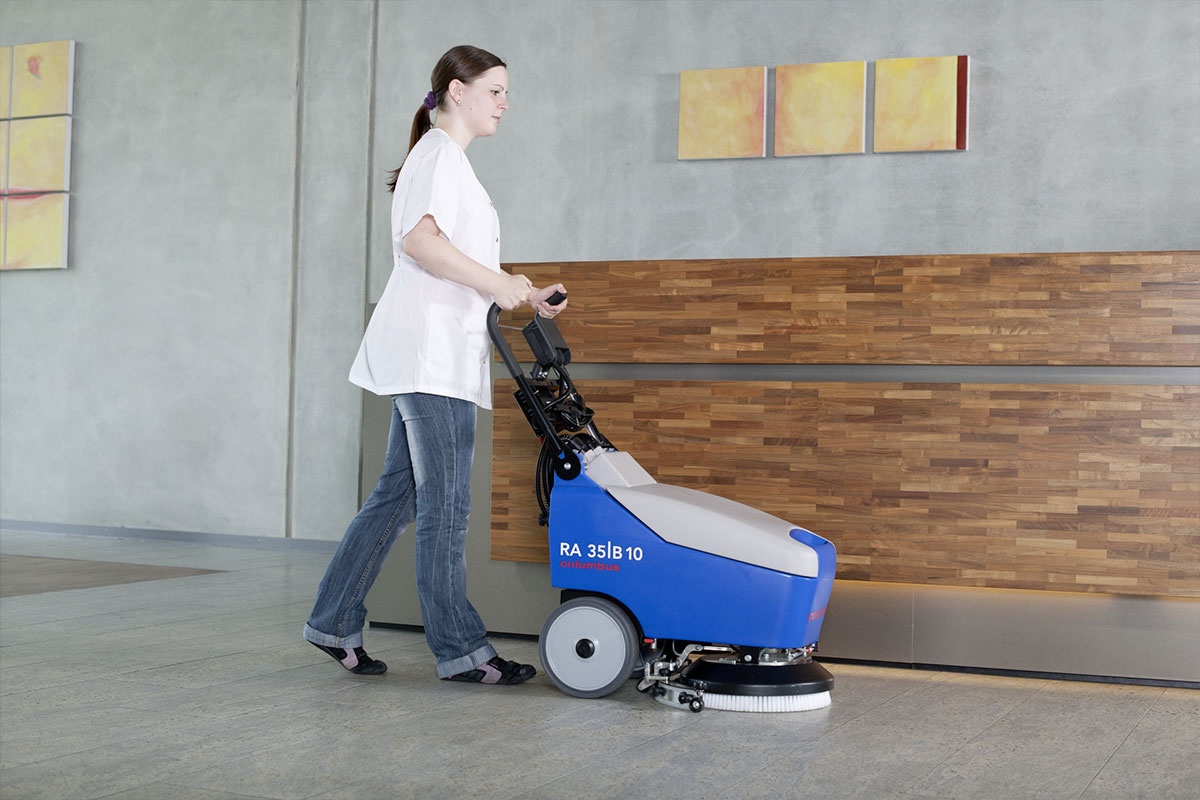

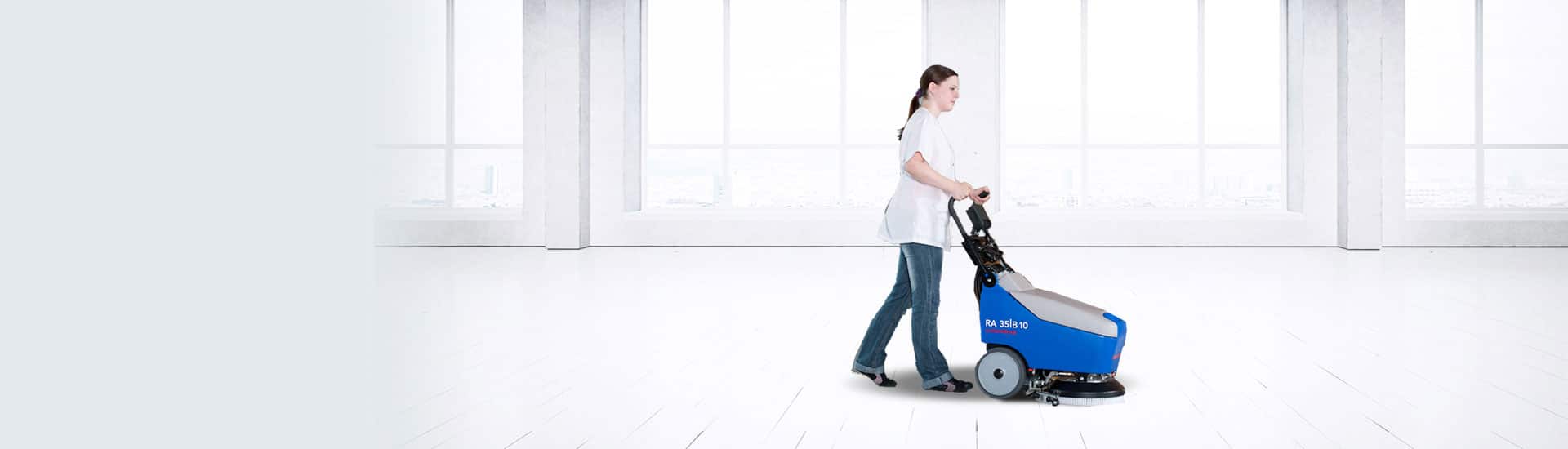

Ultra-compact and extremely manoeuvrable: the low-cost scrubber dryer for small areas and heavily congested spaces. Ideal for changing work areas, the large wheels facilitate manoeuvring and transportation up and down stairs.

Technical key data
  • Tank capacity 10 l
  • Working width 350 mm
  • Theoretical coverage max. 1400 m²/h
  • Brush pressure28 kg
RA 35|B 10
Product highlights
Vielseitig reinigen
Compact construction

Flat design and extendible steering handle make cleaning under furniture etc. easy.

Vielseitig reinigen

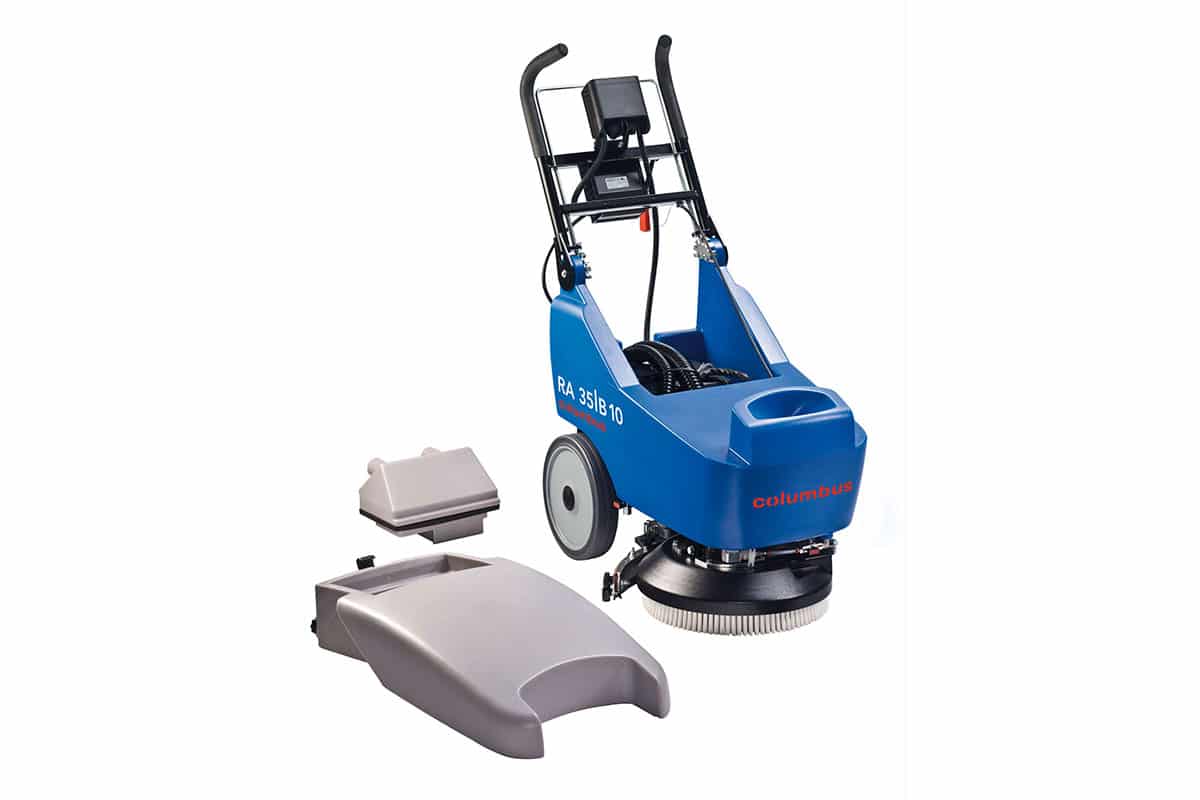

Autoclavable dirty water tank

Dirty water tank can be removed without tools, guaranteeing the highest levels of disinfection, to comply with specific hygiene regulations.

Vielseitig reinigen

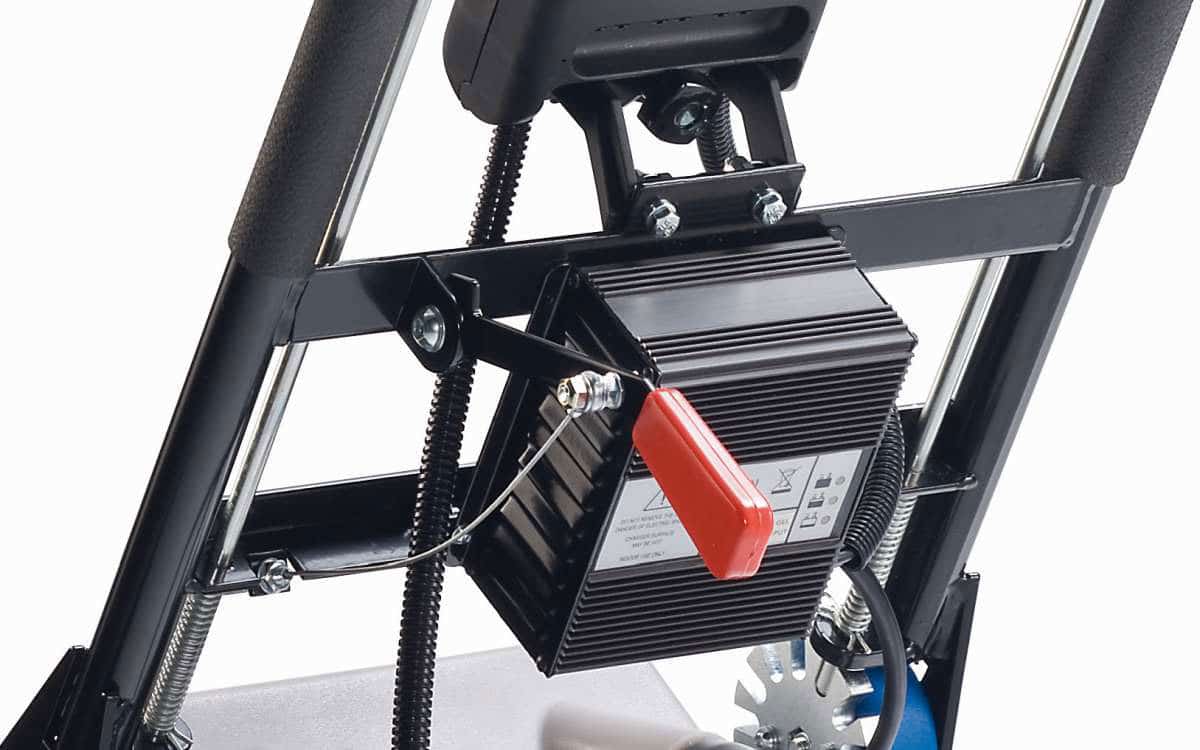

Integrated charger

Charge the battery anywhere, with the high-quality integrated charger.

Vielseitig reinigen

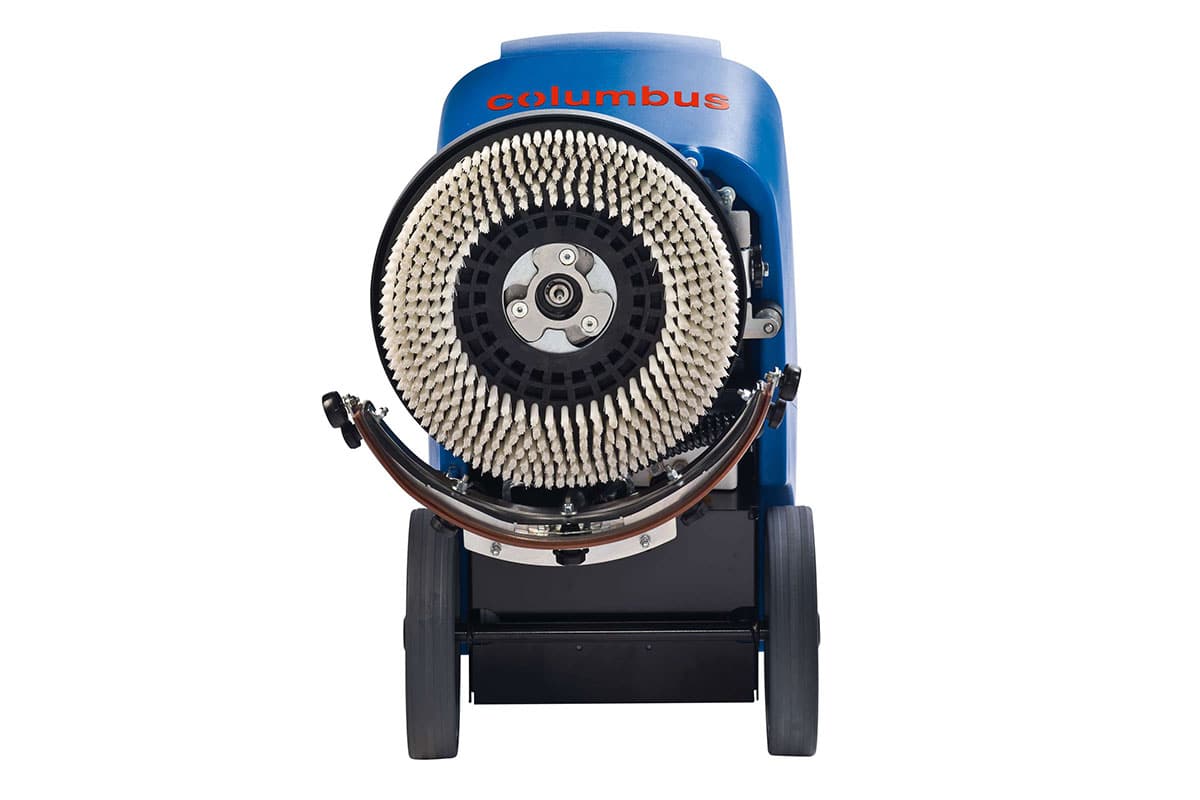

Clean right up to the edge

Perfect cleaning result, right up to the wall.

Vielseitig reinigen

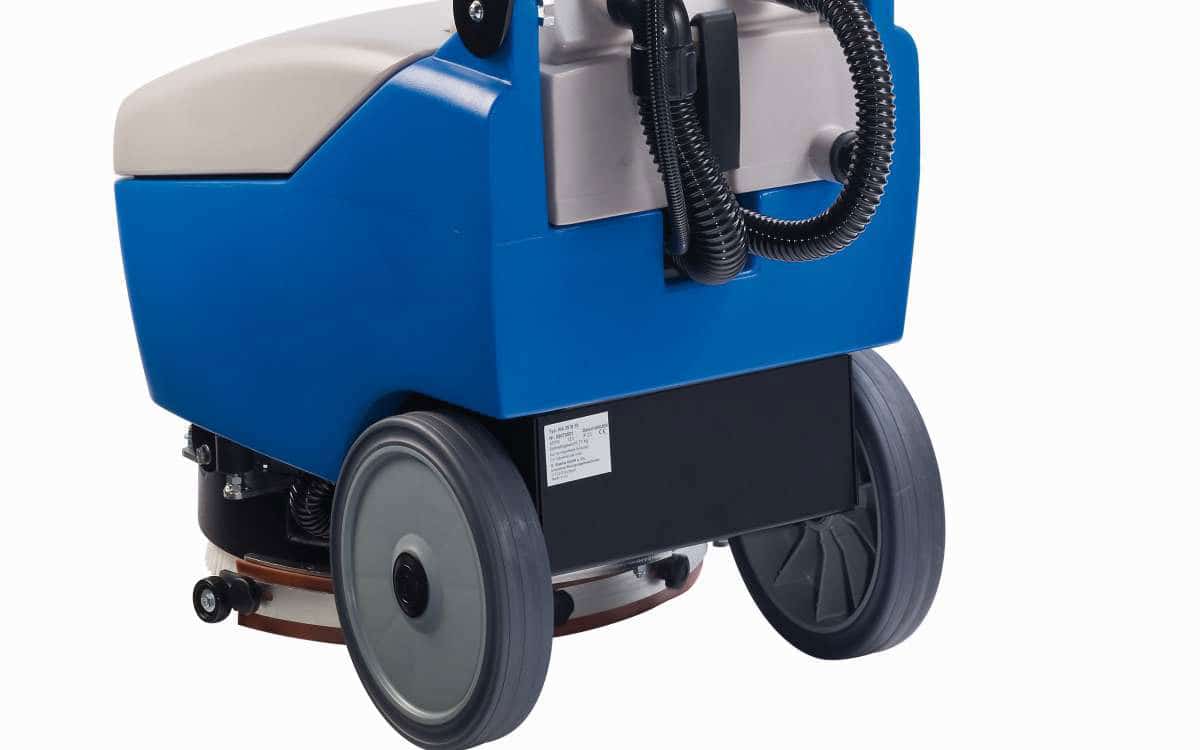

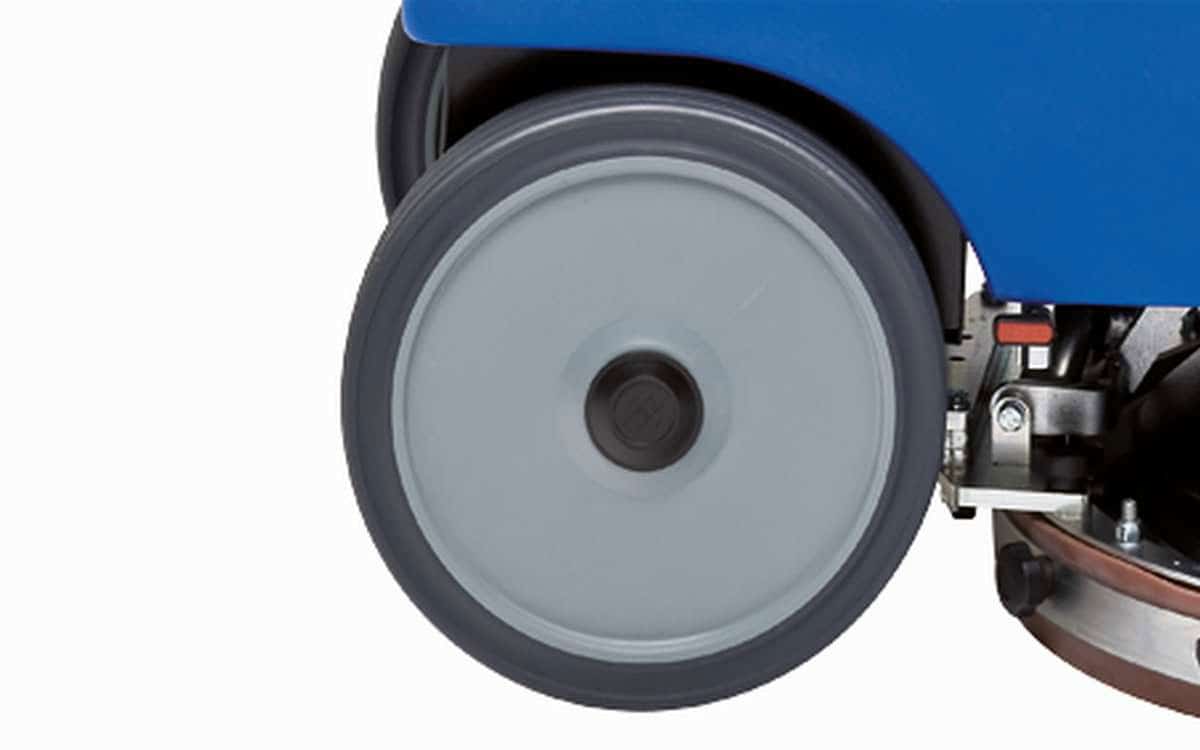

Large wheels

Large wheels make it easier to transport and manoeuvre over steps.

Vielseitig reinigen

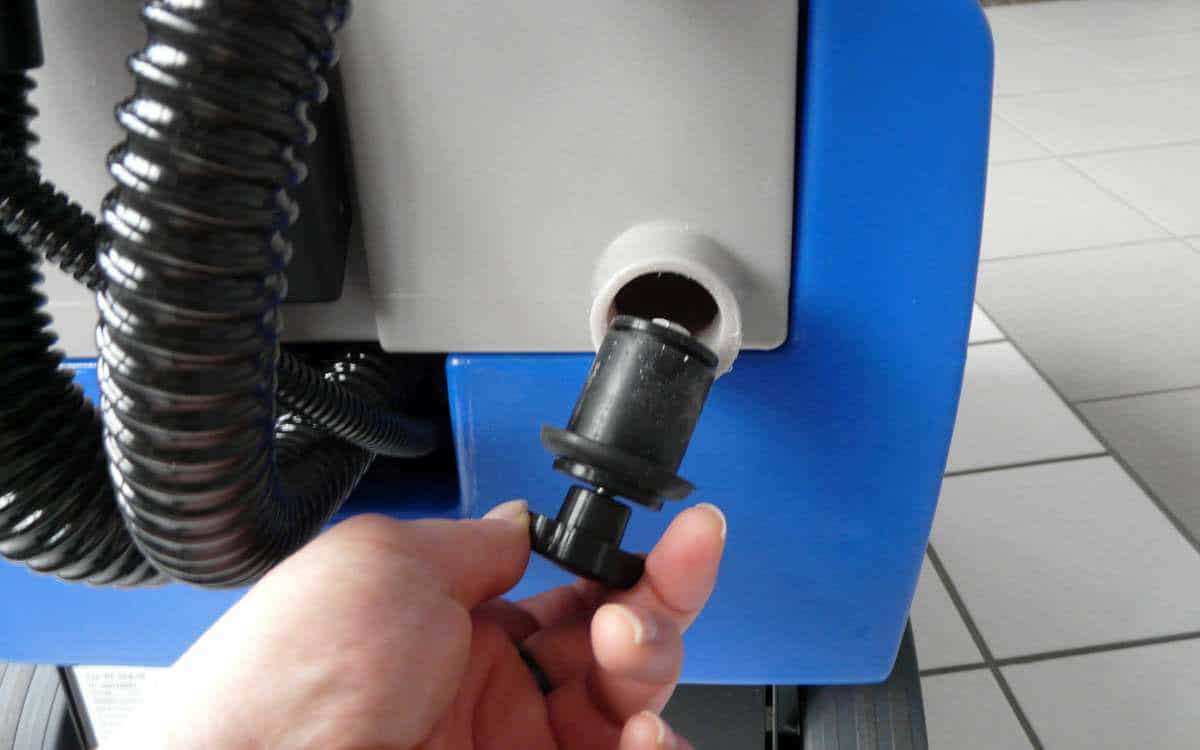

Clever emptying system

Dirty water can be emptied directly into a floor drain or quickly and easily drained into a drainage sink.

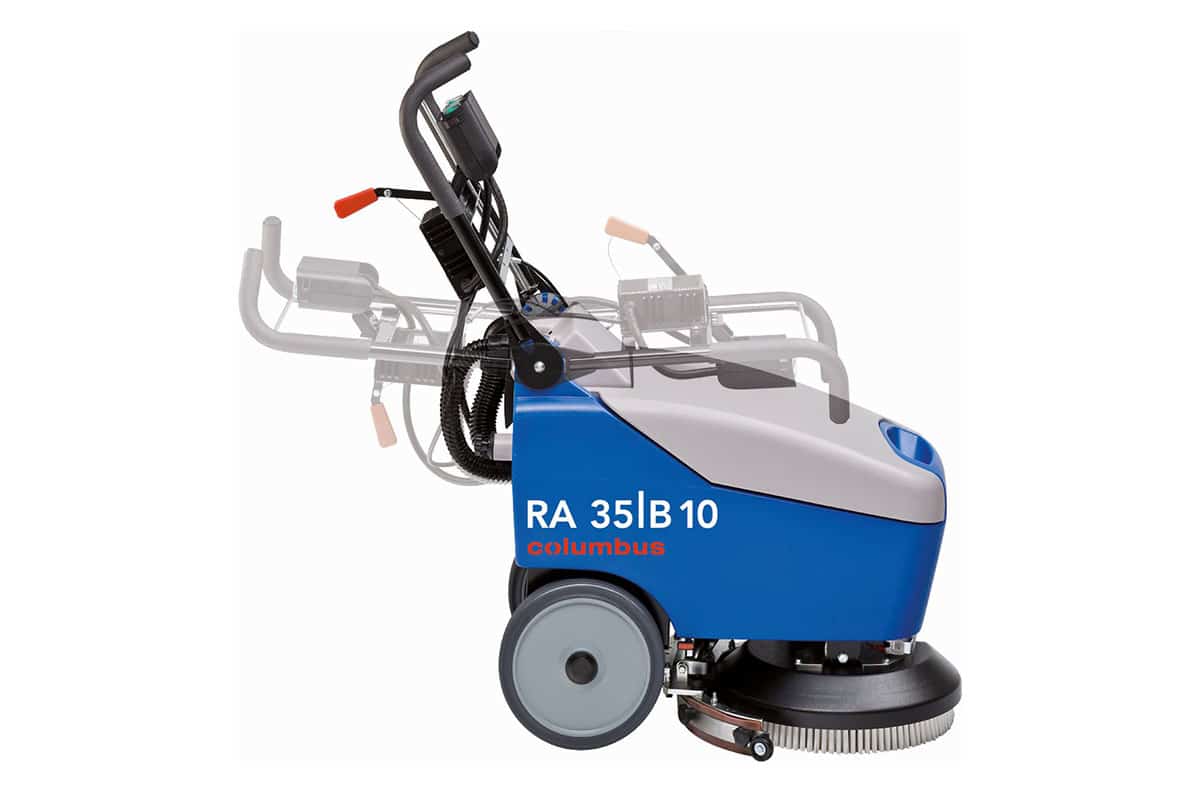

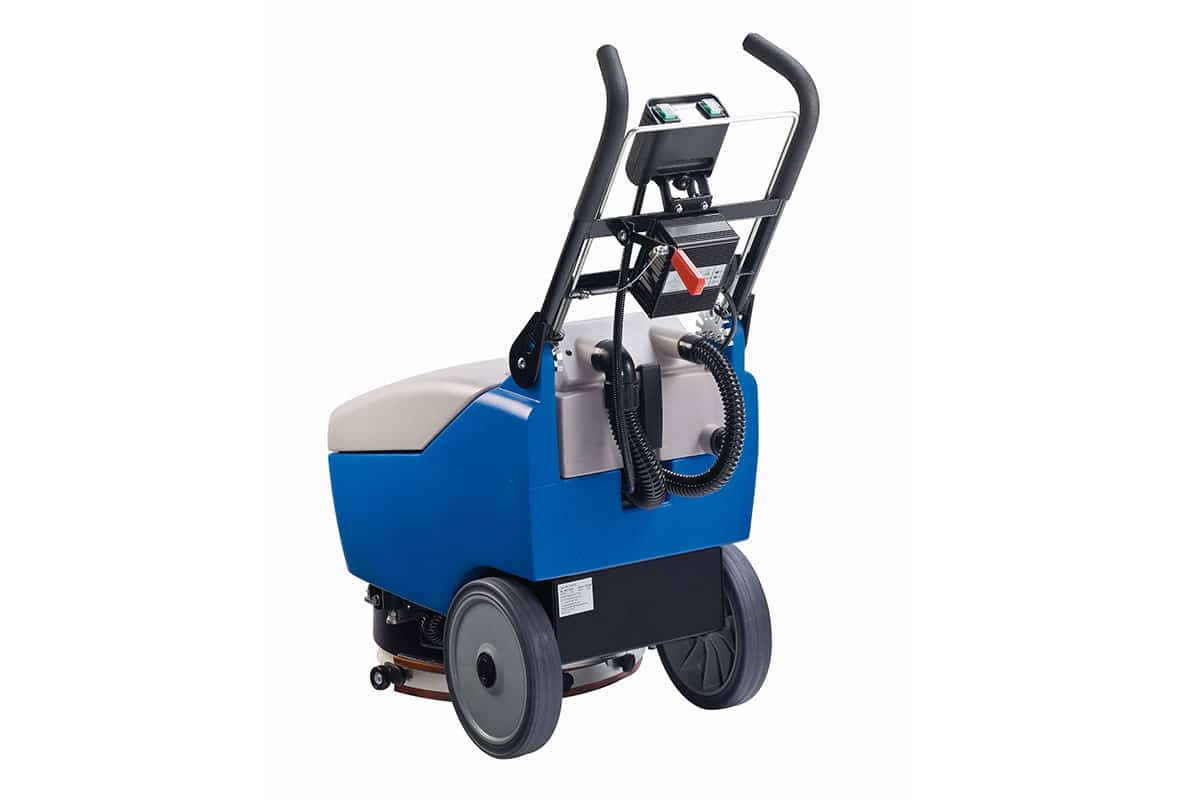

  • Ergonomic steering handle

Easily adjustable steering handle, convenient for every operator.

  • Easy-to-service components

Well thought-through design provides quick and easy access to all vital machine components.

  • Very robust mechanics

Only truly durable machines are also truly green.

  • Superb suction

Guarantees streak-free floors that can be walked on immediately after cleaning.

  • Compact construction

Maximum efficiency for the best possible size.

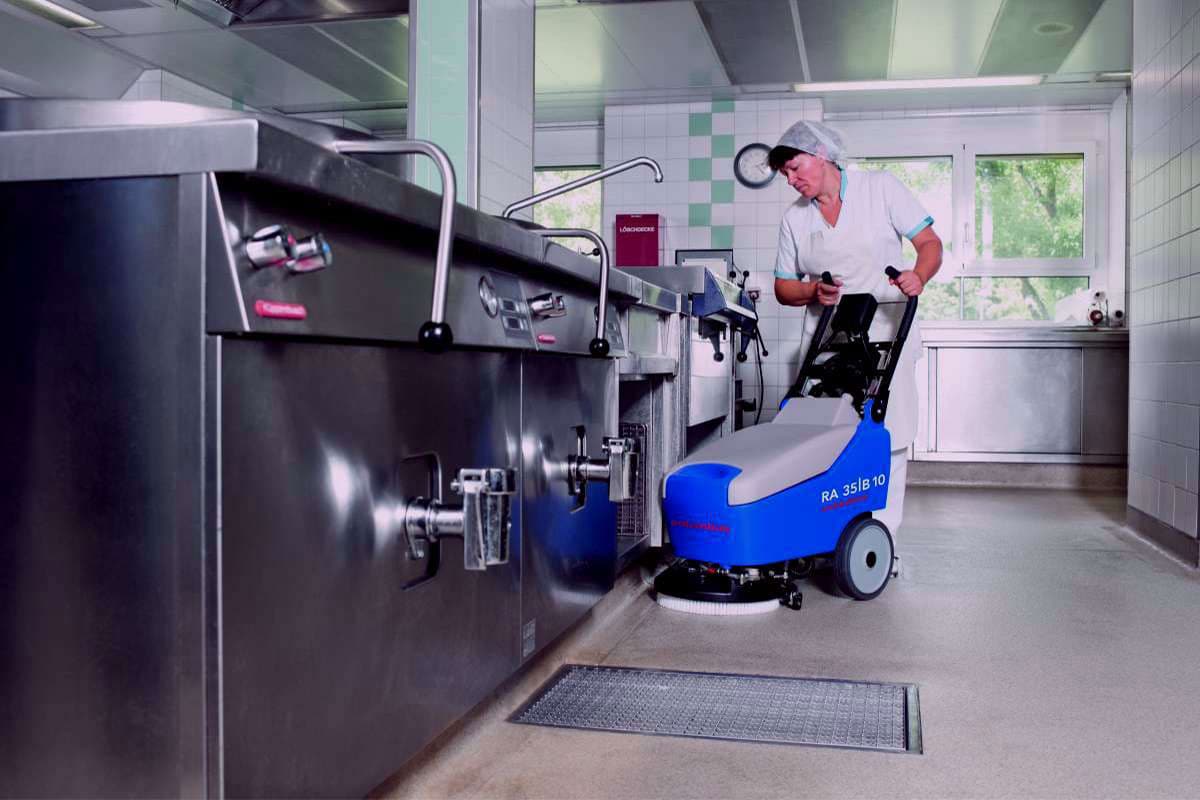

  • Easy-clean machine

HACCP-compliant hygiene measures easily applied to all critical components.

  • Maintenance Instructions

Service markings simplify day-to-day care of machines.

  • Tested and certified by EUnited

Exceptional cleaning results with the minimum consumption energy and water. Tested and certified by the EUnited cleaning association.

RA 35|B 10
Technical data
Technical key data
L x W x H 735 x 490 x 650 mm
Working width 350 mm
Suction width 420 mm
Theoretical coverage max. 1400 m²/h
Noise level 66 dB(A)
Empty weight 44 kg
Operating weight 74 kg (63 Ah 5)
Batteries / Electrical data
Rated voltage 12 V
Power max. 440 W
Power cable
Capacity wet
Capacity gel 63 Ah 5
Tank
Solution tank capacity 10 l
Recovery tank capacity 11,5 l
Motors
Suction: low pressure 52 mbar
Suction: air flow 14,5 l/s
Brushes and pad holders
Number 1
Speed 190 rpm
Brush pressure 28 kg
RA 35|B 10
