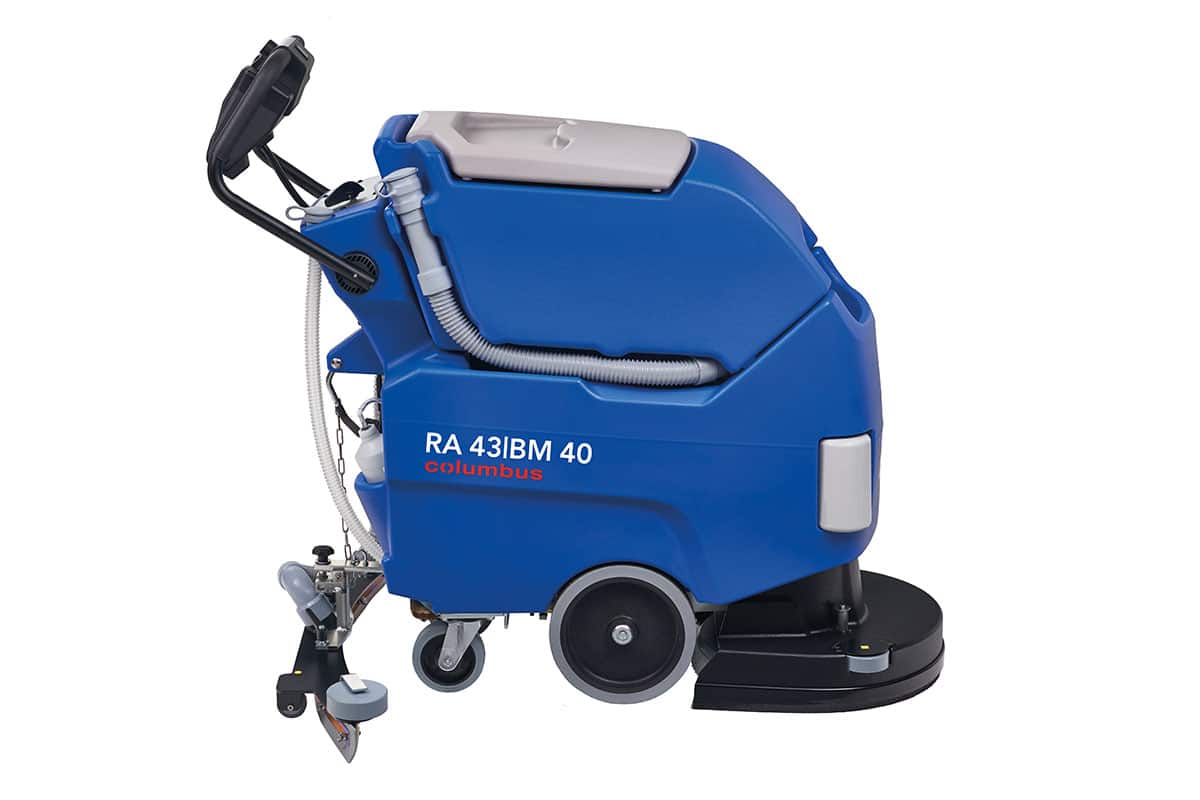

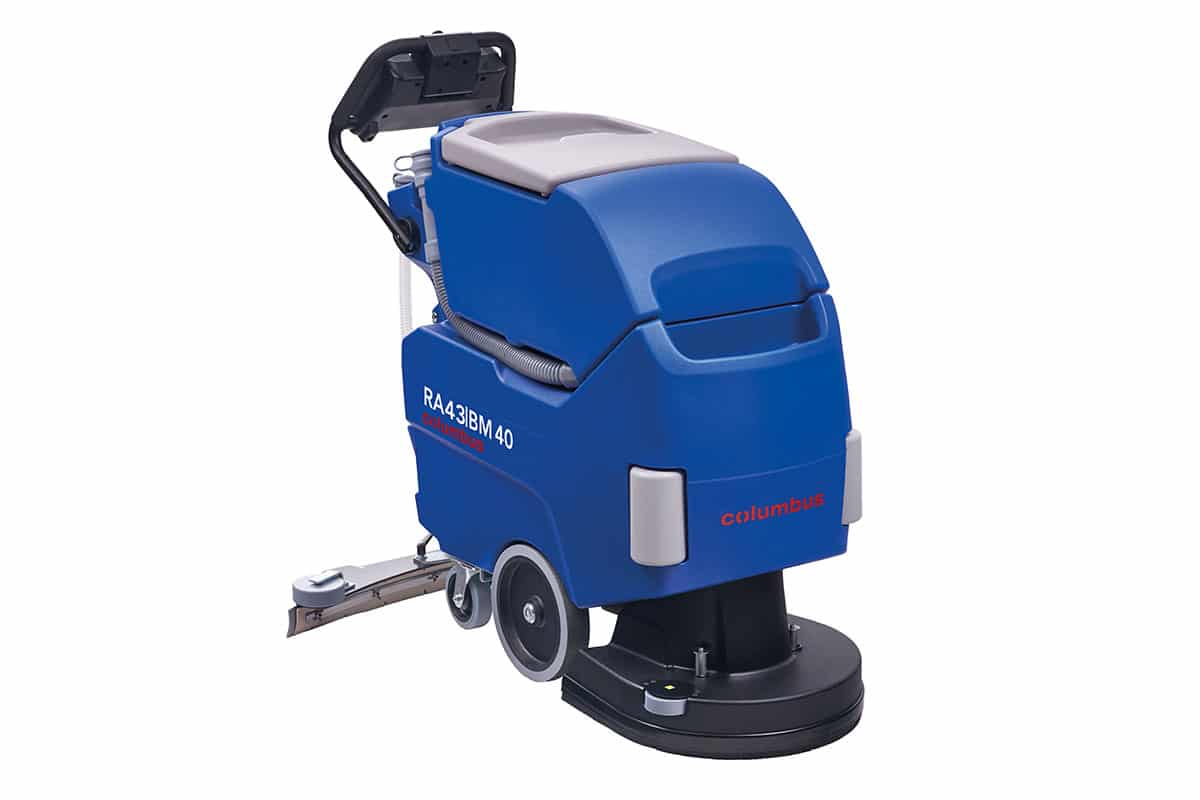

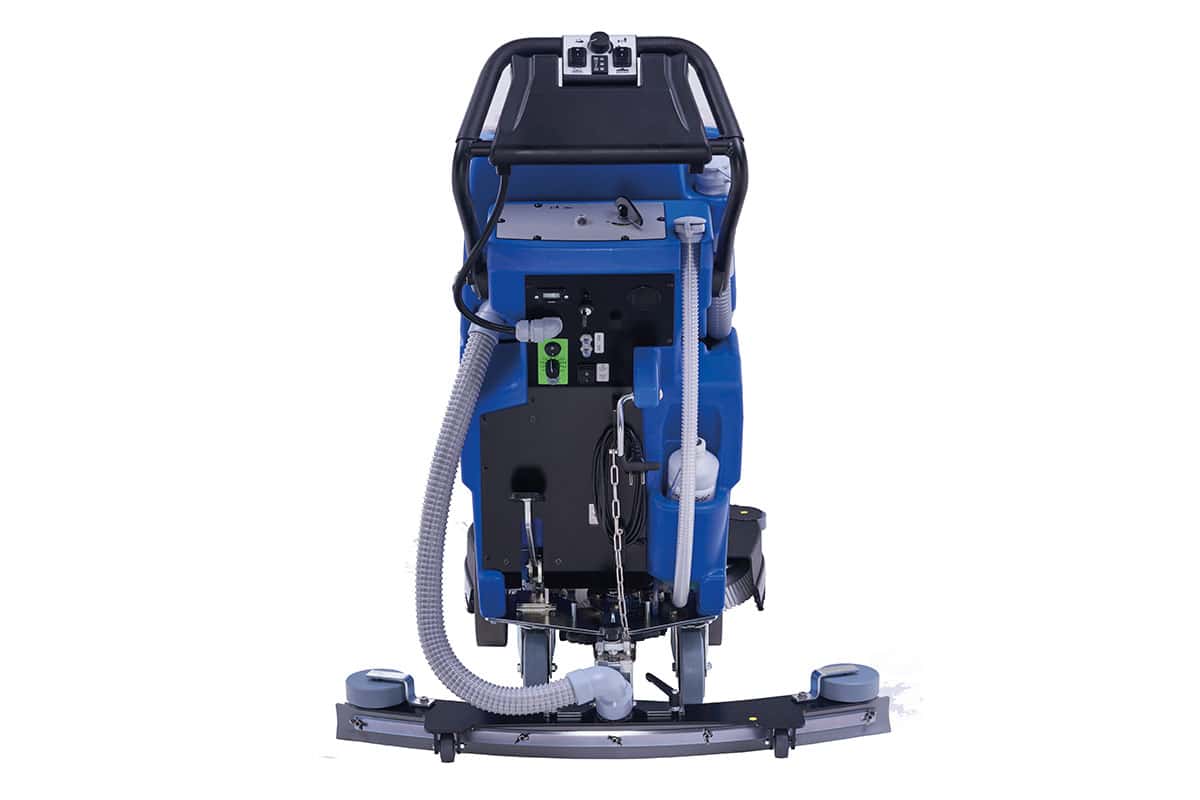

RA 43|BM 40

RA 43|BM 40


The new, manoeuvrable all-rounders in the 40-litre class deliver the comfort and equipment for long, intensive cleaning work combined with the benefits of easy handling and compact dimensions. Extremely easy to use and configurable for any requirement, they make the efficient cleaning of small and medium sized areas a real pleasure! The diversity of options and the typical columbus features make professional cleaning more effective – productivity which pays dividends.

Technical key data
  • Tank capacity 40 l

  • Working width 430 mm

  • Theoretical coverage max. 1720 m²/h

  • Brush pressure 21 kg
RA 43|BM 40
Product highlights
Vielseitig reinigen

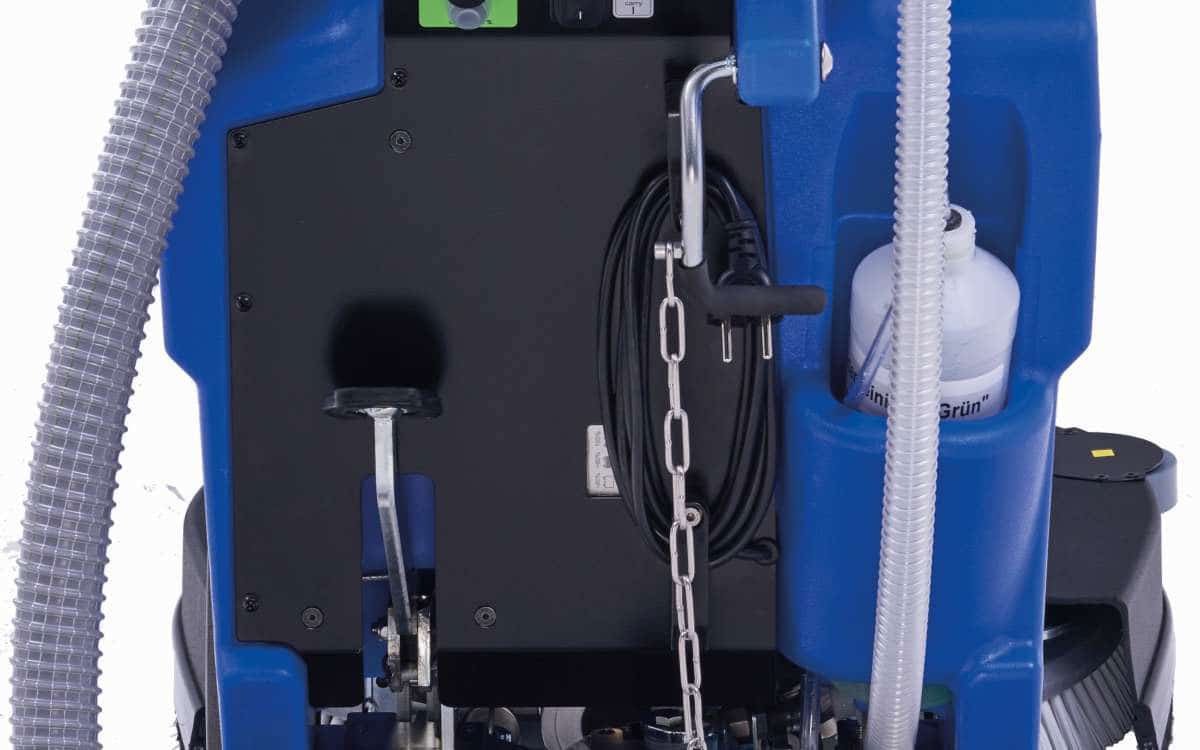

Very robust mechanics

Only truly durable machines are also truly green.

Vielseitig reinigen
Superb suction

The patented squeegee tool achieves superb suction results, even in the tightest corners.

Vielseitig reinigen

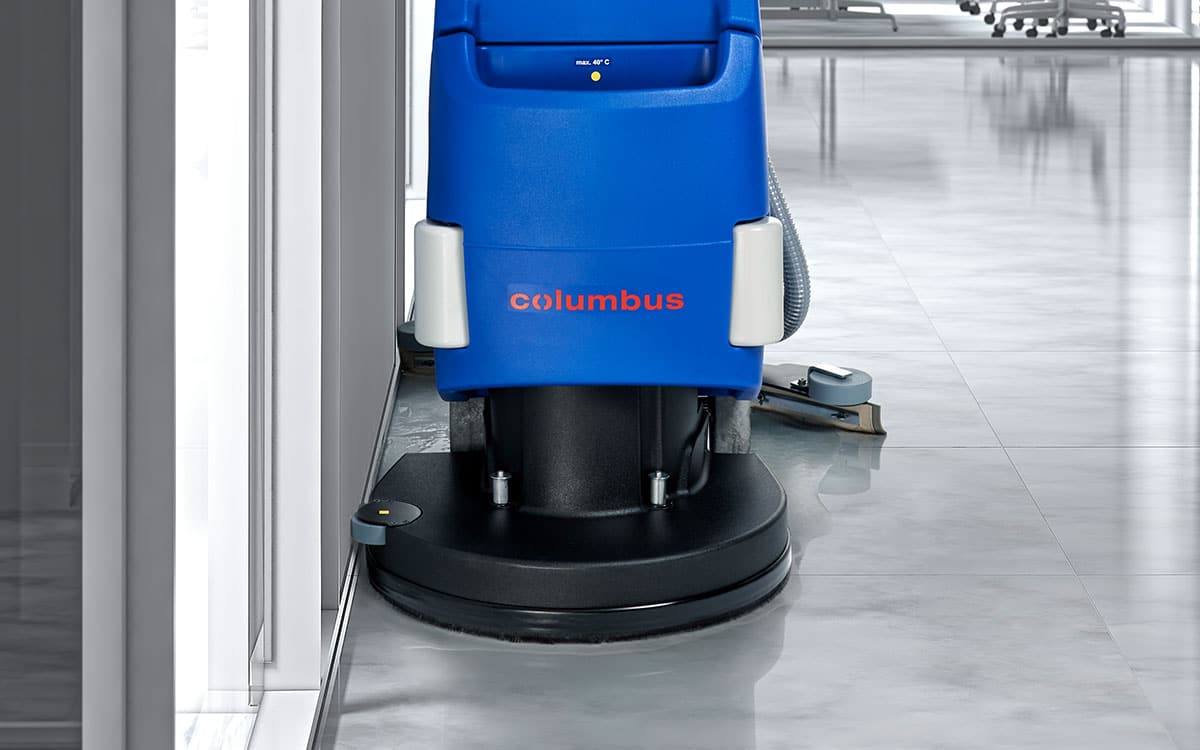

Clean right up to the edge

Perfect cleaning result, right up to the wall.

Vielseitig reinigen
Silence comes as standard

Ultra-quiet cleaning at only 60 dB(A) in noise-sensitive areas.

Vielseitig reinigen

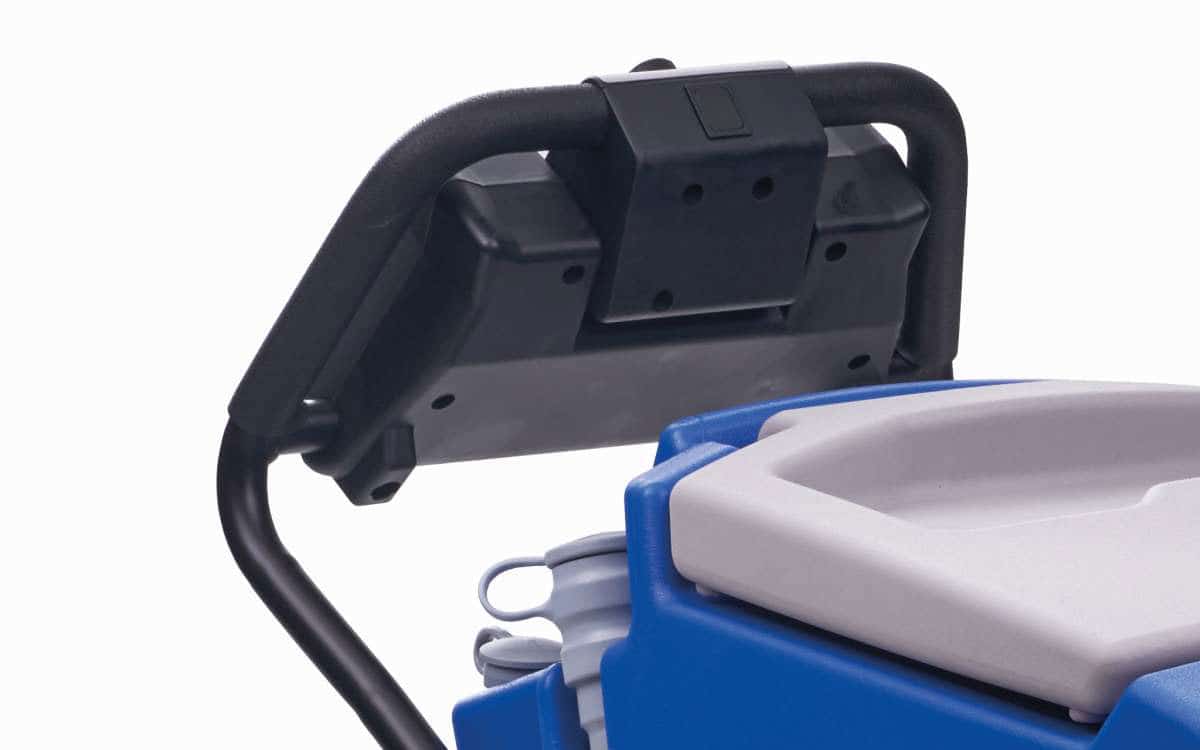

Quick Stop as standard

The brush motor and water supply stop automatically when you let go of the handle.

Vielseitig reinigen
Automatic brush holder

Change tools quickly and easily at the touch of a button.

  • High brush pressure

Excellent cleaning result with the lowest possible amounts of water and chemicals, even on very dirty surfaces.

  • Functional display

Intuitive and easy to understand for every operator.

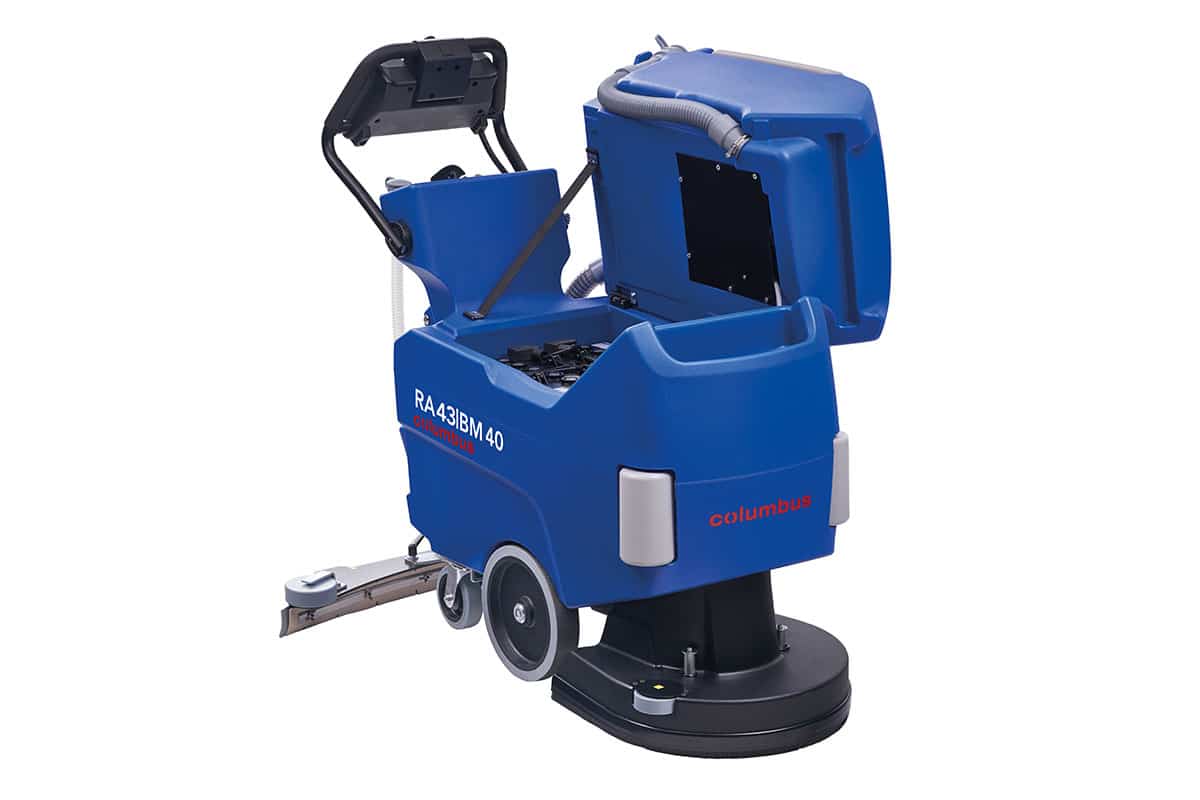

  • Easy-to-service components

Well thought-through design provides quick and easy access to all vital machine components.

  • Ergonomic steering handle

Easily adjustable steering handle, convenient for every operator.

  • Maintenance Instructions

Service markings simplify day-to-day care of machines.

  • Easy-clean machine

HACCP-compliant hygiene measures easily applied to all critical components.

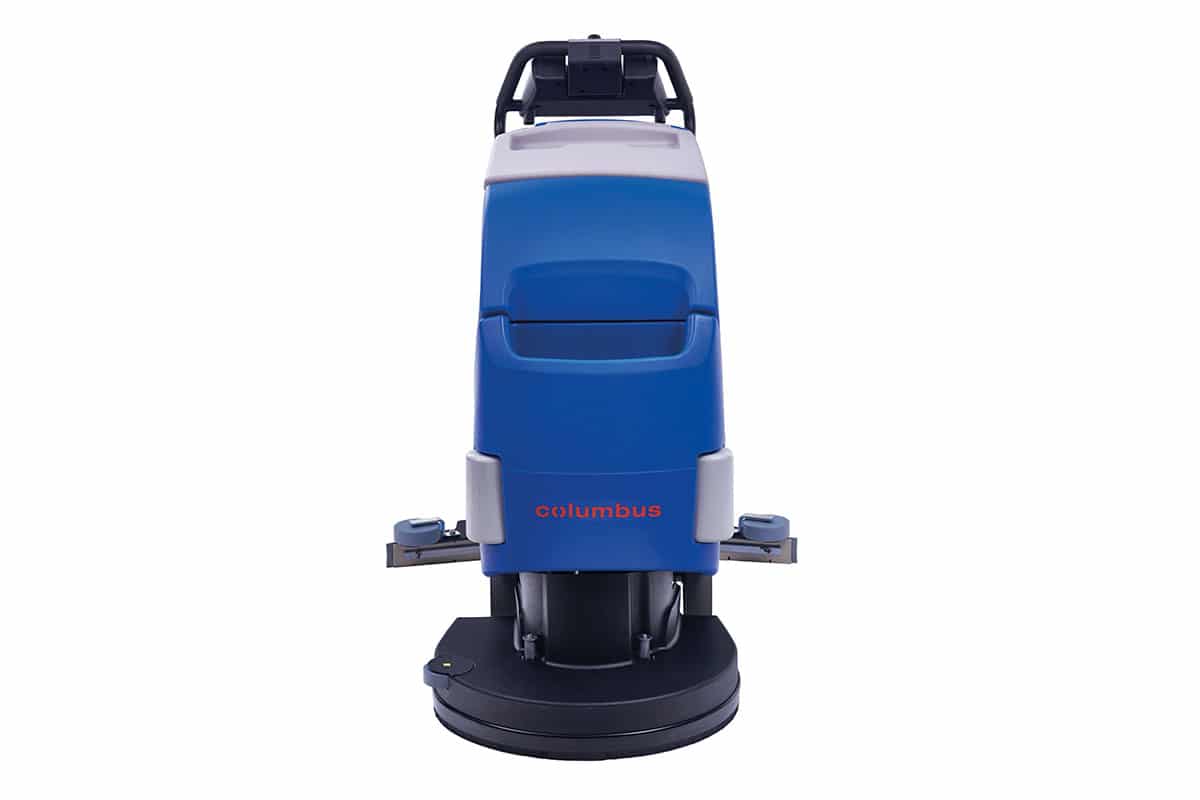

  • Compact construction

Maximum efficiency for the best possible size.

  • Made in Germany

Quality from Germany.

RA 43|BM 40
Optional equipment
Vielseitig reinigen
V-Eraser mop and wipe disinfection

WHO- and RKI-compliant mop and wipe disinfection on medium to large surfaces.

Vielseitig reinigen

With antibacterial tanks for all applications with high hygienic requirements.

Vielseitig reinigen
ECD – electronic Chemical dosing system

Only as much chemicals as absolutely necessary; this is good for the environment and the budget.

Vielseitig reinigen
EWD – electronic water dosing system

Cleaning operations with constant water quantity for consistently good cleaning quality.

RA55BM60 scrubber dryer floor scrubber cleaning machine
Tool board

Working tools for manual cleaning always at hand.

Vielseitig reinigen
Integrated charger

Charge the battery anywhere, with the high-quality integrated charger.

RA 43|BM 40
Technical data
Technical key data
L x W x H 1190 x 510 x 980 mm
Working width 430 mm
Suction width 735 mm
Theoretical coverage max. 1720 m²/h
Noise level 60 dB(A)
Empty weight 82 kg
Operating weight (180 Ah 5) 203 kg
Batteries / Electrical data
Rated voltage 24 V
Power max. 1130 W
Power cable
Capacity wet 110 Ah 5
Capacity gel 105 Ah 5
Solution tank capacity 40 l
Recovery tank capacity 45 l
Suction: low pressure 125 mbar
Suction: air flow 28 l/s
Traction: power 180 W
Traction: speed 4 km/h
Brushes and pad holders
Number 1
Speed 180 rpm
Brush pressure 21 kg
