Walk-behind
RA 66|BM 60 INOX
RA 66|BM 60 INOX
Overview
Fully equipped: the RA 66|BM 60 INOX stands out for its impressive features, including clever technology, user-friendly handling, flawless cleaning performance, and robust durability. It is specially designed for areas facing challenging conditions, either due to high hygienic requirements or aggressive environmental factors. The pairing of stainless steel and the noBAC® tank delivers unparalleled robustness, corrosion resistance, and meets the most stringent hygienic standards. This combination is ideal for demanding environments such as the food industry, swimming pools, medical technology, and more, ensuring durability and uncompromising hygiene. Its features, including an automatic brush deck, electronic water dosing, and the Quick-Fill system with Auto-Stop, ensure the highest level of user comfort. The machine offers intuitive operation, facilitated by the individually adjustable guide handle and a clearly structured operating panel.
Technical key data
RA 66|BM 60 INOX
Product highlights
Very robust mechanics
Only truly durable machines are also truly green.

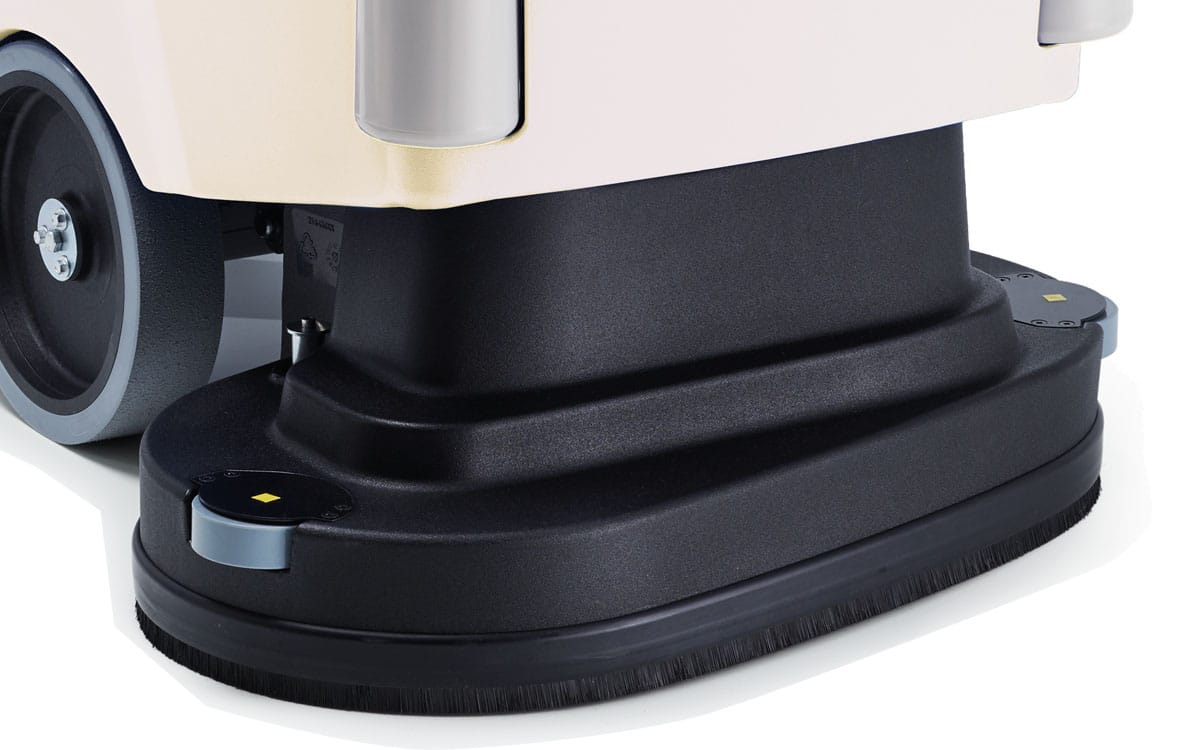

Automatic brush lift
Quickly and conveniently lower the brush deck or put it in the transport position at the touch of a button.
noBAC®
With antibacterial tanks for all applications with high hygienic requirements.
Quick Stop as standard
The brush motor and water supply stop automatically when you let go of the handle.
Easy operation
Effortless and extremely easy to operate even in narrow aisles and on surfaces with frequent corners.

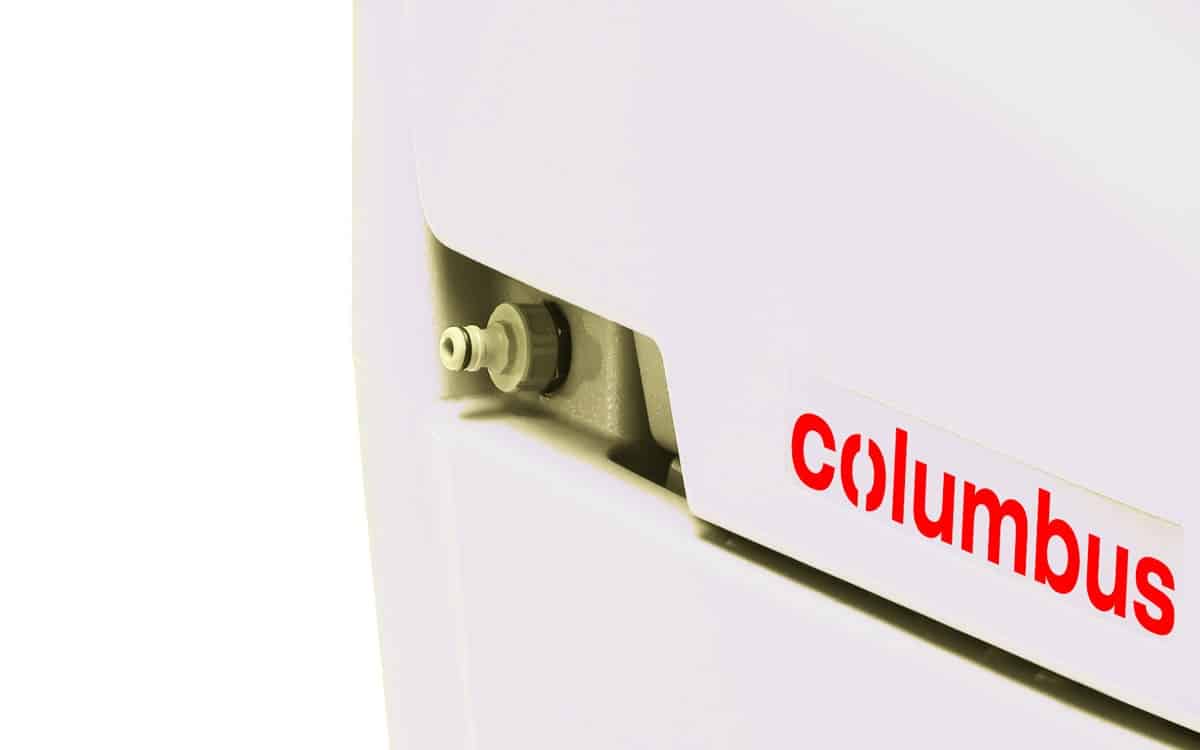

QUICK FILL function as standard
Clean water tank can be filled quickly and cleanly via the integrated system coupling.
Guarantees streak-free floors that can be walked on immediately after cleaning.
Change tools quickly and easily at the touch of a button.
Perfect cleaning result, right up to the wall.
Ultra-quiet cleaning at only 60 dB (A) in noise-sensitive areas.
The electronic water-dispensing system supplies exactly the right volume of water.
Well thought-through design provides quick and easy access to all vital machine components.

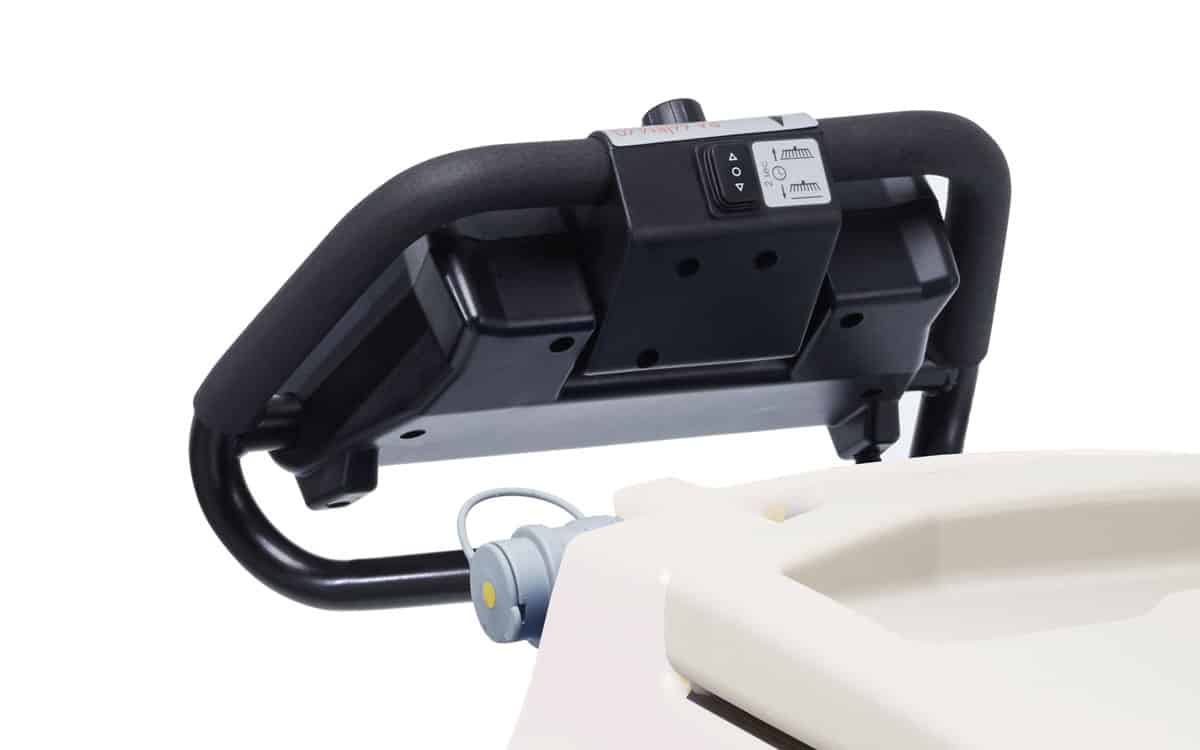

Easily adjustable steering handle, convenient for every operator.
The machine can be transported in any standard lift.
Quality from Germany.
Service markings simplify day-to-day care of machines.
RA 66|BM 60 INOX
Optional equipment
V-Eraser mop and wipe disinfection
WHO- and RKI-compliant mop and wipe disinfection on medium to large surfaces.
ECD – electronic Chemical dosing system
Only as much chemicals as absolutely necessary; this is good for the environment and the budget.
Double protection roller set
More protection for site and machine.
Tool board
Working tools for manual cleaning always at hand.
Integrated charger
Charge the battery anywhere, with the high-quality integrated charger.
RA 66|BM 60 INOX
Technical data
| Technical key data | |
|---|---|
| L x W x H | 1265 x 680 x 1005 mm |
| Working width | 660 mm |
| Suction width | 850 mm |
| Theoretical coverage max. | 2640 m²/h |
| Noise level | 60 dB (A) |
| Empty weight | 108 kg |
| Operating weight | 243 kg (105 Ah 5) |
| Batteries / Electrical data | |
|---|---|
| Rated voltage | 24 V |
| Power max. | 1180 W |
| Power cable | – |
| Capacity wet | 110 Ah 5 |
| Capacity gel | 105 Ah 5 |
| Tank | |
|---|---|
| Solution tank capacity | 60 l |
| Recovery tank capacity | 64 l |
| Motors | |
|---|---|
| Suction: low pressure | 110 mbar |
| Suction: air flow | 32 l/s |
| Traction: power | 300 W |
| Traction: speed | 6 km/h |
| Brushes and pad holders | |
|---|---|
| Number | 2 |
| Speed | 180 rpm |
| Brush pressure | 37 kg |
