ARA 66|BM 70

ARA 66|BM 70

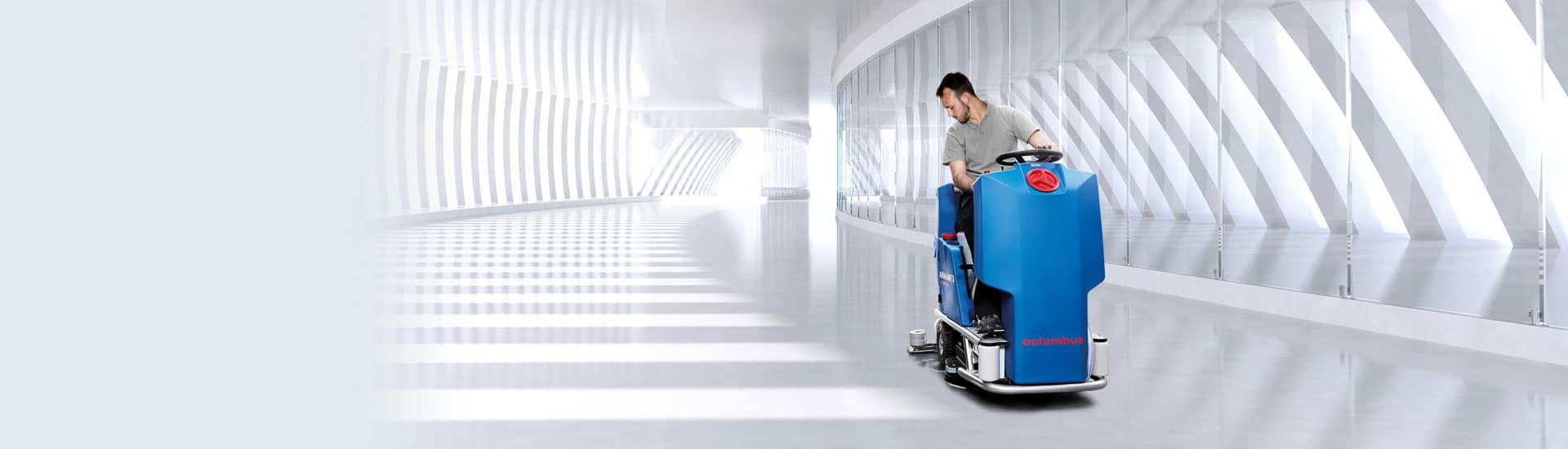

Ergonomic, efficient and exceptionally compact: these three qualities are necessary for the economical and flexible cleaning of medium-sized and heavily-furnished areas. With a capacity of 70 litres, this ride-on scrubber dryer fits into all standard lifts and can easily negotiate narrow aisles and checkout areas. It features a clear, self-explanatory operating panel, comfortable low step height and seat ergonomics that are perfectly adapted to the needs of all users. The adaptive brush system ensures full pressure even on uneven floors. Particularly simple and hygienic: tools can be changed at the press of a button.

Technical key data
  • Tank capacity 70 l
  • Working width 660 mm

  • Theoretical coverage max. 4620 m²/h

  • Brush pressure 30 kg
ARA 66|BM 70
Product highlights
Vielseitig reinigen
Compact construction

Compact ride-on sweeper, ideal for use in densely furnished areas.

Vielseitig reinigen
Automatic brush holder

Change tools quickly and easily at the touch of a button.

Vielseitig reinigen
“QUICK FILL” function as standard

Clean water tank can be filled quickly and cleanly via the integrated system coupling.

Vielseitig reinigen
Superb suction

Guarantees streak-free floors that can be walked on immediately after cleaning.

Vielseitig reinigen
Optimum access height

Ideal if the operator has to step on and off frequently during long cleaning periods.

Vielseitig reinigen
Tight turning circle

Unbeatable manoeuvrability.

  • High brush pressure

Excellent cleaning result with the lowest possible amounts of water and chemicals, even on very dirty surfaces.

  • EWD – Electronic water-dispensing system

The electronic water-dispensing system supplies exactly the right volume of water.

  • HACCP-compliant

Large inspection openings enable both tanks to be cleaned thoroughly, with ease.

  • Excellent climbing ability

Optimum cleaning results on up to 12% slope.

  • Operating width designed for checkout aisles

Optimum operating width for cleaning in supermarket checkout areas.

  • Toolflex as standard

Never without a mop.

  • Made in Germany

Quality from Germany.

ARA 66|BM 70
Optional equipment
Vielseitig reinigen
V-Eraser mop and wipe disinfection

WHO- and RKI-compliant mop and wipe disinfection on medium to large surfaces.

Vielseitig reinigen

With antibacterial tanks for all applications with high hygienic requirements.

Vielseitig reinigen
silent Version

For cleaning in noise-sensitive areas or during business hours.

Vielseitig reinigen
ECD – electronic Chemical dosing system

Only as much chemicals as absolutely necessary; this is good for the environment and the budget.

Vielseitig reinigen

Maximum operational safety due to rotating beacon.

Vielseitig reinigen
Tyre equipment „comfort plus“

Different type ofTyres for greater driving comfort.

  • Driver’s seat „comfort plus“

More ergonomics and comfort for the driver during long working hours.

  • Performance kit

More cleaning performance for special site requirements.

  • Additional tank for cleaning chemicals

More effectiveness in case of frequent changes of cleaning chemicals.

  • Integrated charger

Charge the battery anywhere, with the high-quality integrated charger.

  • BluePoint LED Warning light

Increased safety, due to the blue light of the Blue Spot, where there is a lot of traffic from industrial trucks or similar.

ARA 66|BM 70
Technical data
Technical key data
L x W x H 1380 x 680 x 1170 mm
Working width 660 mm
Suction width 850 mm
Theoretical coverage max. 4620 m²/h
Noise level 63 / 59 dB(A)
Empty weight 187 kg
Operating weight 456 kg (180 Ah 5)
Batteries / Electrical data
Rated voltage 24 V
Power max. 1690 W
Capacity wet 200 Ah 5
Capacity gel 180 Ah 5
Solution tank capacity 70 l
Recovery tank capacity 80 l
Suction: low pressure 110 mbar
Suction: air flow 32 l/s
Traction: power 750 W
Traction: speed 7 km/h
Brushes and pad holders
Number 2
Speed 180 rpm
Brush pressure 30 kg
