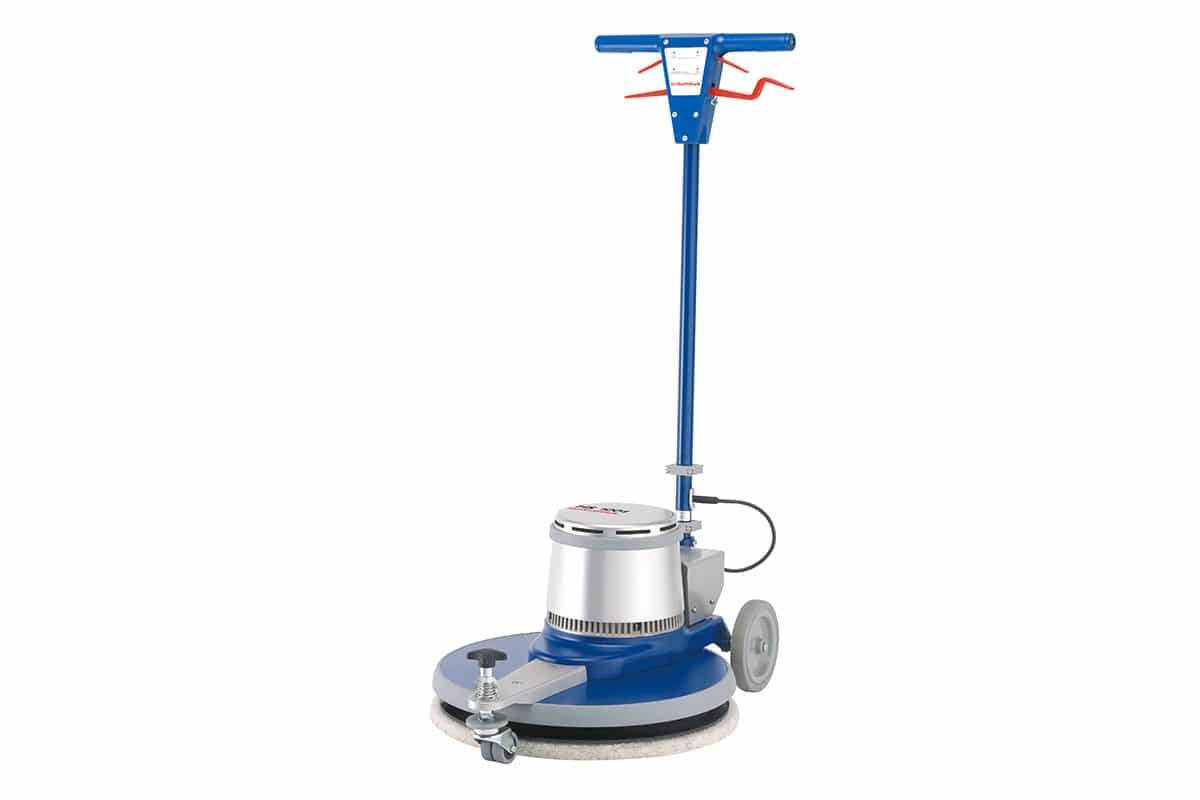

Single disc machine
HS 1001
HS 1001
Overview
This powerful and easy-to-control high-speed machine ensures a high-gloss finish on large surfaces. A super shine on even the hardest surface coatings is guaranteed thanks to a speed of 1000 rpm. The mechanical pressure limit reliably protects the floor covering against burns.
Technical key data
Working width 500 mm
Ground clearance max. 95 mm
Weight 42,5 kg
Speed 1000 rpm
HS 1001
Product highlights

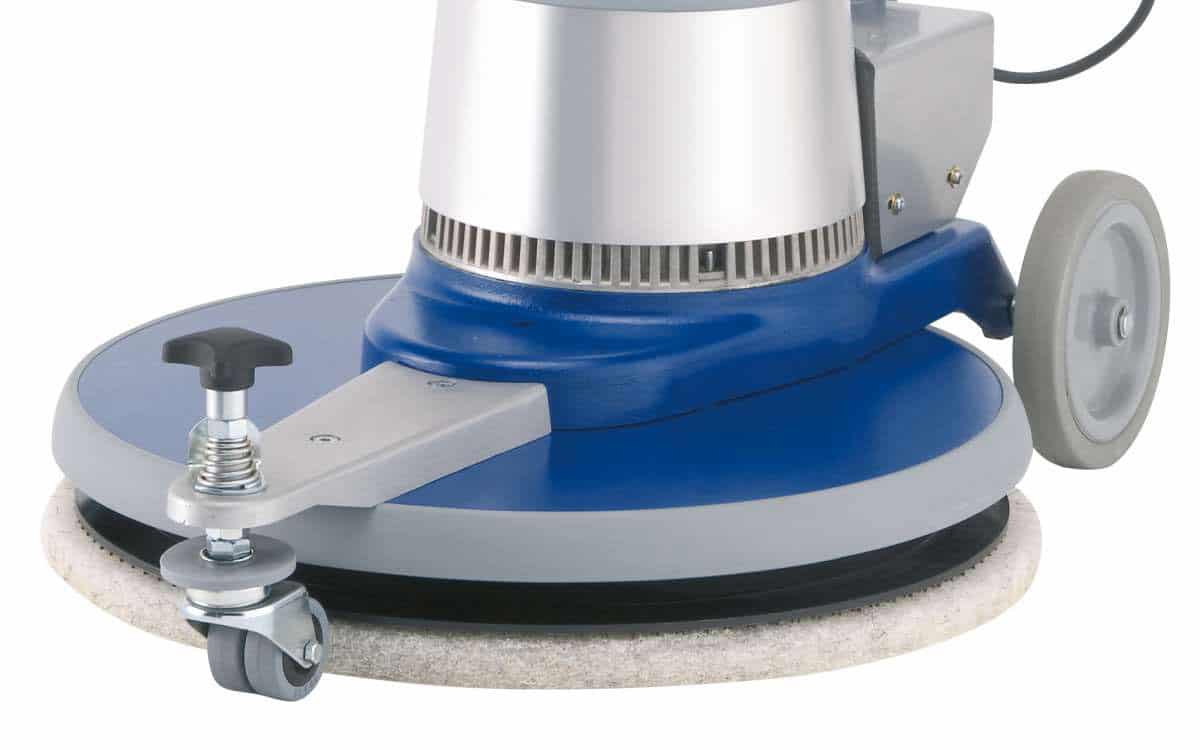

Integrated pad holder
The machine comes equipped with a pad holder designed for working at the highest speeds.

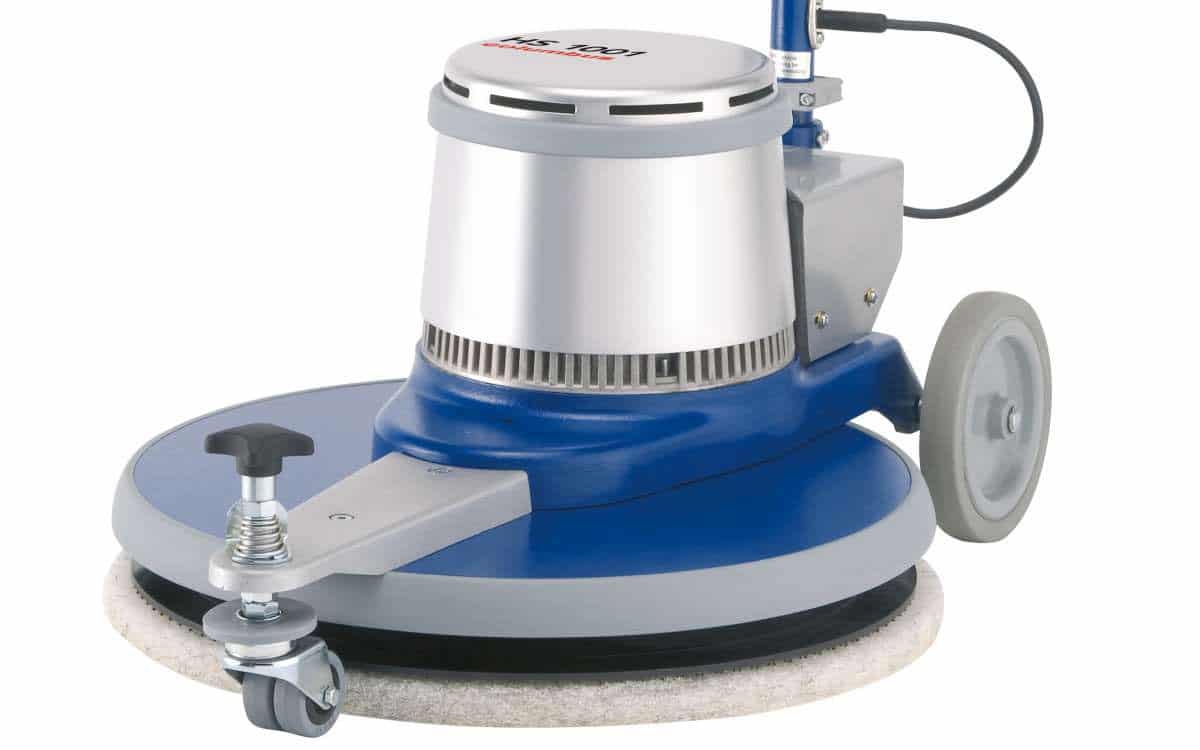

Solid metal construction
Robust cast aluminium housing.
Ultra-quiet
The machine operates so quietly that it can even be used during working hours.

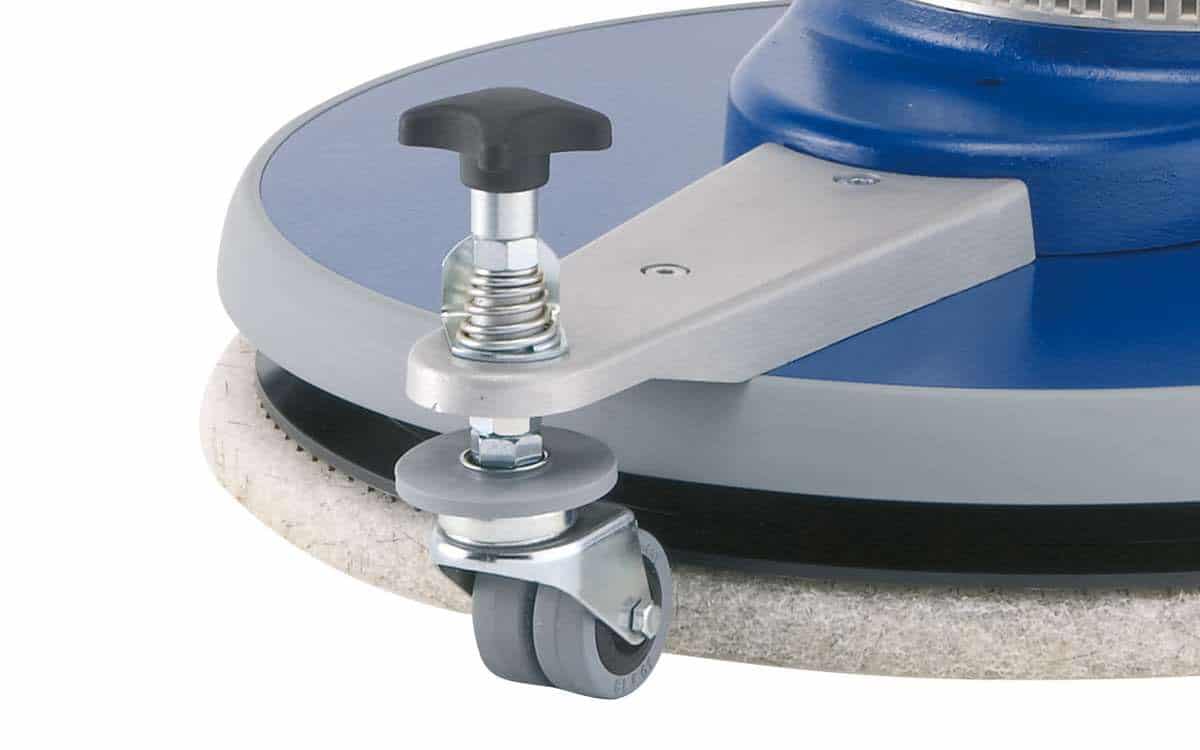

Mechanical pressure limit
Adjustable mechanical pressure limit effectively protects floor coverings from damage.
Made in Germany
Robust single-brush machines for daily, long-term use. Tried and tested for over 70 years.

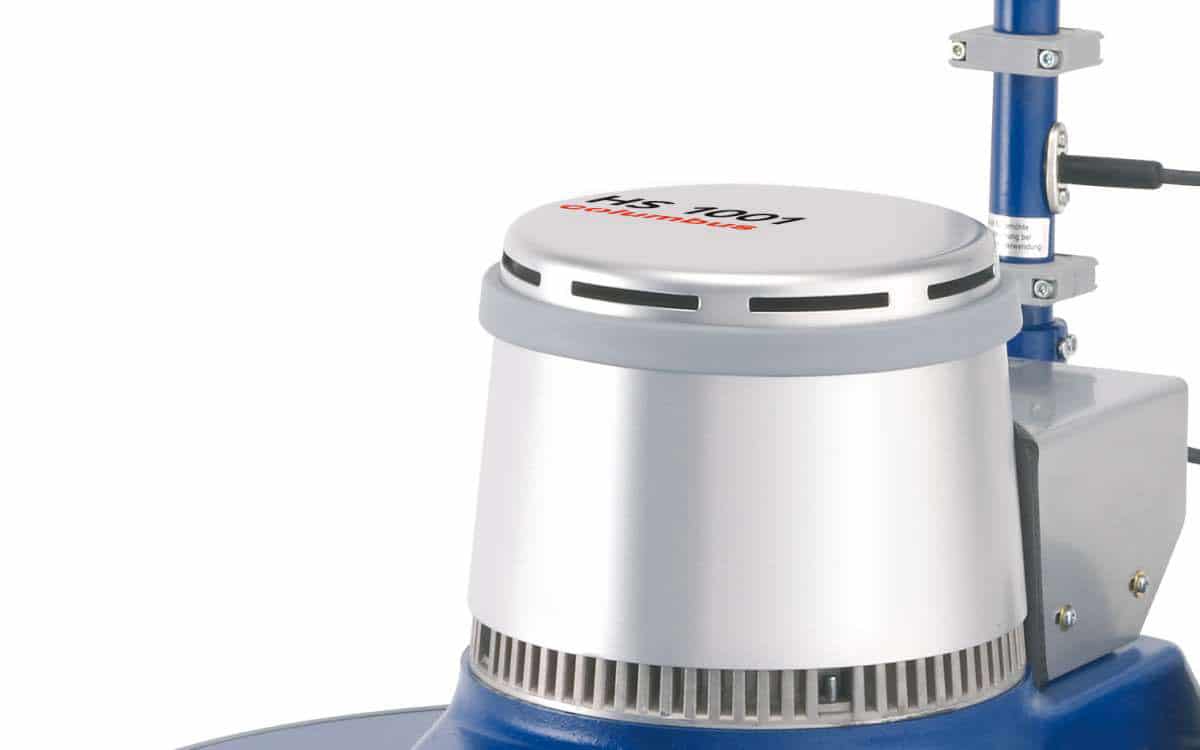

10 years warranty
Long service life guaranteed: 10 years warranty for motors and drives.
- Ultra-high speed
High-gloss finish, even on the hardest surfaces.
- Flat construction
For easy cleaning under radiators, pipes and shelves.
- Belt drive
The belt drive ensures that the machine runs quietly, even at speeds of up to 1600 rpm.
- Infinitely adjustable steering handle
Work safely and ergonomically with an infinitely adjustable steering handle.
HS 1001
Technical data
| Technical key data | |
|---|---|
| L x W x H | 500 x 770 x 1160 mm |
| Working width | 500 mm |
| Ground clearance max. | 95 mm |
| Working height max. | 330 mm |
| Noise level | 63 db(A) |
| Weight | 42,5 kg |
| Electrical data | |
|---|---|
| Rated voltage | 230 V / 50 Hz |
| Power total | 1500 W |
| Power heater fan | – |
| Driving motor | – |
| Mains cable | 12 m |
| Brushes and pad holders | |
|---|---|
| Speed | 1000 rpm |
