Project Description

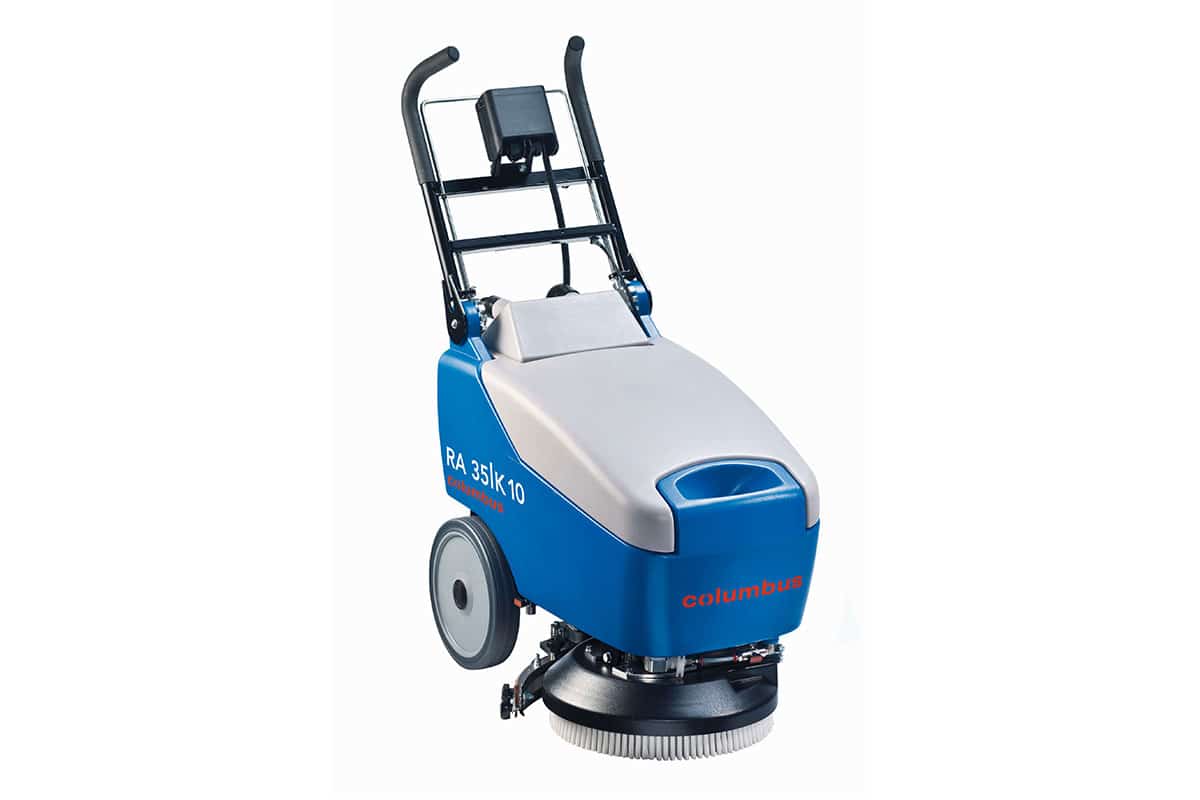

RA 35|K 10
Overview
Ultra-compact and extremely manoeuvrable: the low-cost scrubber dryer for small areas and heavily congested spaces. Ideal for changing work areas, the large wheels facilitate manoeuvring and transportation up and down stairs. Mains operated version for continuous working without downtimes for recharging.
Technical key data
- Tank capacity 10 l
- Working width 350 mm
- Theoretical coverage max. 1400 m²/h
- Traction motor no
RA 35|K 10
Product highlights

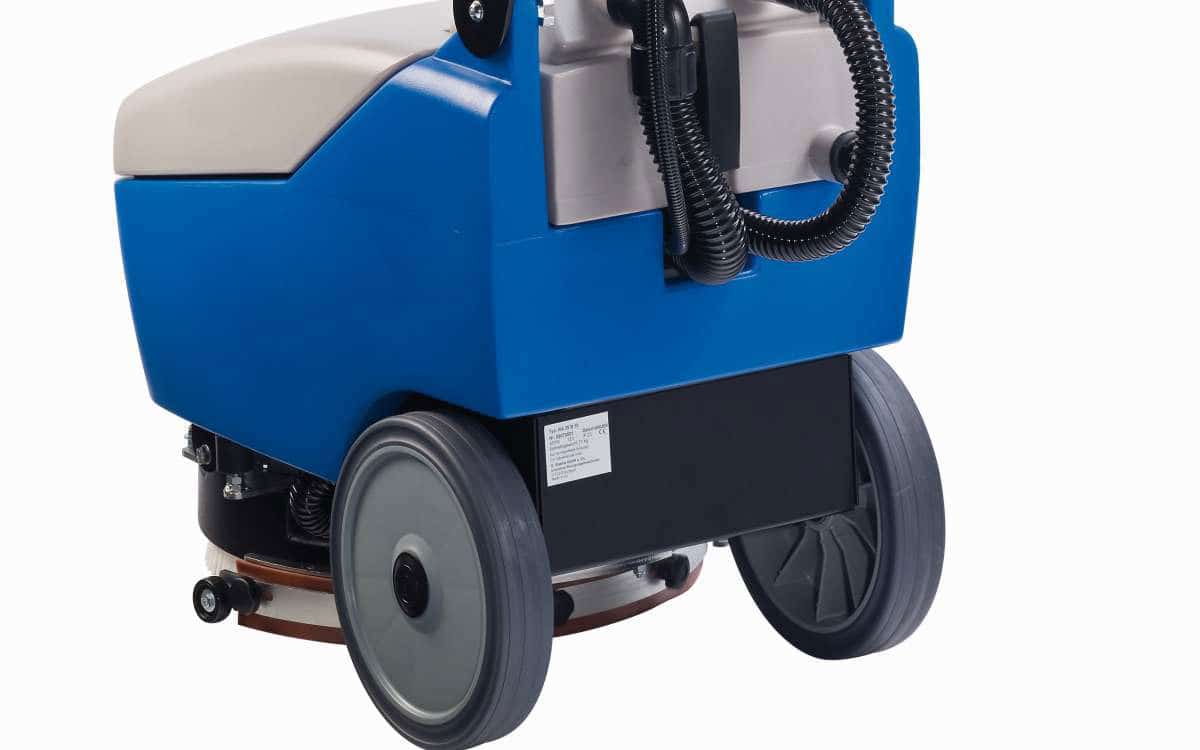

Compact construction
Flat design and extendible steering handle make cleaning under furniture etc. easy.

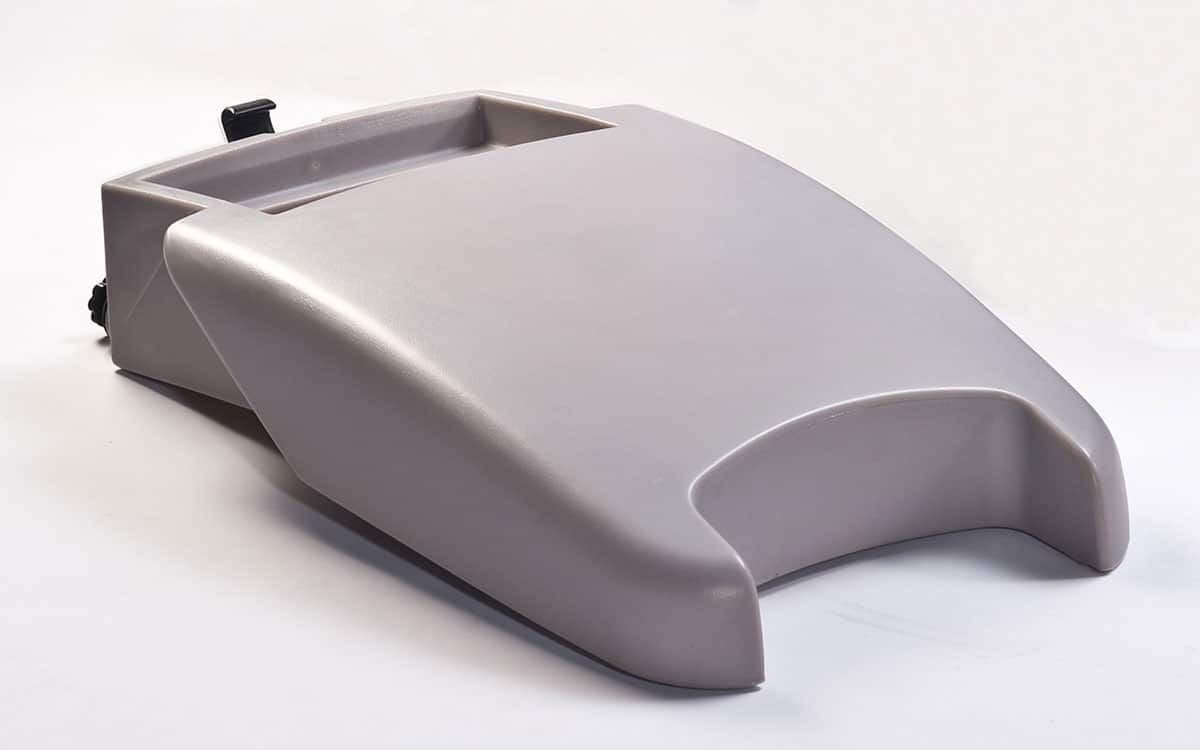

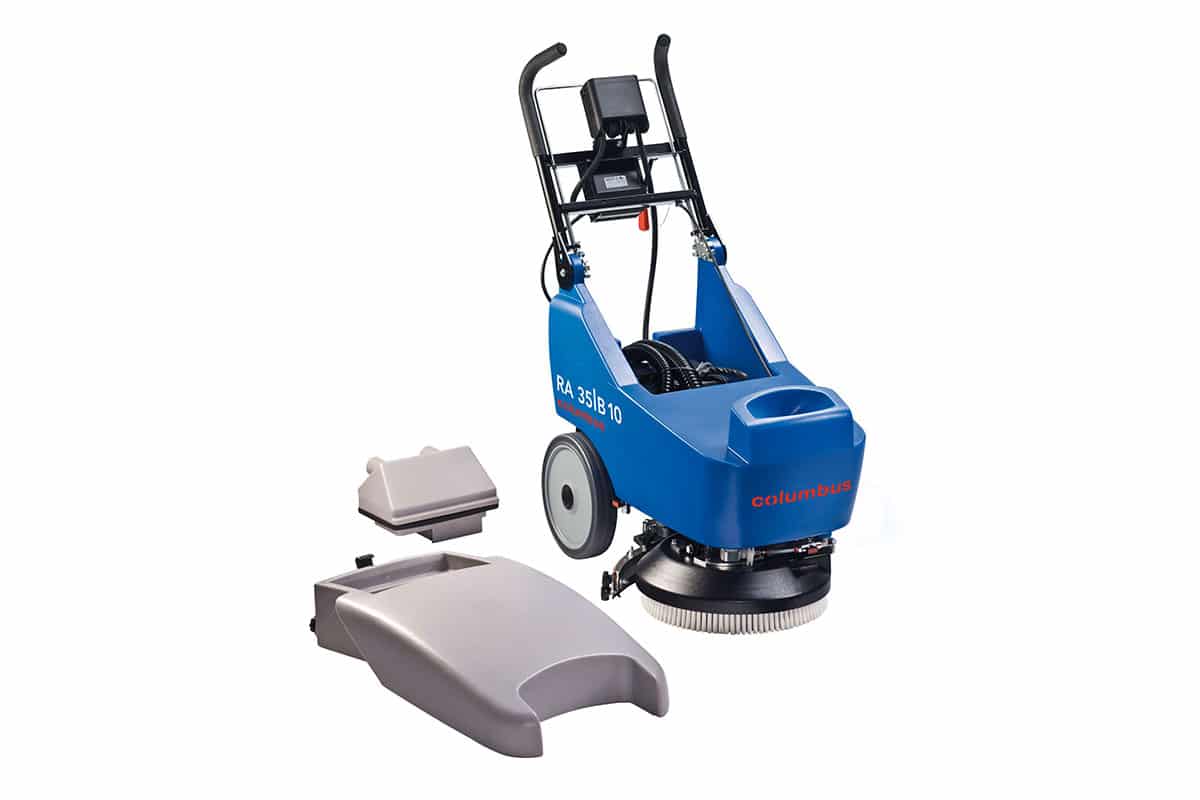

Autoclavable dirty water tank
Dirty water tank can be removed without tools, guaranteeing the highest levels of disinfection, to comply with specific hygiene regulations.

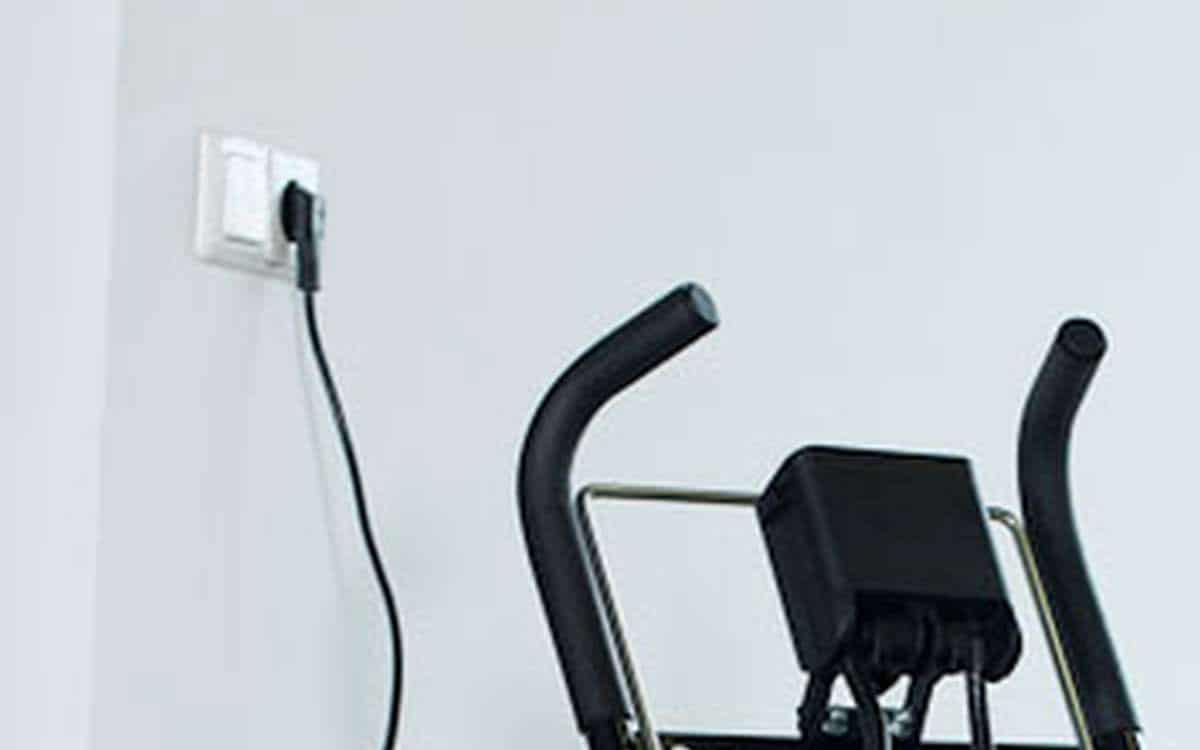

Non-stop operation
Simply plug into the mains and switch on, to start working without having to charge the batteries.

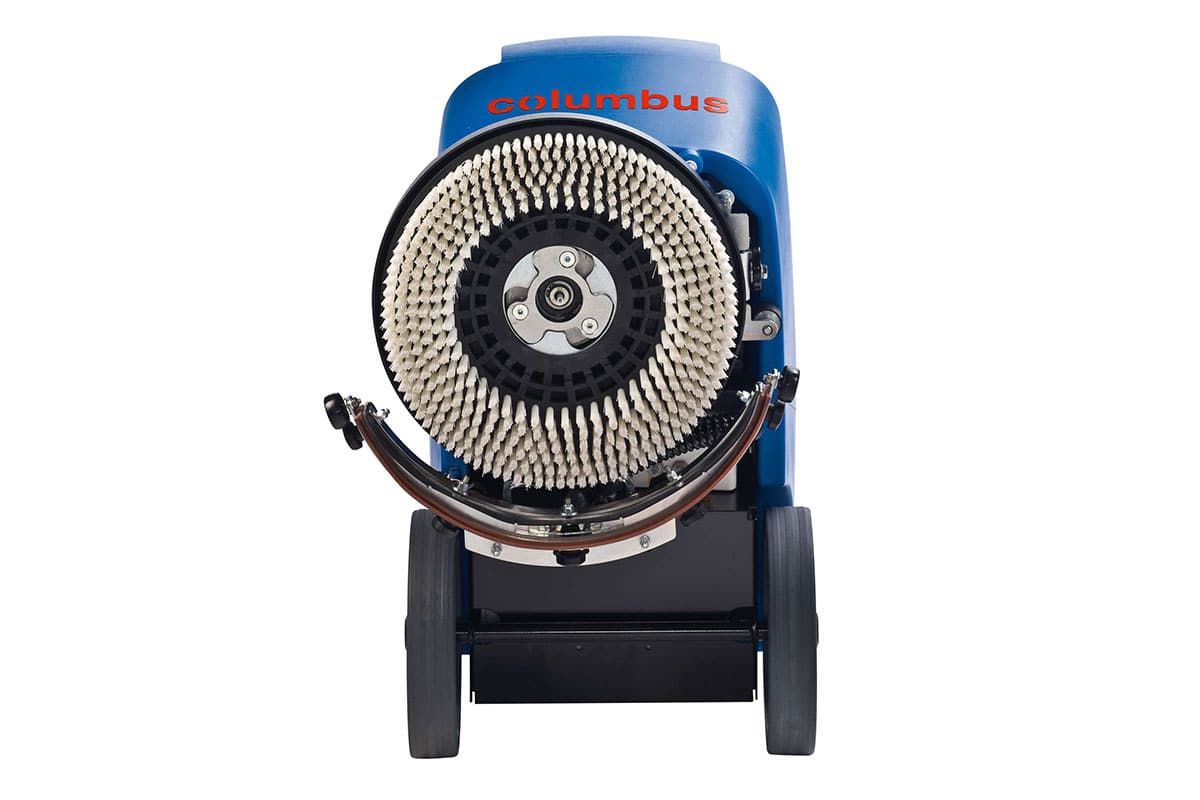

Clean right up to the edge
Perfect cleaning result, right up to the wall.

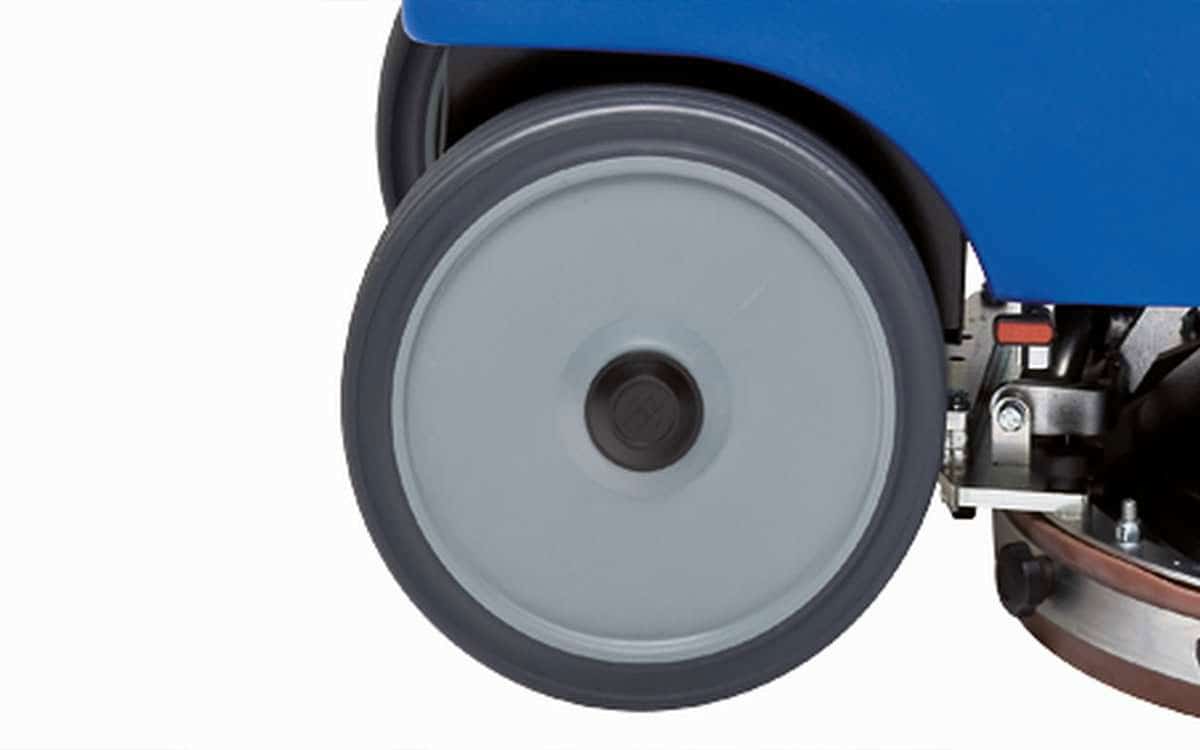

Large wheels
Large wheels make it easier to transport and manoeuvre over steps.
Clever emptying system
Dirty water can be emptied directly into a floor drain or quickly and easily drained into a drainage sink.

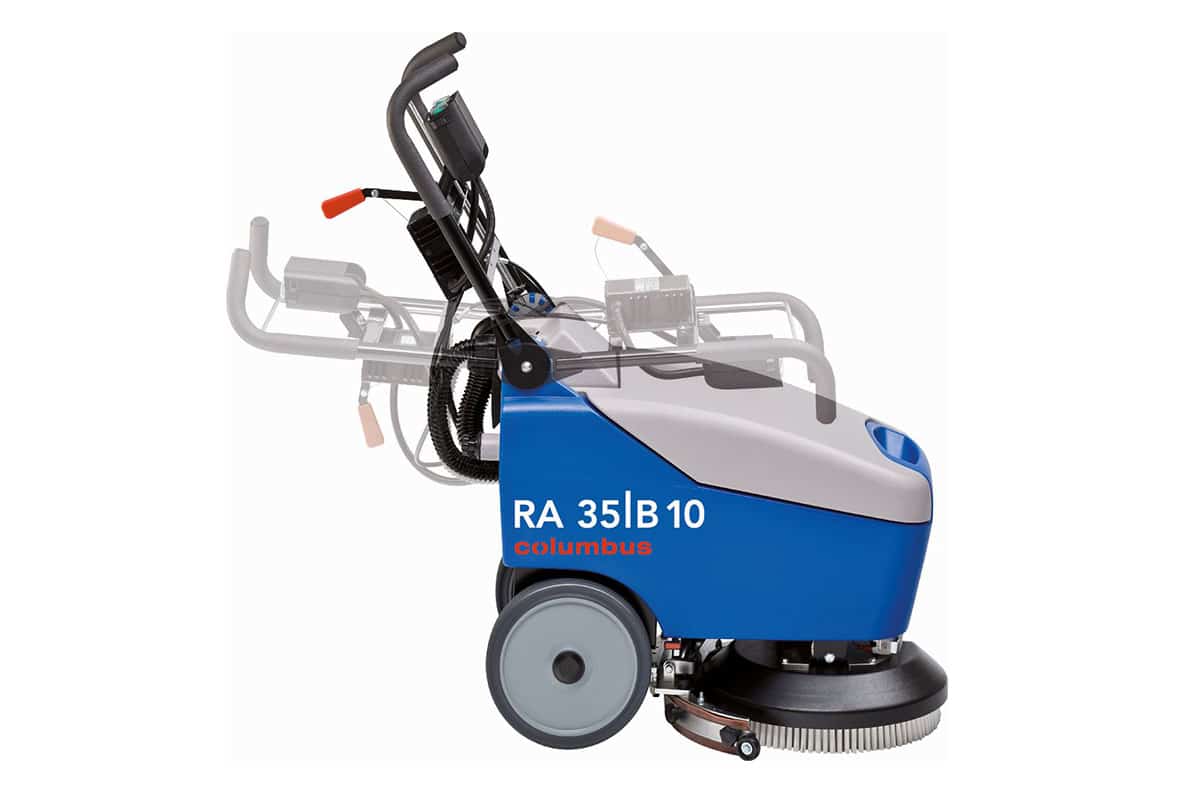

- Ergonomic steering handle
Easily adjustable steering handle, convenient for every operator.
- Easy-to-service components
Well thought-through design provides quick and easy access to all vital machine components.
- Very robust mechanics
Only truly durable machines are also truly green.
- Superb suction
Guarantees streak-free floors that can be walked on immediately after cleaning.
- Compact construction
Maximum efficiency for the best possible size.
- Easy-clean machine
HACCP-compliant hygiene measures easily applied to all critical components.
- Maintenance Instructions
Service markings simplify day-to-day care of machines.
- Tested and certified by EUnited
Exceptional cleaning results with the minimum consumption energy and water. Tested and certified by the EUnited cleaning association.
RA 35|K 10
Technical data
| Technical key data | |
|---|---|
| L x W x H | 735 x 490 x 650 mm |
| Working width | 350 mm |
| Suction width | 420 mm |
| Theoretical coverage max. | 1400 m²/h |
| Noise level | 66 dB(A) |
| Empty weight | 39 kg |
| Operating weight (180 Ah 5) | 49 kg |
| Batteries / Electrical data | |
|---|---|
| Rated voltage | 230 V |
| Power max. | 470 W |
| Power cable | 12 m |
| Capacity wet | – |
| Capacity gel | – |
| Tank | |
|---|---|
| Solution tank capacity | 10 l |
| Recovery tank capacity | 11,5 l |
| Motors | |
|---|---|
| Suction: Low pressure | 52 mbar |
| Suction: Air flow | 14,5 l/s |
| Brushes and pad holders | |
|---|---|
| Number | 1 |
| Speed | 190 rpm |
| Brush pressure | 28 kg |
RA 35|K 10
Downloads
RA 35|K 10
Accessories
As a specialist for contract cleaning, columbus offers you, in addition to first-class machines, a wide range of accessories for an individual adaption to your equipment and your requirements.
